GVWR
7,000 lbs
Est. Payload
Up to 4,150 lbs
Axle Size
(2) 3,500#
Interior Height
7'
Frame
All-Aluminum
Design Layouts & Specifications
Standard Features
All Options
- (A) Ground Clearance - 14" Approx.
- (B) Overall Length - 25' 10 1/2"
- (C) Interior Length - 17' 10"
- (D) Interior Height - 7'
- (E) Ramp Door Height - 6' 9 1/2"
- (F) Overall Height - 9' 2 1/2"
- (G) Box Length - 20' 2"
- (H) Between Wheel Wells - 6' 11 1/2"
- (I) Box Width - 8' 4"
Standard Features
| Chassis |
|---|
| Full Perimeter Aluminum Frame |
| All Tube Construction |

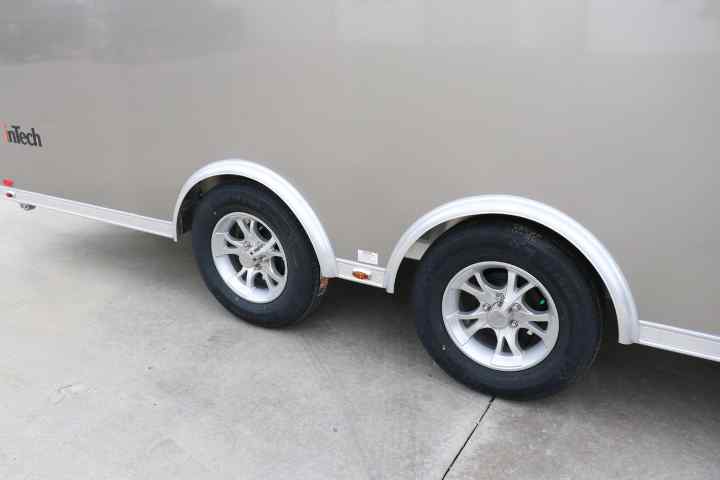

| Tandem 3500# Dexter Torsion Axles with ST205/75R15 Tires |

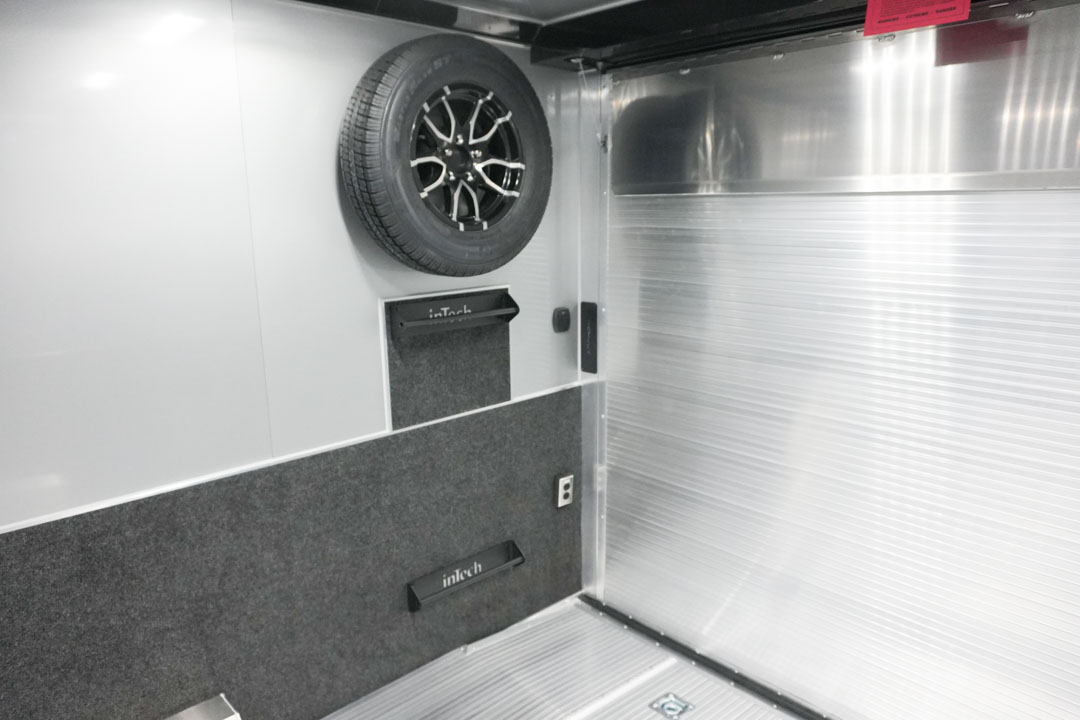

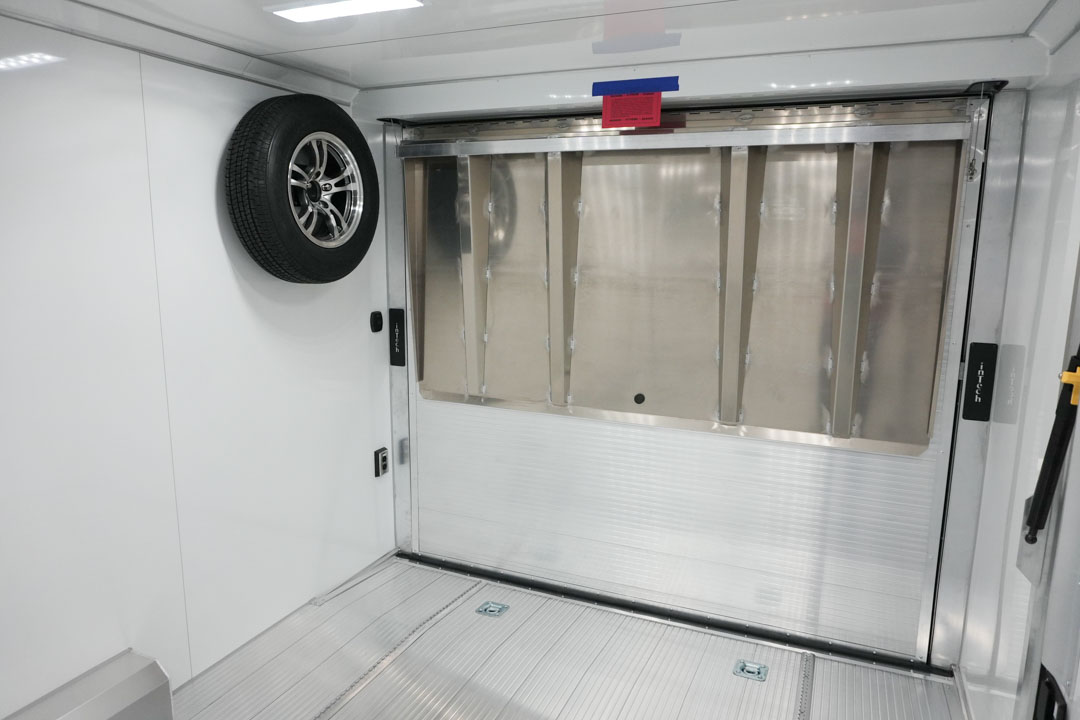

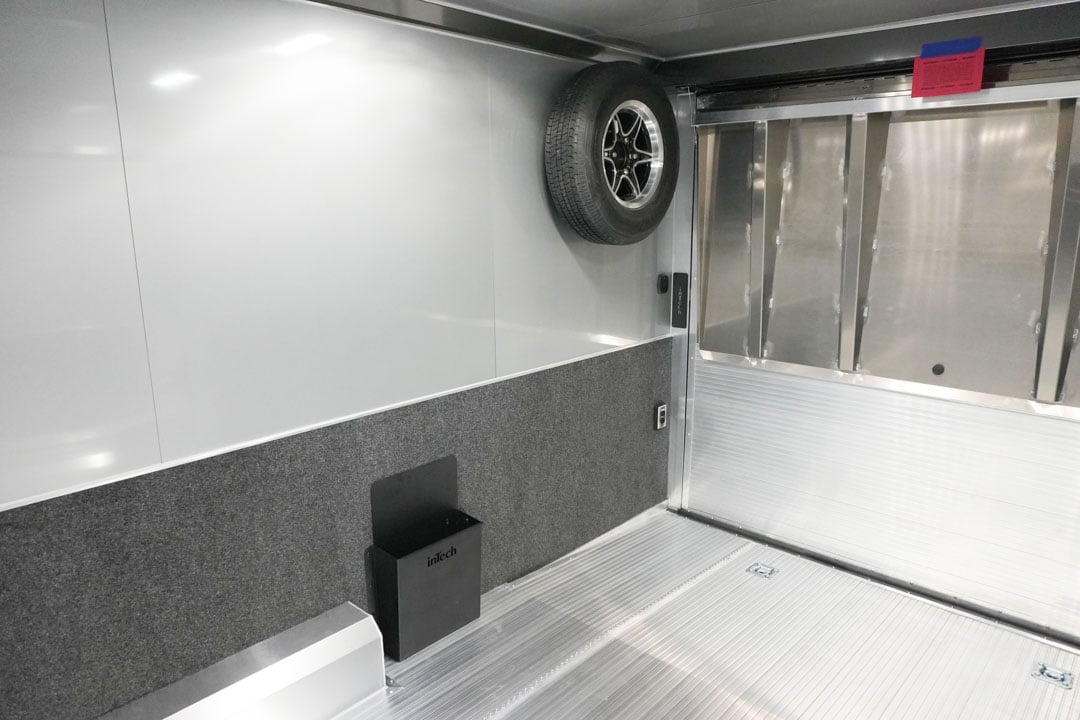

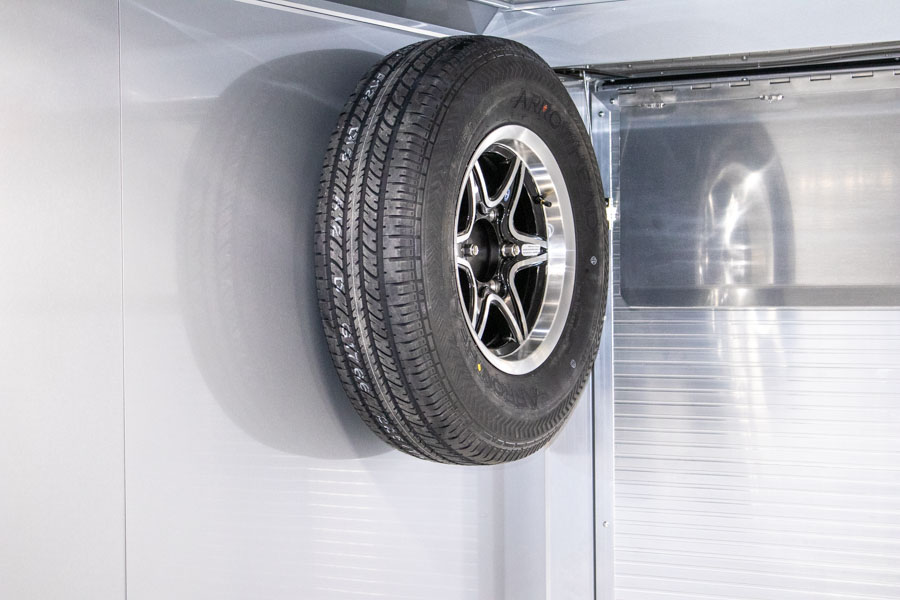

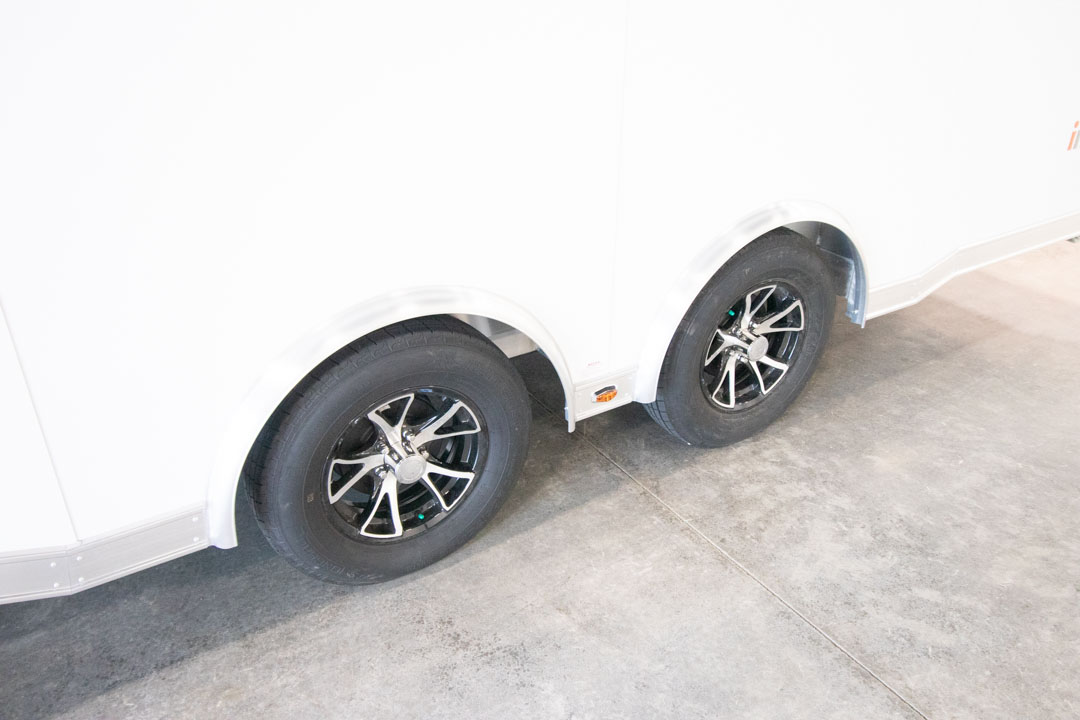

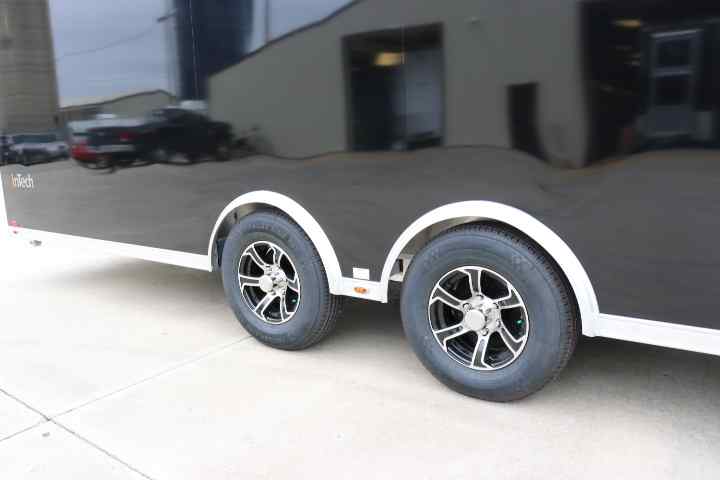

| Aluminum Wheels and Full Spare with Mount |
| Electric Brakes - All Axles |
| Breakaway Battery Kit |
| 7-Way Trailer Plug |
| 2 5/16" Ball Coupler |
| Safety Chains |
| 5000# Side Crank Manual Jack |

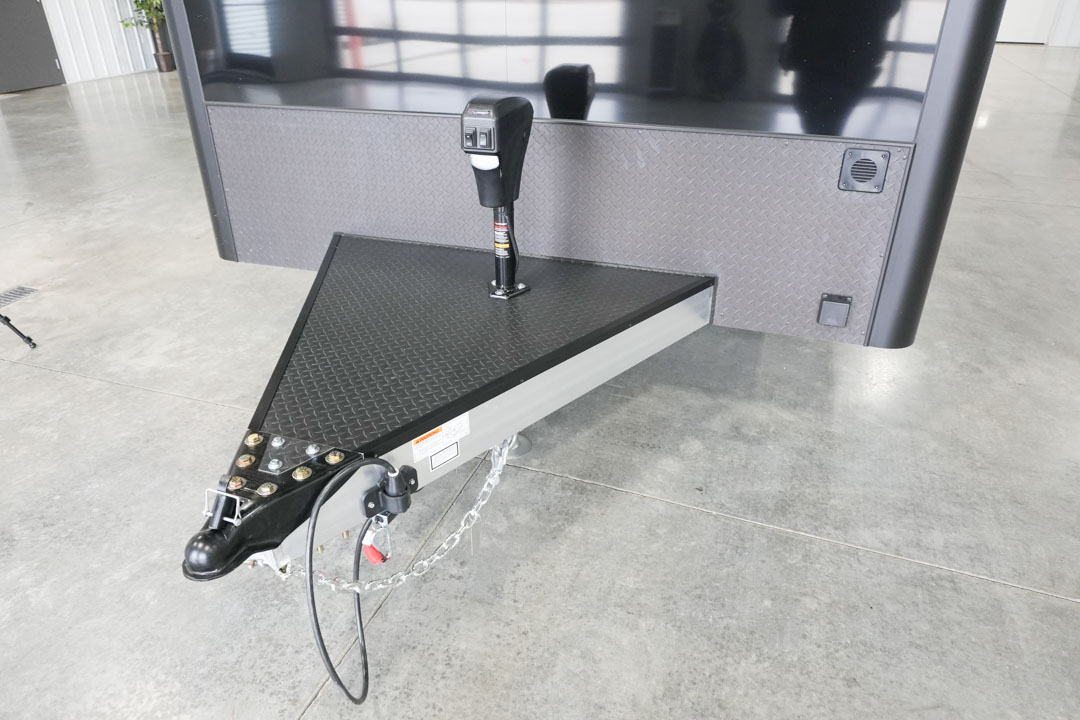

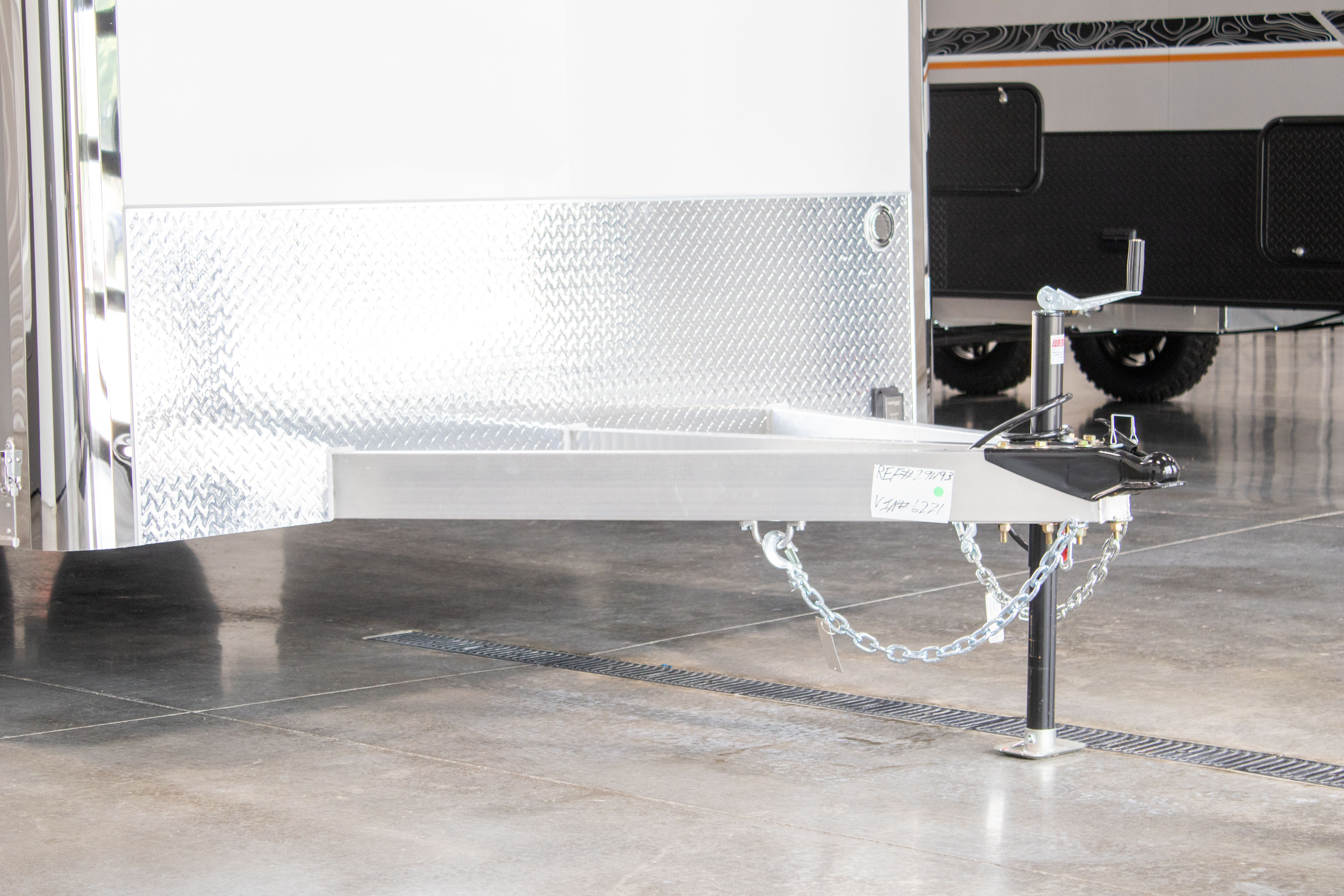

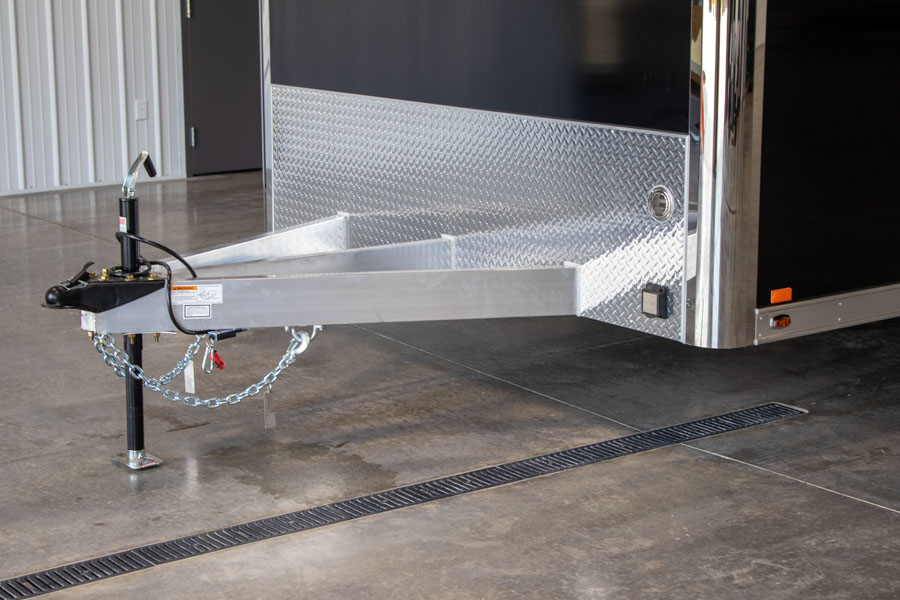

| Triple Tube Extended Tongue |
| 16" O/C Floor Crossmembers |
| 16" O/C Roof & Wall Studs |

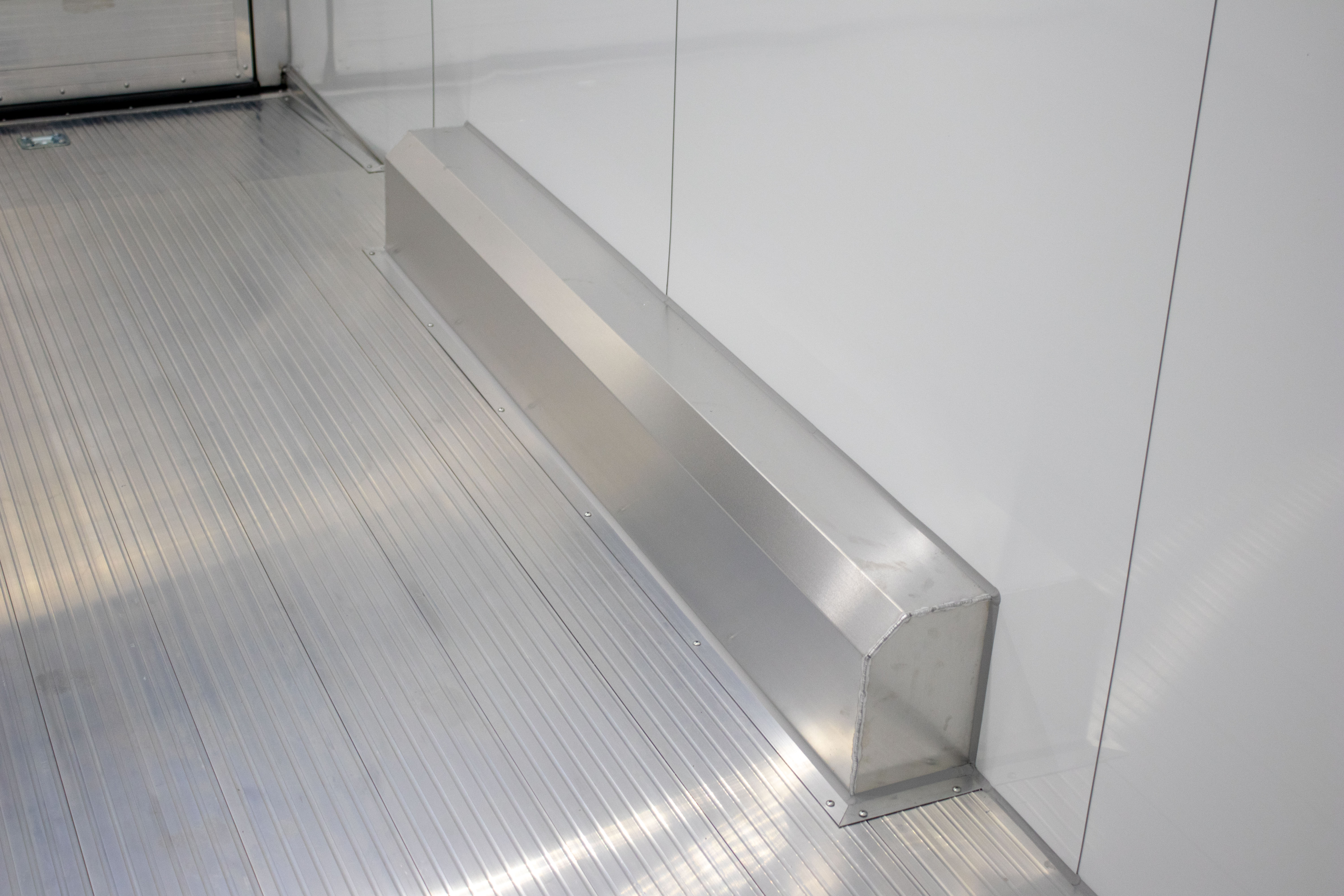

| Smooth Aluminum Wheel Boxes with Chamfered Edge |

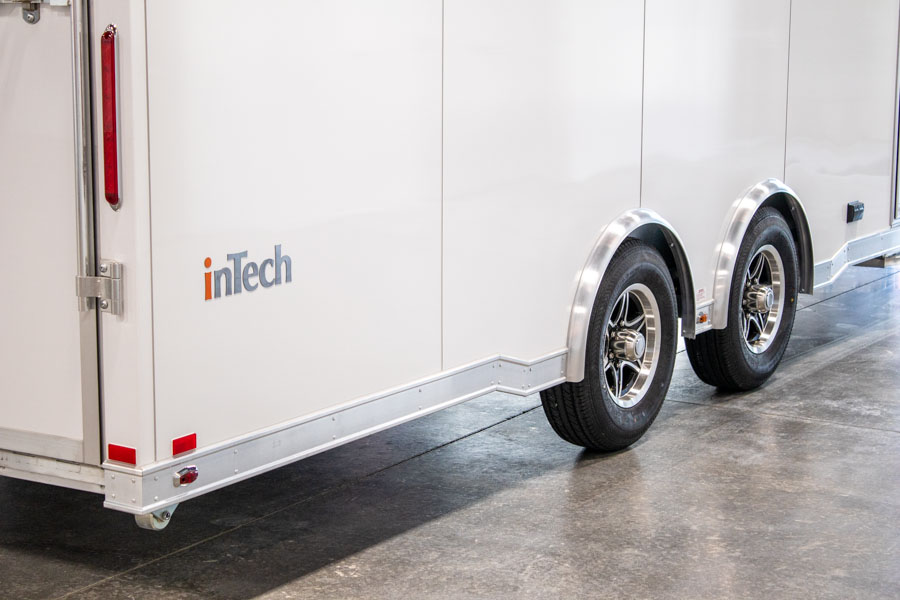

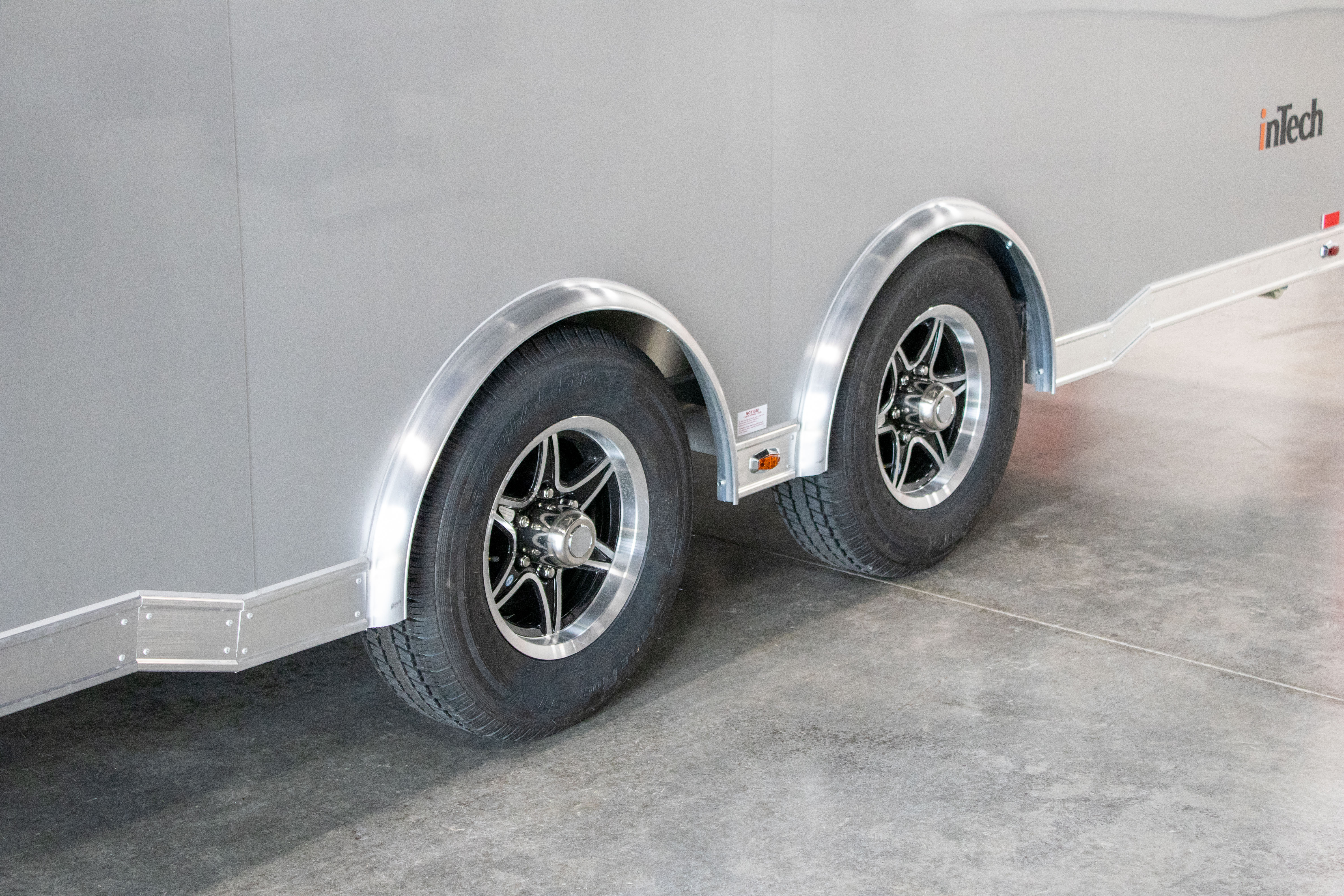

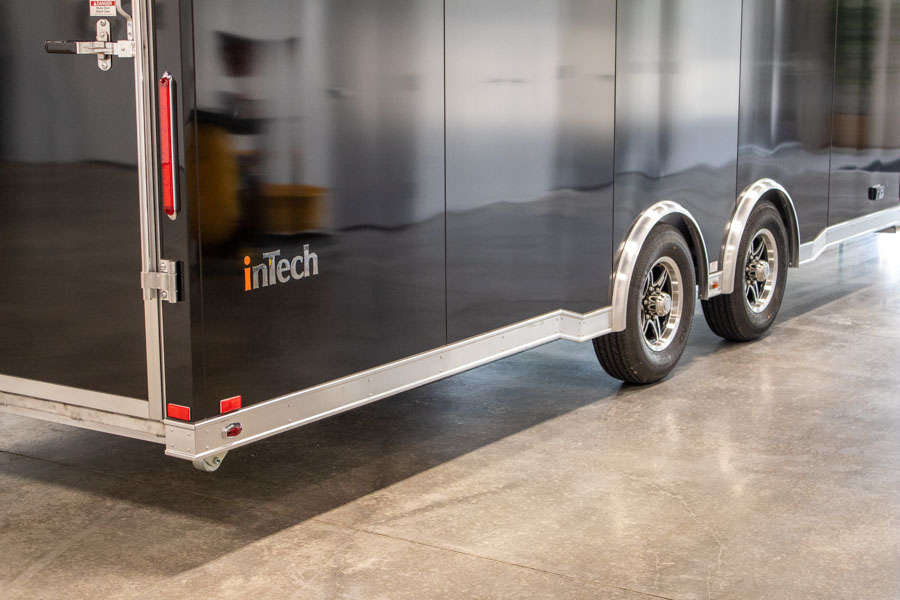

| Spread Axle Design with Individual Fenderettes and Wheel Skirt |

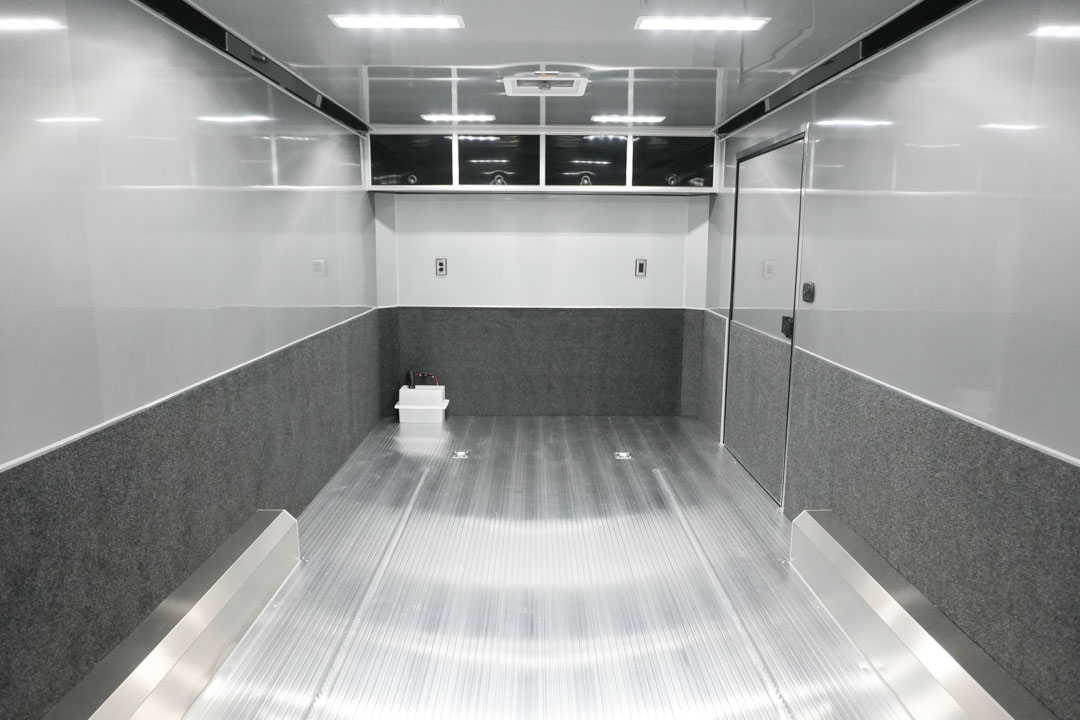

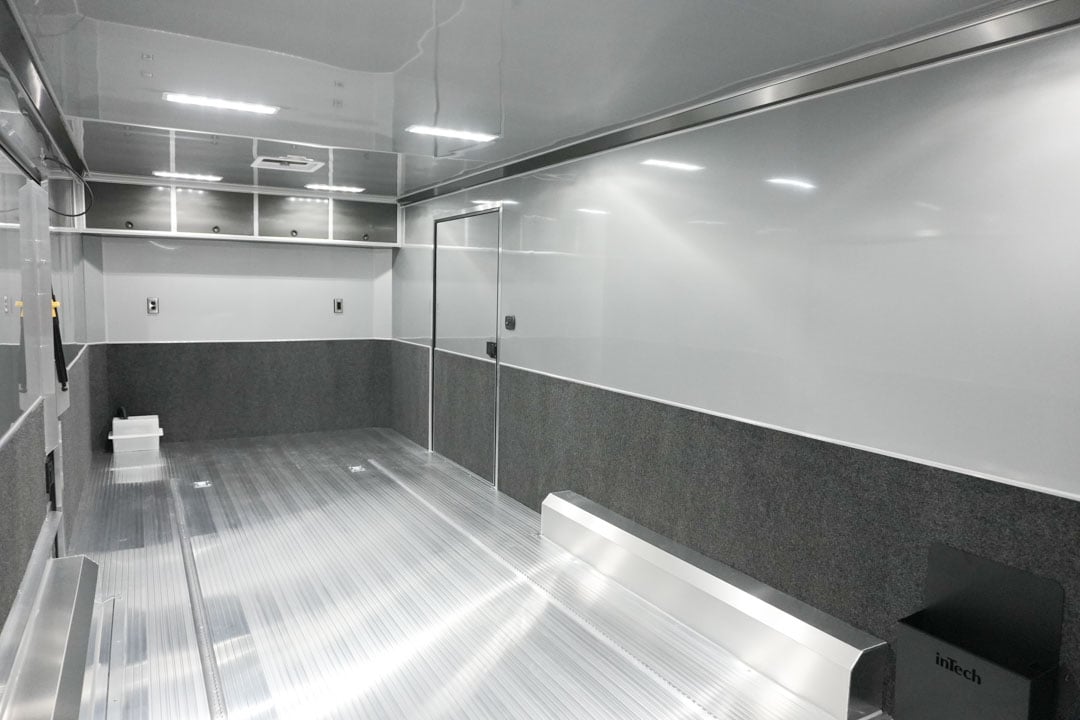

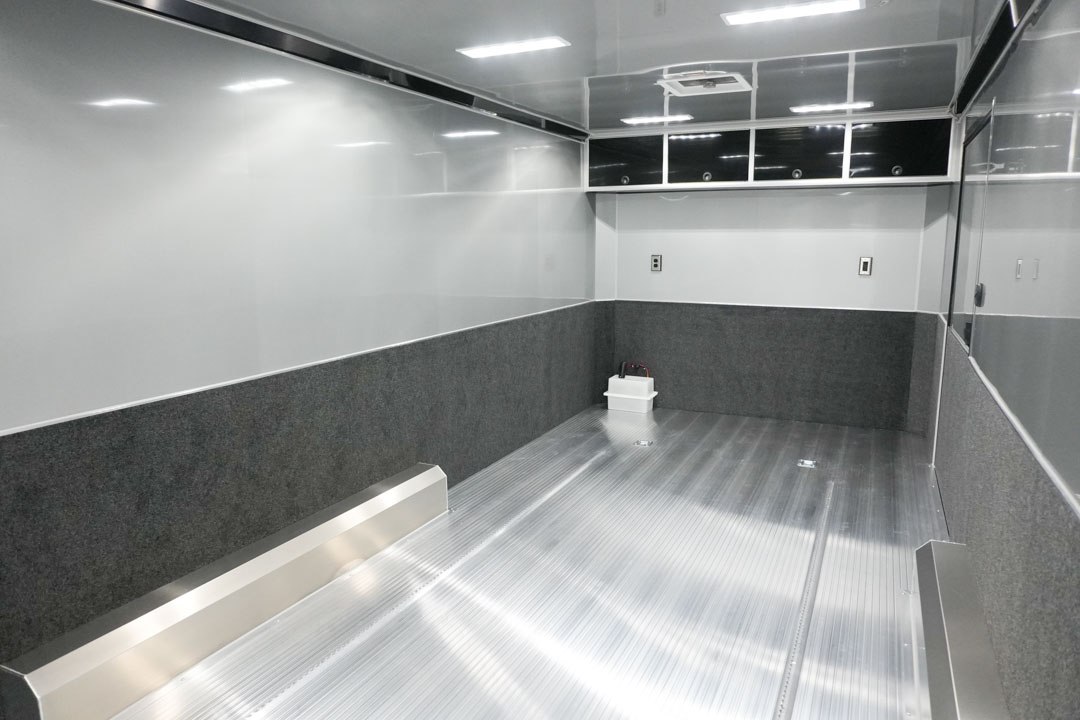

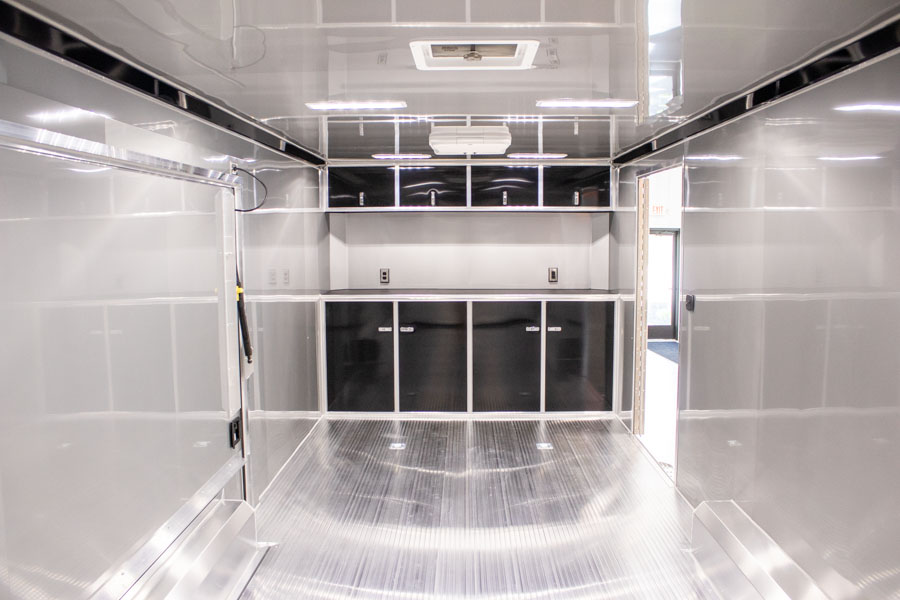

| Interior |
|---|

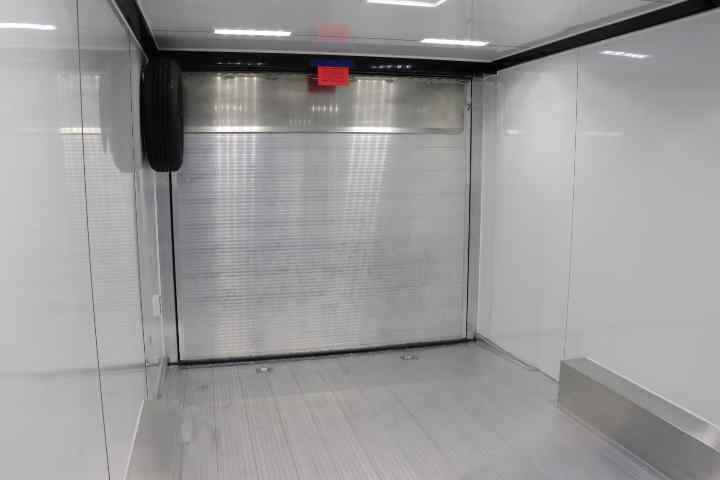

| White Vinyl Walls & Ceiling |

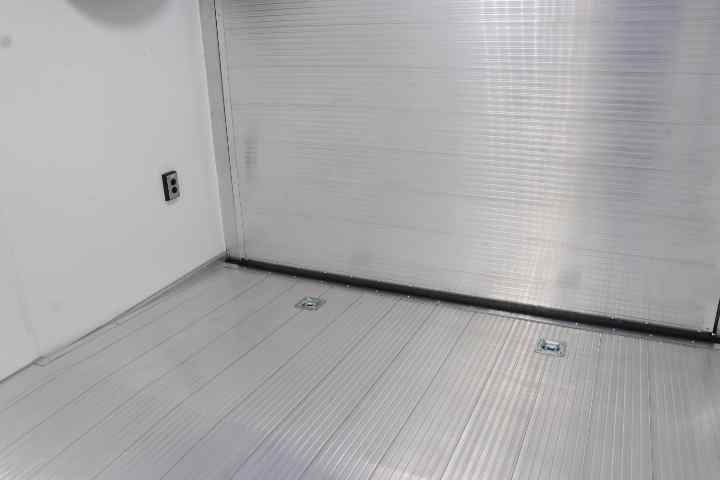

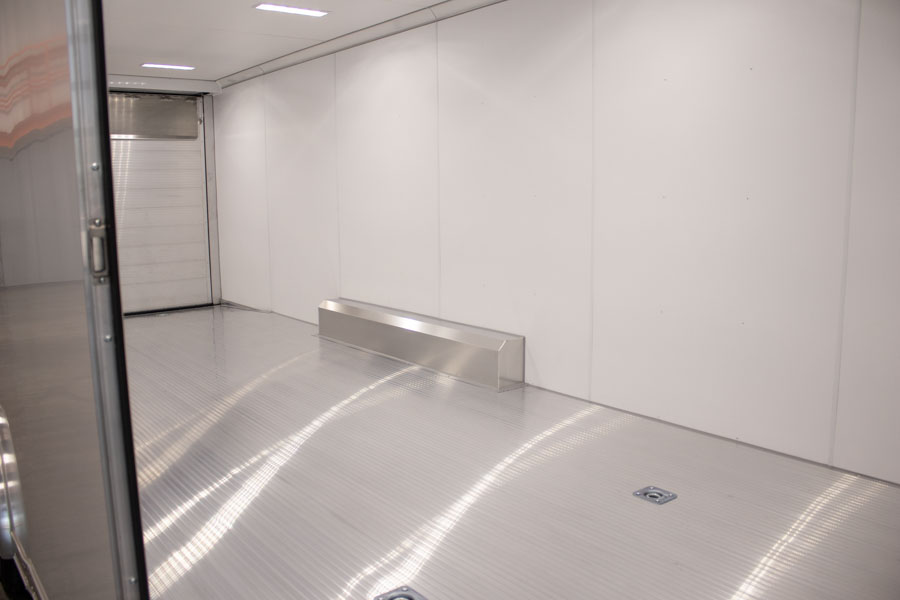

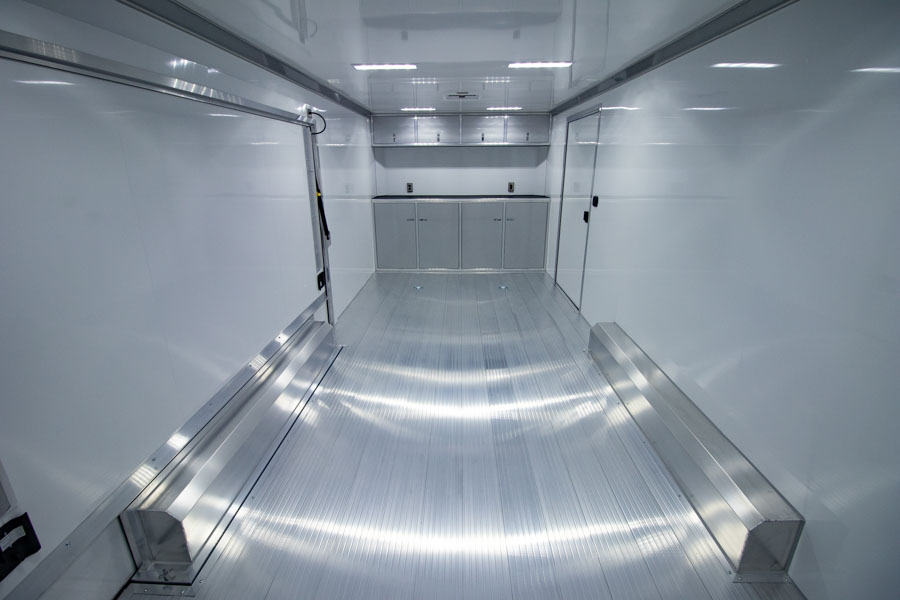

| Extruded Aluminum Flooring & Ramp Door |
| One-Piece Aluminum Transition Flap |

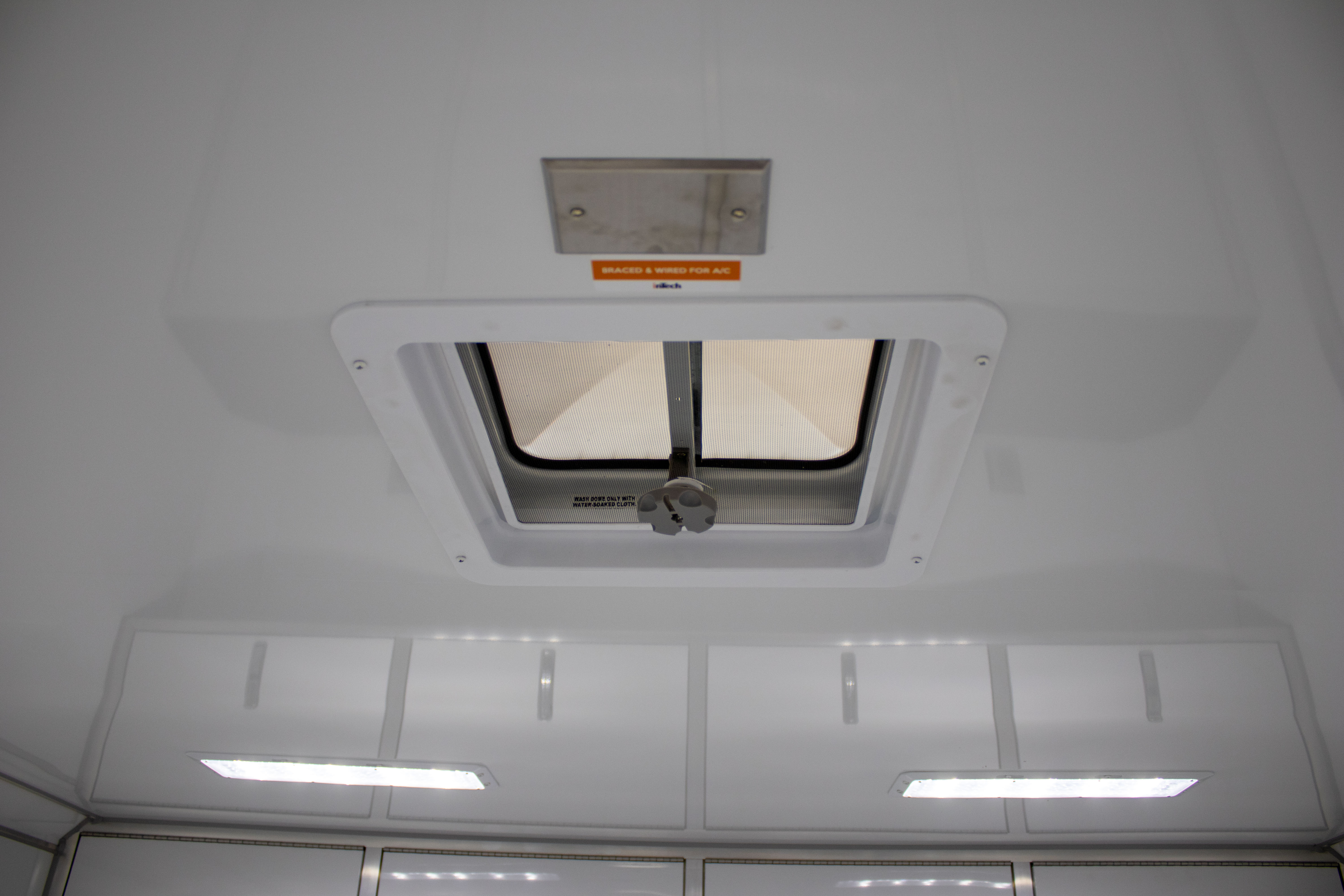

| (1) Manual Roof Vent |
| 7' Interior Height |
| (4) 5000# Recessed D-Rings |
| 2' Beavertail |

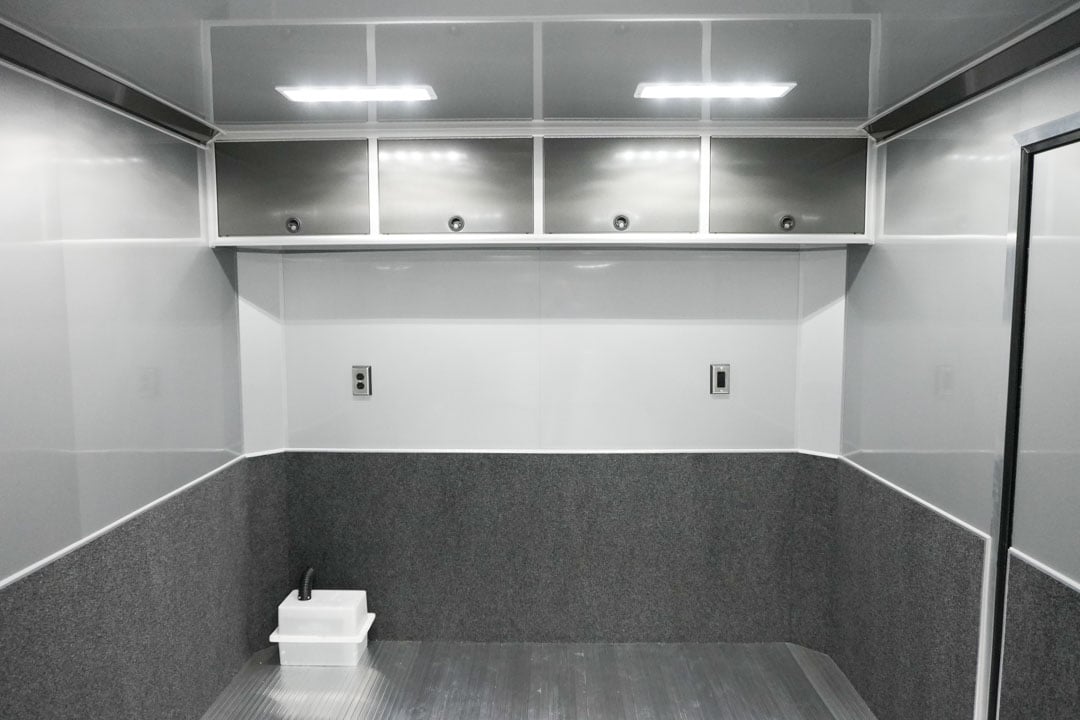

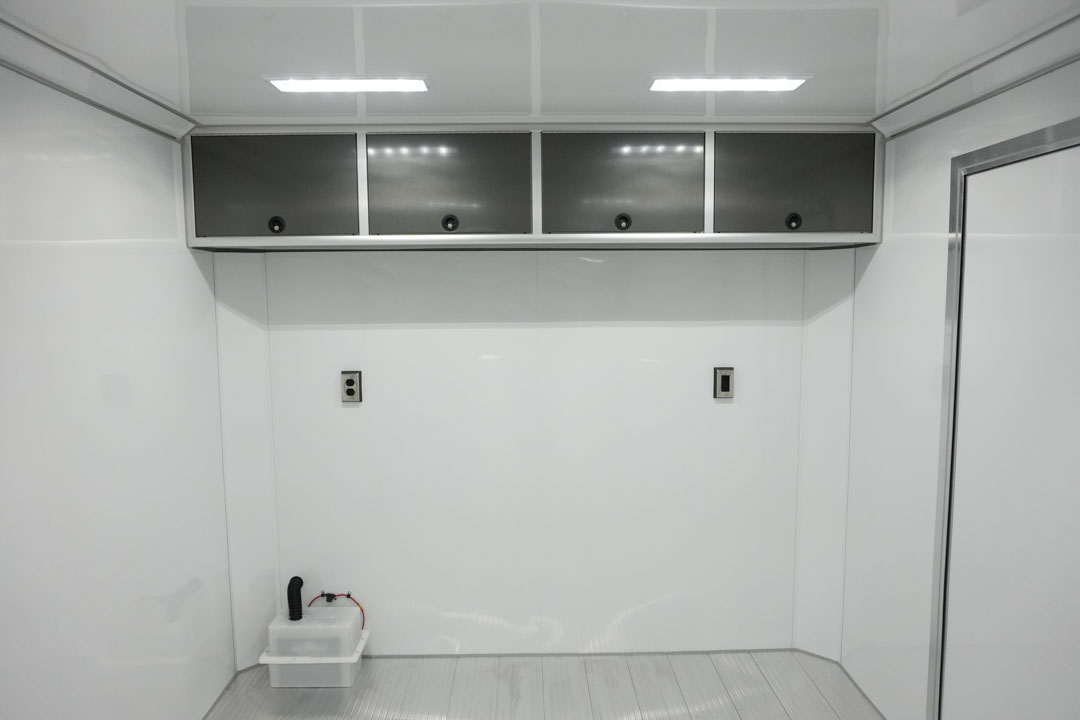

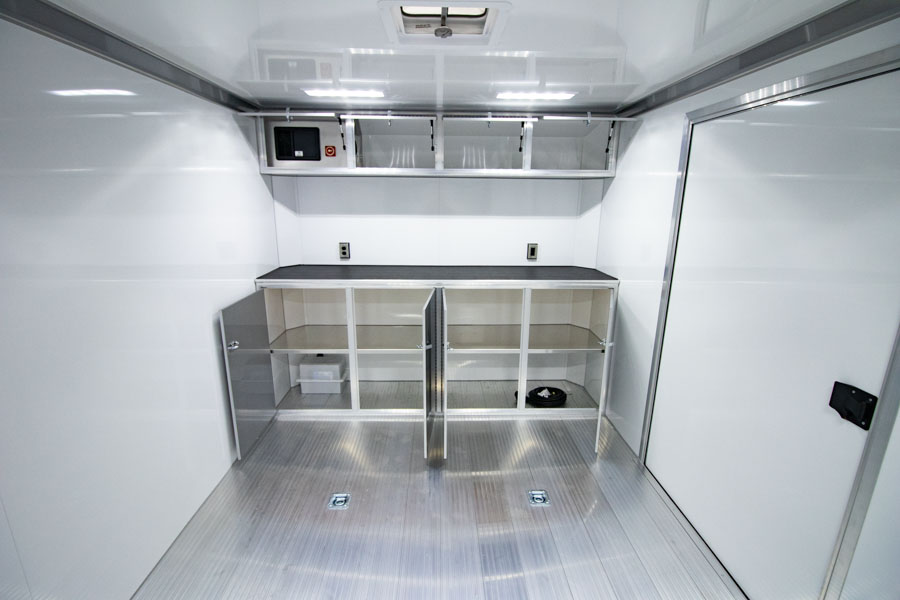

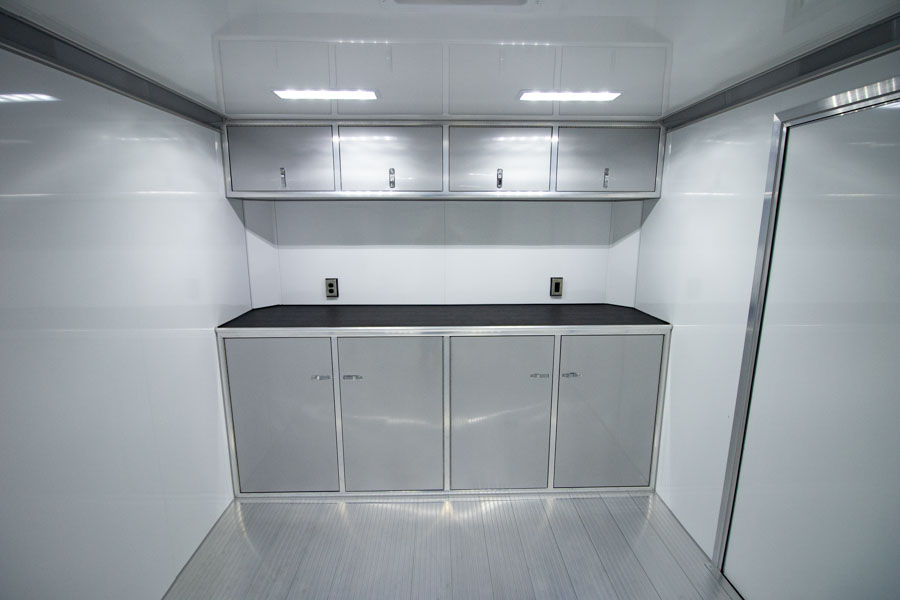

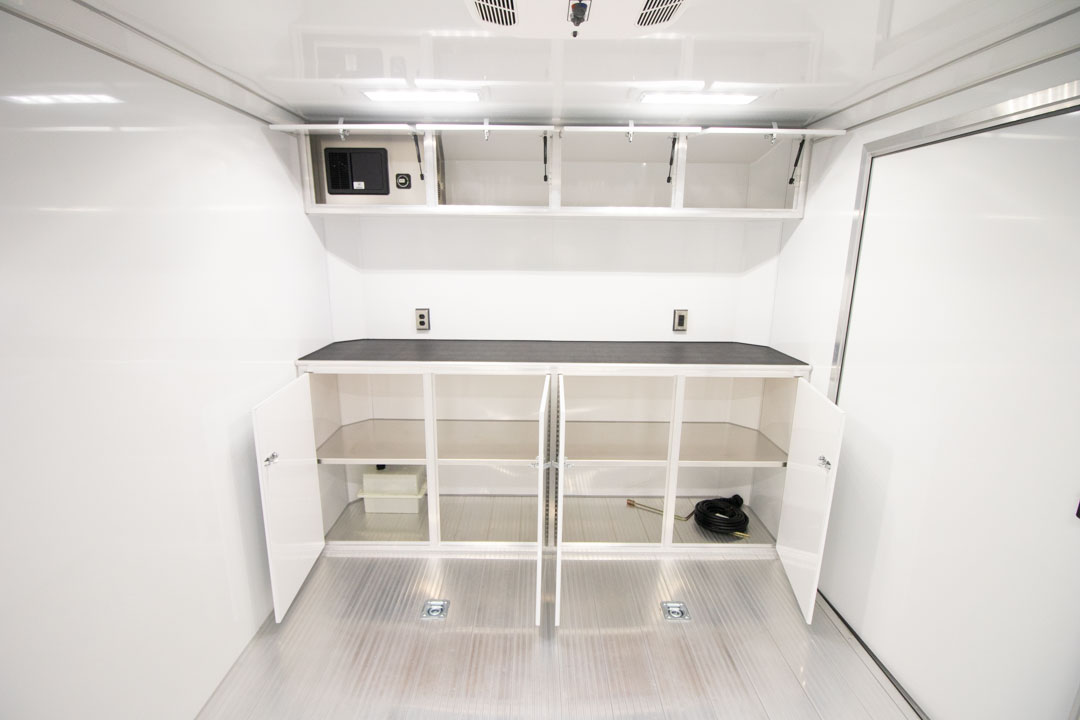

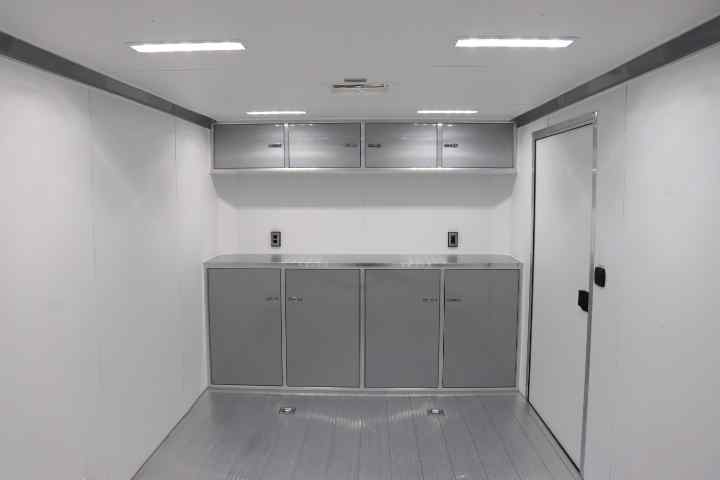

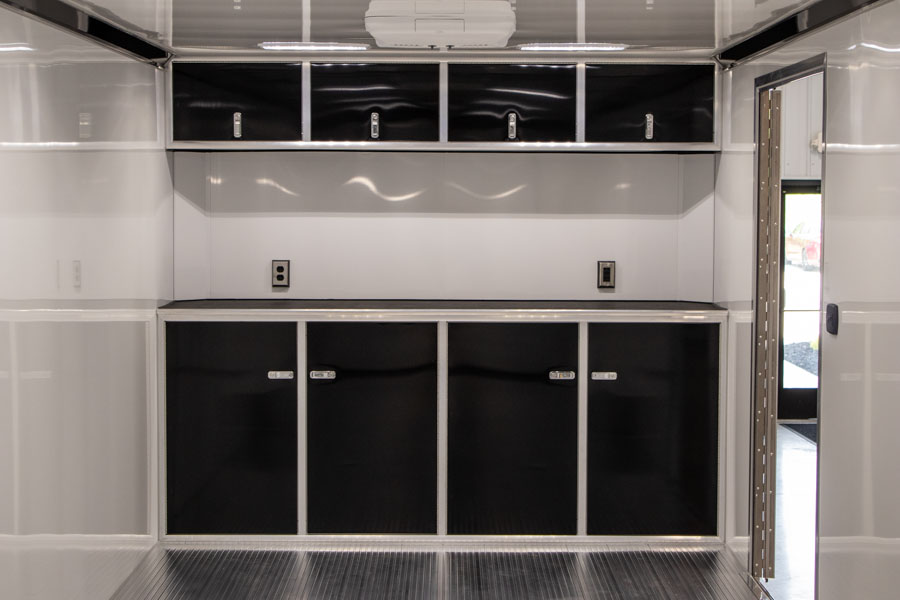

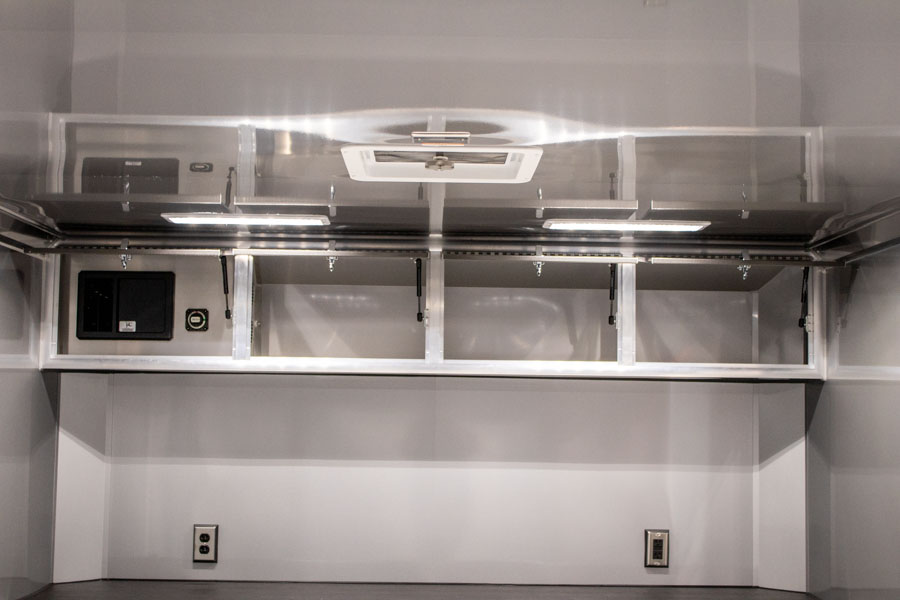

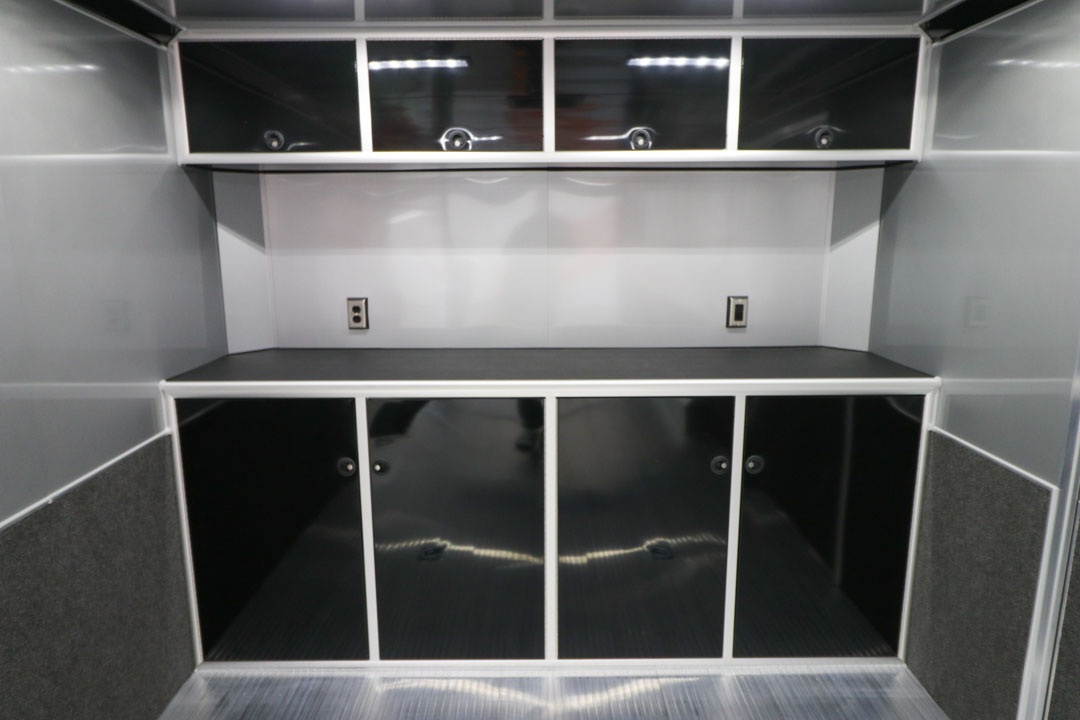

| 8' Upper Aluminum Cabinet w/ Top Hinged Doors & Shocks |

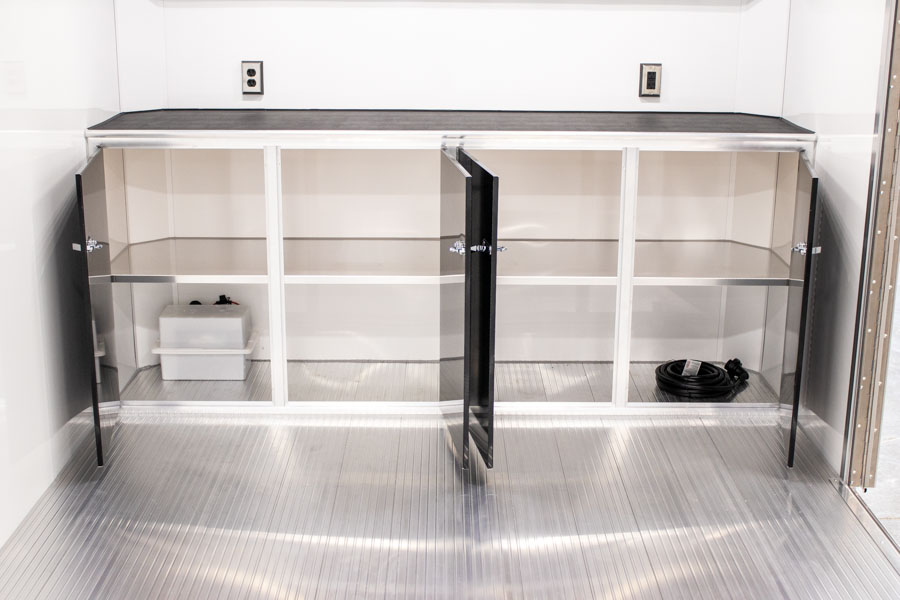

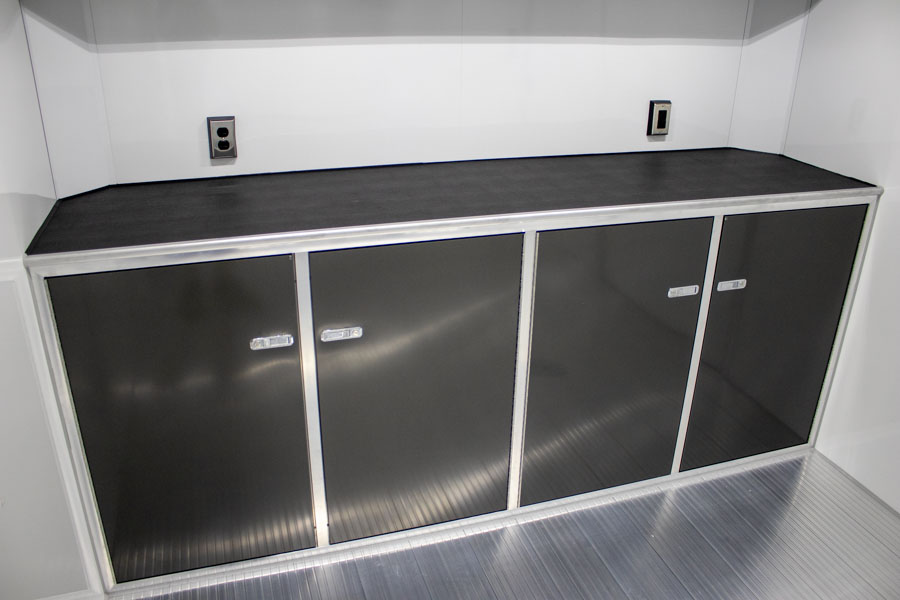

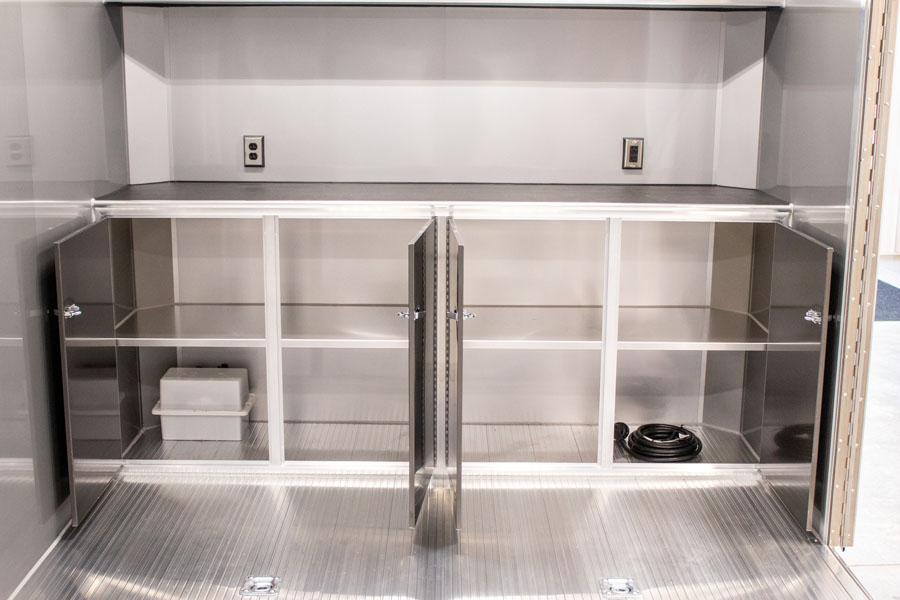

| 8' Lower Aluminum Cabinet w/ Black HDPE Countertop |
| (6) 18” 12v Ceiling Lights w/ Switch |
| Exterior |
|---|
| .040 Aluminum Skin |
| LED Exterior Flood Lights |

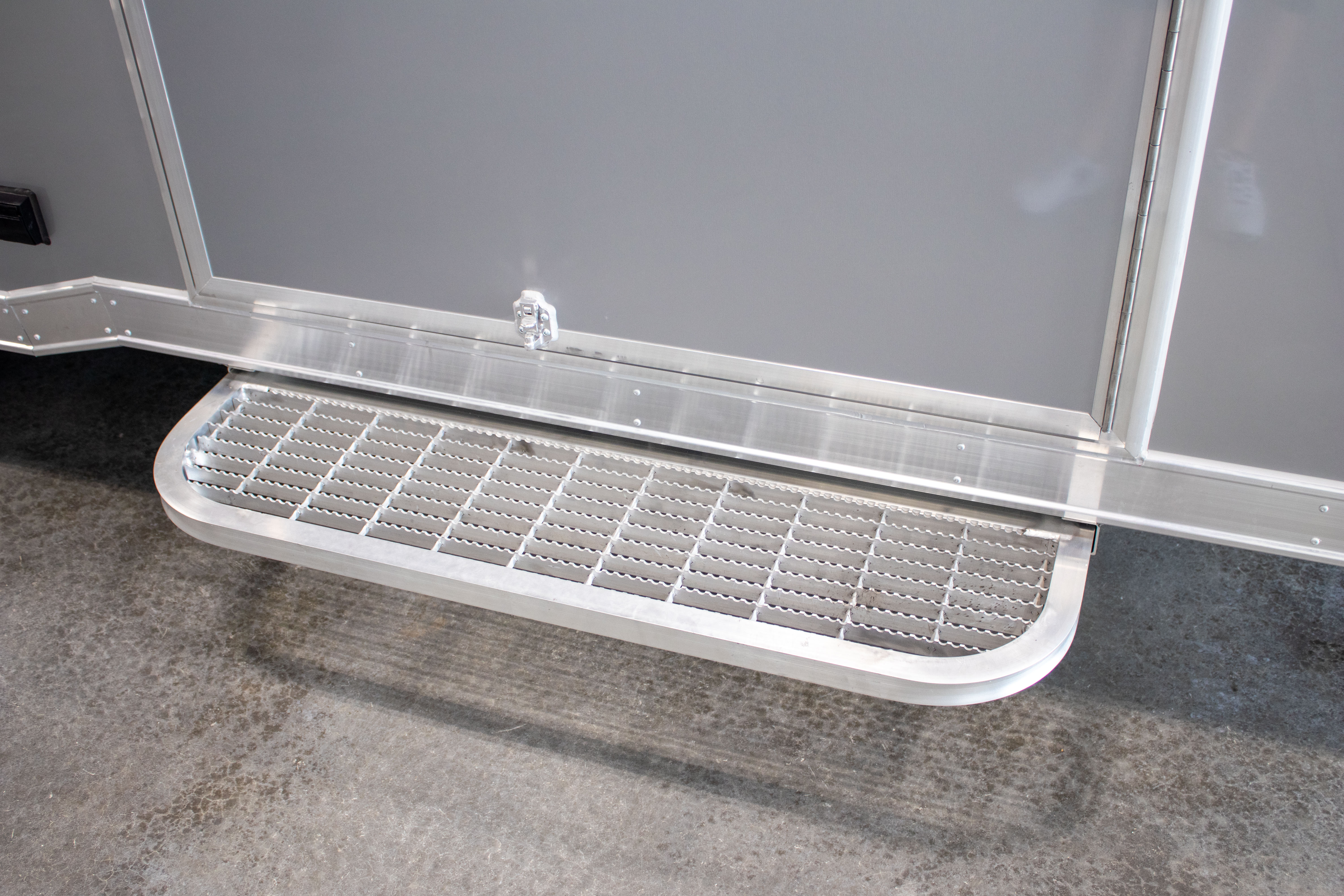

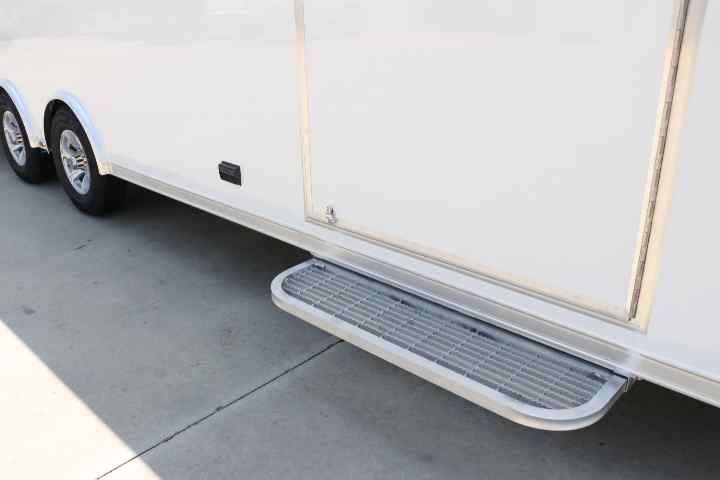

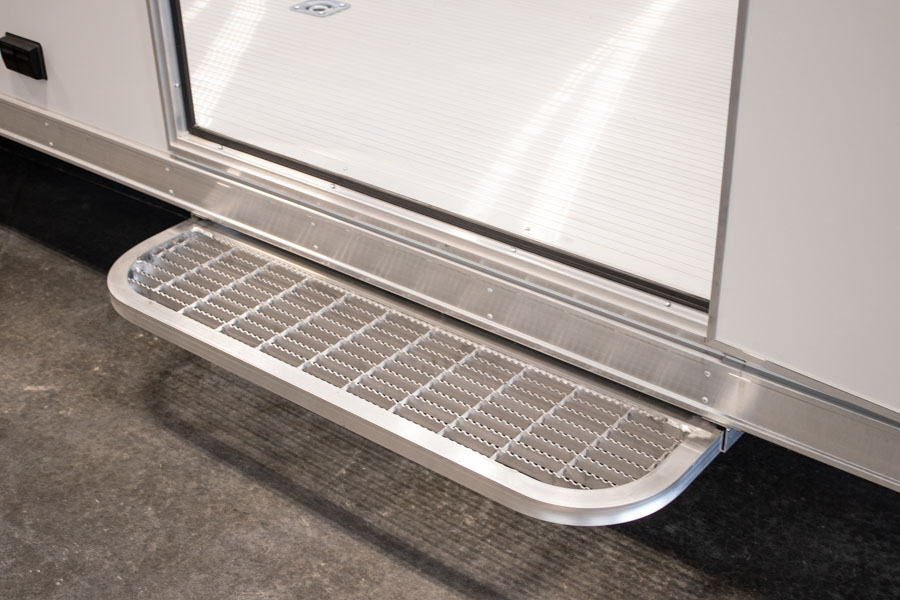

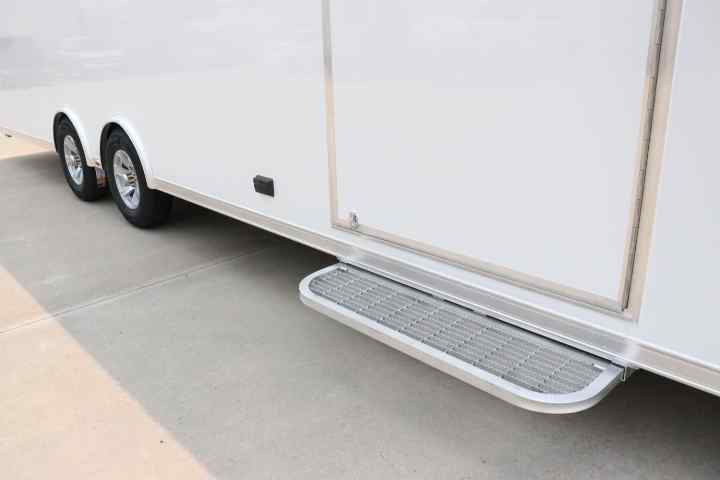

| Slide Out Aluminum Step at Entrance Door |

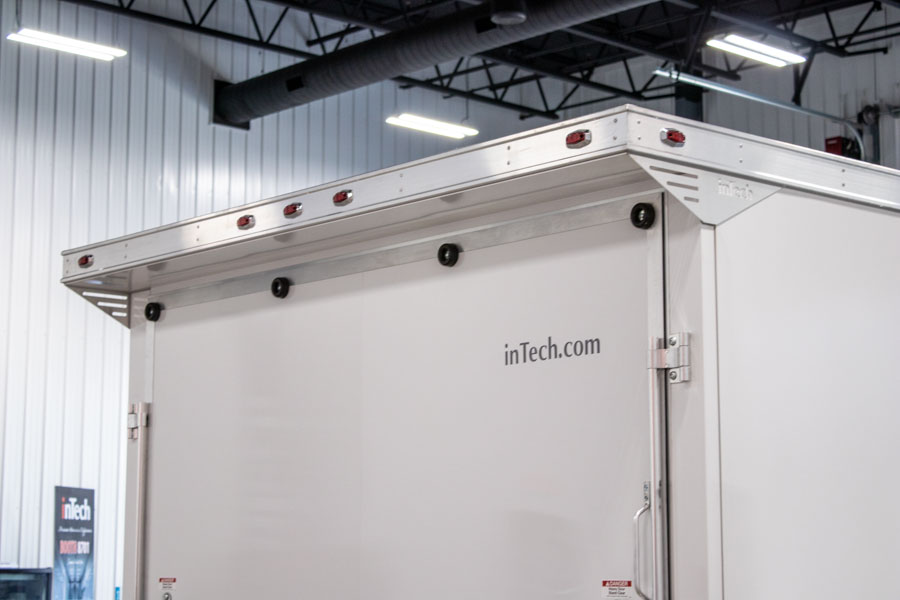

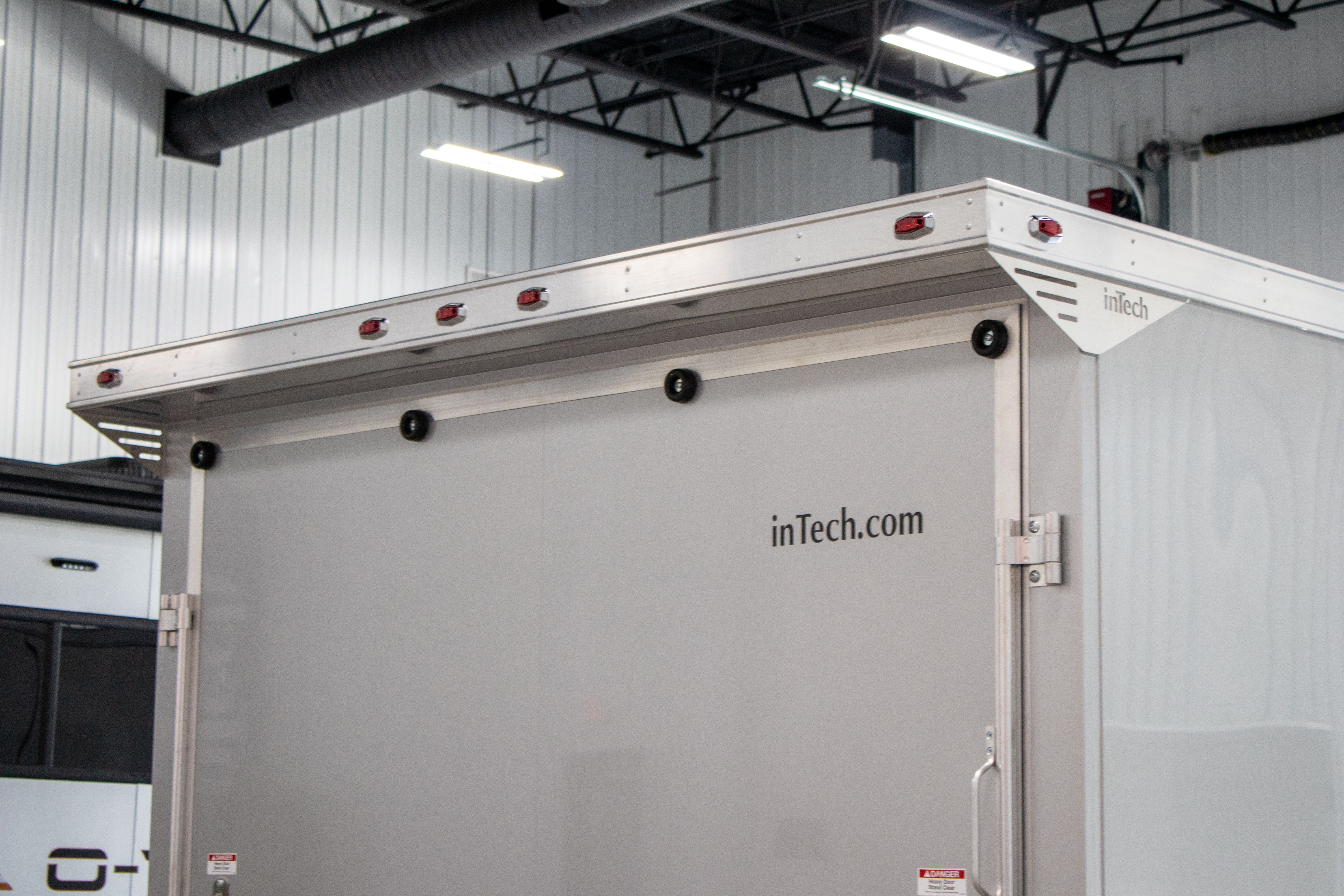

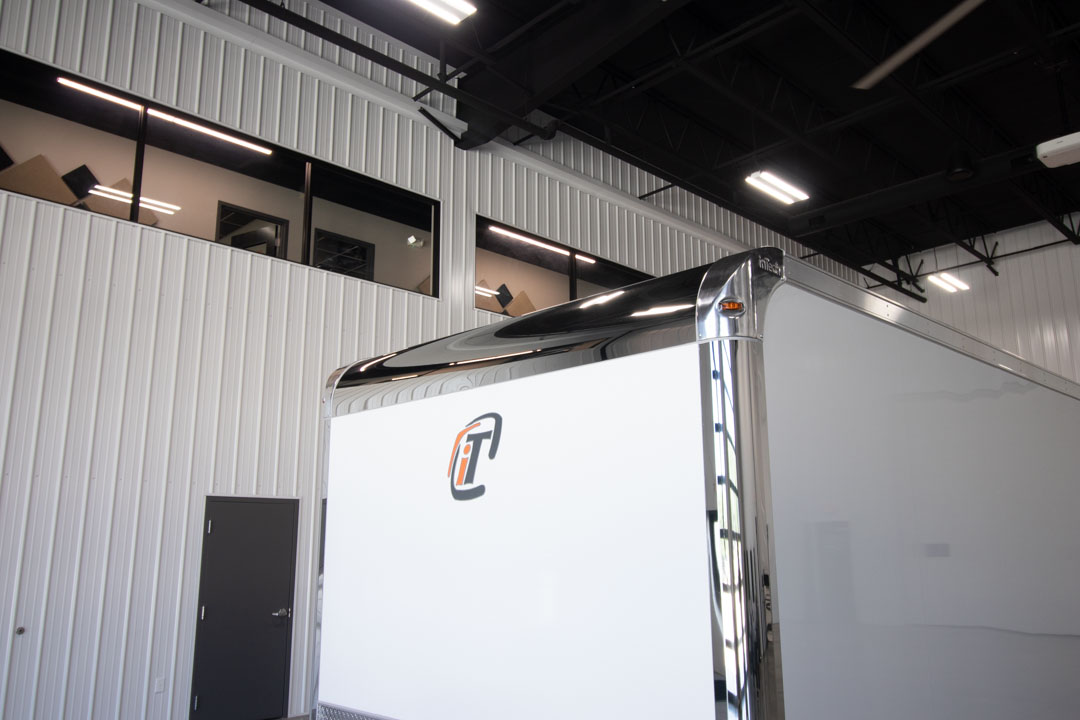

| Lite Series Rear Spoiler |
| Screwless/Rivetless Aluminum Exterior |

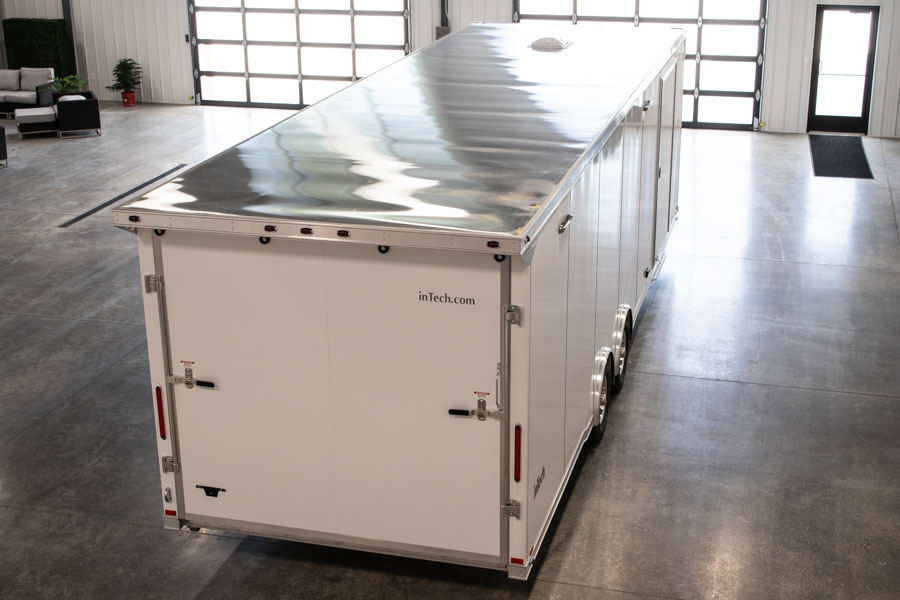

| One Piece Flat Aluminum Roof |
| 4” Mill Finish Upper & Lower Rub Rail |
| LED Clearance Lights |
| LED Slimline Taillights |
| 48” 405 Series Entrance Door |
| RV Flushlock Entrance Door Latch |

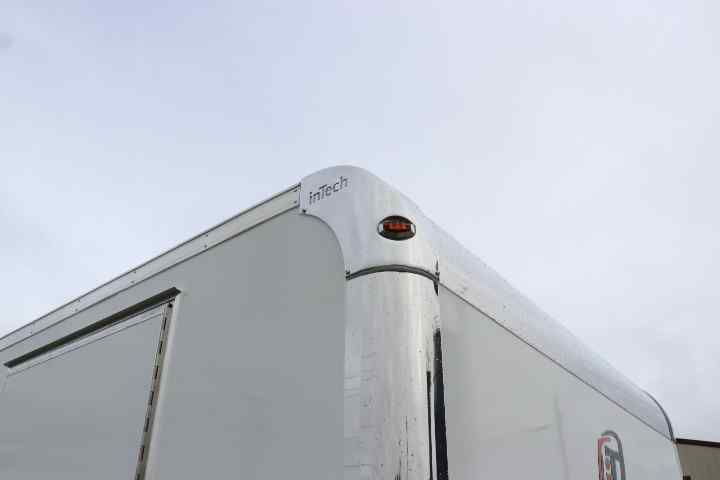

| Stainless Steel #8 High Polish Front Verticals & Radius |

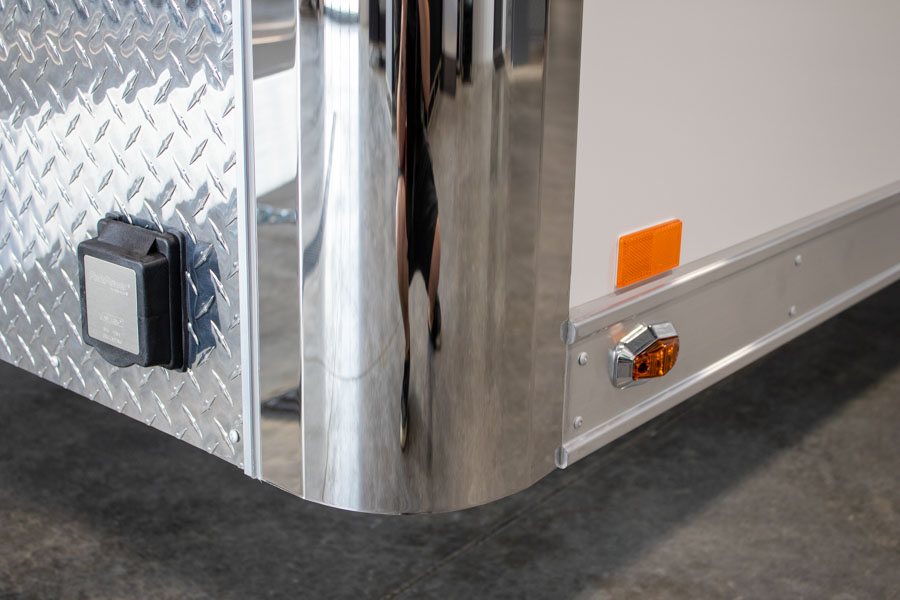

| Polished Cast Aluminum Rear Corners |

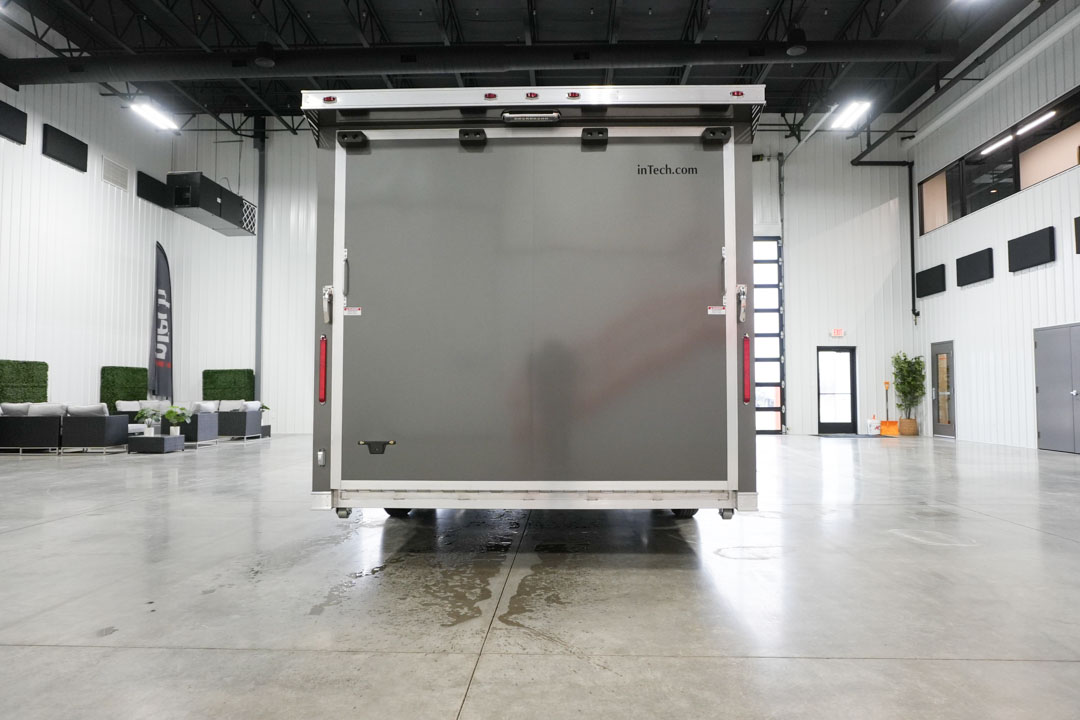

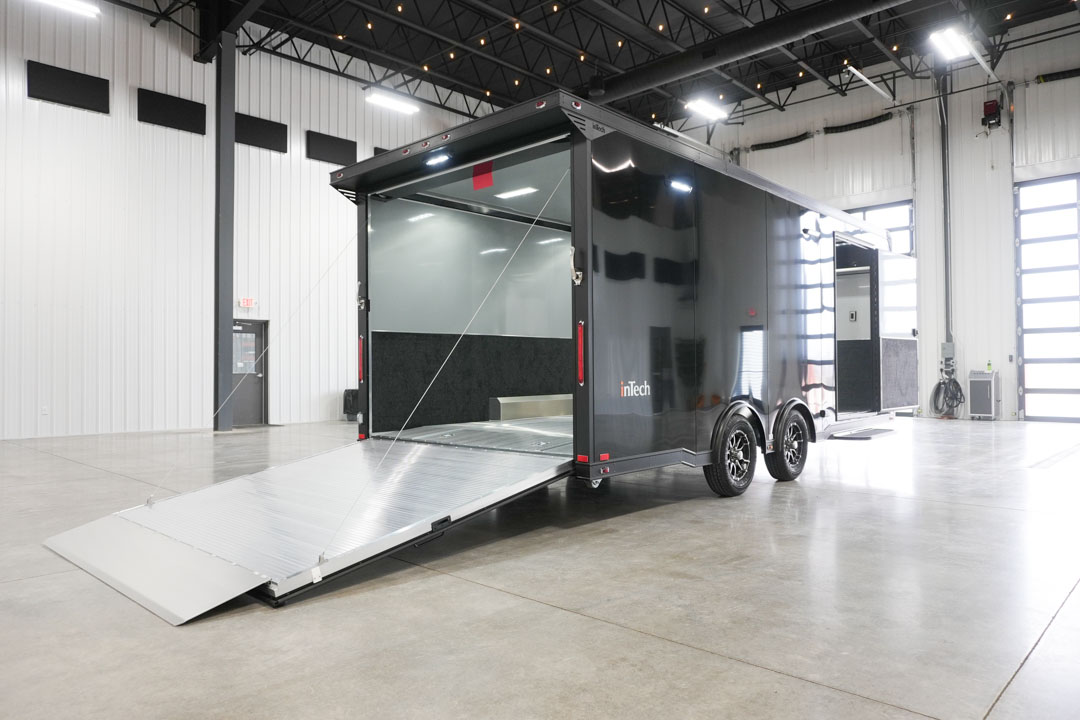

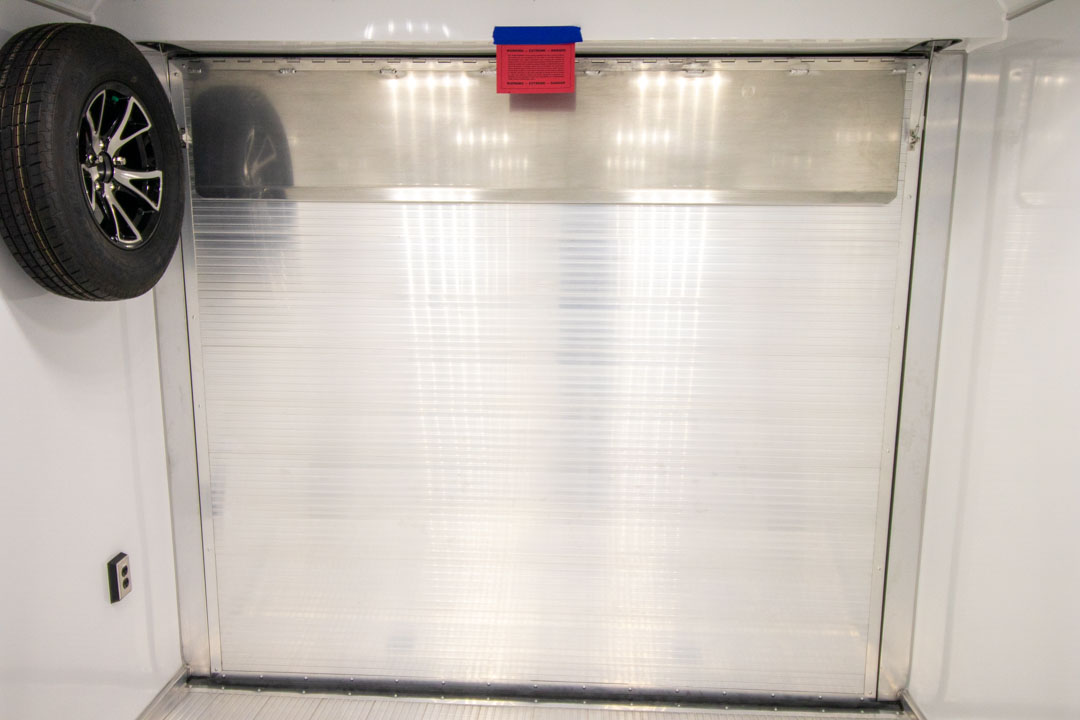

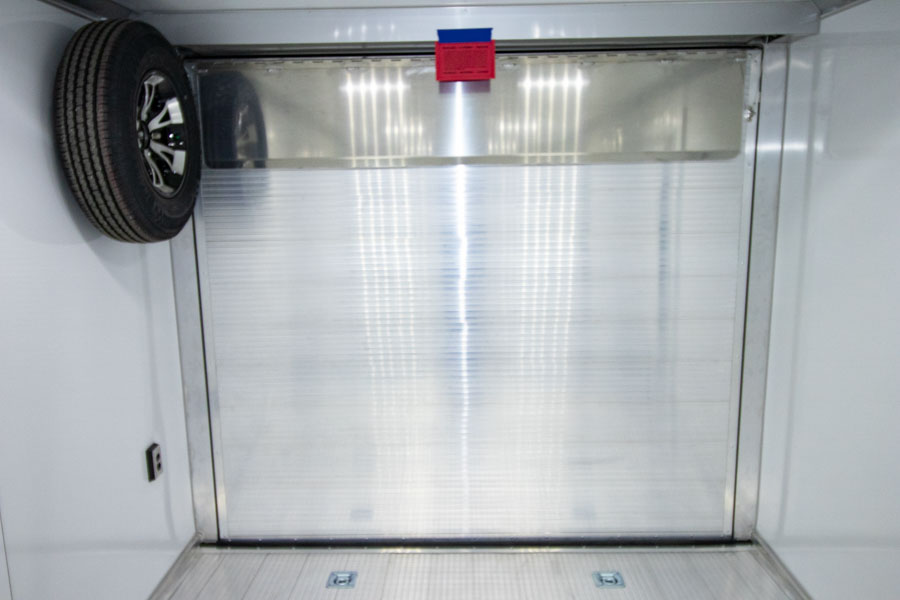

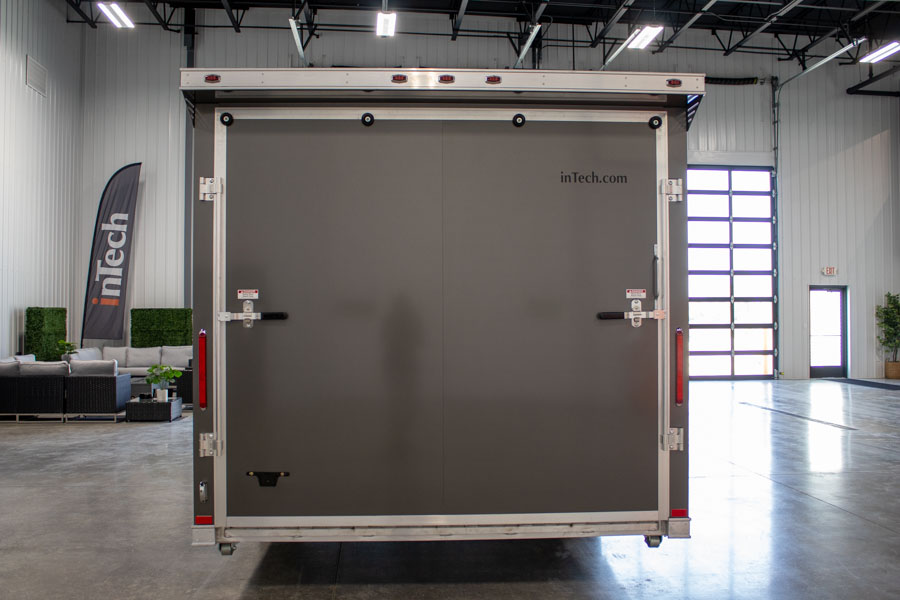

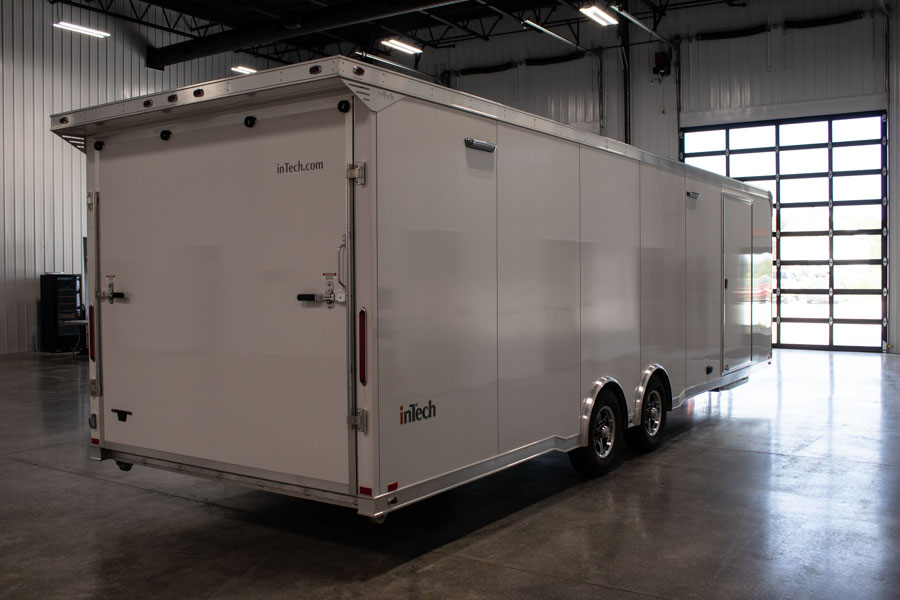

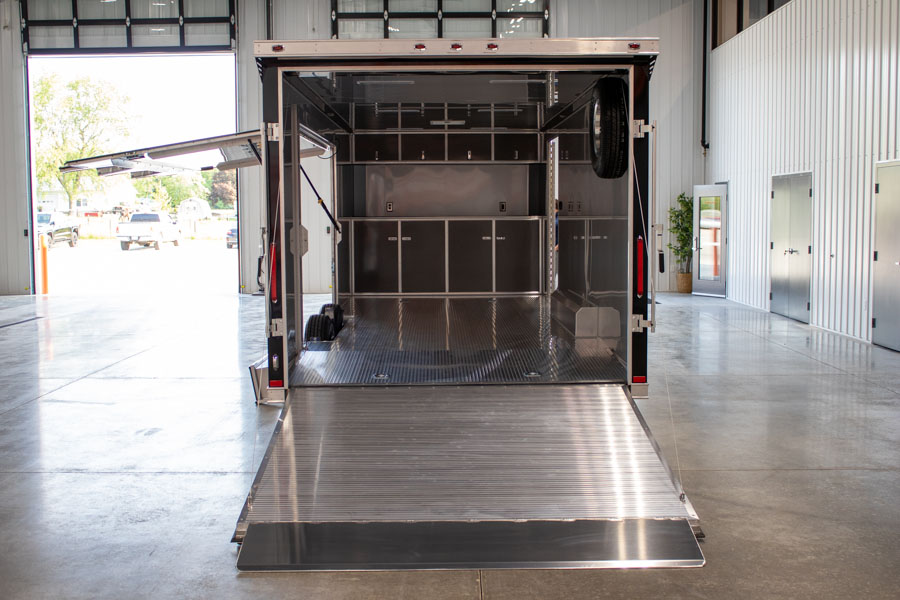

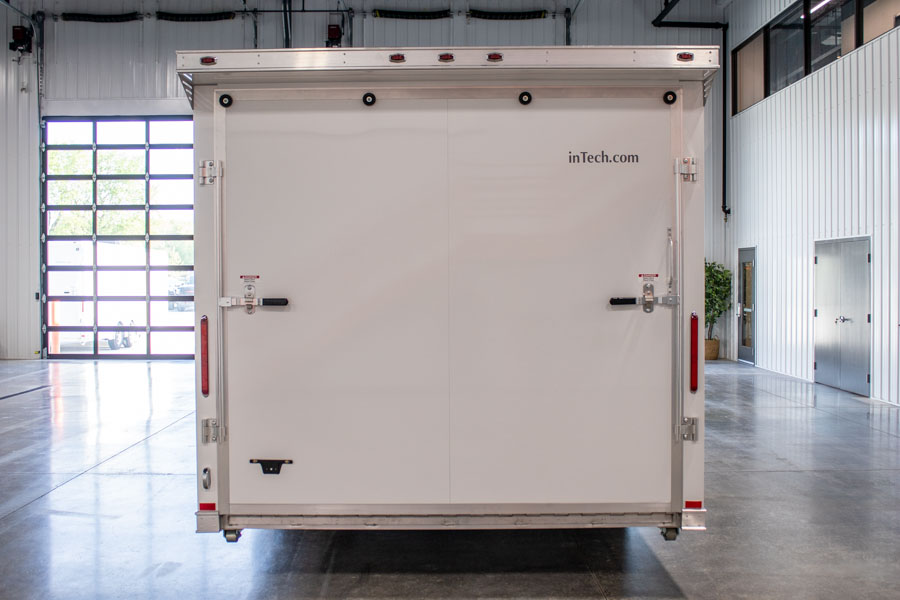

| Rear Ramp Door w/ Continuous Hinge |
| Aluminum Bar Locks - Rear Ramp Door |
| Rear Caster Wheels |
| 24" ATP Stoneguard |
| Electrical |
|---|
| 30 Amp Load Center |
| 12V Battery |
| 12V Fuse Panel |
| (4) 120V/20 Amp Outlets |
| 60 Amp Converter W/ Charger |
| Motorbase Plug with 25' Shore Cord |
| Brace & Wire for Future Roof A/C Installation |
GVWR
9,990 lbs
Est. Payload
Up to 6,650 lbs
Axle Size
(2) 5,200#
Interior Height
7'
Frame
All-Aluminum
Design Layouts & Specifications
Standard Features
All Options
- (A) Ground Clearance - 13" Approx.
- (B) Overall Length - 29' 10 1/2"
- (C) Interior Length - 21' 11"
- (D) Interior Height - 7'
- (E) Ramp Door Height - 6' 10 1/2"
- (F) Overall Height - 9' 2 1/2"
- (G) Box Length - 24' 2"
- (H) Between Wheel Wells - 6' 11 1/2"
- (I) Box Width - 8' 4"
Standard Features
| Chassis |
|---|
| Full Perimeter Aluminum Frame |
| All Tube Construction |
| Tandem 5200# Dexter Torsion Axles with ST225/75R15 Tires |
| Aluminum Wheels and Full Spare with Mount |
| Electric Brakes - All Axles |
| Breakaway Battery Kit |
| 7-Way Trailer Plug |
| 2 5/16" Ball Coupler |
| Safety Chains |
| 5000# Side Crank Manual Jack |
| Triple Tube Extended Tongue |
| 16" O/C Floor Crossmembers |
| 16" O/C Roof & Wall Studs |
| Smooth Aluminum Wheel Boxes with Chamfered Edge |
| Spread Axle Design with Individual Fenderettes and Wheel Skirt |
| Interior |
|---|
| White Vinyl Walls & Ceiling |
| Extruded Aluminum Flooring & Ramp Door |
| One-Piece Aluminum Transition Flap |
| (1) Manual Roof Vent |
| 7' Interior Height |
| (4) 5000# Recessed D-Rings |
| 4' Beavertail |
| 8' Upper Aluminum Cabinet w/ Top Hinged Doors & Shocks |
| 8' Lower Aluminum Cabinet w/ Black HDPE Countertop |
| (6) 18” 12v Ceiling Lights w/ Switch |
| Exterior |
|---|
| .040 Aluminum Skin |
| LED Exterior Flood Lights |
| Slide Out Aluminum Step at Entrance Door |
| Lite Series Rear Spoiler |
| Screwless/Rivetless Aluminum Exterior |
| One Piece Flat Aluminum Roof |
| 4” Mill Finish Upper & Lower Rub Rail |
| LED Clearance Lights |
| LED Slimline Taillights |
| 48” 405 Series Entrance Door |
| RV Flushlock Entrance Door Latch |
| Stainless Steel #8 High Polish Front Verticals & Radius |
| Polished Cast Aluminum Rear Corners |

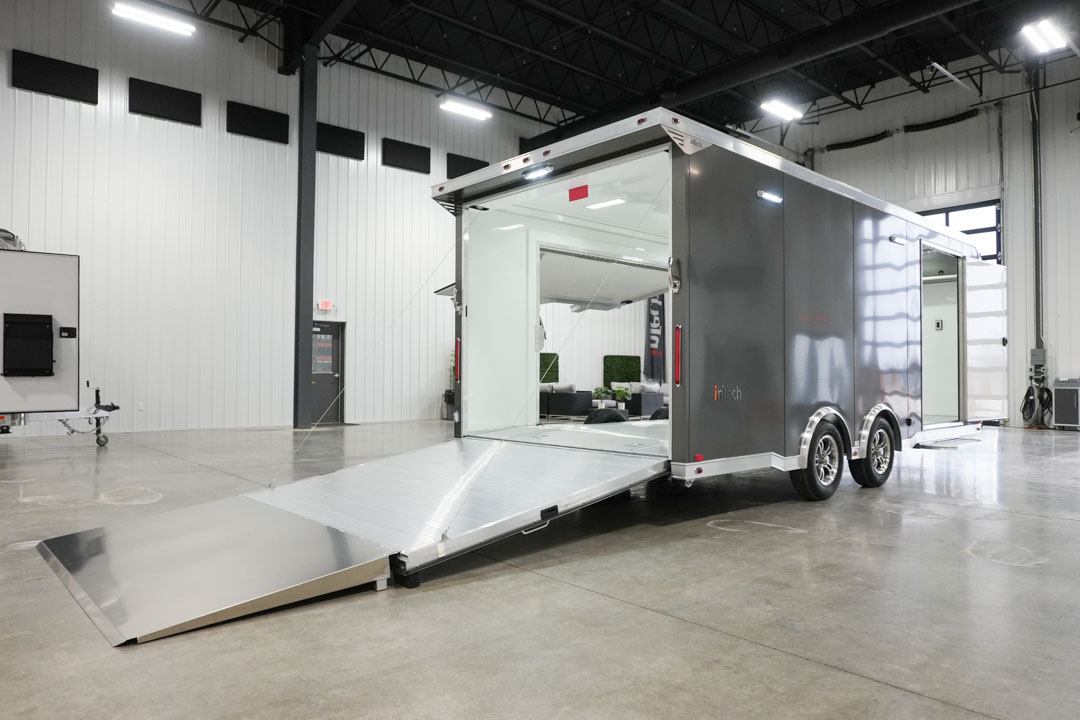

| Rear Ramp Door w/ Continuous Hinge |
| Aluminum Bar Locks - Rear Ramp Door |
| Rear Caster Wheels |
| 24" ATP Stoneguard |
| Electrical |
|---|
| 30 Amp Load Center |
| 12V Battery |
| 12V Fuse Panel |
| (4) 120V/20 Amp Outlets |
| 60 Amp Converter W/ Charger |
| Motorbase Plug with 25' Shore Cord |
| Brace & Wire for Future Roof A/C Installation |
GVWR
9,990 lbs
Est. Payload
Up to 6,070 lbs
Axle Size
(2) 5,200#
Interior Height
7'
Frame
All-Aluminum
Design Layouts & Specifications
Standard Features
All Options
- (A) Ground Clearance - 13" Approx.
- (B) Overall Length - 33' 10 1/2"
- (C) Interior Length - 25' 11"
- (D) Interior Height - 7'
- (E) Ramp Door Height - 6' 10 1/2"
- (F) Overall Height - 9' 2 1/2"
- (G) Box Length - 28' 2"
- (H) Between Wheel Wells - 6' 11 1/2"
- (I) Box Width - 8' 4"
Standard Features
| Chassis |
|---|
| Full Perimeter Aluminum Frame |
| All Tube Construction |
| Tandem 5200# Dexter Torsion Axles with ST225/75R15 Tires |
| Aluminum Wheels and Full Spare with Mount |
| Electric Brakes - All Axles |
| Breakaway Battery Kit |
| 7-Way Trailer Plug |
| 2 5/16" Ball Coupler |
| Safety Chains |
| 5000# Side Crank Manual Jack |
| Triple Tube Extended Tongue |
| 16" O/C Floor Crossmembers |
| 16" O/C Roof & Wall Studs |
| Smooth Aluminum Wheel Boxes with Chamfered Edge |
| Spread Axle Design with Individual Fenderettes and Wheel Skirt |
| Interior |
|---|
| White Vinyl Walls & Ceiling |
| Extruded Aluminum Flooring & Ramp Door |
| One-Piece Aluminum Transition Flap |
| (1) Manual Roof Vent |
| 7' Interior Height |
| (4) 5000# Recessed D-Rings |
| 4' Beavertail |
| 8' Upper Aluminum Cabinet w/ Top Hinged Doors & Shocks |
| 8' Lower Aluminum Cabinet w/ Black HDPE Countertop |
| (8) 18” 12v Ceiling Lights w/ Switch |
| Exterior |
|---|
| .040 Aluminum Skin |
| LED Exterior Flood Lights |
| Slide Out Aluminum Step at Entrance Door |

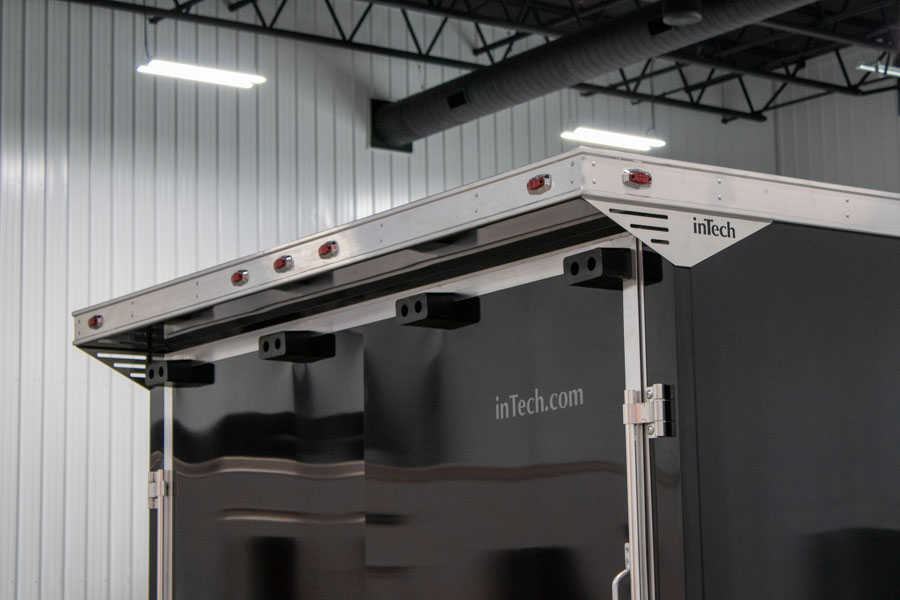

| Lite Series Rear Spoiler |
| Screwless/Rivetless Aluminum Exterior |
| One Piece Flat Aluminum Roof |
| 4” Mill Finish Upper & Lower Rub Rail |
| LED Clearance Lights |
| LED Slimline Taillights |
| 48” 405 Series Entrance Door |
| RV Flushlock Entrance Door Latch |
| Stainless Steel #8 High Polish Front Verticals & Radius |
| Polished Cast Aluminum Rear Corners |
| Rear Ramp Door w/ Continuous Hinge |
| Aluminum Bar Locks - Rear Ramp Door |
| Rear Caster Wheels |
| 24" ATP Stoneguard |
| Electrical |
|---|
| 30 Amp Load Center |
| 12V Battery |
| 12V Fuse Panel |
| (4) 120V/20 Amp Outlets |
| 60 Amp Converter W/ Charger |
| Motorbase Plug with 25' Shore Cord |
| Brace & Wire for Future Roof A/C Installation |
Options Gallery

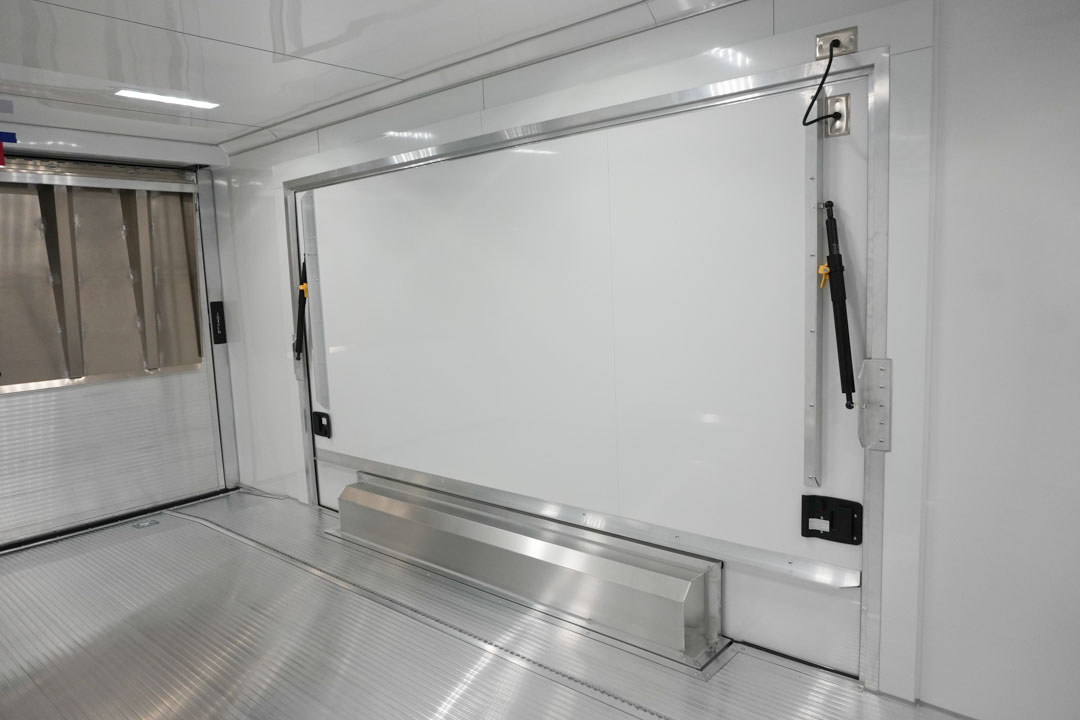

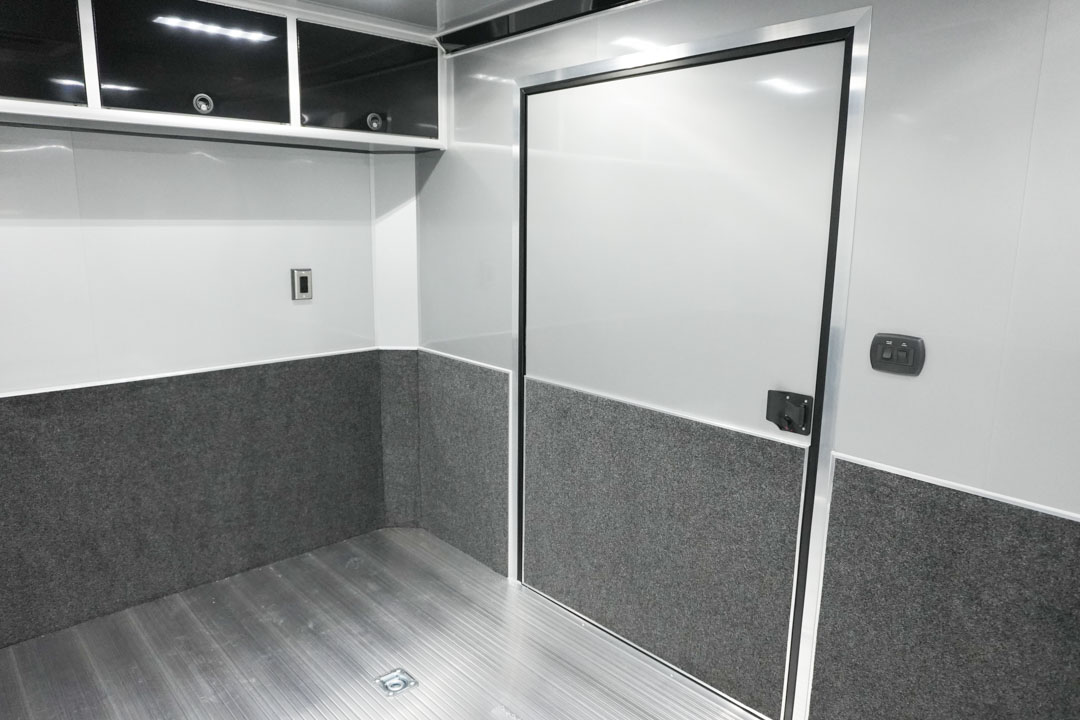

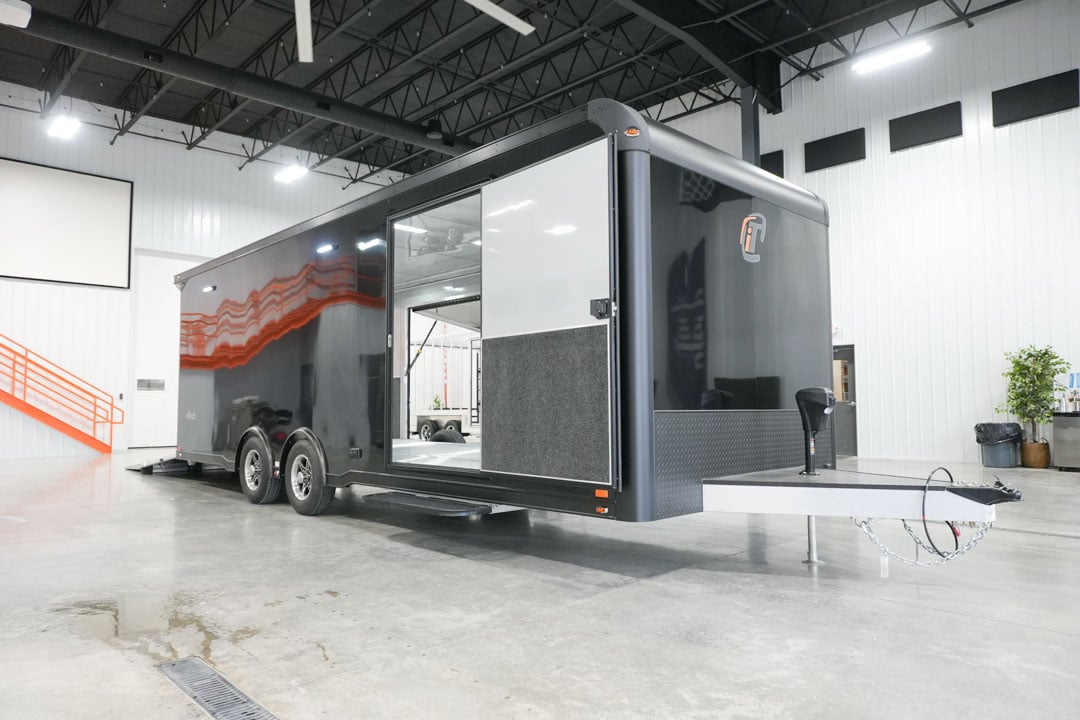

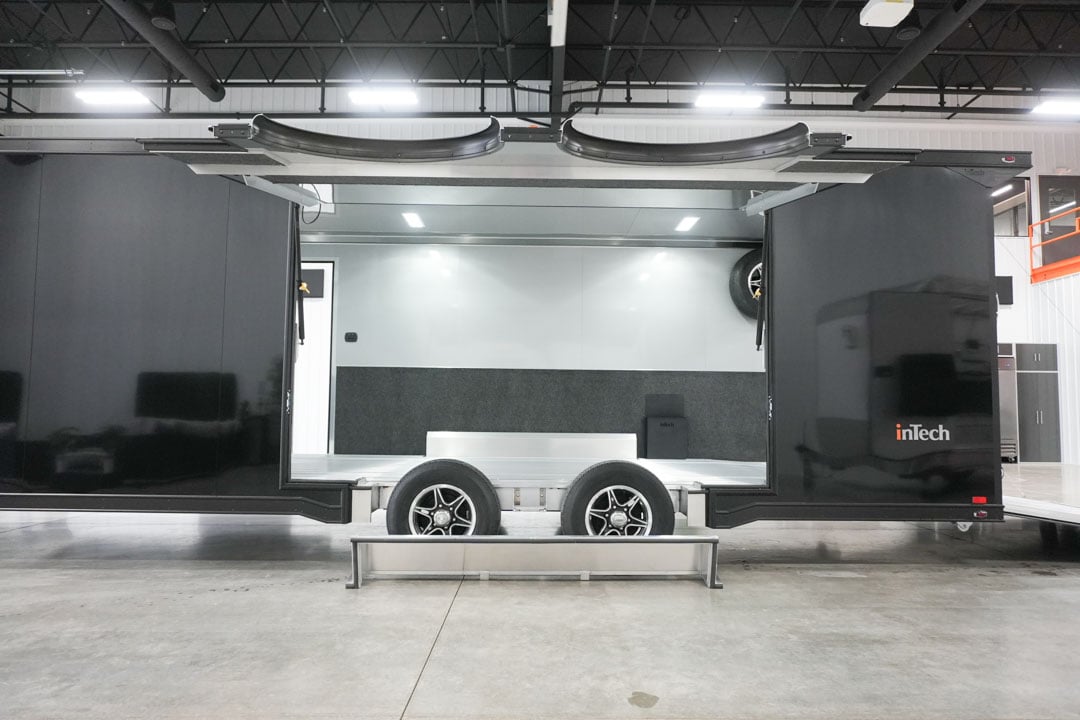

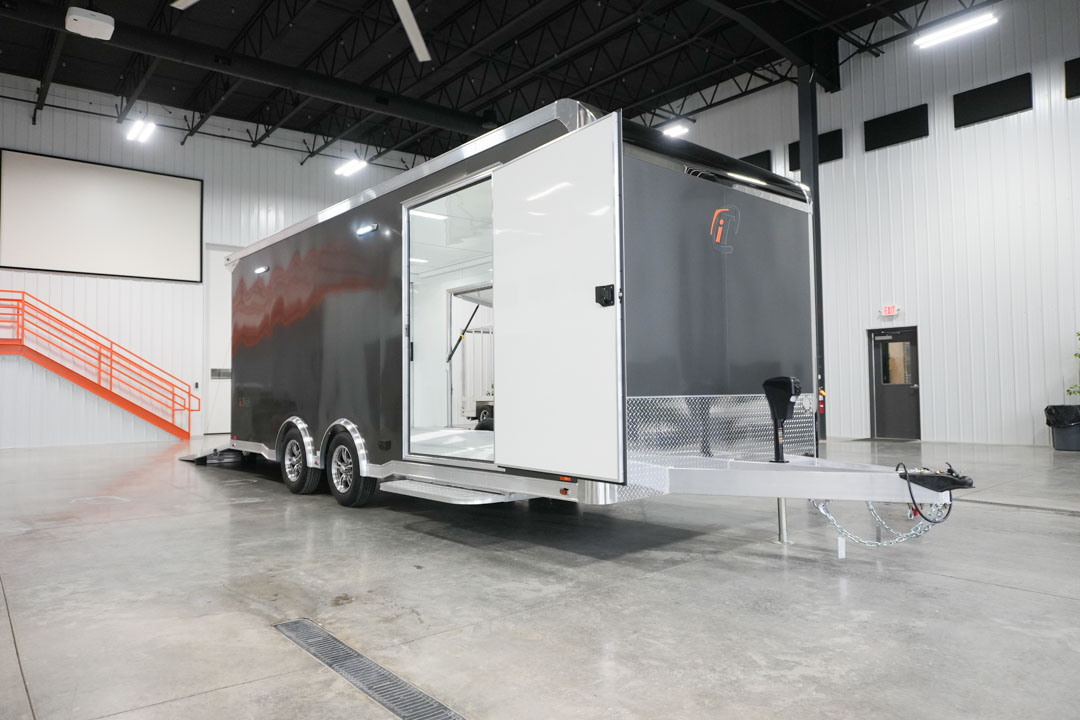

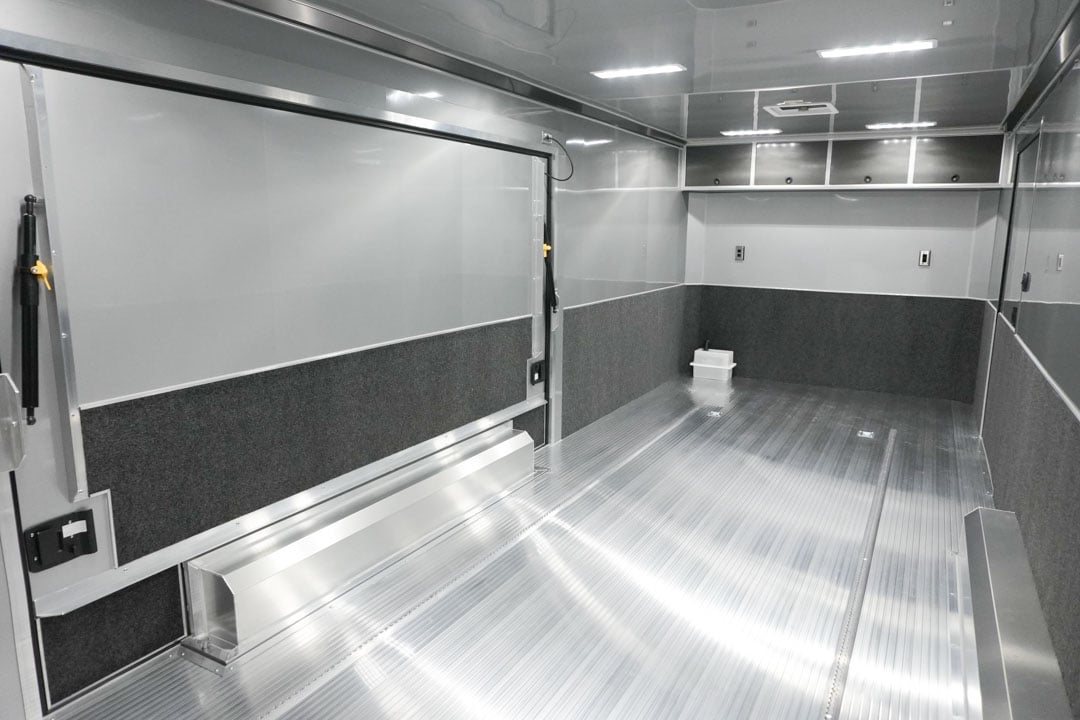

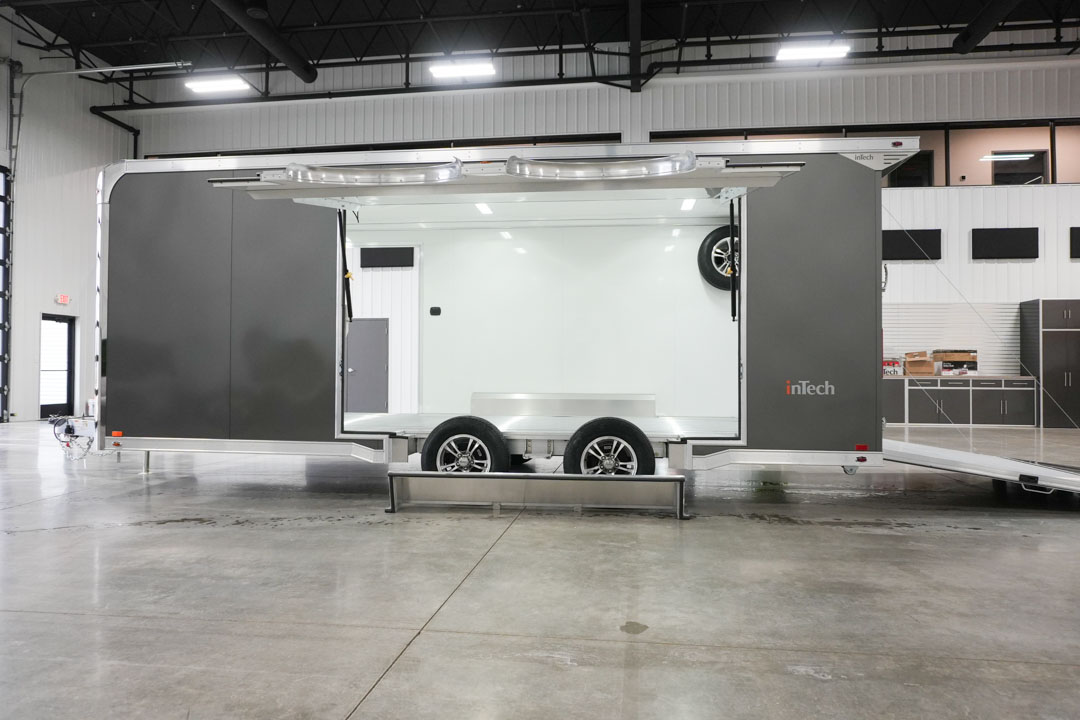

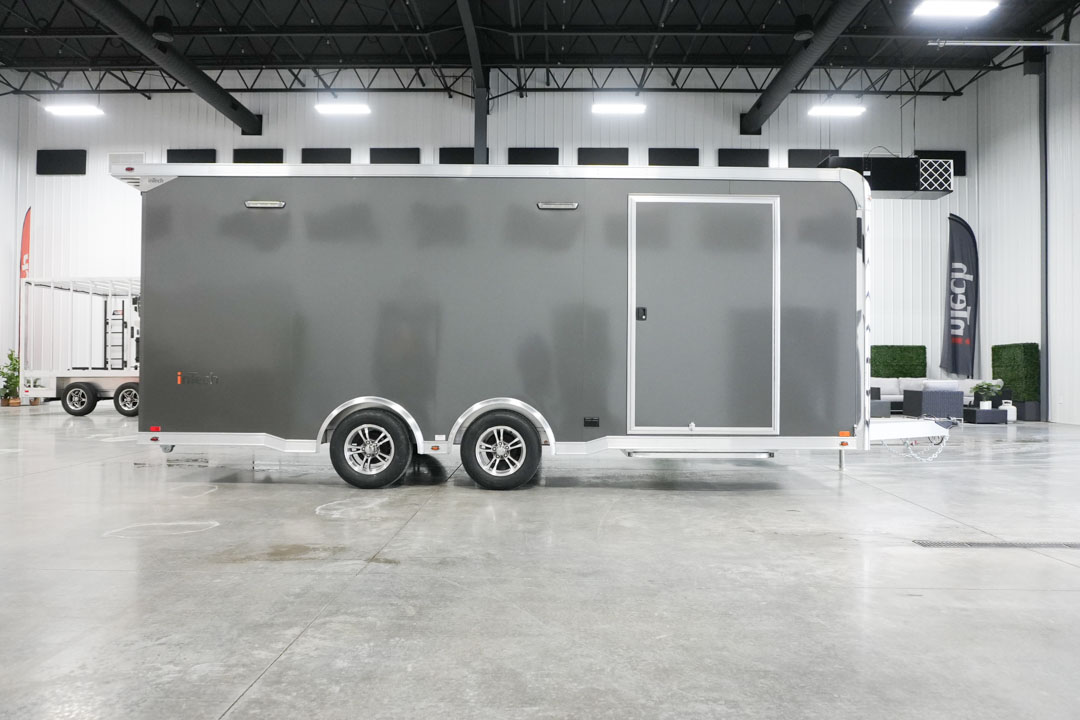

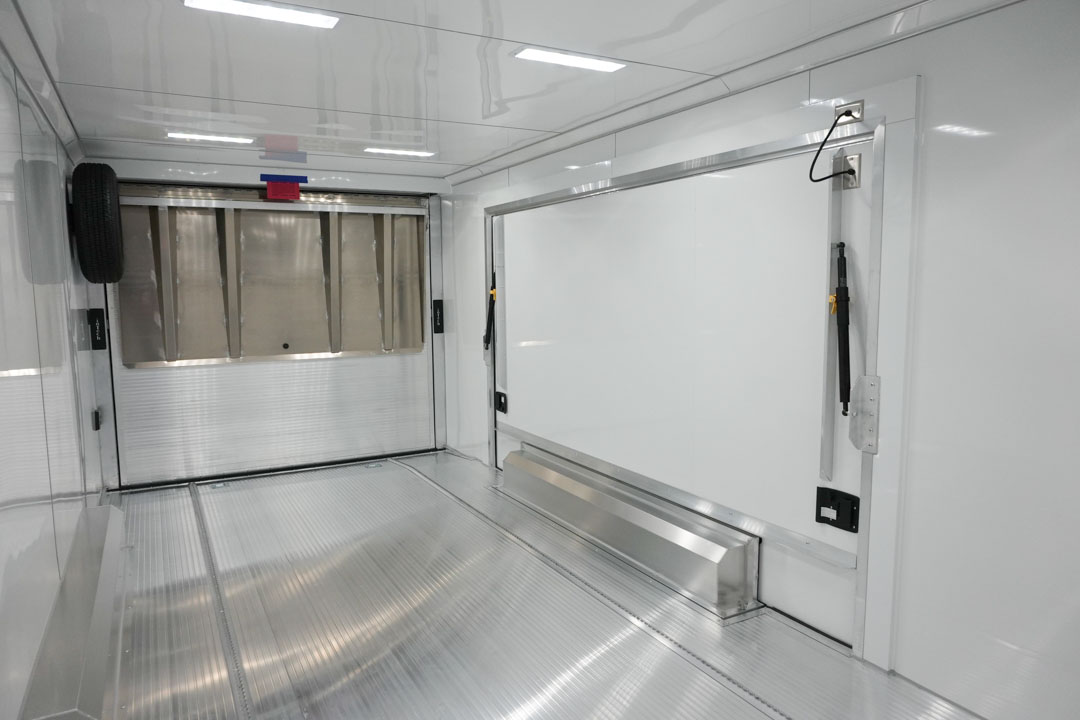

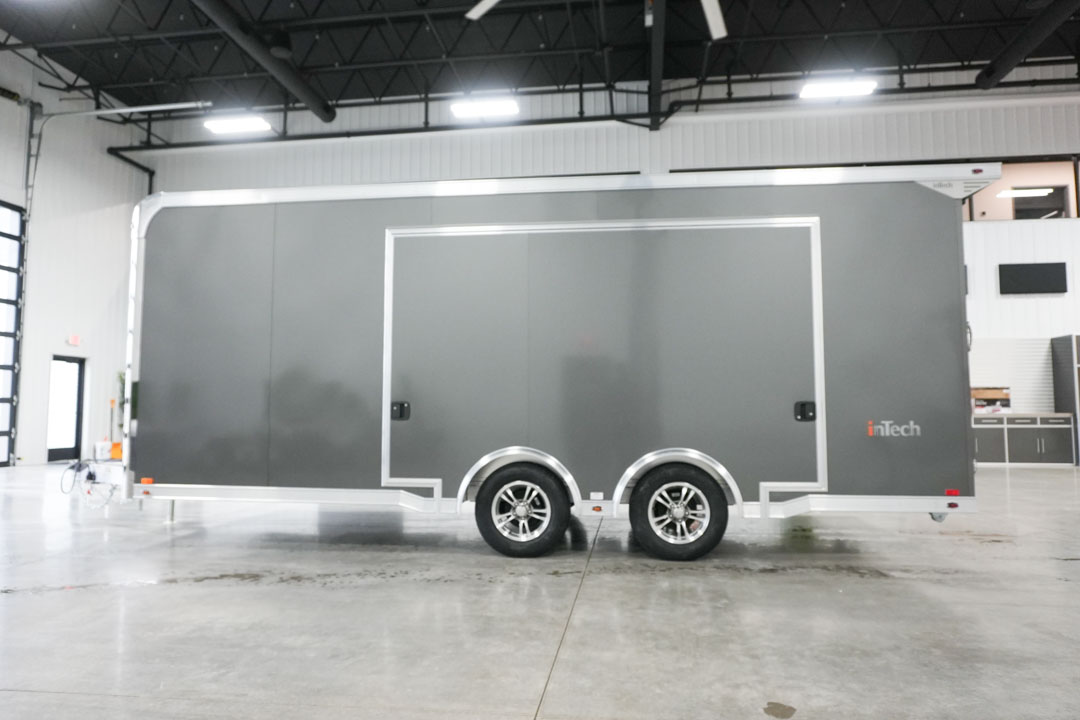

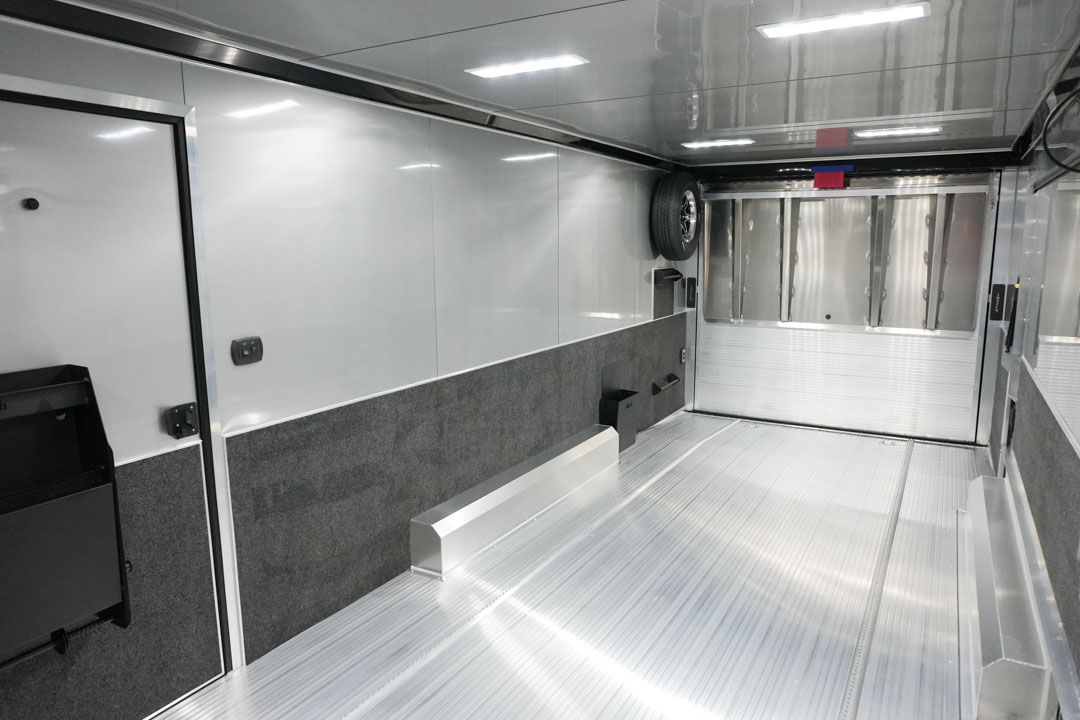

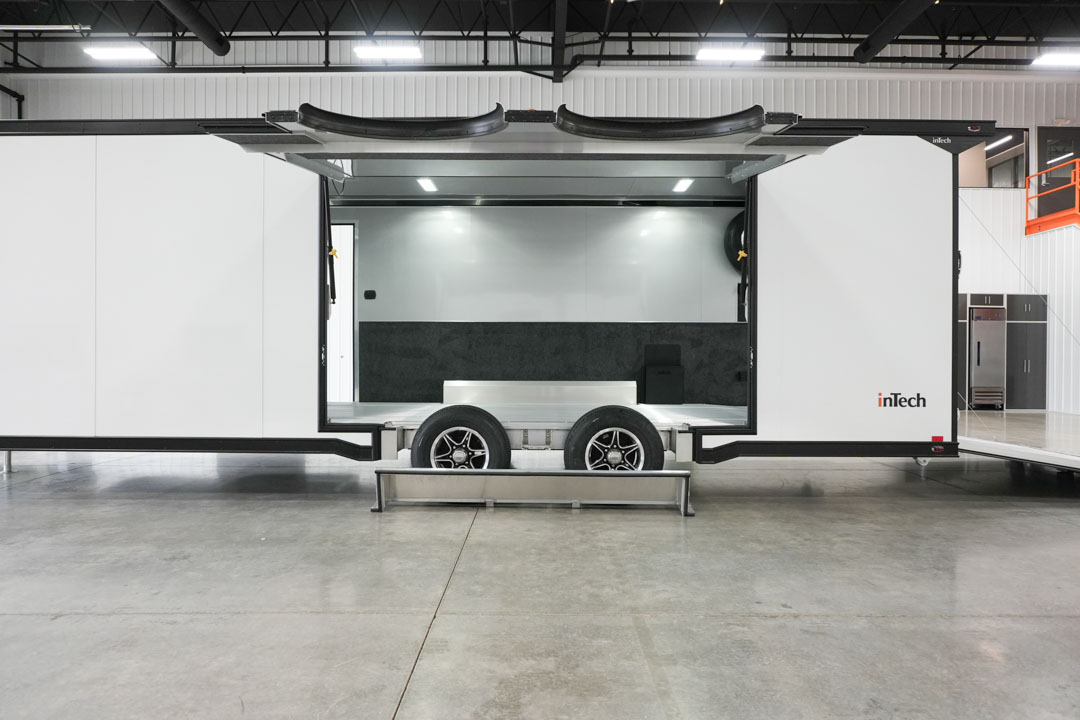

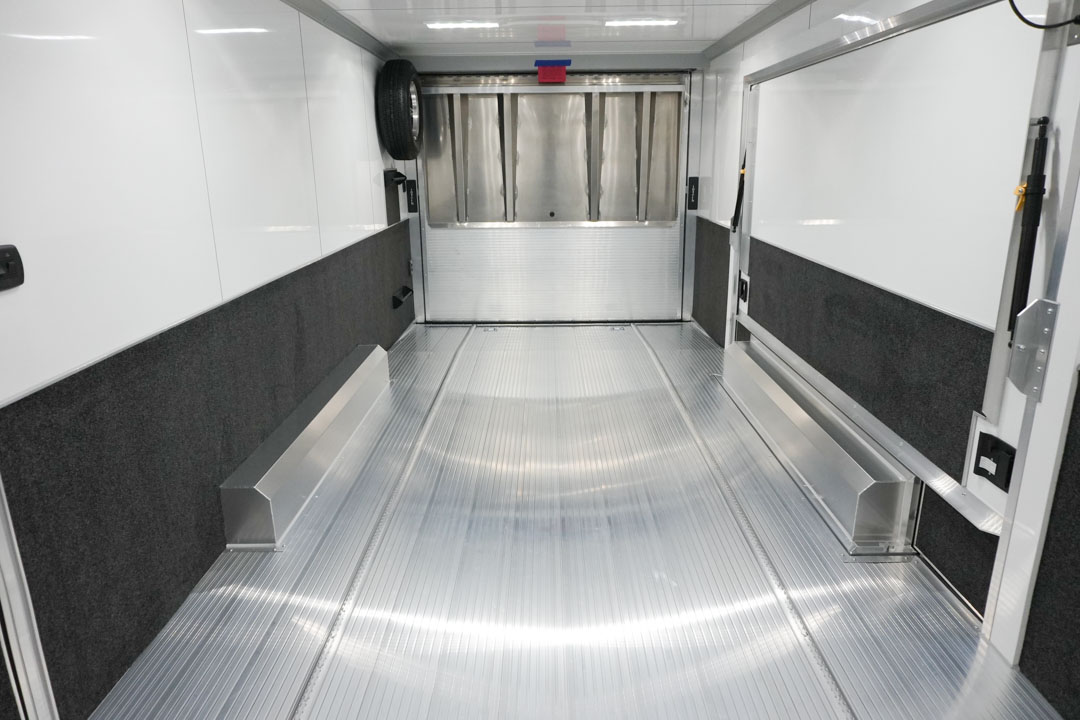

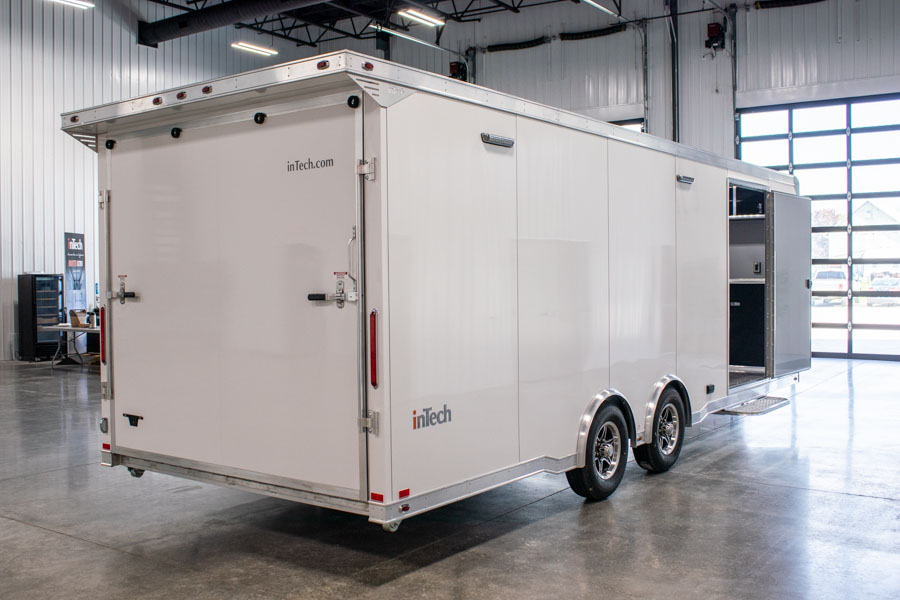

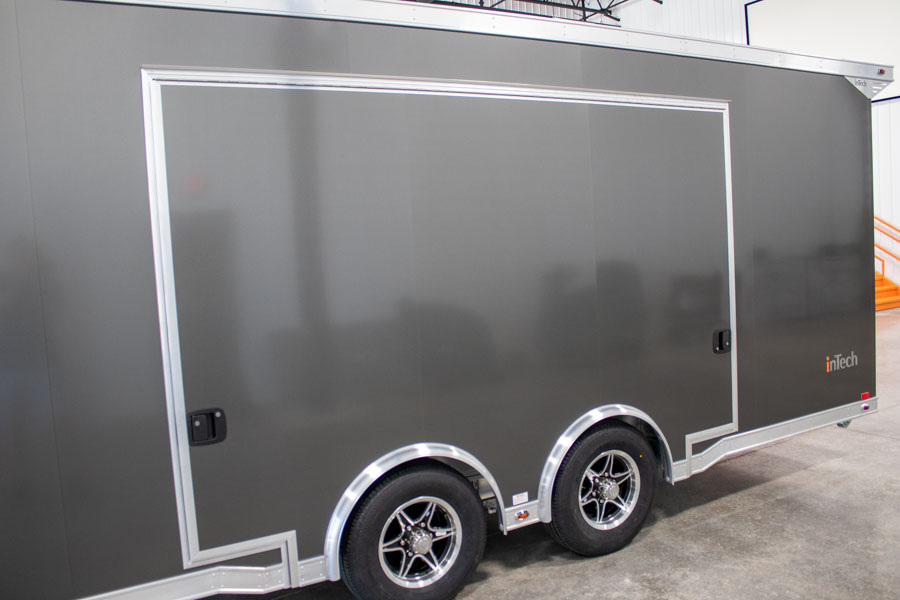

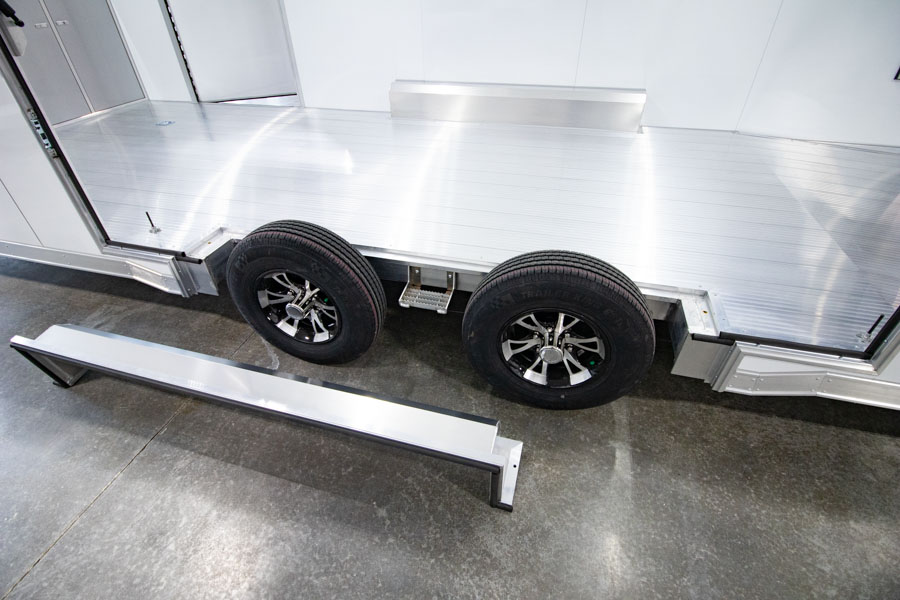

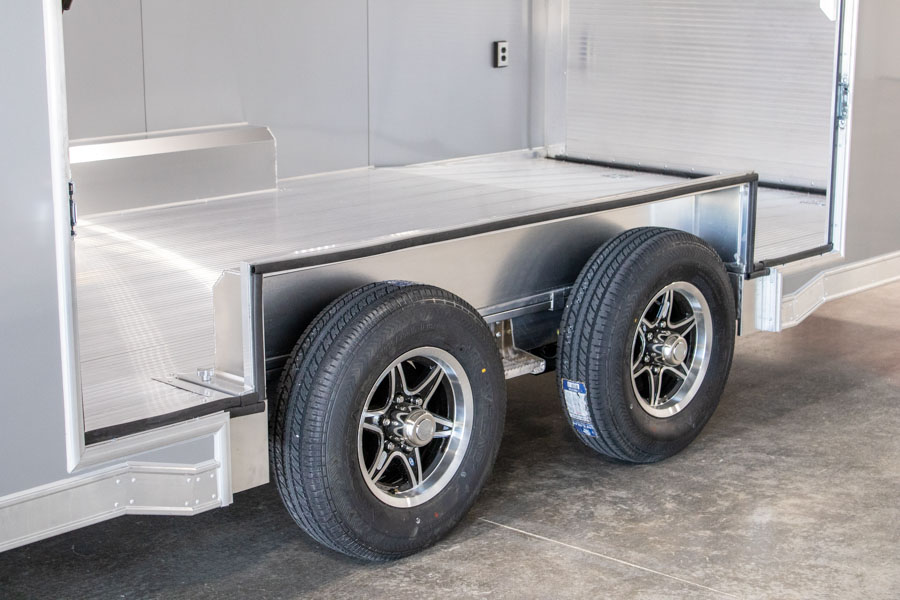

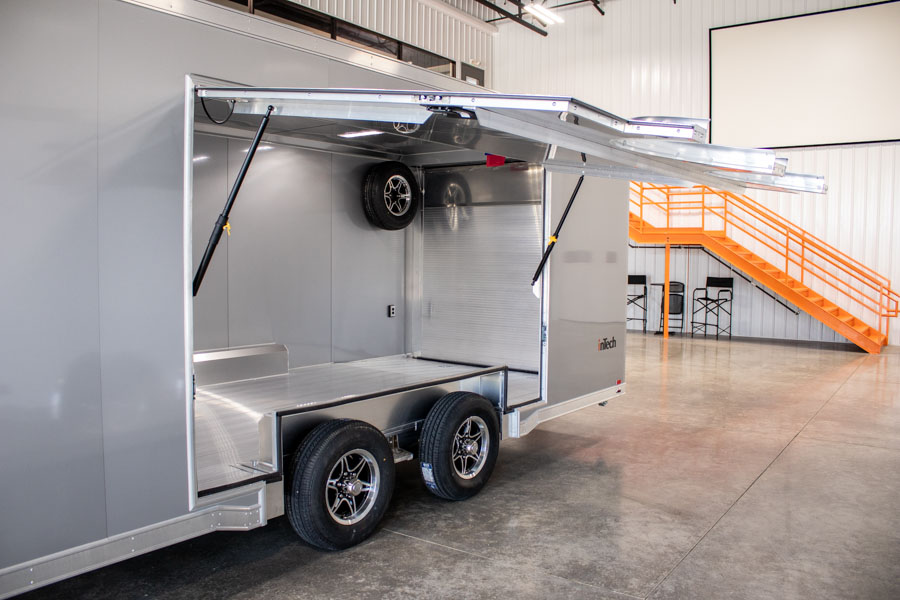

Full Access Escape Door

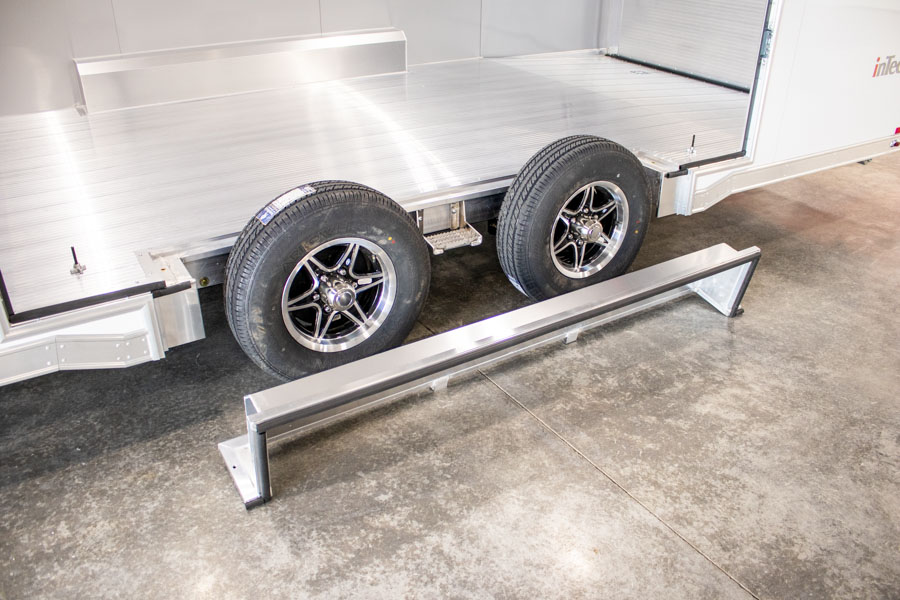

Simplify the loading and unloading process by adding a 10' x 6' full access escape door. Made even easier with our removable wheel box and integrated step between the axles.

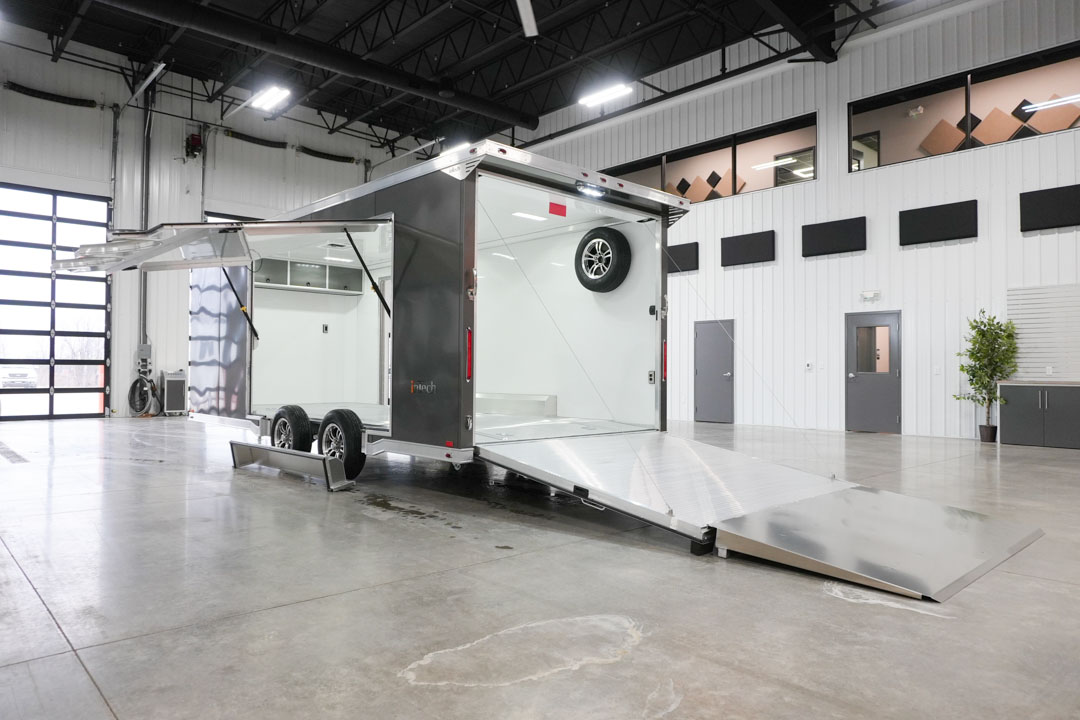

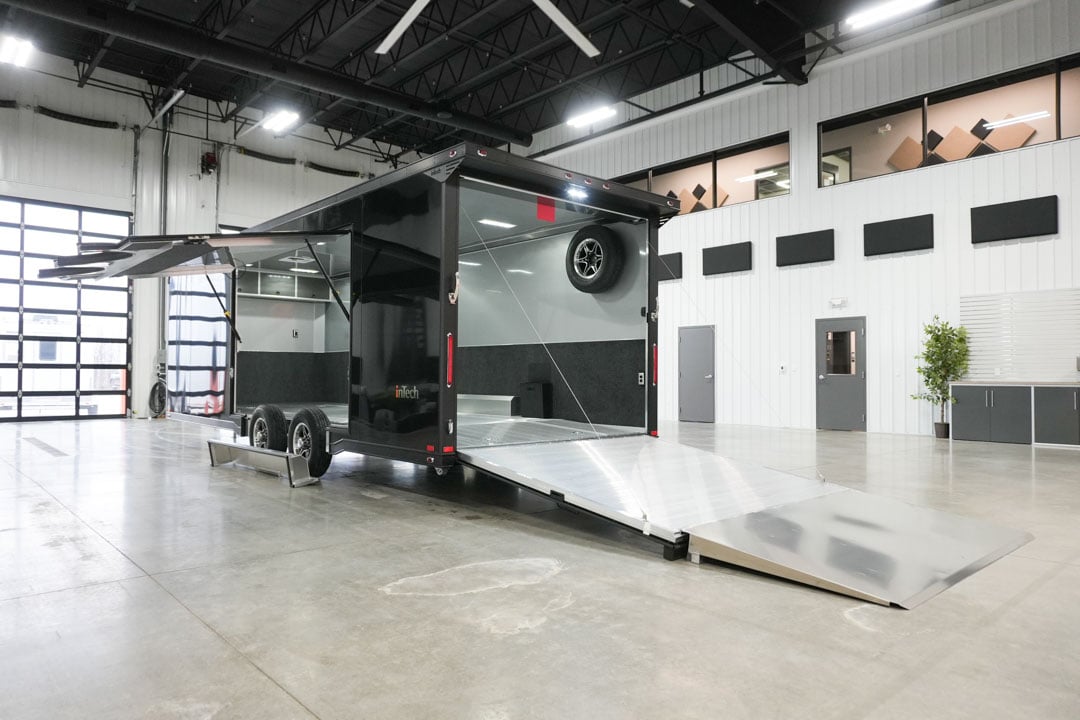

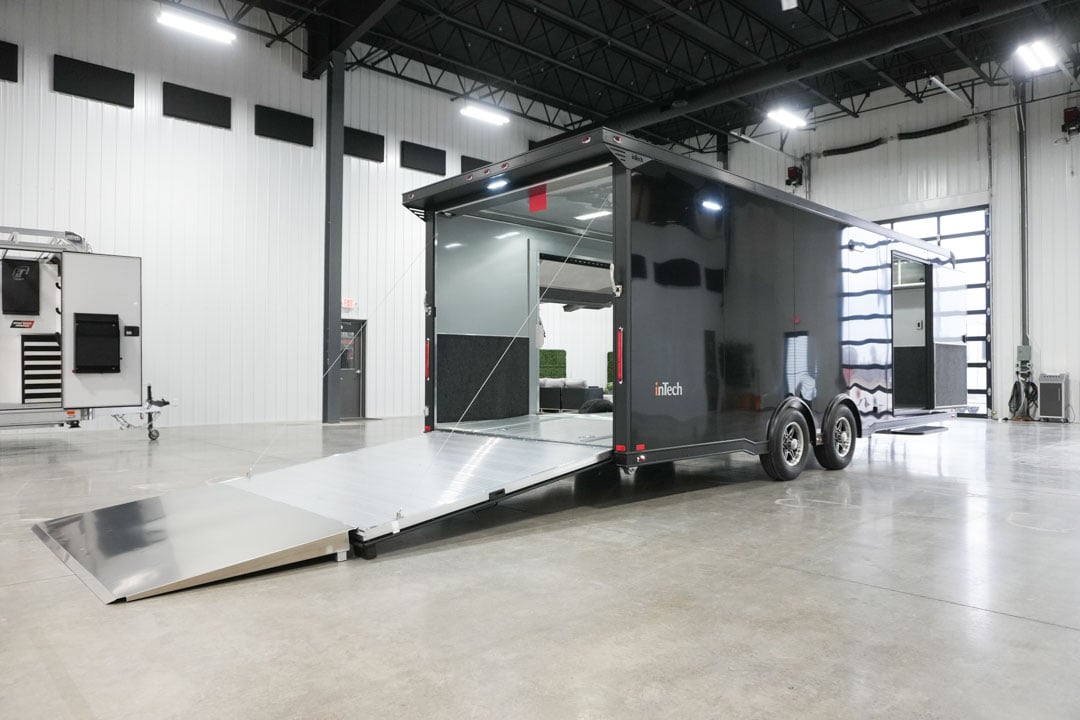

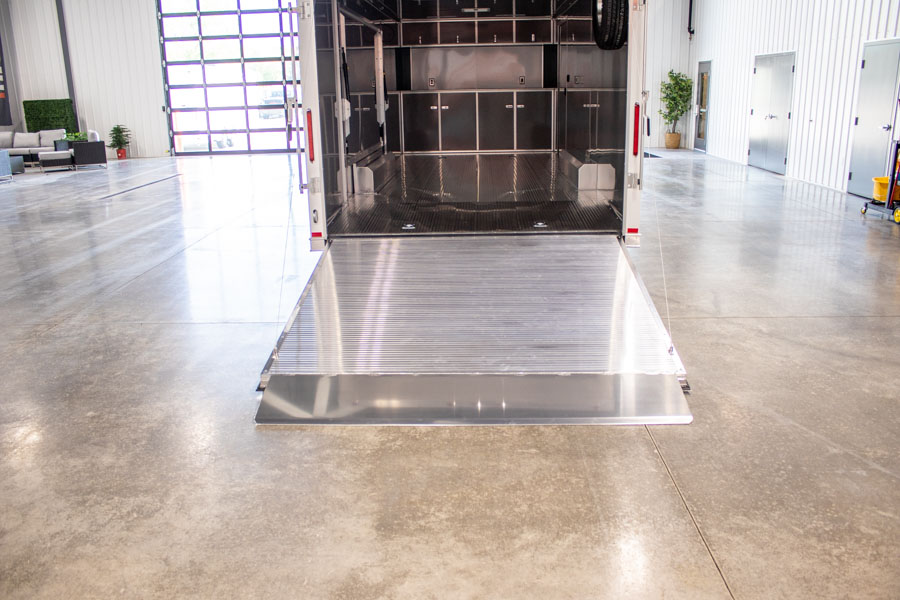

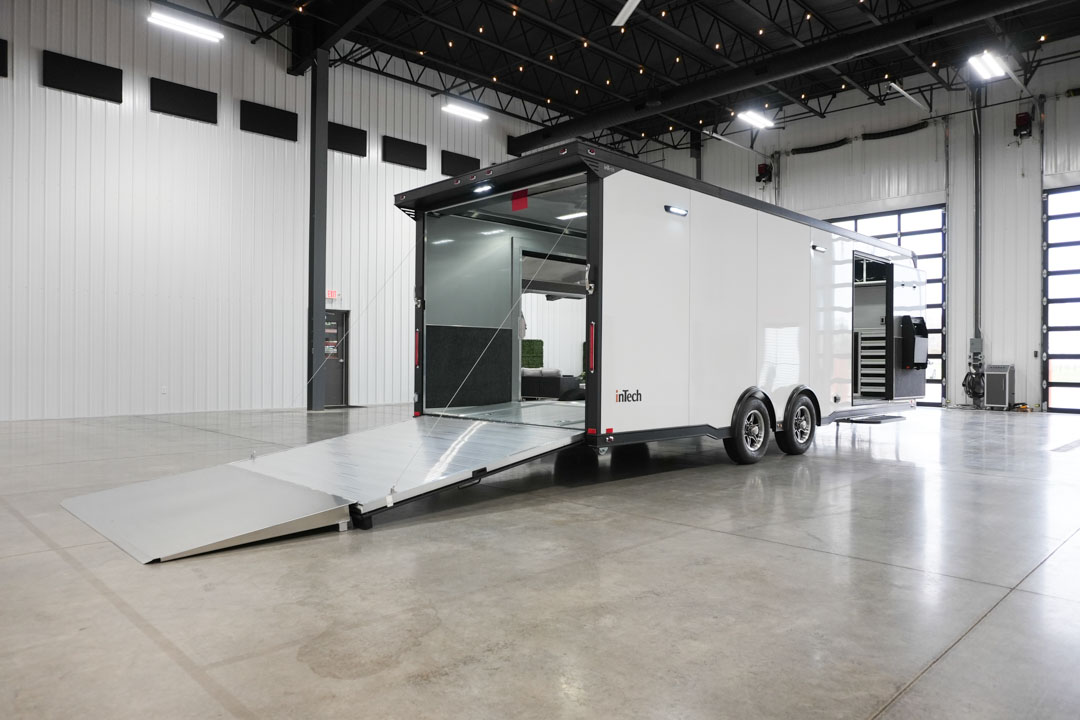

Full Width 4' Ramp Extension
Our ramp extension with 4” bumpers will significantly decrease your angle of approach for loading a vehicle with low ground clearance. It folds away and secures to the ramp door when not in use.

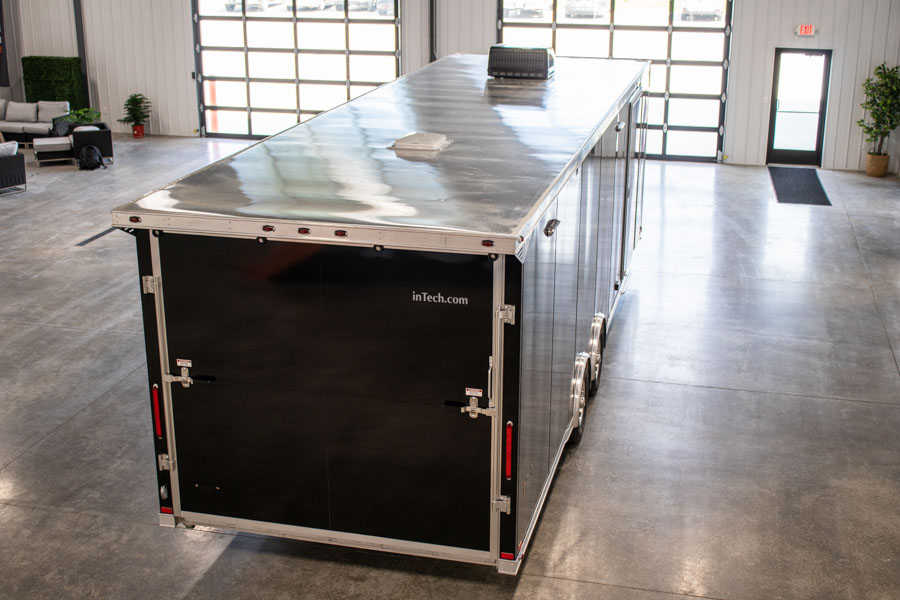

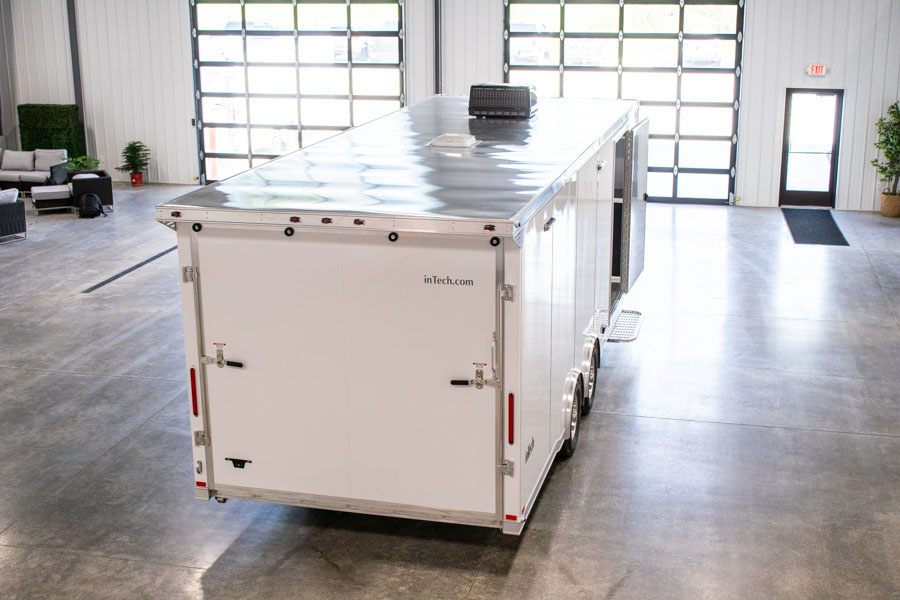

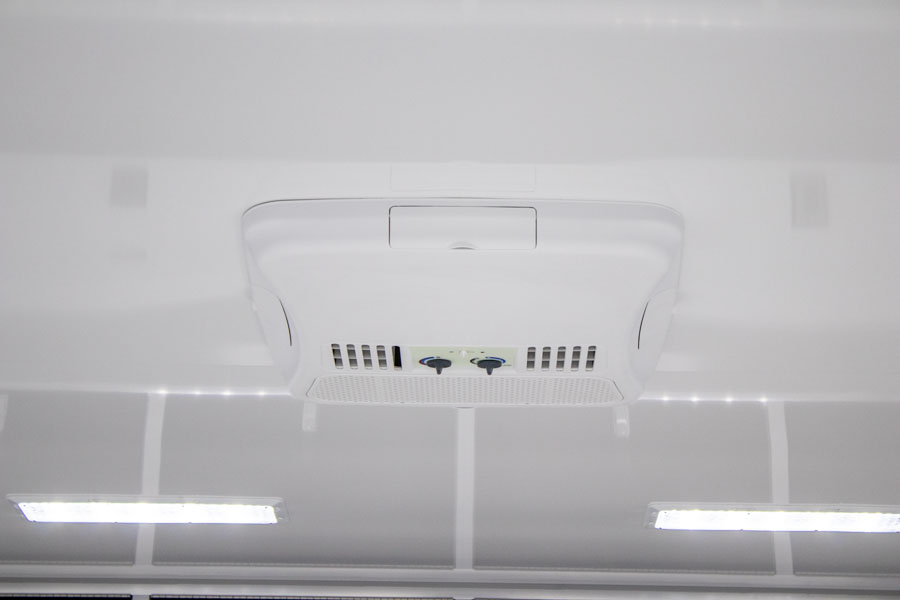

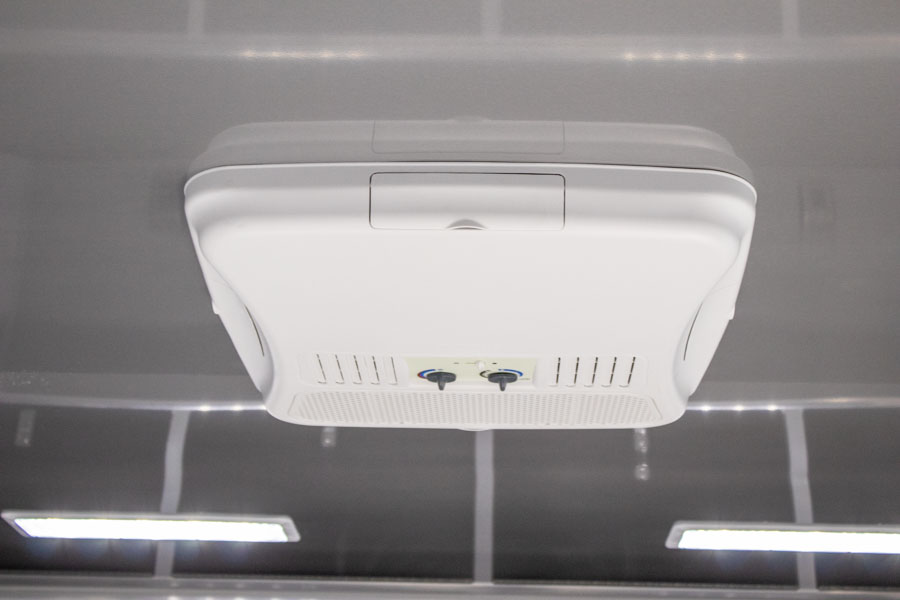

13,500 BTU A/C
Keep your trailer cool by adding a roof mounted A/C with manual ceiling controls.

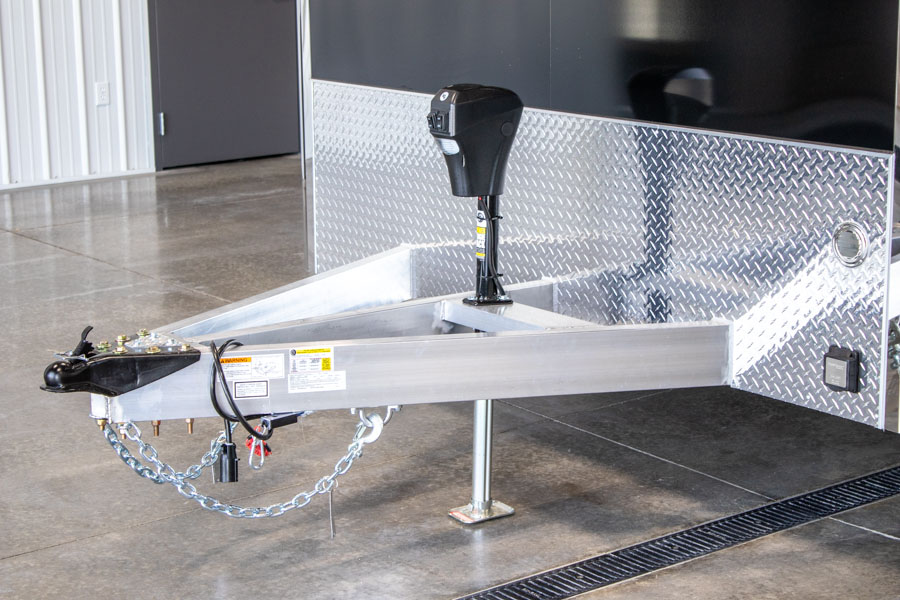

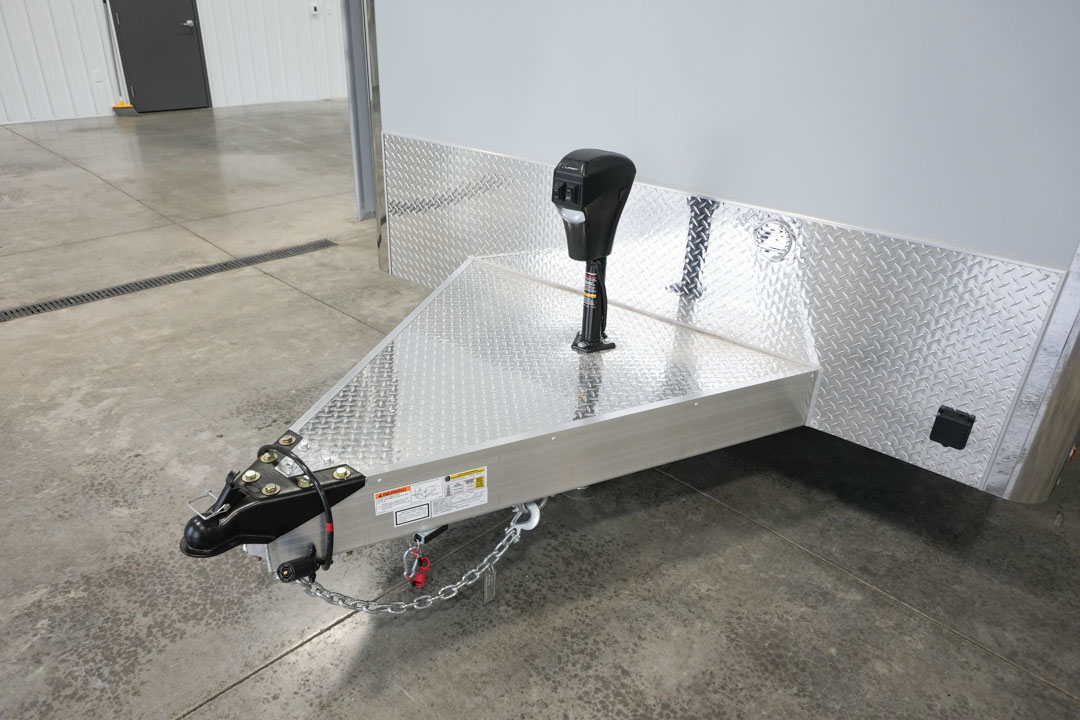

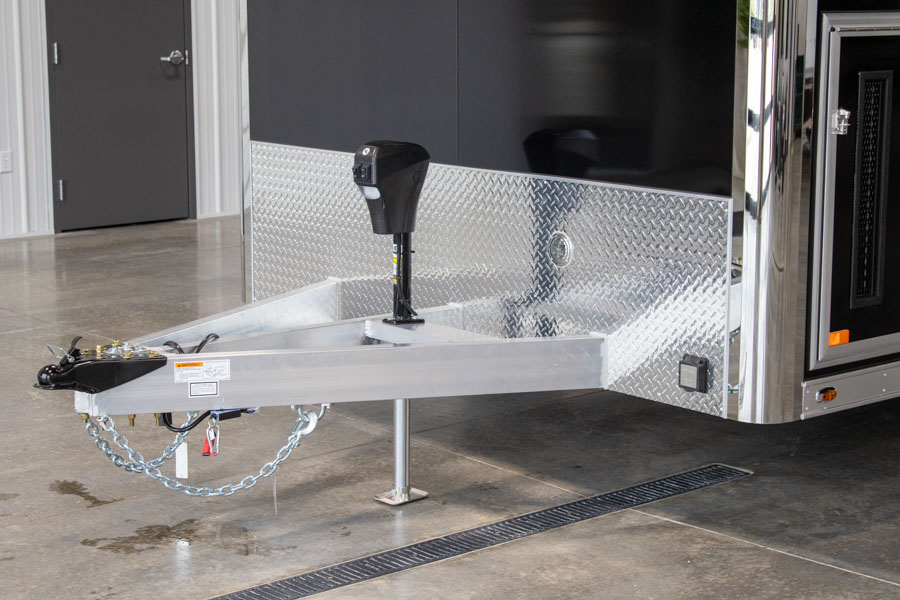

Power Tongue Jack
Crank no more. Add a 3500# power tongue jack to make short work of connecting and disconnecting your trailer.
Install Jack Toward Rear of Tongue
Get even more clearance by having the jack installed towards the rear of the tongue, closer to the body of the trailer.

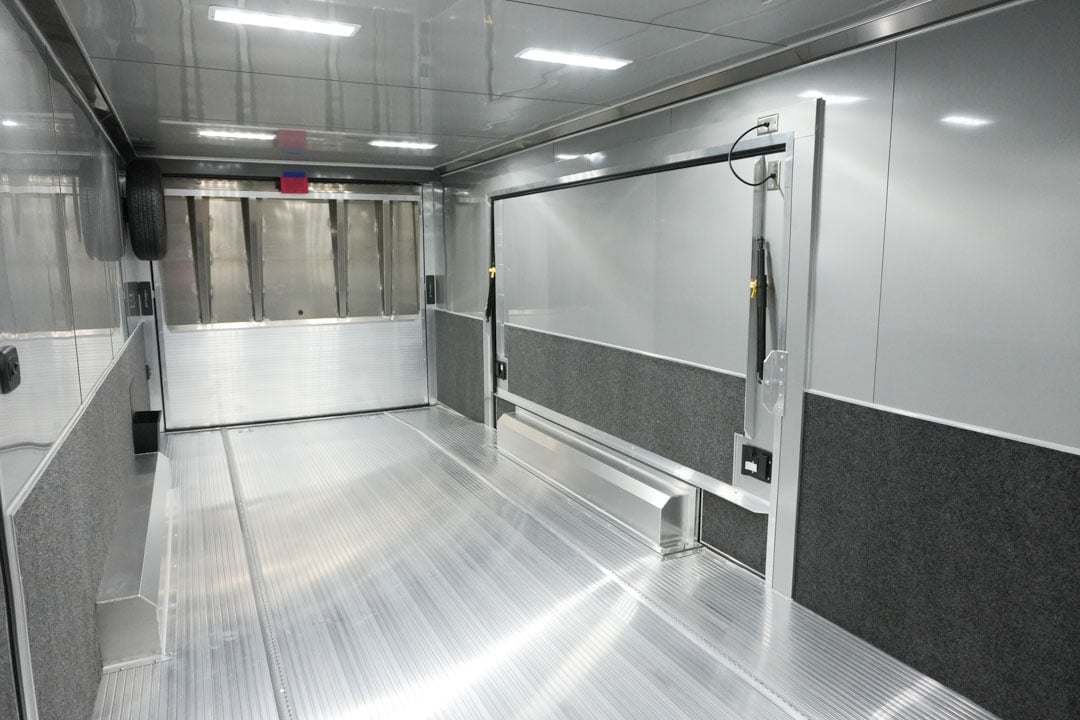

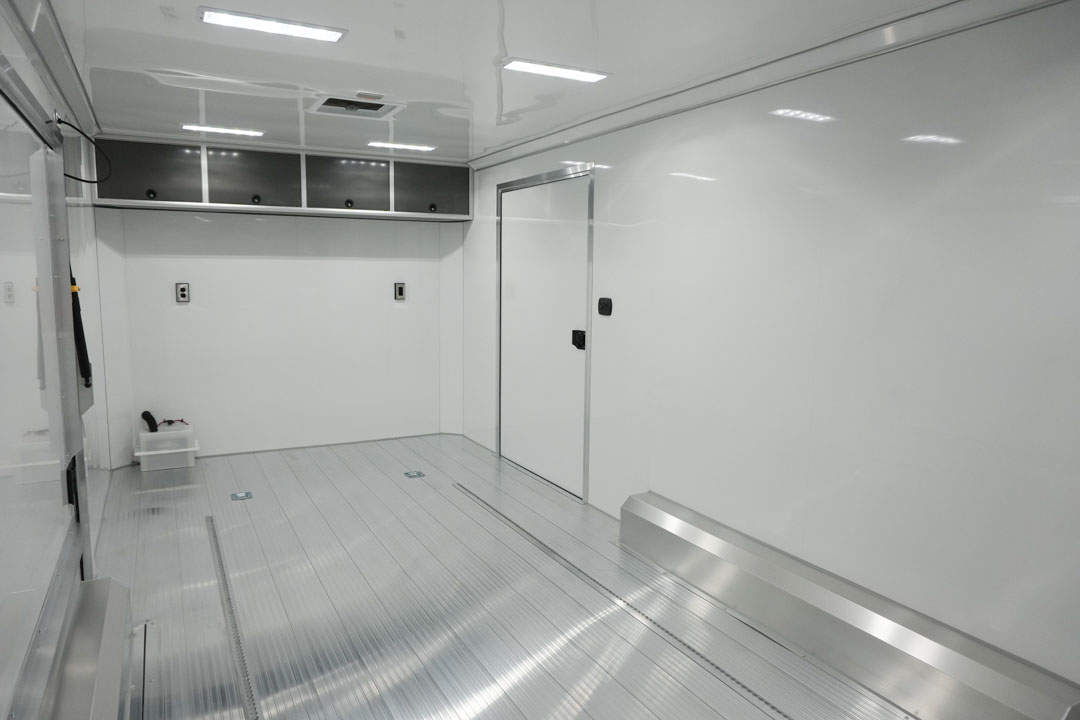

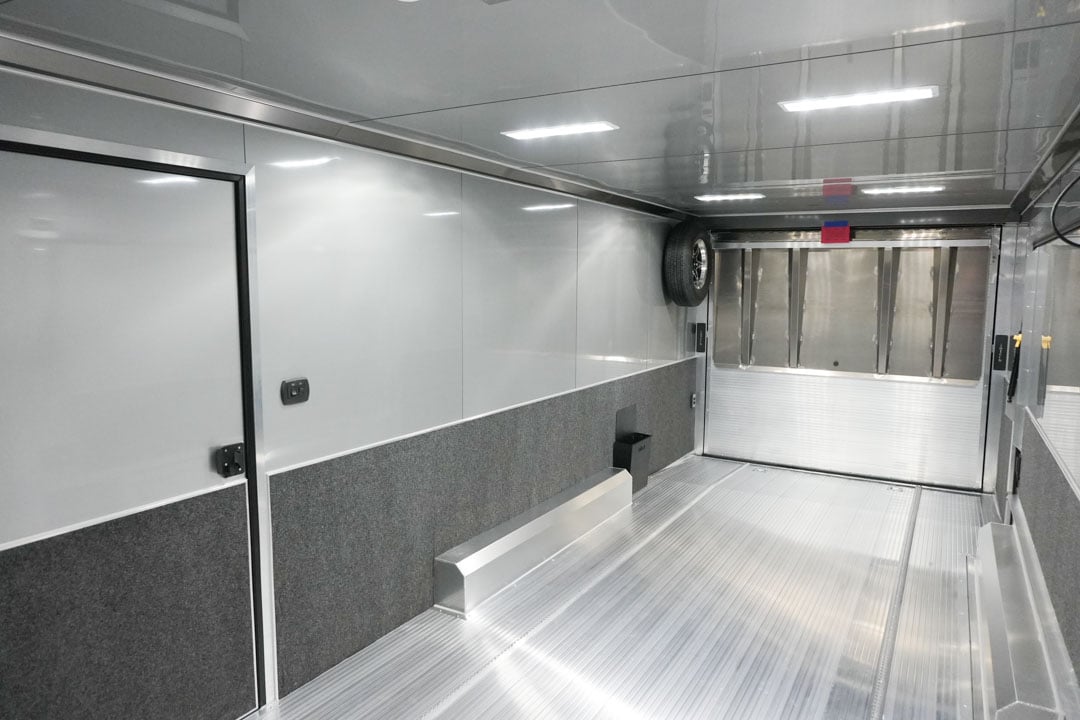

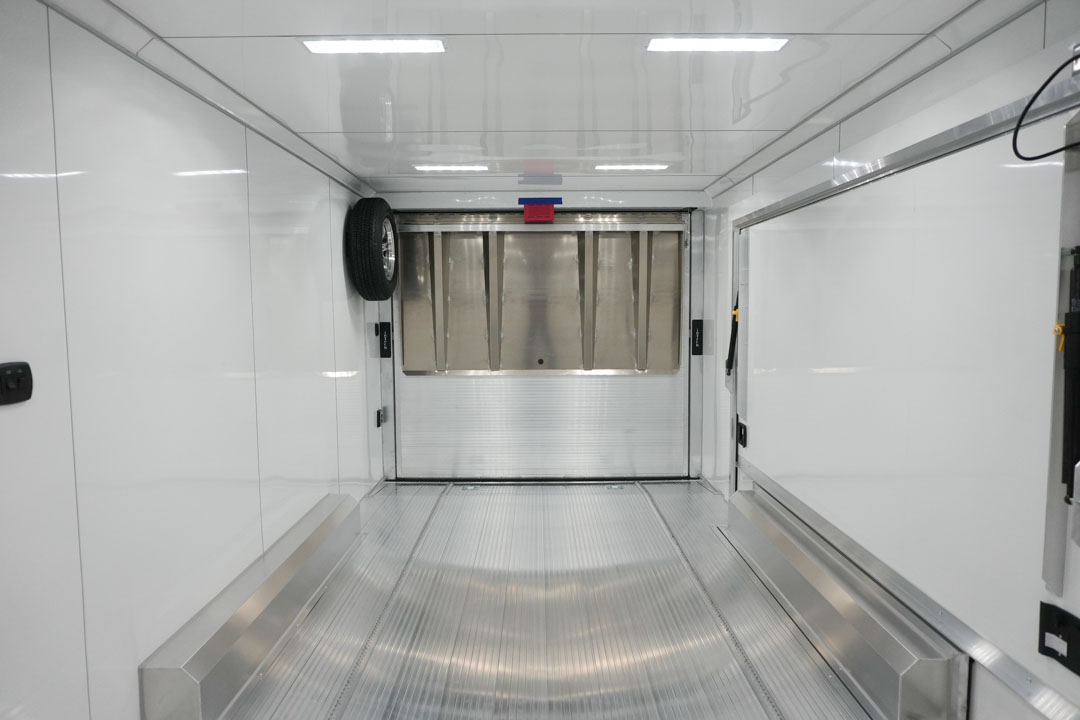

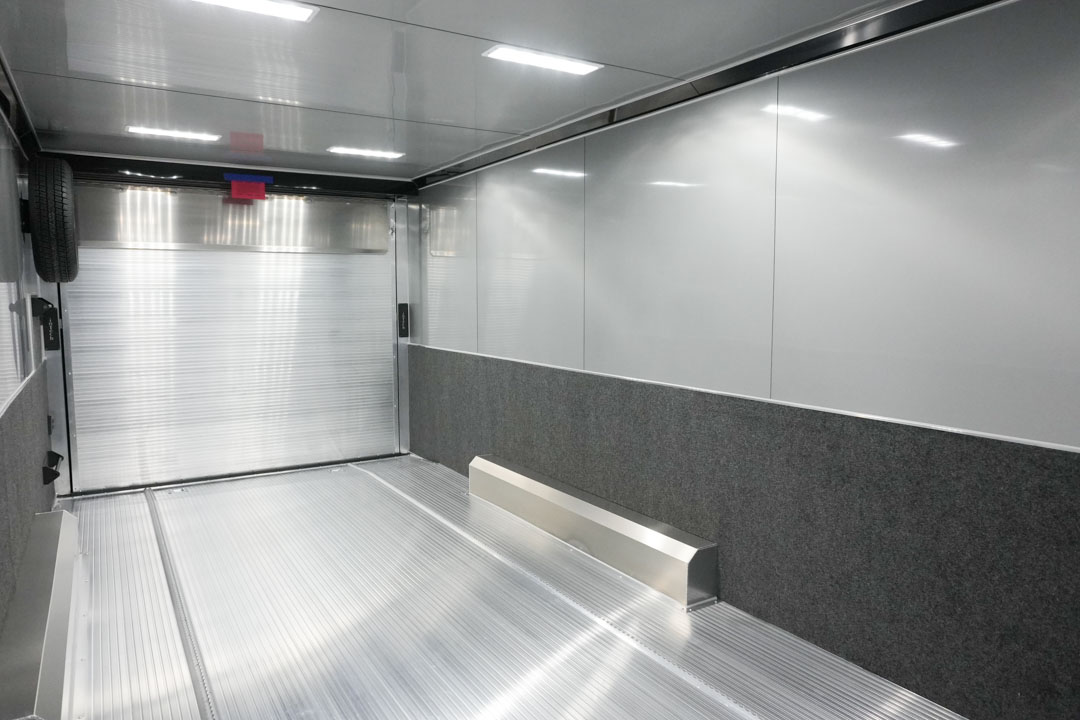

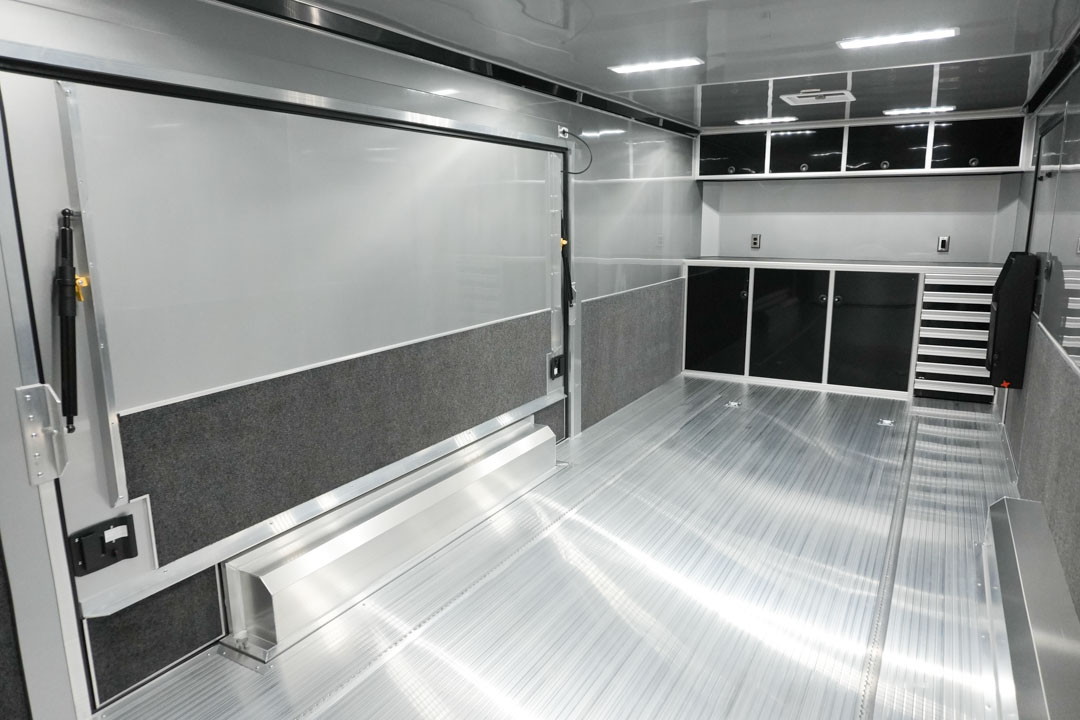

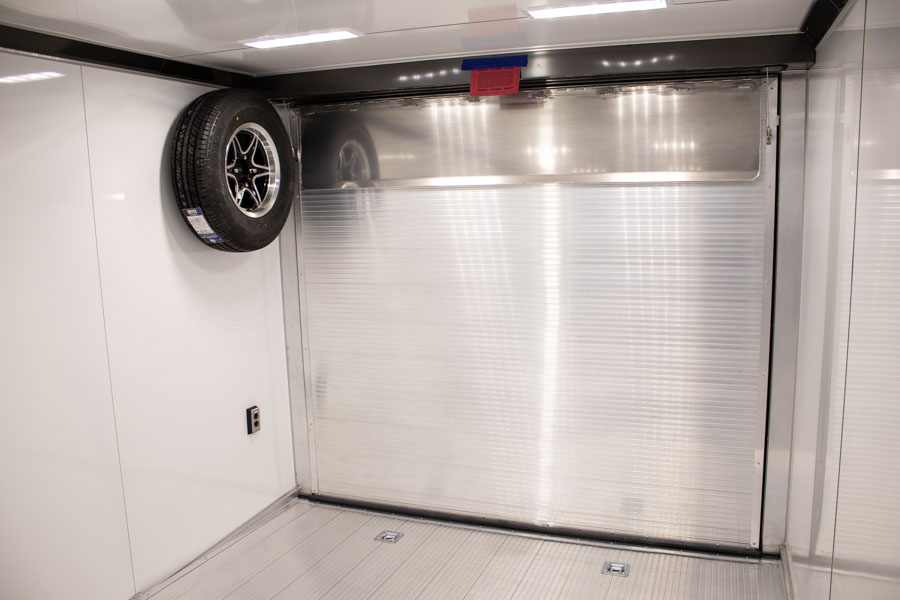

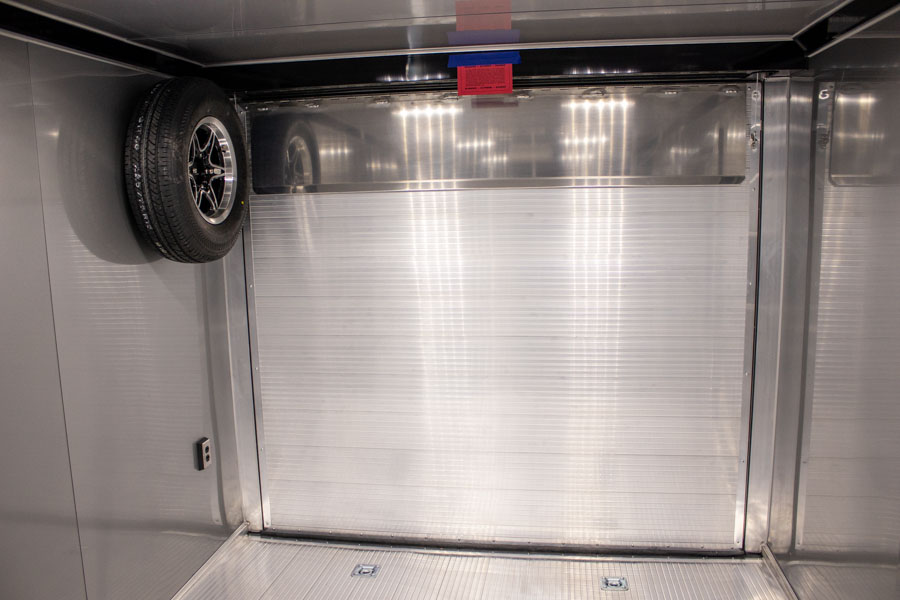

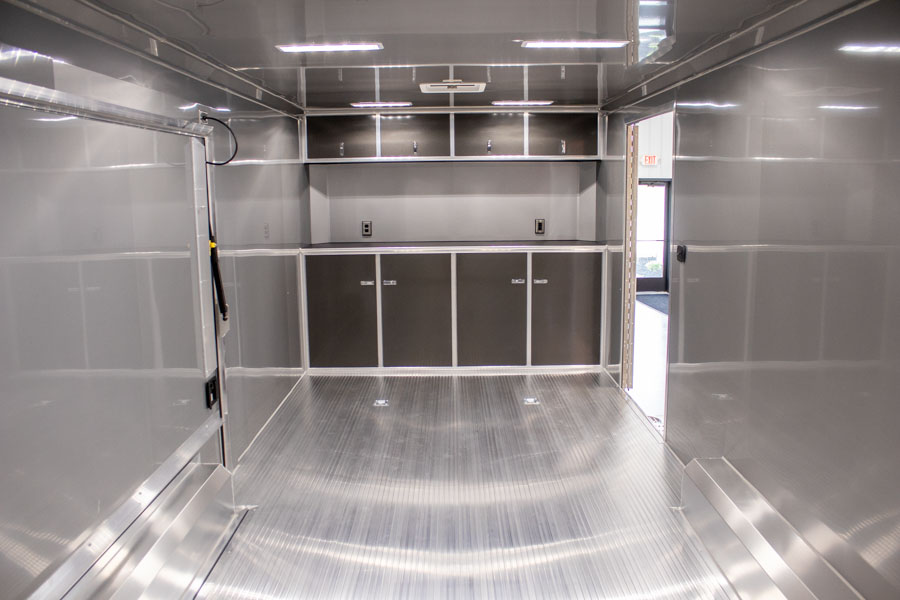

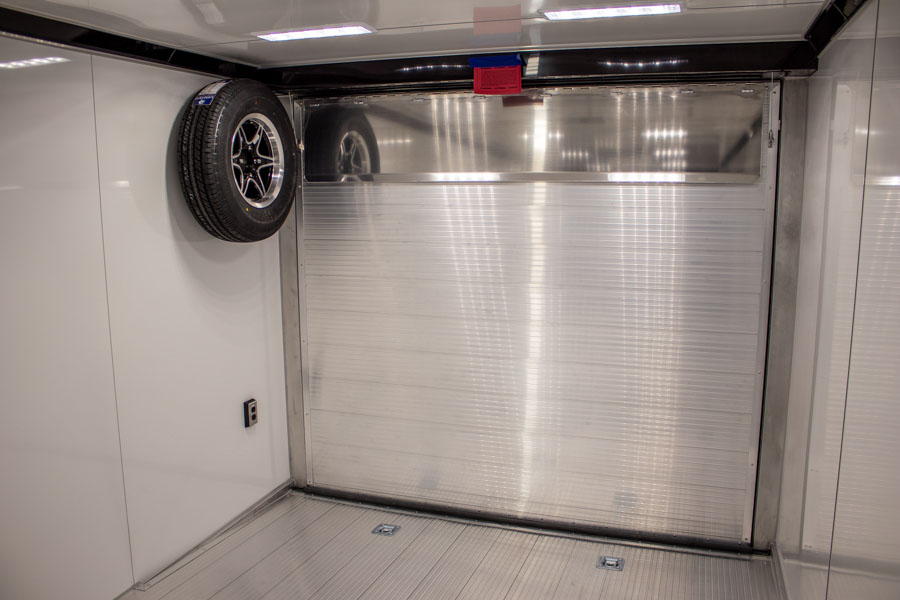

Screwless Aluminum Interior Walls & Ceiling
Upgrading from standard vinyl walls and ceiling to screwless aluminum will give your trailer a more refined look.
Winch Plate Under Base Cabinet
Prepare your trailer for a future winch installation with a backer plate for support, welded directly to the frame under the base cabinets.

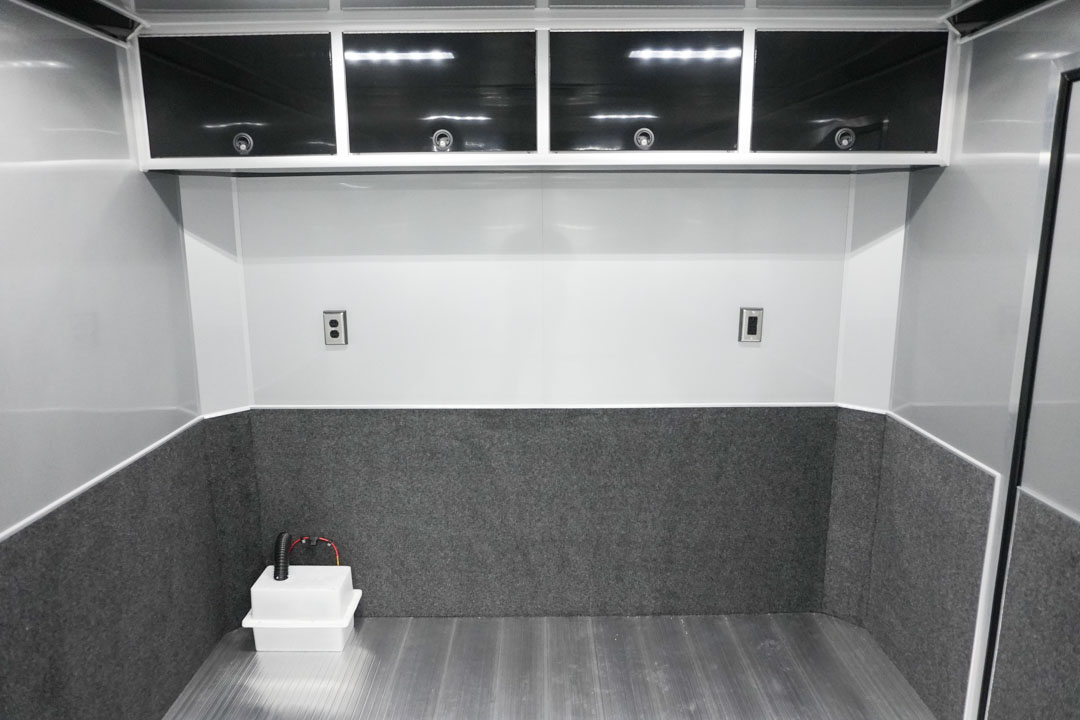

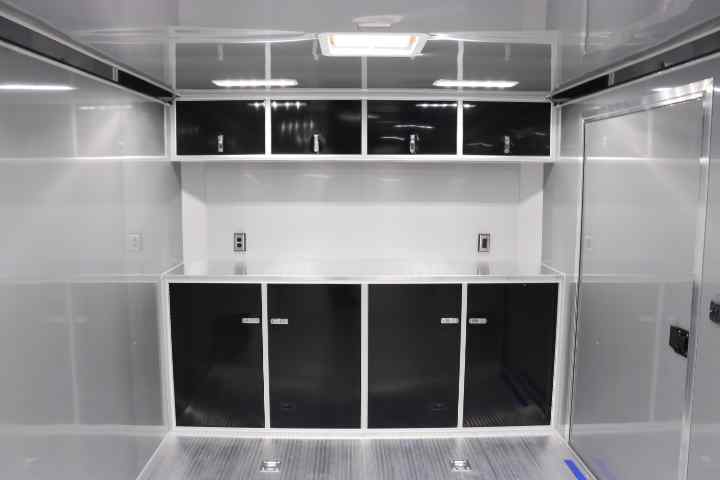

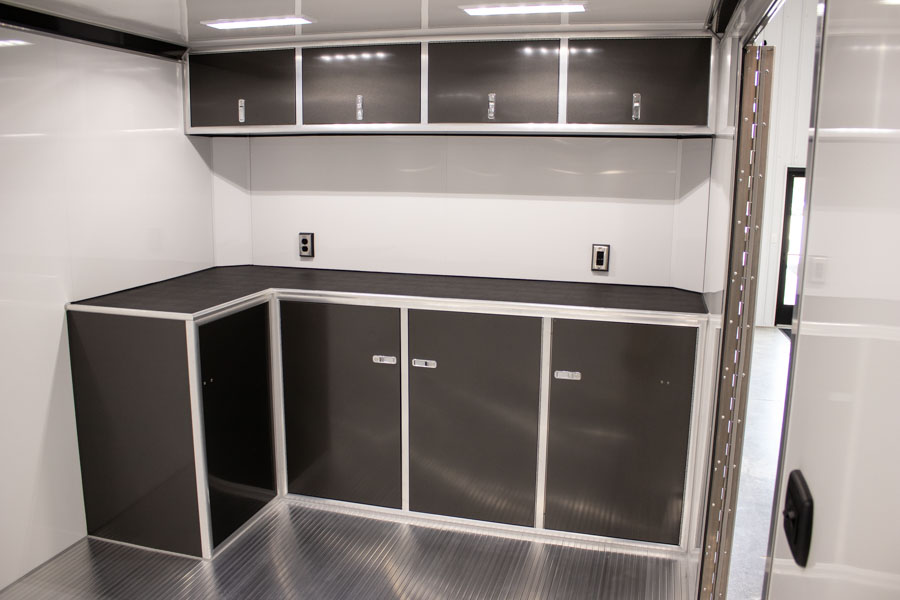

L-Base Cabinet w/ Generator Box & Door
Extend your interior countertop space and create a dedicated compartment for your generator. Complete with an exterior access door on the roadside of the trailer.

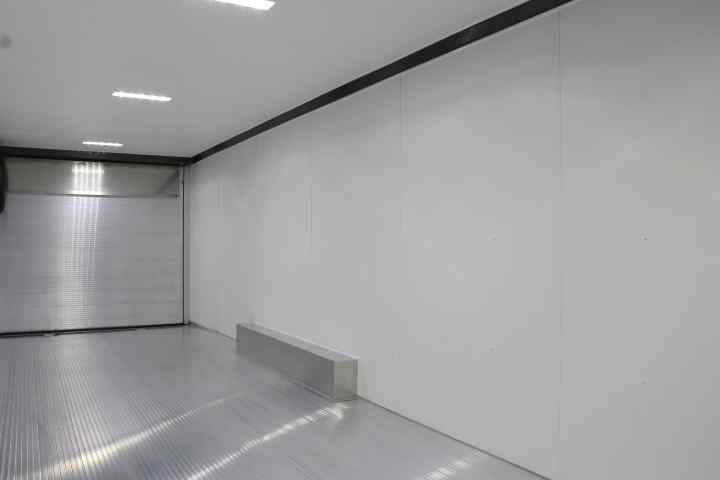

Delete 8' Straight Base Cabinet
Need the full floor space for cargo? Remove the base cabinets and receive a credit on your order.
Full Access Escape Door
Full Width Ramp Extension
13,500 BTU A/C
Power Tongue Jack
Install Jack Toward Rear of Tongue
Screwless Aluminum Interior Walls & Ceiling
Winch Plate Under Base Cabinet
L-Base Cabinet w/ Generator Box & Door
Delete 8' Straight Base Cabinet
Available Color Options
*Available colors are subject to change without notice.
| Choose a color to view it on the trailer. |
|---|
Polar White |

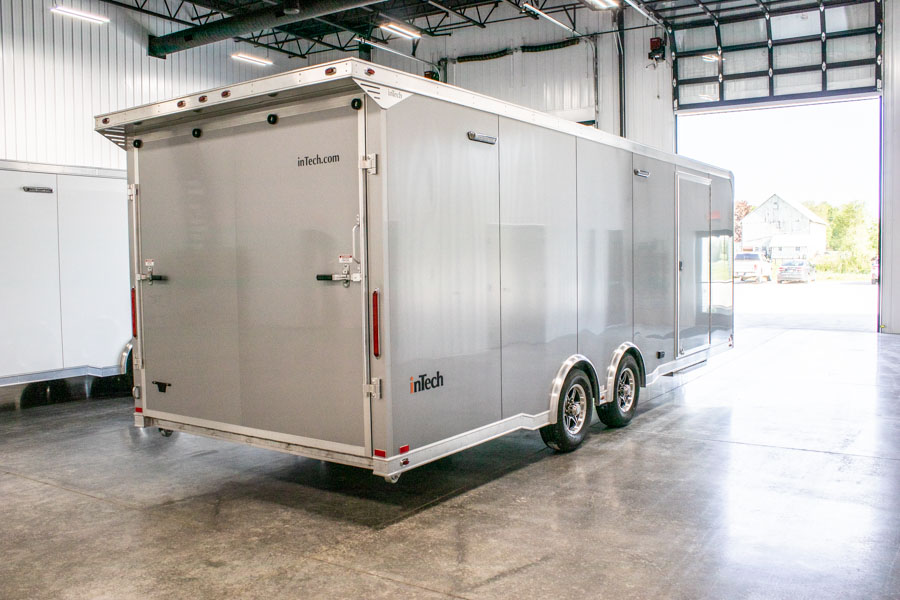

Silver Frost (Metallic) |

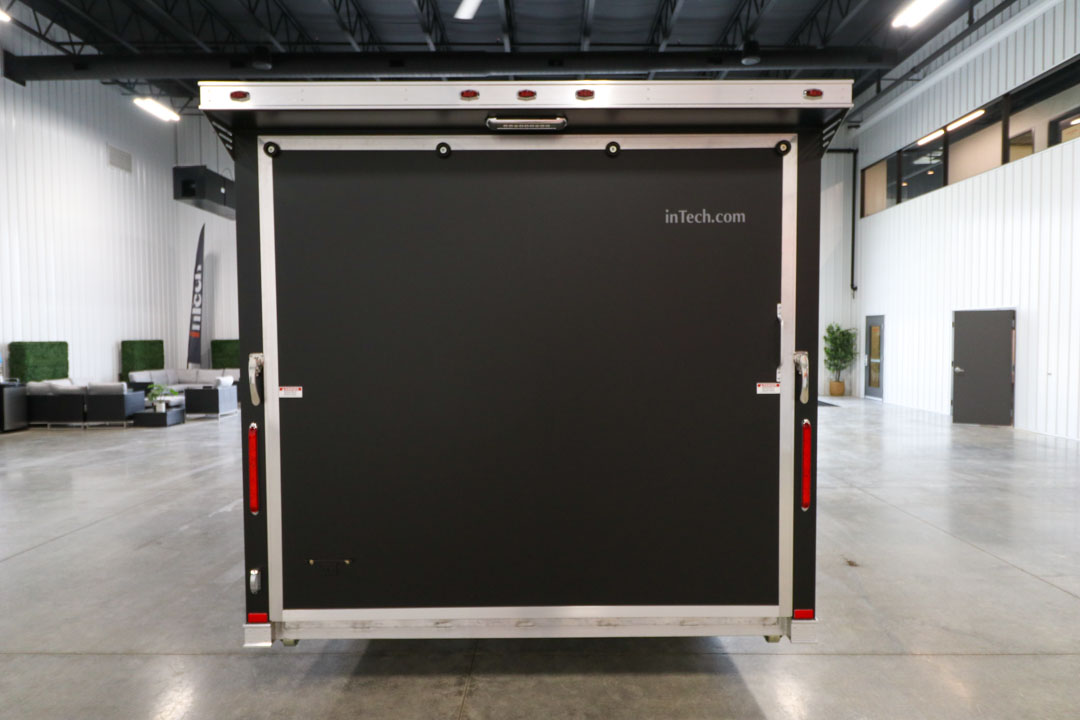

Black |
Med Charcoal Gray (Metallic) |
Sportsman Gray |
Matte Black (image coming soon) |
Orange (image coming soon) |
Victory Red (image coming soon) |

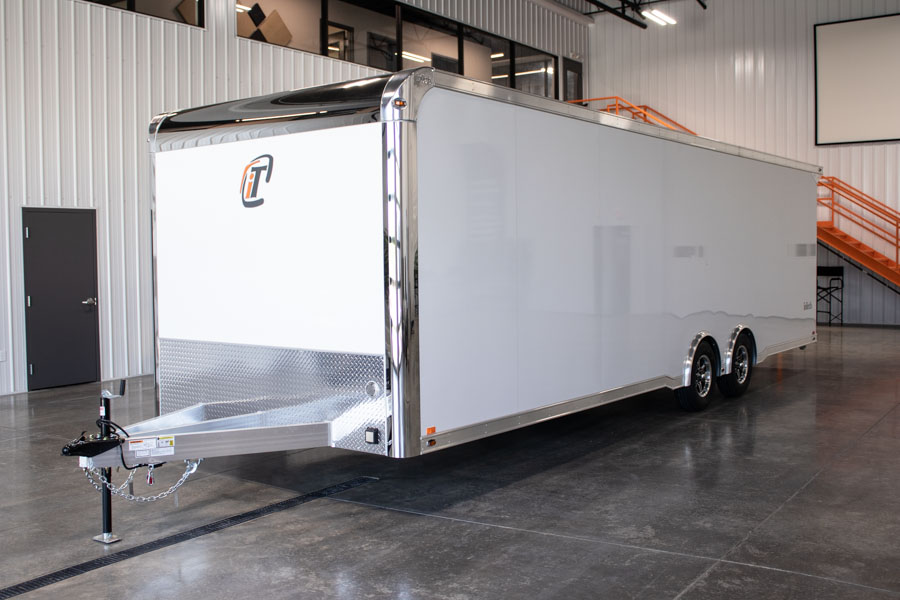

Leading the Way with Revolutionary Aluminum Construction.
Every inTech trailer frame is built using only aluminum tube extrusions. Aluminum renders a light-weight trailer using the strongest, longest lasting materials available. We've also selected the highest quality aluminum materials for finishing the interior and exterior of our trailers.
- Full Perimeter All-Tube Frame Construction

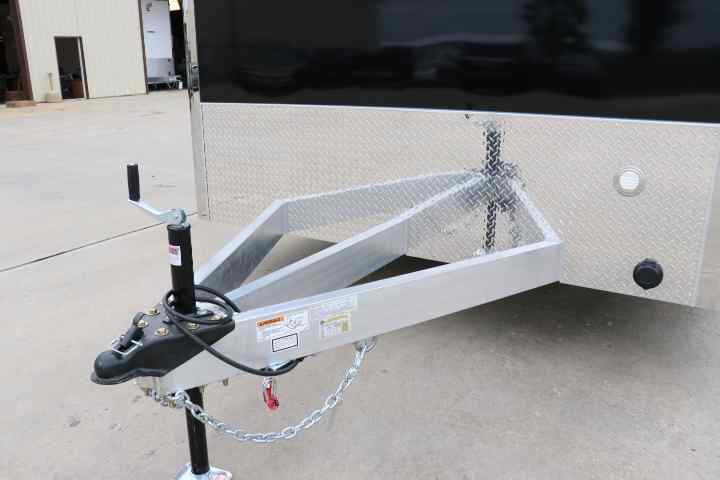

- Triple Tube Aluminum A-Frame Tongue
- Extruded aluminum floor & ramp with transition flap
- Premium aluminum wheels and full spare with mount
- One-piece, seamless aluminum roof
- Standard .040” thick screwless & rivetless aluminum exterior skin
(Upgrade to .050” upgrade available in Stacker models)
The Same Great Quality You've Come to Expect from inTech.
Our focus on quality starts during the design process and continues through production, resulting in the absolute finest fit, finish and attention to detail in the trailer industry. The Lite series is no exception. Built right alongside our premium custom trailers, we spare no expense in bringing you a high-end car hauler that you can trust.
- Engineered to last, with a 5-year transferable structural warranty
- Built by the same skilled craftsmen that produce our signature custom trailers
- Name brand components & reputable suppliers
- Aluminum cabinetry and other components built here in our on-site fabrication shop
A Premium Car Hauler
Without the Wait.
By limiting the size offerings and available options, we are able to streamline production of the Lite Series models, allowing for shorter lead times. However, we include many of our most popular features in our Lite Series trailers standard, resulting in a value-priced trailer without sacrificing our same great quality and premium fit and finish!
- Much shorter lead times than our custom trailers
- Premium standard features included on all models
- Limited options to streamline our production process
- Several models to choose from in multiple lengths and capacities
Continuous Improvement & Innovation.
Passion for our products drives us to continuously evolve, develop, and improve. With over 20 proprietary extrusions and unique processes like anodizing trims, you won't find another trailer manufacturer committed to creating a trailer that looks and performs better than inTech!
- Extensive market research and customer input has been applied to deliver the ultimate light weight car haulers
- More equipped with standard features than ever before
- Optional escape doors are now 6’ tall to accommodate a wider range of cargo
- Aesthetically appealing form and finishes without sacrificing quality
