Welcome to Discover

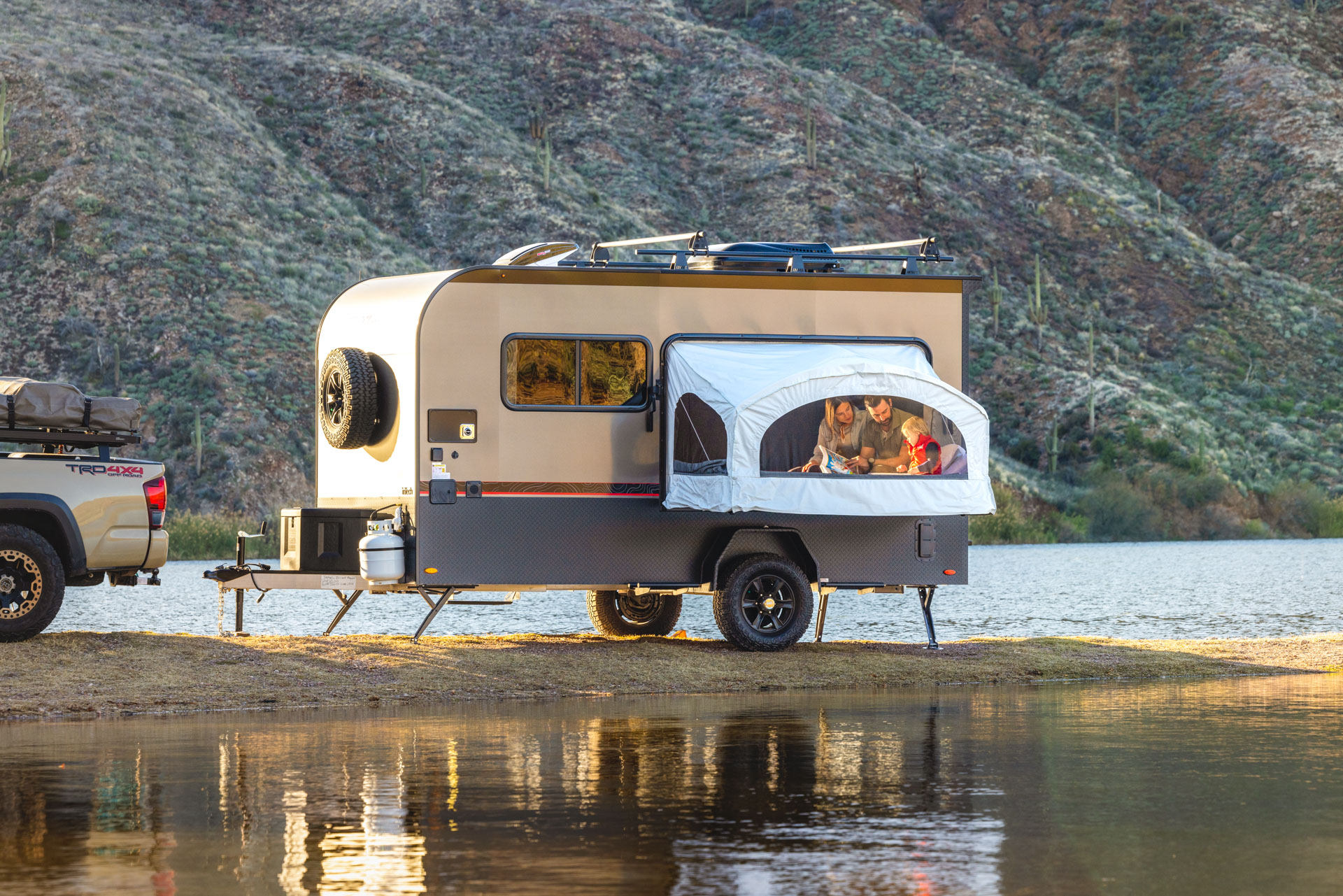

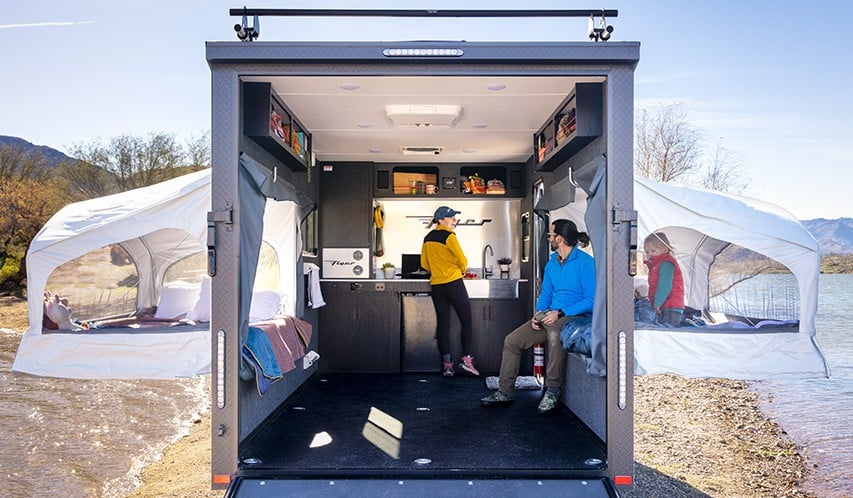

Increase your overall living space by adding the Curbside Tip-out Bed.
Rated at 250 lbs. Ideal for transporting and mounting aftermarket accessories.

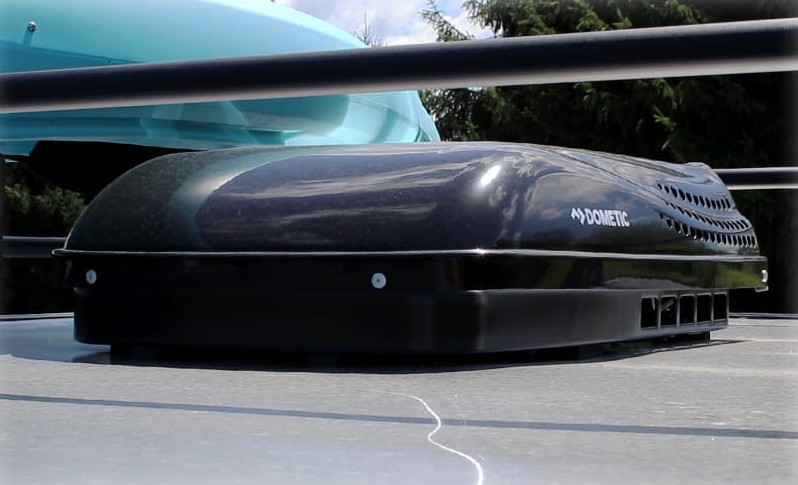

Stay cool with our low-profile rooftop AC.

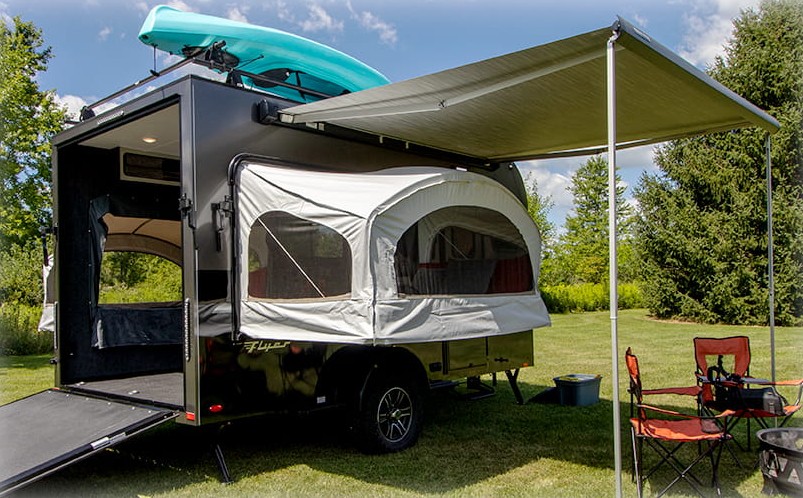

10' Power Awning
Quick, easy and simple protection from the elements.
Embrace the great outdoors without sacrificing comfort by going off-grid and immersing yourself in nature while still enjoying modern amenities.

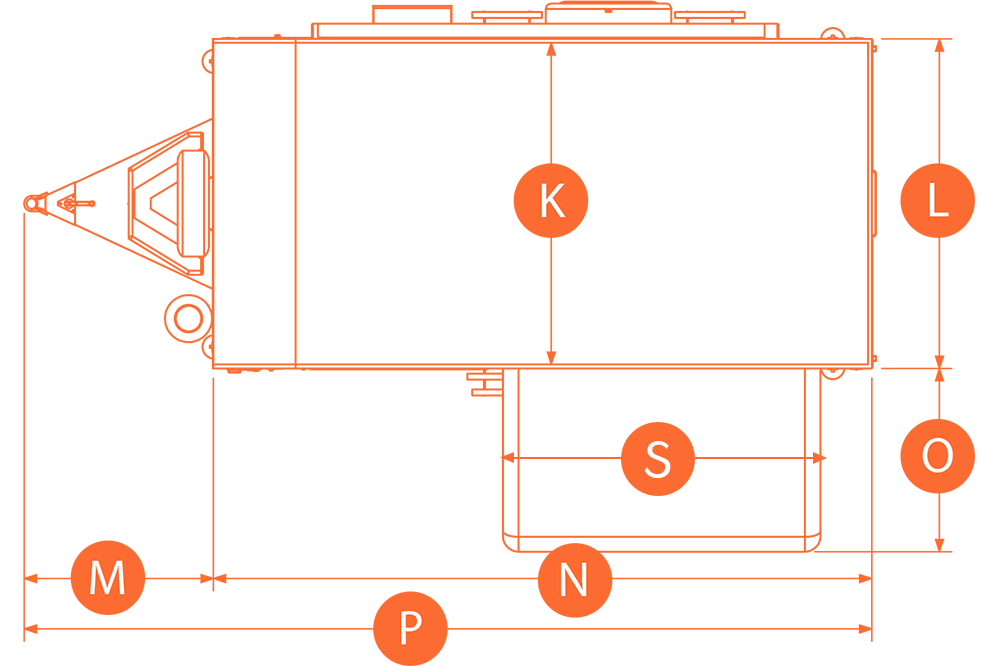

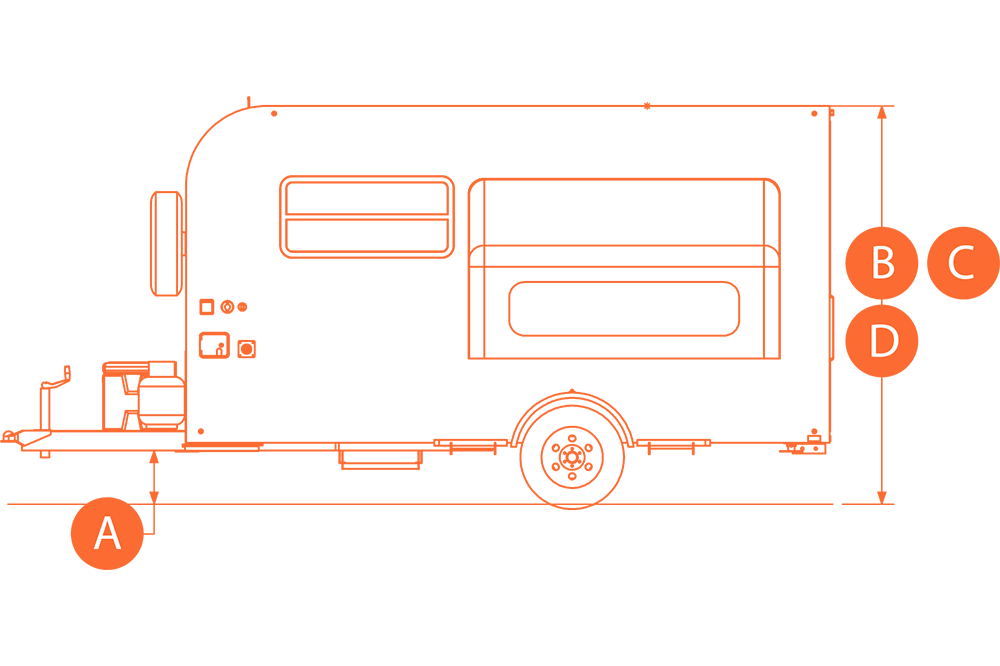

- (A) Ground Clearance - 16"
- (B) Overall Height w/ MaxxAir Vent - 9' 1"
- (C) Overall Height w/ A/C - 9' 7"
- (D) Overall Height w/ Roof Rack - 9' 10"
- Off-Road Tires Adds Additional 2"

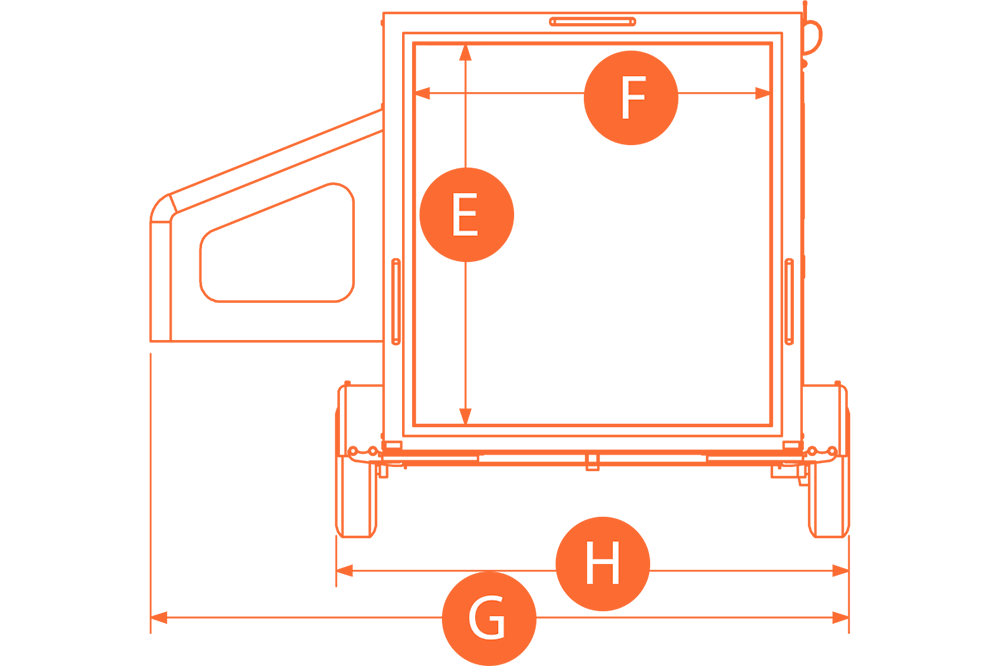

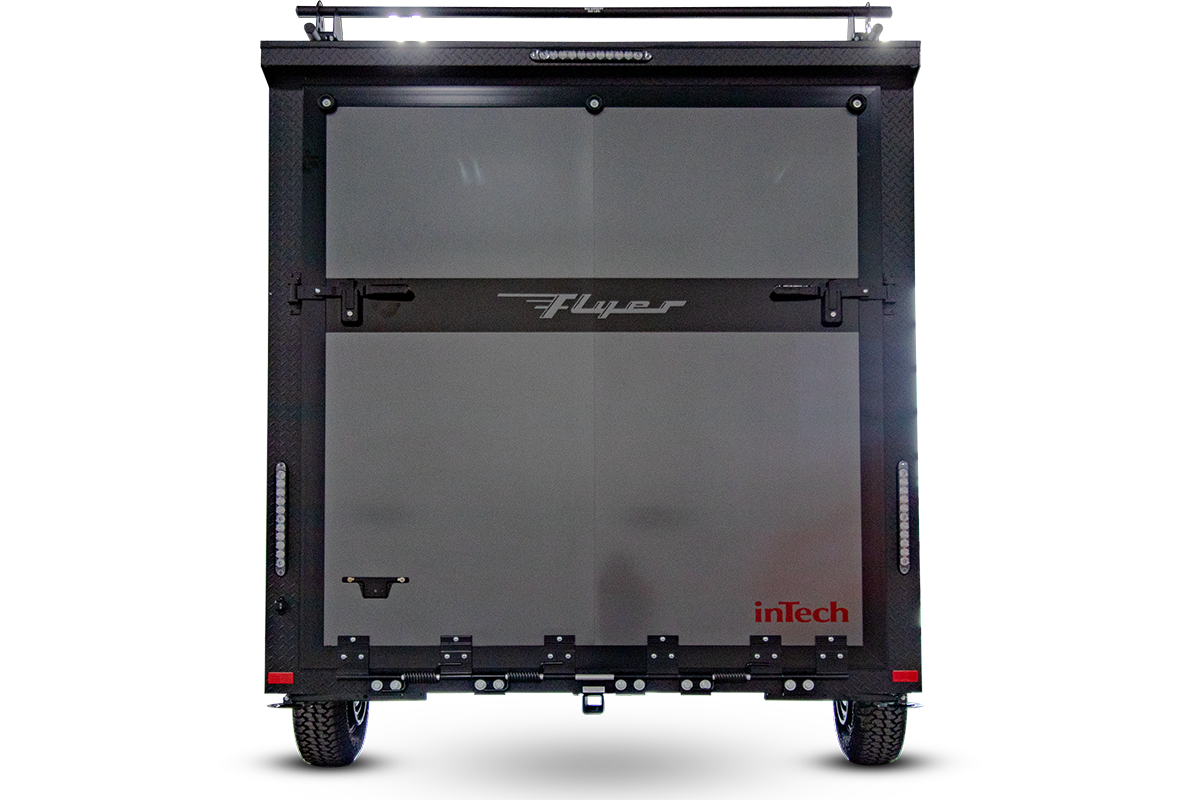

- (E) Rear Ramp Clear Opening Height - 6' 7"
- (F) Rear Ramp Clear Opening Width - 6' 2"
- (G) Overall Width w/ Tip-Out - 11' 8"
- (H) Overall Width - 8' 6"
- (K) Interior Width - 6' 10"
- (L) Box Width - 7'
- (M) A-Frame Length - 4'
- (N) Box Length - 14'
- (O) Tip-Out Bed Width - 4' 1"
- (S) Tip-Out Bed Length - 7'
- (P) Overall Length - 18'

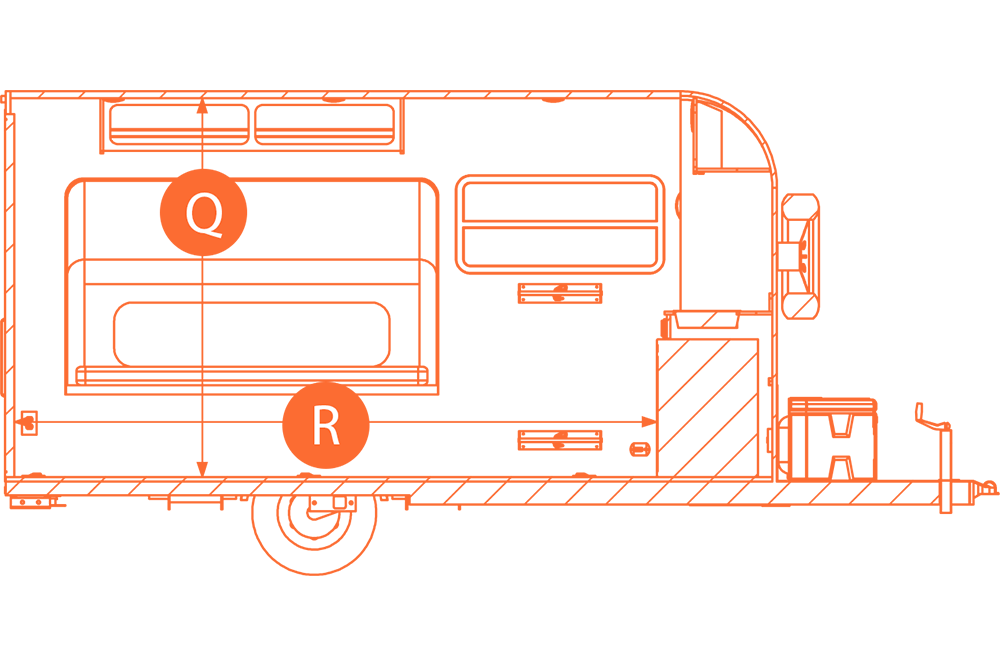

- (Q) Interior Height - 6' 11"
- (R) Interior Length - 11' 9"
Dimensions, equipment and pricing are subject to change without notice. For complete and up-to-date details regarding inTech RVs, please speak to an authorized inTech RV dealer.
|Dry Weight||2,440 - 2,760 lbs|
|Tongue Weight||520 lbs|
|Net Carrying Capacity||2,440 – 2,760 lbs|
|Fresh Water Tank||8.5 Gal|

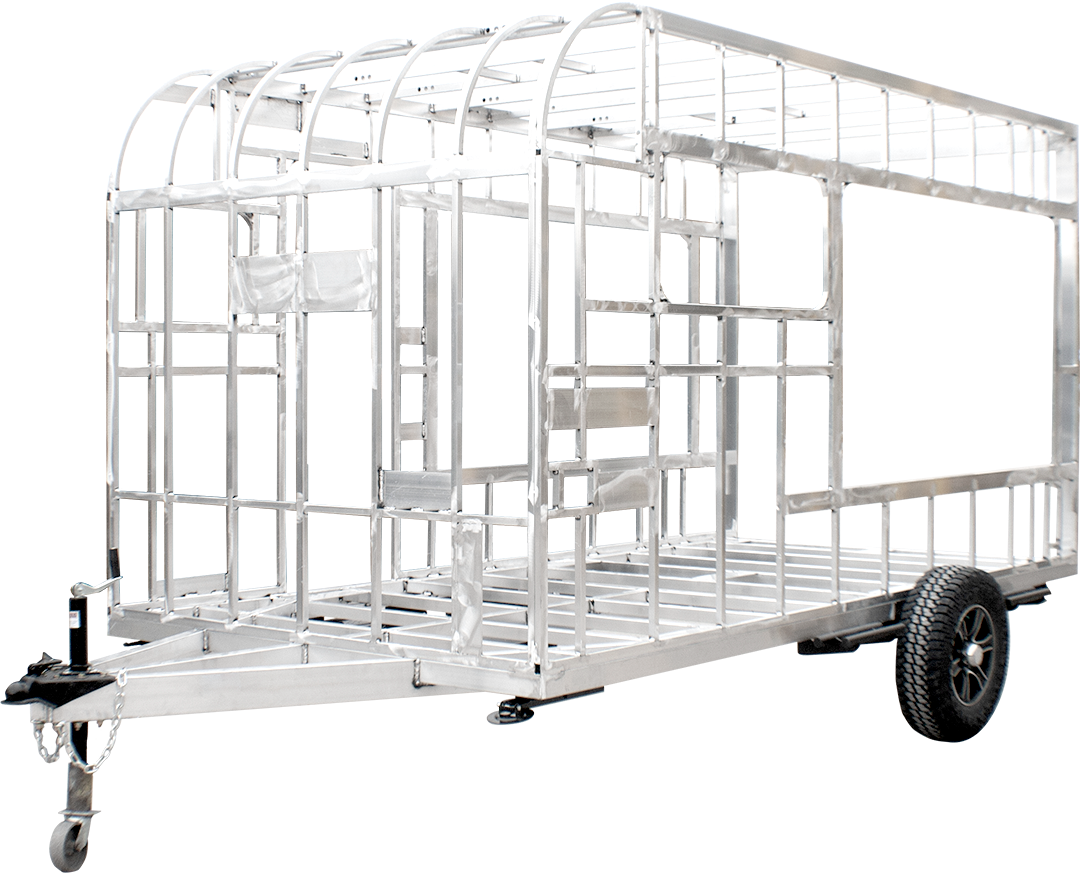

|Frame||All-Aluminum / All-Tube / Cage Frame|
|Coupler||2 5/16” Ball|
|Rear Receiver||2” Receiver – 175# Capacity|
|Tires||ST235 Tires w/Aluminum Wheels – Includes Spare Tire|
|Load Center||30 Amp|
|Ramp||Loading Ramp Door rated at 2,200lbs|
|Exterior Wall Covering||.040 Aluminum – Seamless|
|Roof||One Piece Aluminum|
|20# LP Tank||1|
|Tip-Out Bed Mattress||46”x81” Rated at 1,100 lbs|
|A/C||11K w/ Soft Start|
|Ventilation||MaxxAir Vent Fan|
|Insulation||Bubble Foil (Walls & Ceiling)|
|Lower Storage||Base Cabinet w/2 Storage Areas & (3) Wardrobe|
|Overhead Storage||(3) Overhead Storage Cubbies|
|Flooring||Black Coin Flooring|
|Tiedowns||(9) 500 lb Tiedown Rings|
|Entertainment||Bluetooth Stereo w/(2) Speakers|
|Lighting||(6) LED Dome Lights|
|Outlets||(1) 12V Outlet w/(2) USB Ports & (3) 120V Outlets|
|Refrigerator||3.1 cu ft 12V/120V|
|Sink||Large Farmhouse Style Sink w/Brushed Nickel Faucet|
|Cooktop||2 Burner Stainless Steel|
