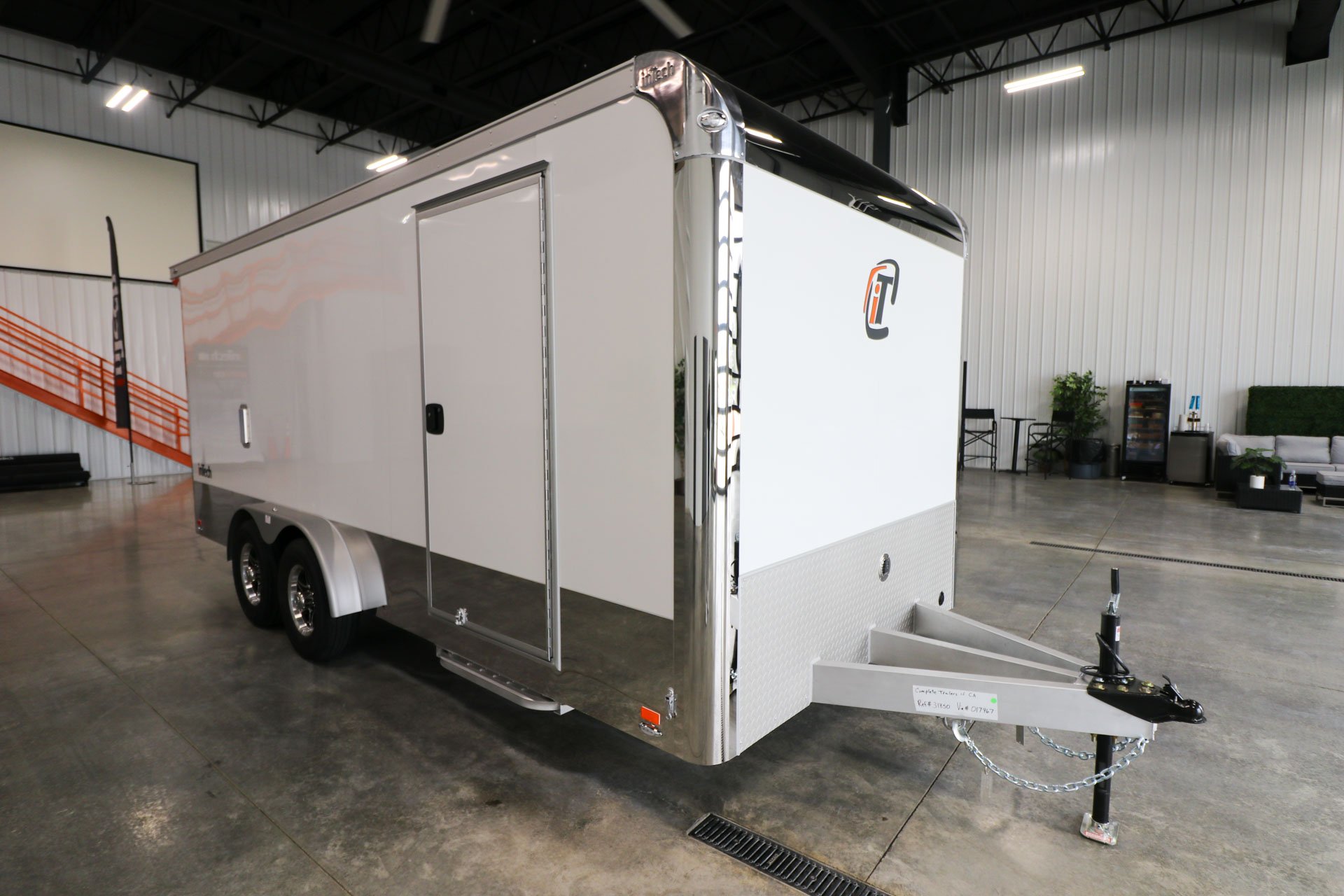

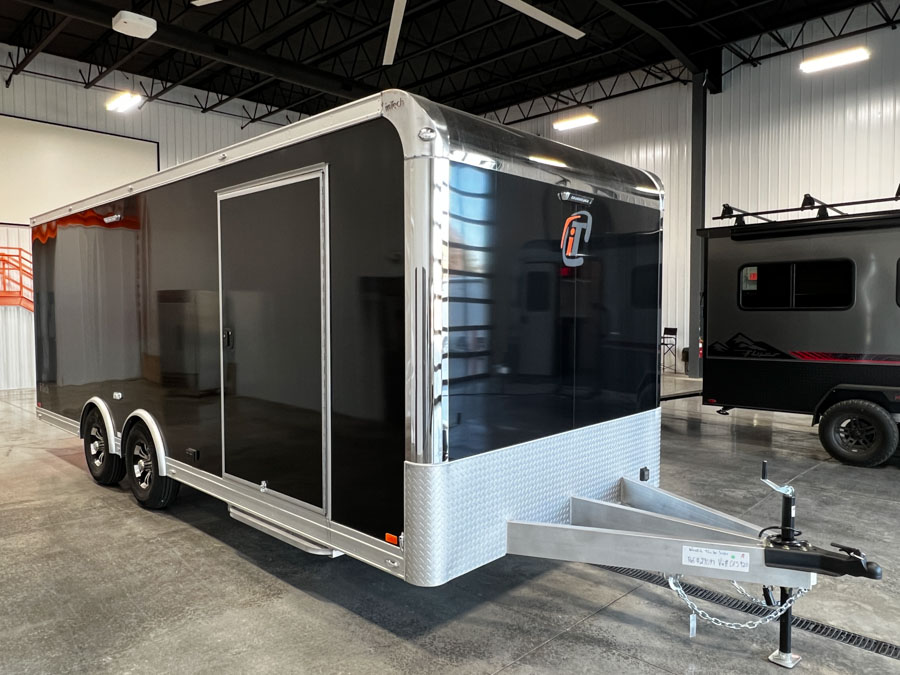

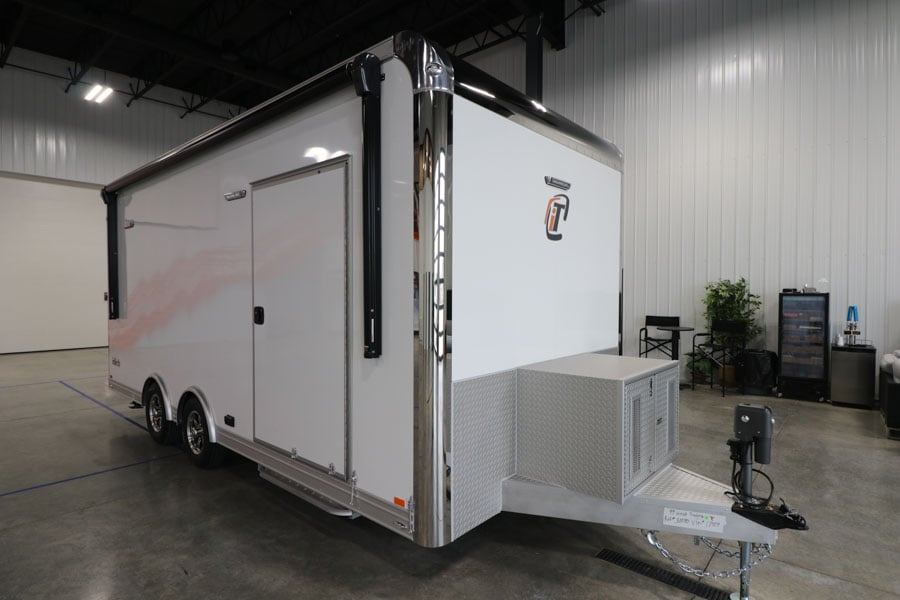

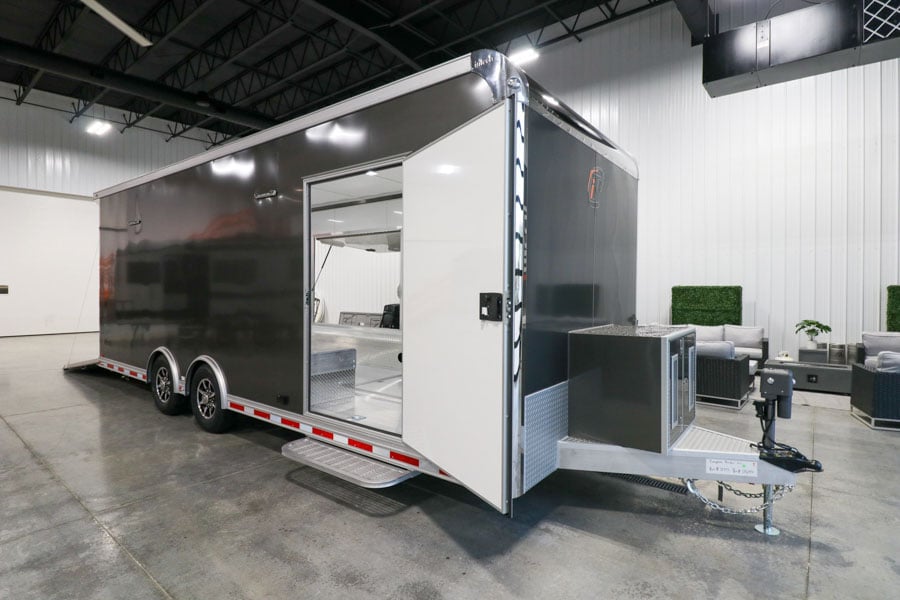

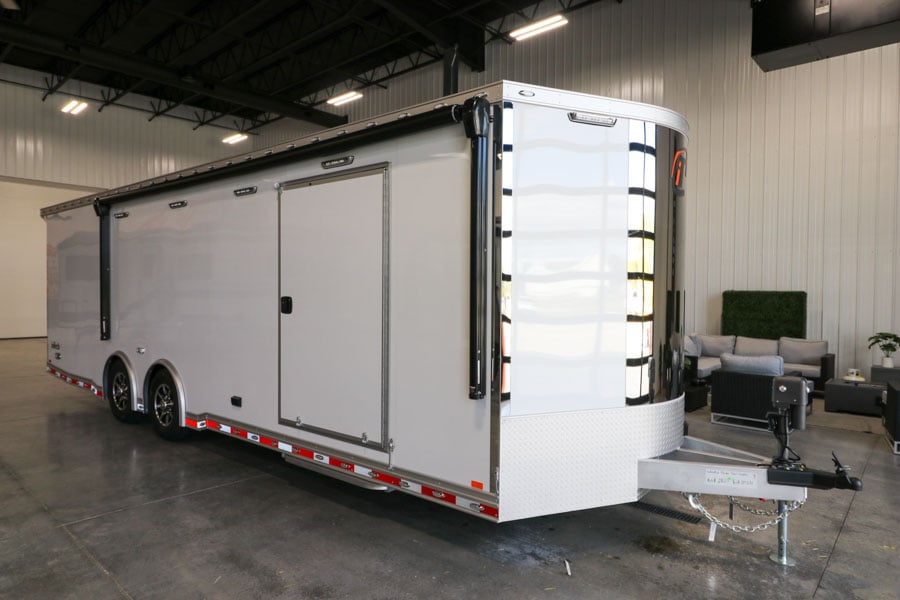

Tag Trailers

Unmatched Quality

Highly Customizable

6.5' - 8.5' Wide 10' - 34' Long

Tag Trailer Galleries

Browse the trailer galleries to discover ideas & configurations for your next trailer build!

View All Galleries

Option Gallery

Browse the option gallery to discover options that fit your needs!

View More Options

Color Options

Choose a color and view it on the trailer.

*FH - This designates a thickness that is available as Full Hard only. A full hard metal aluminum cannot be bent at front or rear corners without cracking, additional upgrades may be required with a FH color selected. FH colors can not be used on cabinets.
Additional charges may apply for certain colors & thicknesses. Colors available are subject to change without notice.

Colors	.040	.050
Polar White		FH
Silver Frost (Metallic)
Black		FH
Matte Black
Med Charcoal Gray (Metallic)
Light Pewter (Metallic)
Metallic Gray	FH	FH
Sportsman Gray
Victory Red
Orange

Premium Colors	.030	.040	.050
Royal Blue
Penske Yellow		FH

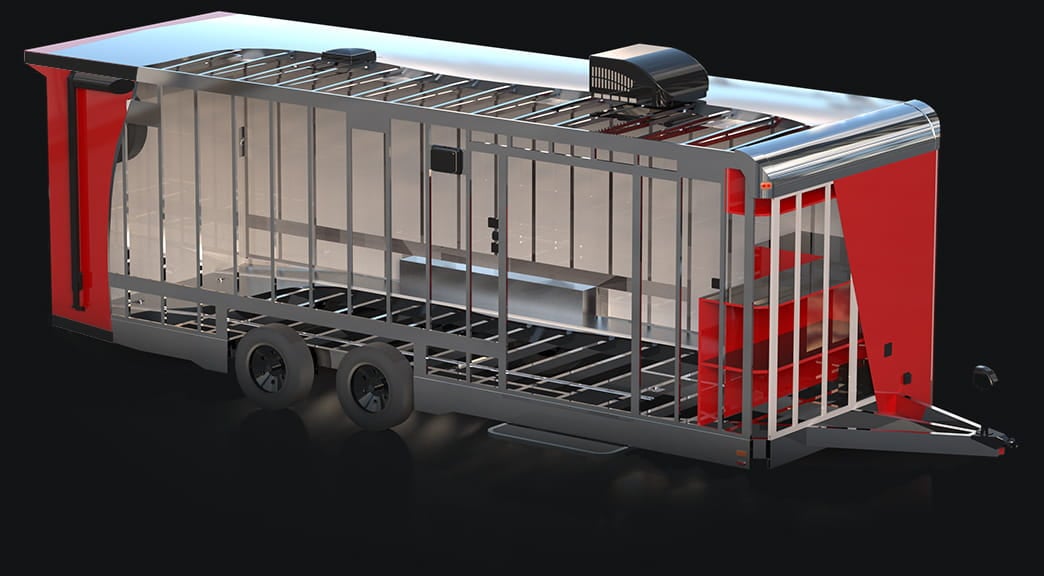

inTech Trailers All-Aluminum Construction

Standard Features

See what features come standard on our Tag Trailers.

Full Perimeter Aluminum Frame
All Tube Aluminum Construction
Triple Tube Tongue

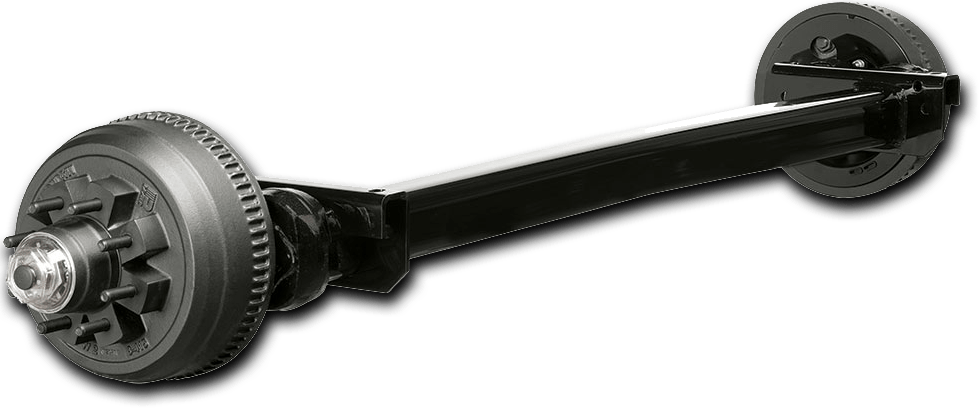

Dexter Torsion Axles W/ Electric Brakes On All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16" Ball Coupler
Safety Chains W/ Storage Loops
5000# Manual Jack
16" O/C Floor Crossmembers
16" O/C Wall & Ceiling Studs
Smooth Aluminum Wheel Boxes W/ Rounded Edge
Spread Axle Design W/ Individual Fenderettes
Tires W/ Aluminum Wheels

One-Piece Aluminum Sub-Floor Vapor Barrier
3/4" High Performance Drymax Subfloor
One-Piece Aluminum Transition Flap
(2) 12V LED Dome Lights W/ Switch
(1) 12V Power Vent W/ Switch
6.5' Interior Height
(4) 5000# Recessed D-Rings
Interior Beavertail - Most Models (Length Will Vary)

.030 Aluminum Skin
Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Walk-On Service Roof
4" Upper & 6" Lower Rub Rail (Some Models Require 4" Lower Rub Rail)
Clear Anodized Trim Package Including Stoneguard
LED Premium Clearance Lights
LED Slimline Tail Lights
24" ATP Stoneguard
Slideout Aluminum Step - Non-Slip
36" 405 Series Entrance Door (Except 32" In 12' Model)
FMVSS Premium Entrance Door Latch
Color Matched Front Verticals
Rear Ramp Door W/ Gapless Continuous Hinge
Aluminum Bar Locks - Rear Ramp Door
Rear Caster Wheels - Pair

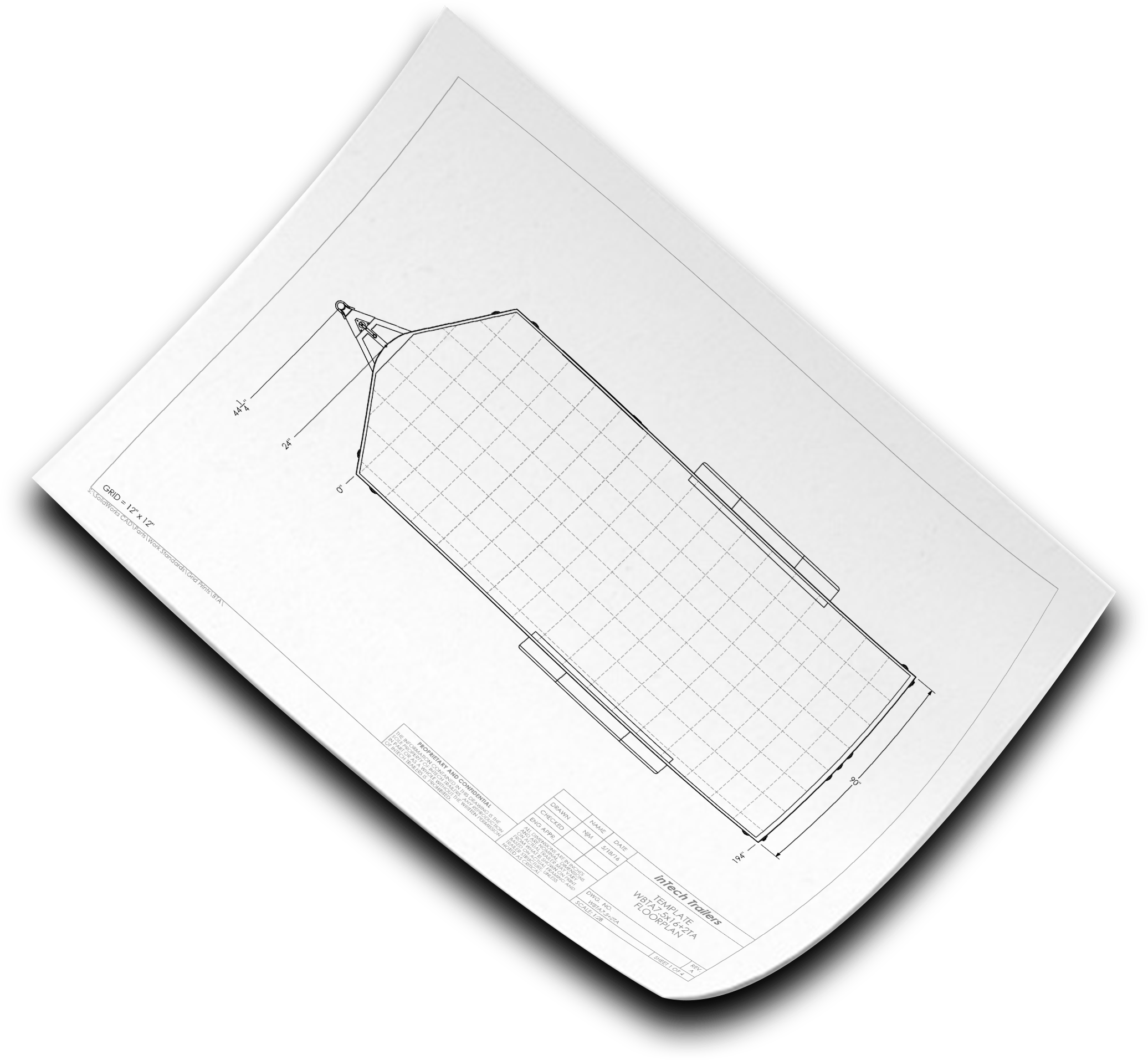

Trailer Engineering Design Prints Layout

Design Layouts

Download & view prints by trailer size.

Model	Flat Nose	2' Wedge Nose	4' Wedge Nose
8.5 x 34
8.5 x 32
8.5 x 30

Model	Flat Nose	2' Wedge Nose	4' Wedge Nose	6' Wedge Nose
8.5 x 28
8.5 x 26
8.5 x 24
8.5 x 22
8.5 x 20
8.5 x 18
8.5 x 16
8.5 x 14
8.5 x 12

Pick A Size

Model	Flat Nose	2' Wedge Nose	4' Wedge Nose
7.5 x 20
7.5 x 18
7.5 x 16
7.5 x 14
7.5 x 12
6.5 x 14
6.5 x 12
6.5 x 10

Specifications

Select and download axle specifications.

Triple Axle

Model	5200 lbs	6000 lbs	7000 lbs	8000 lbs
8.5 x 34
8.5 x 32
8.5 x 30

Model	3500 lbs	5200 lbs	6000 lbs	7000 lbs	8000 lbs
8.5 x 28
8.5 x 26
8.5 x 24
8.5 x 22
8.5 x 20
8.5 x 18
8.5 x 16
8.5 x 14
8.5 x 12

Tandem Axle

Model	3500 lbs	5200 lbs
7.5 x 20
7.5 x 18
7.5 x 16
7.5 x 14
7.5 x 12
6.5 x 14
6.5 x 12
6.5 x 10

Single Axle

Model	3500 lbs	5200 lbs
6.5 x 12
6.5 x 10

Factory Tours

inTech Trailers welcomes potential customers and interested parties to visit our facility for a tour of our manufacturing process.

Schedule Tour

Model		BTA6510SA2
Overall	Length Width* Height**	14' .25"
		8' 2"
		8' 4"
Interior	Length Width Height	9' 11"
		6' 4"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		68" x 75"
Width Between Wheel Wells		N/A
Dexter Torsion Axle	Rating Quantity GVWR Brakes	3,500
		1
		3,500
		All Wheel
Tire	Size Load Range / Ply	ST205/75R15
		C / 6
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA6510SA3
Overall	Length Width* Height**	14' .25"
		8' 2"
		8' 4"
Interior	Length Width Height	9' 11"
		6' 4"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		68" x 75"
Width Between Wheel Wells		N/A
Dexter Torsion Axle	Rating Quantity GVWR Brakes	5,200
		1
		5,200
		All Wheel
Tire	Size Load Range / Ply	ST225/75R15
		D / 8
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA6512TA2
Overall	Length Width* Height**	16' .25"
		8' 2"
		8' 4"
Interior	Length Width Height	11' 11"
		6' 4"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		68" x 75"
Width Between Wheel Wells		N/A
Dexter Torsion Axle	Rating Quantity GVWR Brakes	3,500
		2
		7,000
		All Wheel
Tire	Size Load Range / Ply	ST205/75R15
		C / 6
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA6512TA3
Overall	Length Width* Height**	16' .25"
		8' 2"
		8' 4"
Interior	Length Width Height	11' 11"
		6' 4"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		68" x 75"
Width Between Wheel Wells		N/A
Dexter Torsion Axle	Rating Quantity GVWR Brakes	5,200
		2
		9,900
		All Wheel
Tire	Size Load Range / Ply	ST225/75R15
		D / 8
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA6512TA2
Overall	Length Width* Height**	16' .25"
		8' 2"
		8' 4"
Interior	Length Width Height	11' 11"
		6' 4"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		68" x 75"
Width Between Wheel Wells		N/A
Dexter Torsion Axle	Rating Quantity GVWR Brakes	3,500
		2
		7,000
		All Wheel
Tire	Size Load Range / Ply	ST205/75R15
		C / 6
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA6514TA2
Overall	Length Width* Height**	18' .25"
		8' 2"
		8' 4"
Interior	Length Width Height	13' 11"
		6' 4"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		68" x 75"
Width Between Wheel Wells		N/A
Dexter Torsion Axle	Rating Quantity GVWR Brakes	3,500
		2
		7,000
		All Wheel
Tire	Size Load Range / Ply	ST205/75R15
		C / 6
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA6514TA3
Overall	Length Width* Height**	18' .25"
		8' 2"
		8' 4"
Interior	Length Width Height	13' 11"
		6' 4"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		68" x 75"
Width Between Wheel Wells		N/A
Dexter Torsion Axle	Rating Quantity GVWR Brakes	5,200
		2
		9,900
		All Wheel
Tire	Size Load Range / Ply	ST225/75R15
		D / 8
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA7512TA2
Overall	Length Width* Height**	16' .25"
		8' 6"
		8' 4"
Interior	Length Width Height	11' 11"
		7' 4"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		80" x 75"
Width Between Wheel Wells		84"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	3,500
		7,000
		2
		All Wheel
Tire	Size Load Range / Ply	ST205/75R15
		C / 6
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA7512TA3
Overall	Length Width* Height**	16' .25"
		8' 6"
		8' 4"
Interior	Length Width Height	11' 11"
		7' 4"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		80" x 75"
Width Between Wheel Wells		83"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	5,200
		2
		9,900
		All Wheel
Tire	Size Load Range / Ply	ST225/75R15
		D / 8
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA7514TA2
Overall	Length Width* Height**	18' .25"
		8' 6"
		8' 4"
Interior	Length Width Height	13' 11"
		7' 4"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		80" x 75"
Width Between Wheel Wells		84"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	3,500
		7,000
		2
		All Wheel
Tire	Size Load Range / Ply	ST205/75R15
		C / 6
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA7514TA3
Overall	Length Width* Height**	18' .25"
		8' 6"
		8' 4"
Interior	Length Width Height	13' 11"
		7' 4"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		80" x 75"
Width Between Wheel Wells		83"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	5,200
		2
		9,900
		All Wheel
Tire	Size Load Range / Ply	ST225/75R15
		D / 8
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA7516TA3
Overall	Length Width* Height**	20' .25"
		8' 6"
		8' 4"
Interior	Length Width Height	15' 11"
		7' 4"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		80" x 75"
Width Between Wheel Wells		83"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	5,200
		2
		9,900
		All Wheel
Tire	Size Load Range / Ply	ST225/75R15
		D / 8
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA7518TA2
Overall	Length Width* Height**	22' .25"
		8' 6"
		8' 4"
Interior	Length Width Height	17' 11"
		7' 4"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		80" x 75"
Width Between Wheel Wells		84"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	3,500
		7,000
		2
		All Wheel
Tire	Size Load Range / Ply	ST205/75R15
		C / 6
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA7518TA3
Overall	Length Width* Height**	22' .25"
		8' 6"
		8' 4"
Interior	Length Width Height	17' 11"
		7' 4"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		80" x 75"
Width Between Wheel Wells		83"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	5,200
		2
		9,900
		All Wheel
Tire	Size Load Range / Ply	ST225/75R15
		D / 8
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA7520TA2
Overall	Length Width* Height**	24' .25"
		8' 6"
		8' 4"
Interior	Length Width Height	19' 11"
		7' 4"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		80" x 75"
Width Between Wheel Wells		84"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	3,500
		7,000
		2
		All Wheel
Tire	Size Load Range / Ply	ST205/75R15
		C / 6
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA7520TA3
Overall	Length Width* Height**	24' .25"
		8' 6"
		8' 4"
Interior	Length Width Height	19' 11"
		7' 4"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		80" x 75"
Width Between Wheel Wells		83"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	5,200
		2
		9,900
		All Wheel
Tire	Size Load Range / Ply	ST225/75R15
		D / 8
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA8512TA2
Overall	Length Box Width* Height**	16' .25"
		8'4"
		8' 4"
Interior	Length Width Height	11' 11"
		8' 2"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 78"
Width Between Wheel Wells		83.5"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	3,500
		2
		7,000
		All Wheel
Tire	Size Load Range / Ply	ST205/75R15
		C / 6
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA8512TA3
Overall	Length Box Width* Height**	16' .25"
		8'4"
		8' 4"
Interior	Length Width Height	11' 11"
		8' 2"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 78"
Width Between Wheel Wells		82.5"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	5,200
		2
		9,900
		All Wheel
Tire	Size Load Range / Ply	ST225/75R15
		D / 8
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA8512TA4
Overall	Length Box Width* Height**	16' .25"
		8'4"
		8' 4"
Interior	Length Width Height	11' 11"
		8' 2"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 78"
Width Between Wheel Wells		81.5"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	6,000
		2
		12,000
		All Wheel
Tire	Size Load Range / Ply	ST235/80R16
		E / 10
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA8512TA5
Overall	Length Box Width* Height**	16' .25"
		8'4"
		8' 5"
Interior	Length Width Height	11' 11"
		8' 2"
		6' 6"
Deck Height		20"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 78"
Width Between Wheel Wells		81.5"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	7,000
		2
		14,000
		All Wheel
Tire	Size Load Range / Ply	ST235/85R16
		G / 14
Hitch	Ball Size Height to Top	2 5/16"
		19"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA8512TA6
Overall	Length Box Width* Height**	16' .25"
		8'4"
		8' 6"
Interior	Length Width Height	11' 11"
		8' 2"
		6' 6"
Deck Height		21"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 78"
Width Between Wheel Wells		79.5"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	8,000
		2
		16,000
		All Wheel
Tire	Size Load Range / Ply	LT215/75R17.5
		H / 16
Hitch	Ball Size Height to Top	2 5/16"
		20"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA8514TA2
Overall	Length Box Width* Height**	18' .25"
		8'4"
		8' 4"
Interior	Length Width Height	13' 11"
		8' 2"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 78"
Width Between Wheel Wells		83.5"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	3,500
		2
		7,000
		All Wheel
Tire	Size Load Range / Ply	ST205/75R15
		C / 6
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA8514TA3
Overall	Length Box Width* Height**	18' .25"
		8'4"
		8' 4"
Interior	Length Width Height	13' 11"
		8' 2"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 78"
Width Between Wheel Wells		82.5"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	5,200
		2
		9,900
		All Wheel
Tire	Size Load Range / Ply	ST225/75R15
		D / 8
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA8514TA4
Overall	Length Box Width* Height**	18' .25"
		8'4"
		8' 4"
Interior	Length Width Height	13' 11"
		8' 2"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 78"
Width Between Wheel Wells		81.5"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	6,000
		2
		12,000
		All Wheel
Tire	Size Load Range / Ply	ST235/80R16
		E / 10
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA8514TA5
Overall	Length Box Width* Height**	18' .25"
		8'4"
		8' 5"
Interior	Length Width Height	13' 11"
		8' 2"
		6' 6"
Deck Height		20"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 78"
Width Between Wheel Wells		81.5"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	7,000
		2
		14,000
		All Wheel
Tire	Size Load Range / Ply	ST235/85R16
		G / 14
Hitch	Ball Size Height to Top	2 5/16"
		19"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

RV Home

Factory Tours

Customer Support

Adventure Club

Locate Dealer

Tag Trailers

Unmatched Quality

Highly Customizable

6.5' - 8.5' Wide 10' - 34' Long

Tag Trailer Galleries

Option Gallery

Color Options

Standard Features

Chassis

Interior

Exterior

Design Layouts

Pick A Size

Specifications

Triple Axle

Tandem Axle

Single Axle

Factory Tours

How Can We Help You?

Options & Packages

Customer Portal

Factory Tours

Customer Support

Marketplace

Ready To Buy?

Model		BTA8514TA6
Overall	Length Box Width* Height**	18' .25"
		8'4"
		8' 6"
Interior	Length Width Height	13' 11"
		8' 2"
		6' 6"
Deck Height		21"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 78"
Width Between Wheel Wells		79.5"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	8,000
		2
		16,000
		All Wheel
Tire	Size Load Range / Ply	LT215/75R17.5
		H / 16
Hitch	Ball Size Height to Top	2 5/16"
		20"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA8516TA2
Overall	Length Box Width* Height**	20' .25"
		8'4"
		8' 4"
Interior	Length Width Height	15' 11"
		8' 2"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 78"
Width Between Wheel Wells		83.5"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	3,500
		2
		7,000
		All Wheel
Tire	Size Load Range / Ply	ST205/75R15
		C / 6
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA8516TA3
Overall	Length Box Width* Height**	20' .25"
		8'4"
		8' 4"
Interior	Length Width Height	15' 11"
		8' 2"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 78"
Width Between Wheel Wells		82.5"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	5,200
		2
		9,900
		All Wheel
Tire	Size Load Range / Ply	ST225/75R15
		D / 8
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA8516TA4
Overall	Length Box Width* Height**	20' .25"
		8'4"
		8' 4"
Interior	Length Width Height	15' 11"
		8' 2"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 78"
Width Between Wheel Wells		81.5"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	6,000
		2
		12,000
		All Wheel
Tire	Size Load Range / Ply	ST235/80R16
		E / 10
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA8516TA5
Overall	Length Box Width* Height**	20' .25"
		8'4"
		8' 5"
Interior	Length Width Height	15' 11"
		8' 2"
		6' 6"
Deck Height		20"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 78"
Width Between Wheel Wells		81.5"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	7,000
		2
		14,000
		All Wheel
Tire	Size Load Range / Ply	ST235/85R16
		G / 14
Hitch	Ball Size Height to Top	2 5/16"
		19"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA8516TA6
Overall	Length Box Width* Height**	20' .25"
		8'4"
		8' 6"
Interior	Length Width Height	15' 11"
		8' 2"
		6' 6"
Deck Height		21"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 78"
Width Between Wheel Wells		79.5"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	8,000
		2
		16,000
		All Wheel
Tire	Size Load Range / Ply	LT215/75R17.5
		H / 16
Hitch	Ball Size Height to Top	2 5/16"
		20"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		N/A

Model		BTA8518TA2
Overall	Length Box Width* Height**	22' .25"
		8'4"
		8' 4"
Interior	Length Width Height	17' 11"
		8' 2"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 78"
Width Between Wheel Wells		83.5"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	3,500
		2
		7,000
		All Wheel
Tire	Size Load Range / Ply	ST205/75R15
		C / 6
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		3'

Model		BTA8518TA3
Overall	Length Box Width* Height**	22' .25"
		8'4"
		8' 4"
Interior	Length Width Height	17' 11"
		8' 2"
		6' 6"
Deck Height		19"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 78"
Width Between Wheel Wells		82.5"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	5,200
		2
		9,900
		All Wheel
Tire	Size Load Range / Ply	ST225/75R15
		D / 8
Hitch	Ball Size Height to Top	2 5/16"
		18"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		3'

Model		BTA8518TA4
Overall	Length Box Width* Height**	22' .25"
		8'4"
		8' 5"
Interior	Length Width Height	17' 11"
		8' 2"
		6' 6"
Deck Height		20"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 78"
Width Between Wheel Wells		81.5"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	6,000
		2
		12,000
		All Wheel
Tire	Size Load Range / Ply	ST235/80R16
		E / 10
Hitch	Ball Size Height to Top	2 5/16"
		19"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		3'

Model		BTA8518TA5
Overall	Length Box Width* Height**	22' .25"
		8'4"
		8' 5"
Interior	Length Width Height	17' 11"
		8' 2"
		6' 6"
Deck Height		20"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 78"
Width Between Wheel Wells		81.5"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	7,000
		2
		14,000
		All Wheel
Tire	Size Load Range / Ply	ST235/85R16
		G / 14
Hitch	Ball Size Height to Top	2 5/16"
		19"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		3'
