Eclipse
Welcome to Sol Eclipse

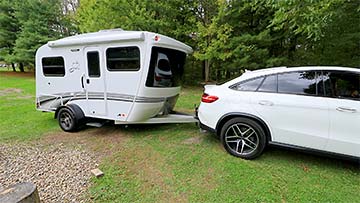

Eclipse is nimble and light on its feet which makes it easy to tow and fit into smaller camping spots.

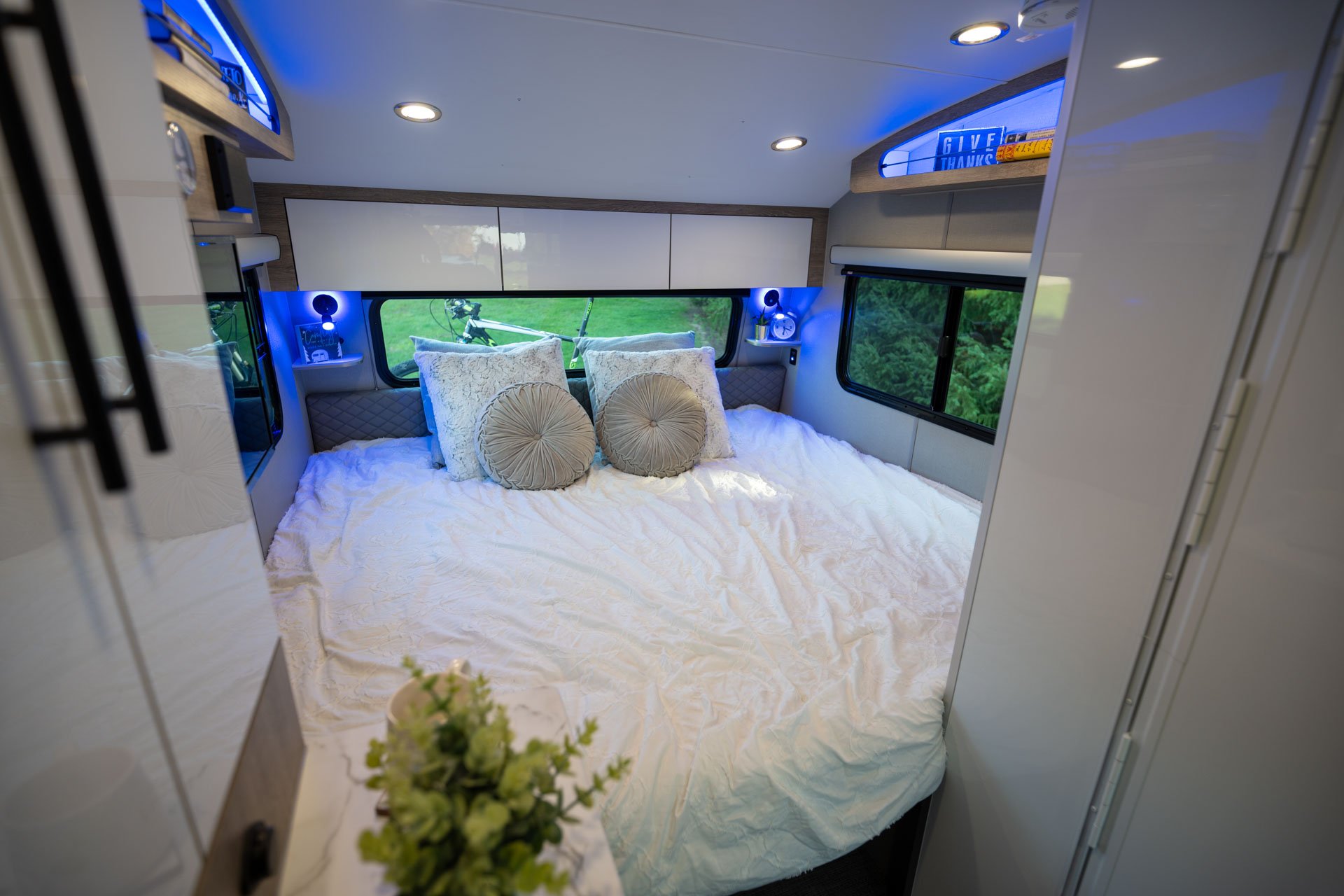

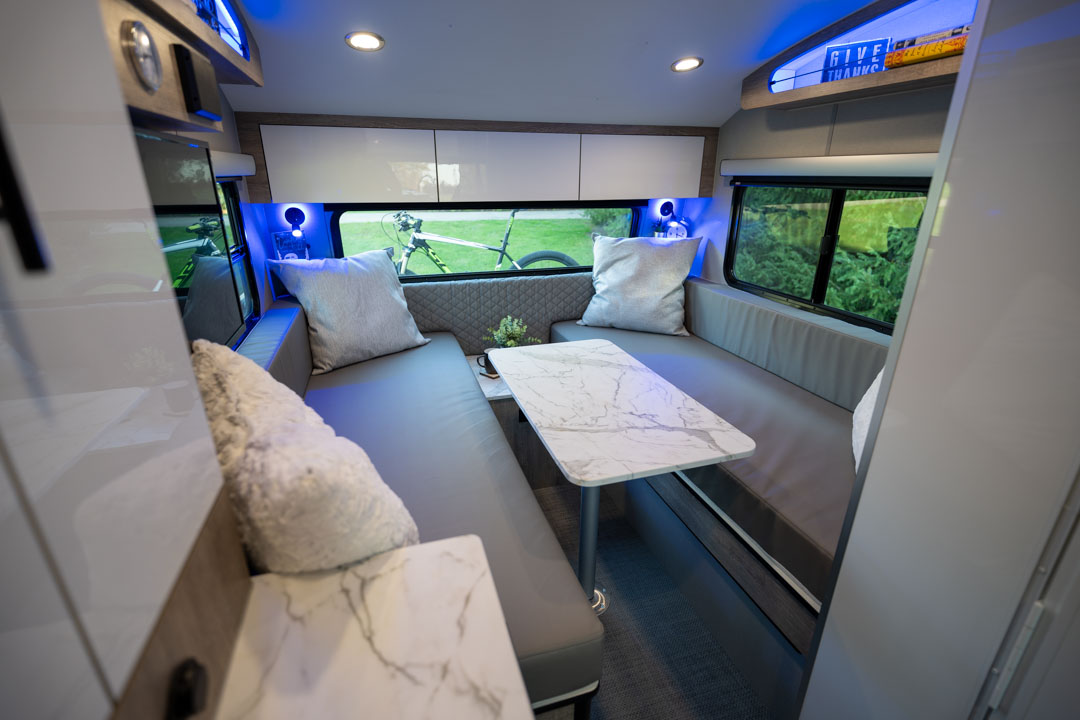

Creative Space

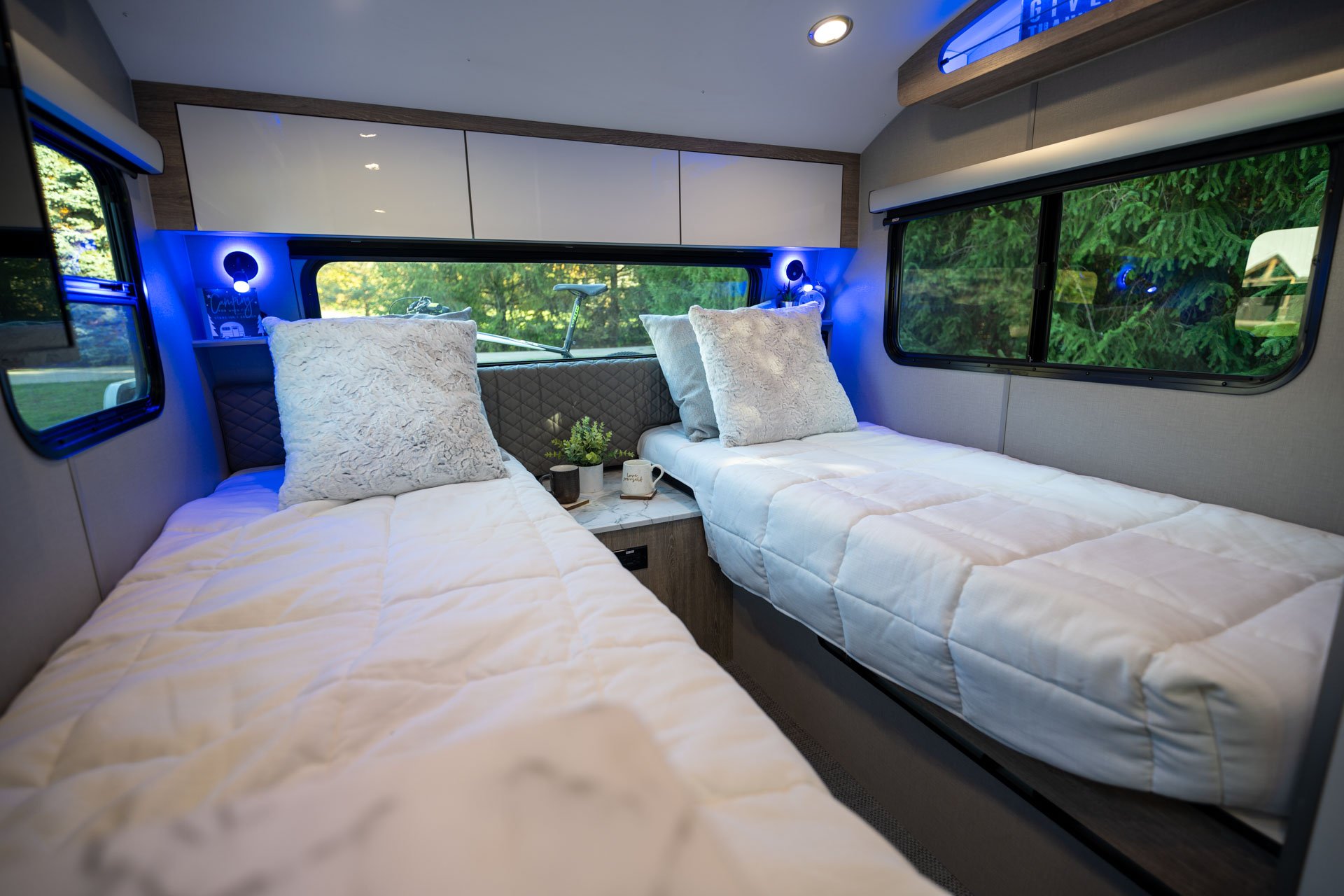

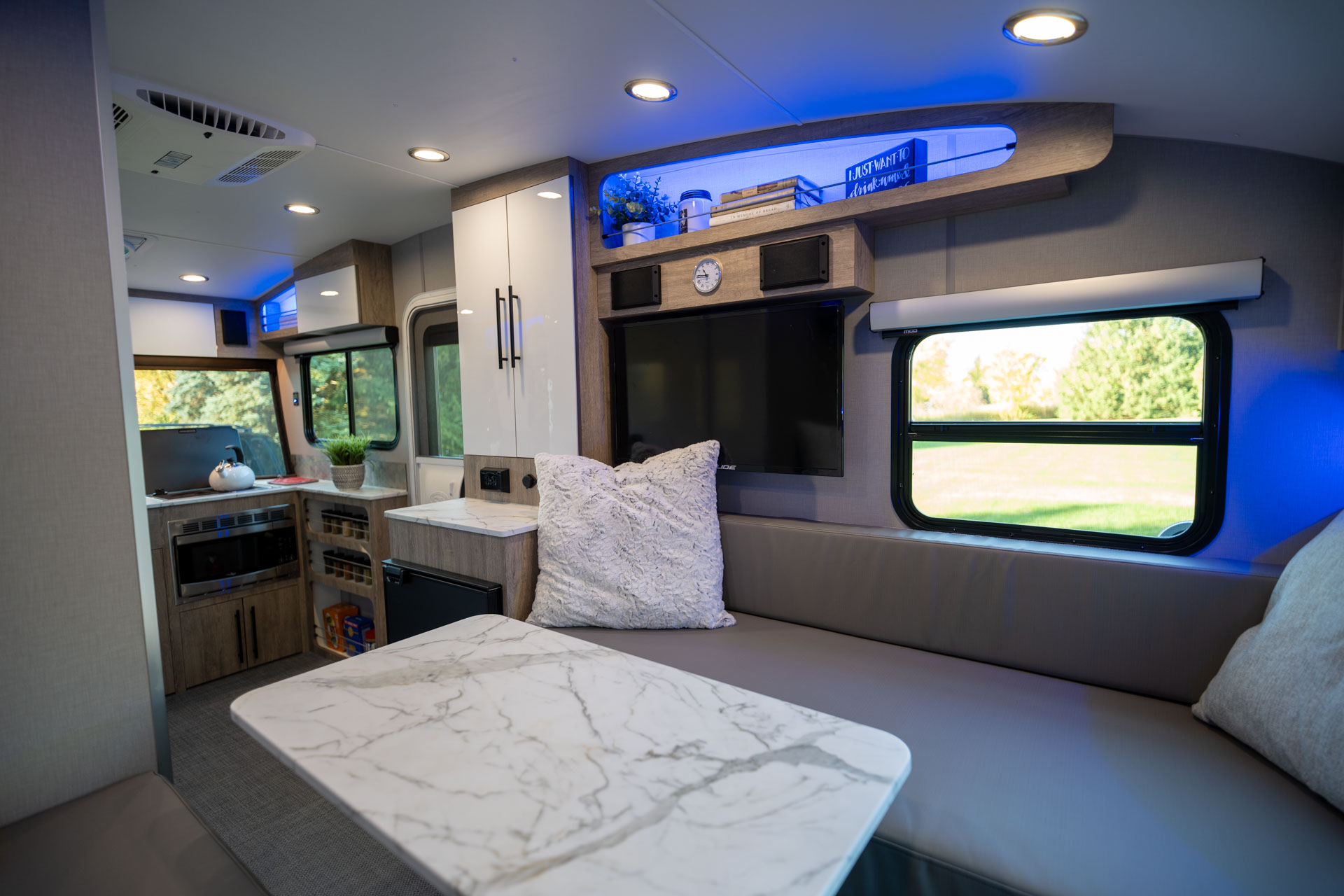

inTech excels at maximizing interior space, making even compact areas feel expansive. Central to the Sol Eclipse's design is its versatile bed/lounge area. This adaptable space can be effortlessly transformed: whether you’re in the mood for a relaxed lounge, need twin beds, or prefer to utilize the fillers for a luxurious 80”x80” oversize king bed.

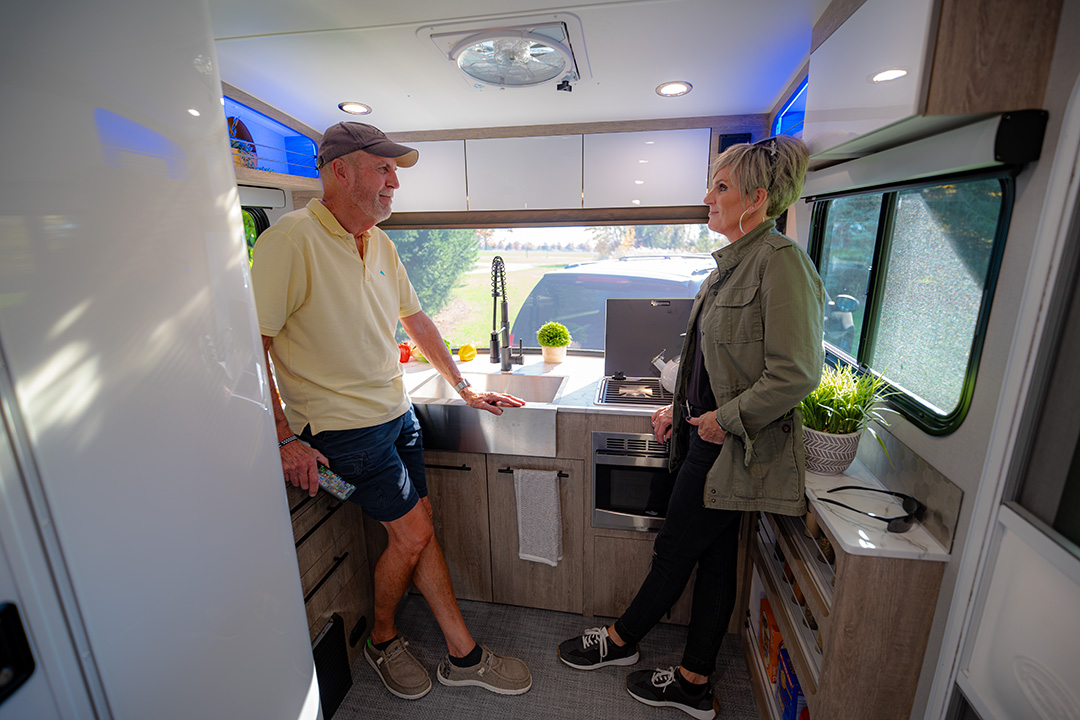

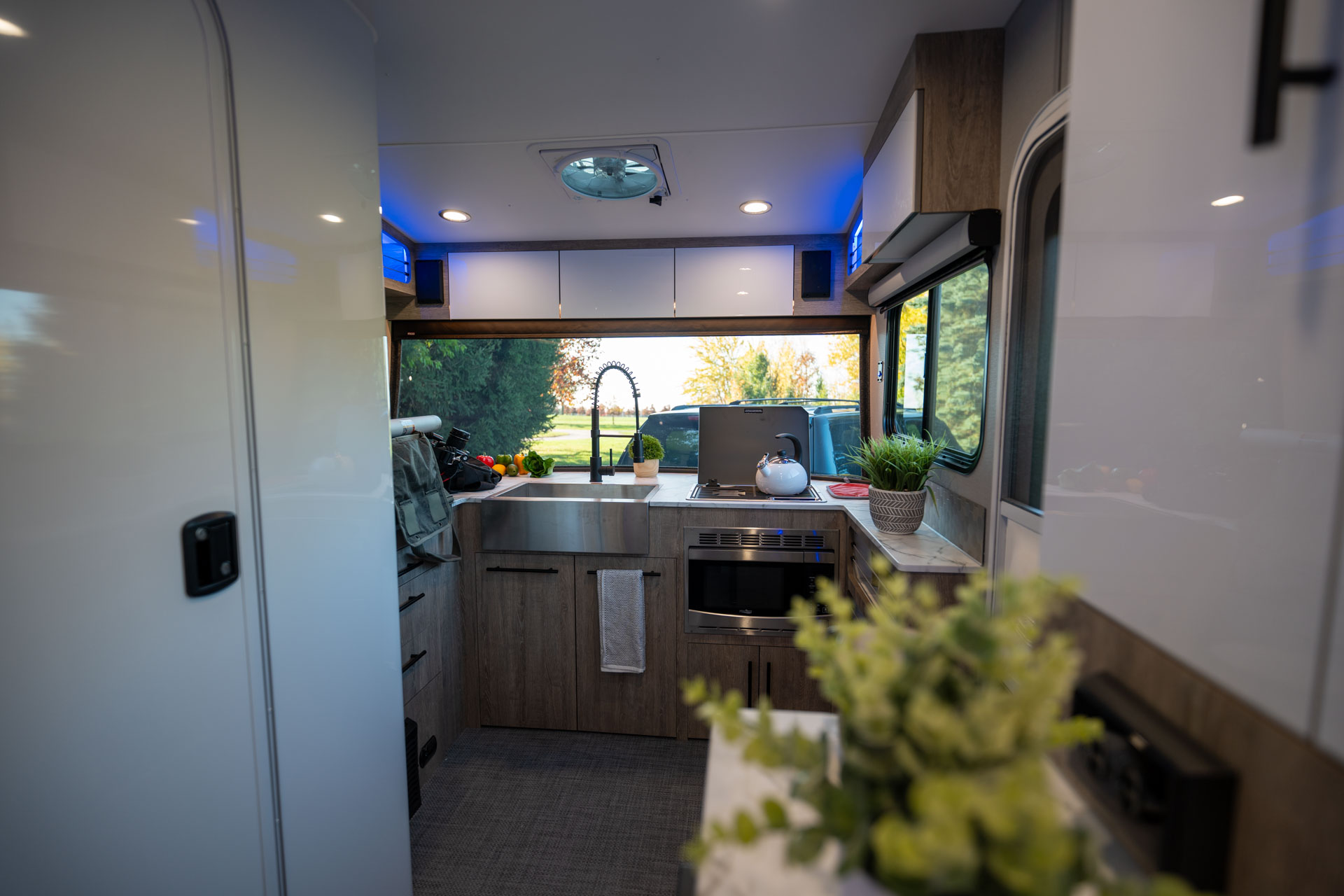

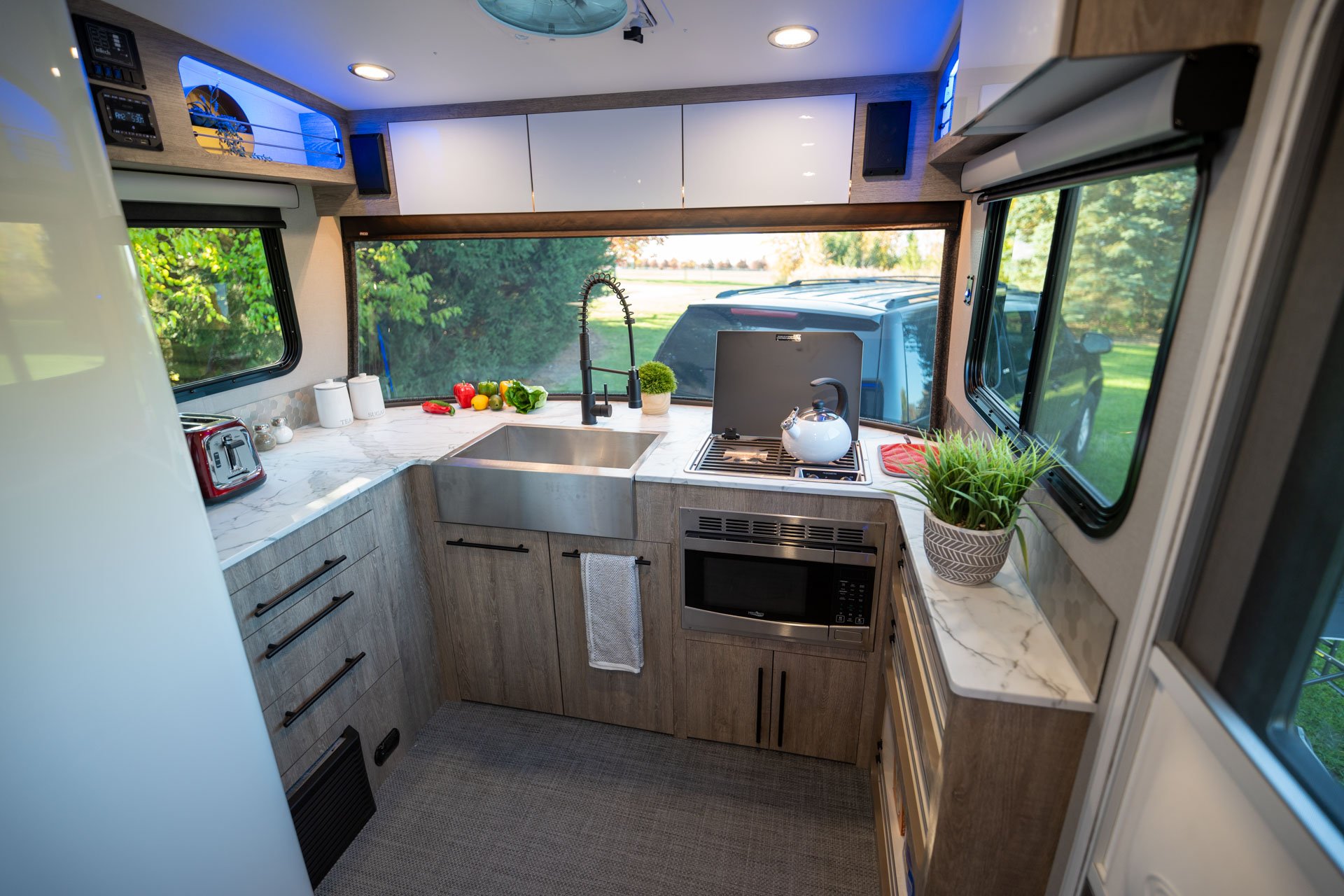

Spacious Kitchen with Panoramic Windshield
Sol Eclipse is unlike any other camper, featuring a massive 3-ply laminated glass panoramic front windshield. You won’t find a better view of the great outdoors in any other camper while cooking great meals away from home!
Luxury Interior
Step inside Sol Eclipse and you'll find the level of luxury you desire. Quality materials are used throughout and combined not only with our unmatched craftsmanship, but an eye for design and functionality. Sol Eclipse’s interior is so luxurious and inviting, you may never want to go home.
Extravagant Features
Sol Eclipse stands out with features such as a spacious dinette that seats up to 6 adults, a large 10' Awning, a sizeable wet bath, an exterior slide-out kitchen, a roof rack rated at 250 pounds, a fiberglass exterior, and solar prep.
360° Interior
Gallery

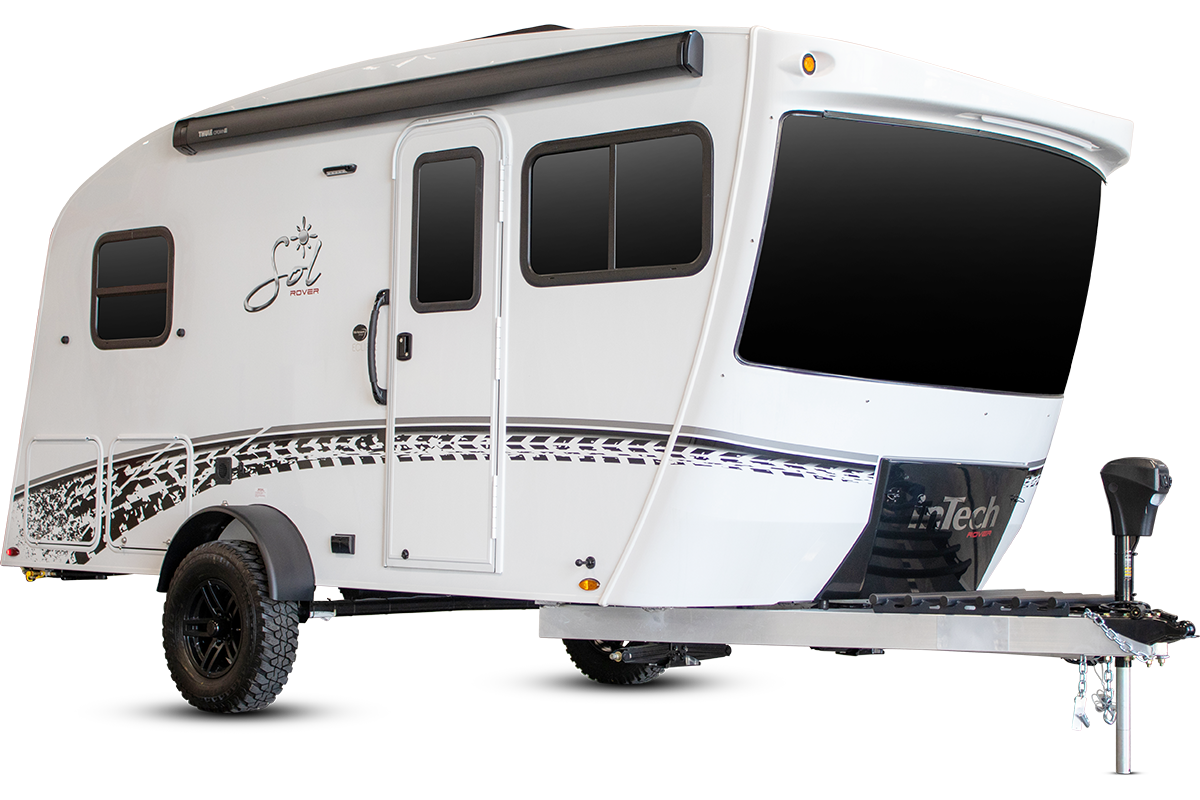

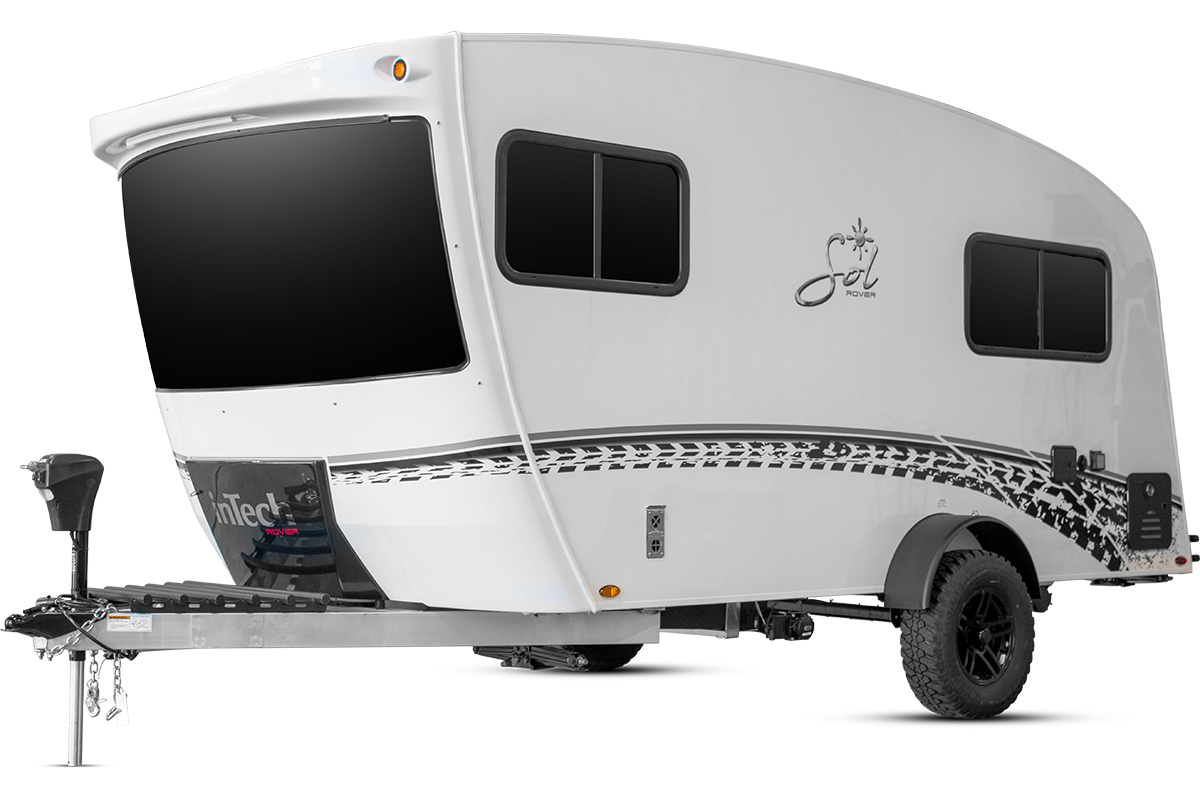

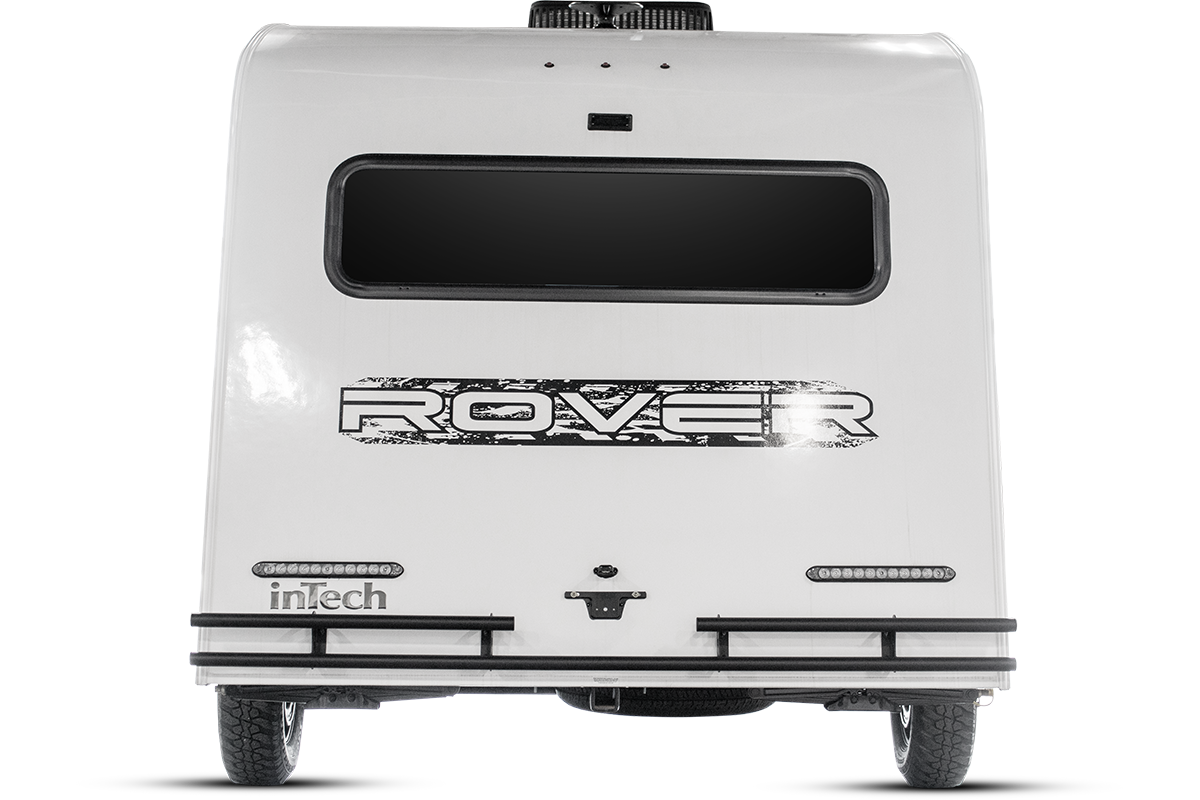

Exterior
Options

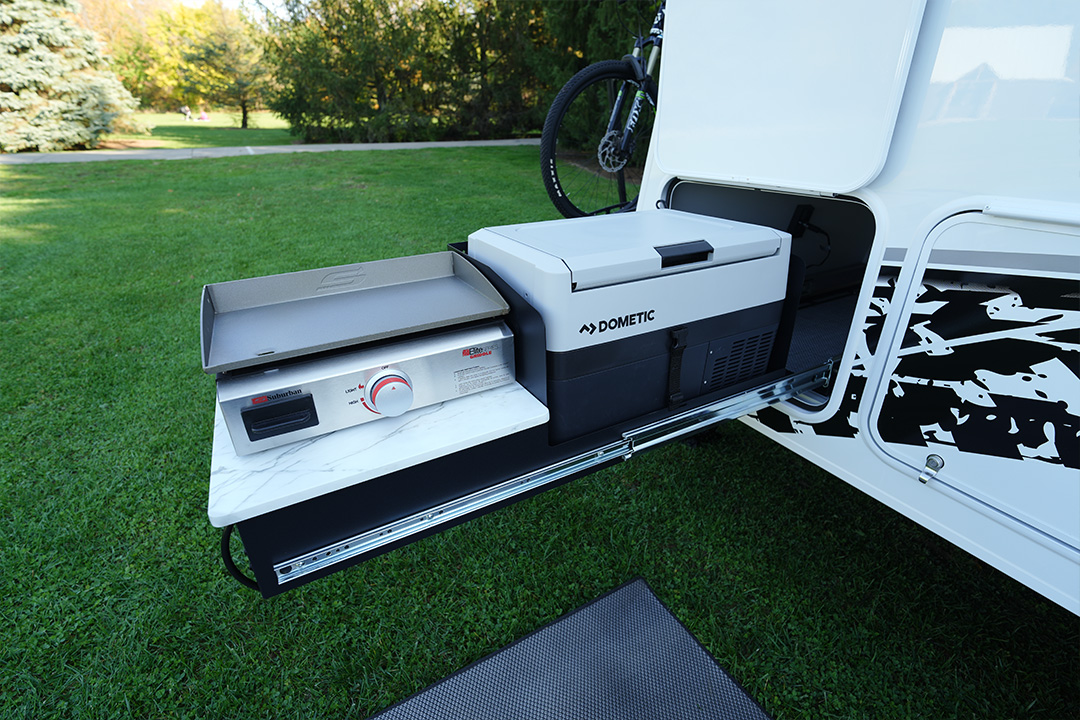

Slide-out Rear Kitchen
Take cooking outside into the great outdoors with the innovative Slide-out Rear Kitchen.

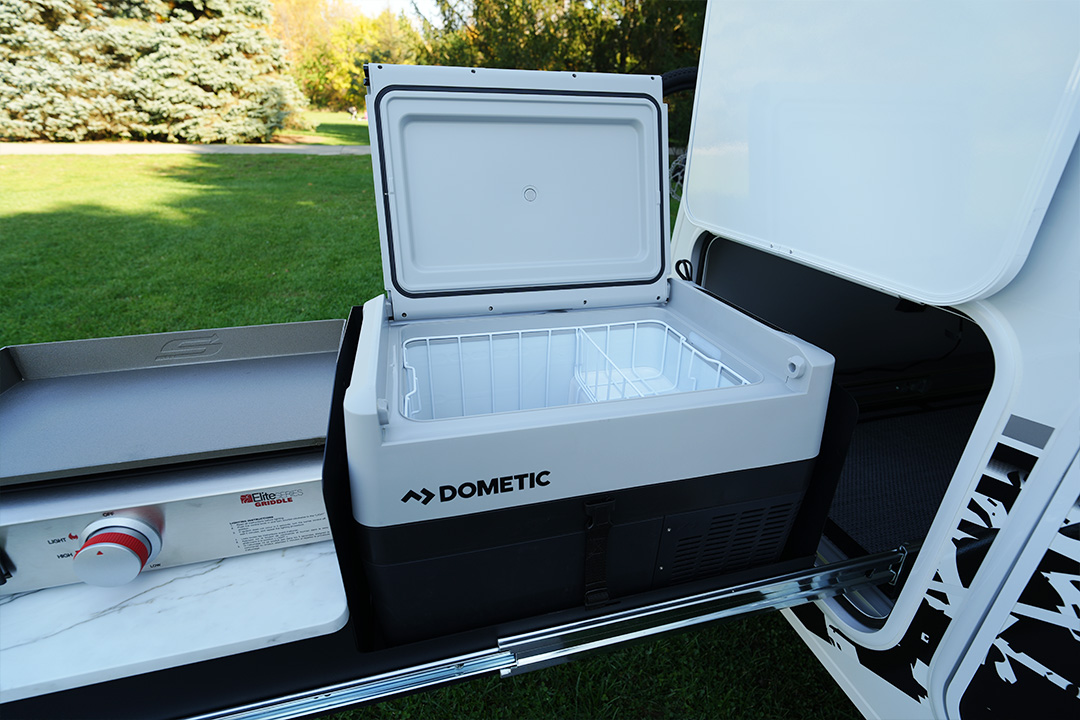

Slide-out Kitchen Refrigerator
Increases the overall refrigerator space for those extra long getaways.

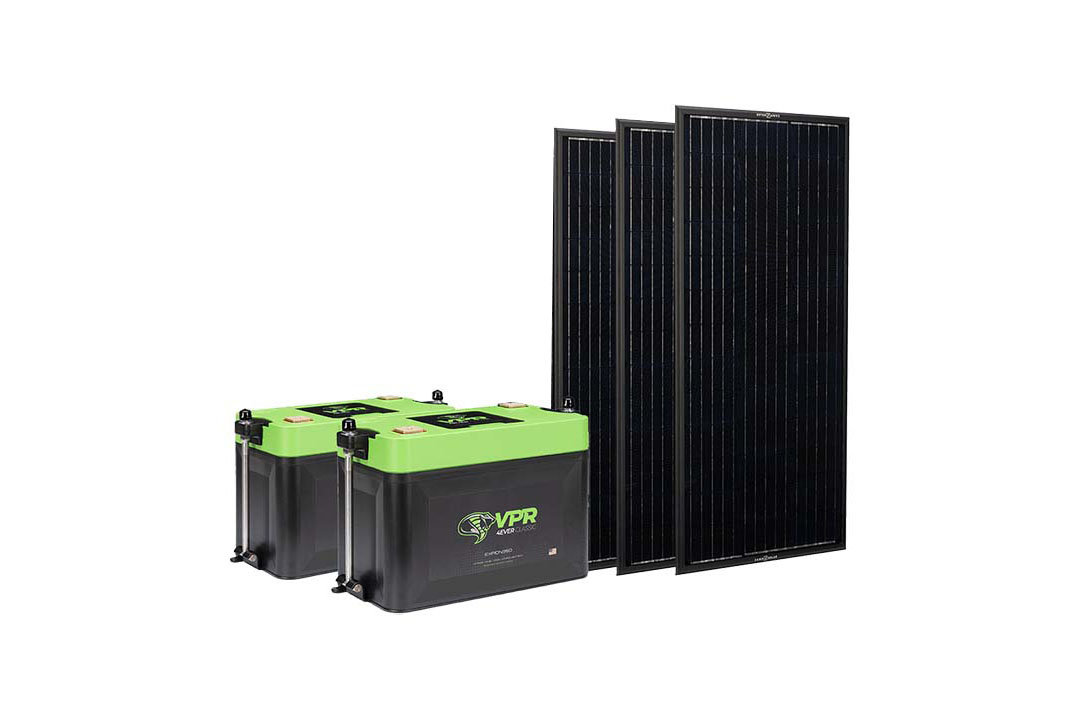

Off-grid Package
Enjoy true freedom getting off-grid with inTech’s Solar and Lithium Package. 300 watts of solar, mixed with an MPPT charger controller, 200 amp hrs of lithium batteries and a 2,000 Watt inverter allow you to take a path less traveled.

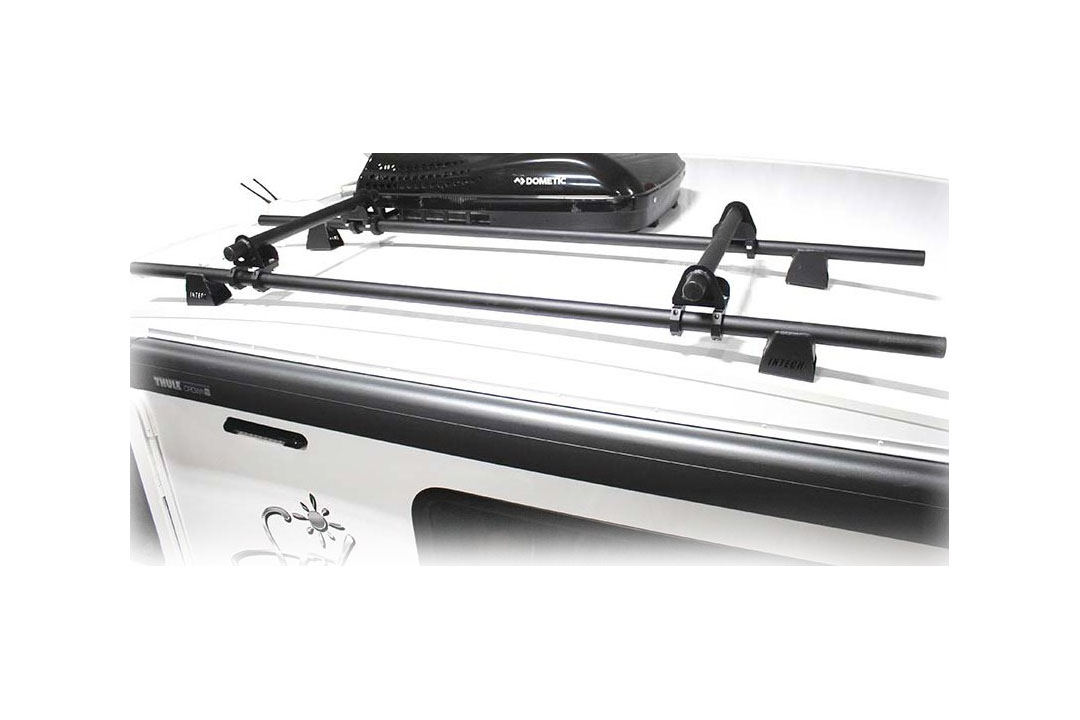

Roof Rack
When it comes to safe, seamless trips, there’s no second-guessing.
200 Watt Solar Charging System
The available 200-watt solar charging system includes a high-efficiency solar panel and a 30-amp charge controller, delivering reliable energy to keep your essentials running. This system gives you the freedom to explore remote locations without worrying about power limitations.

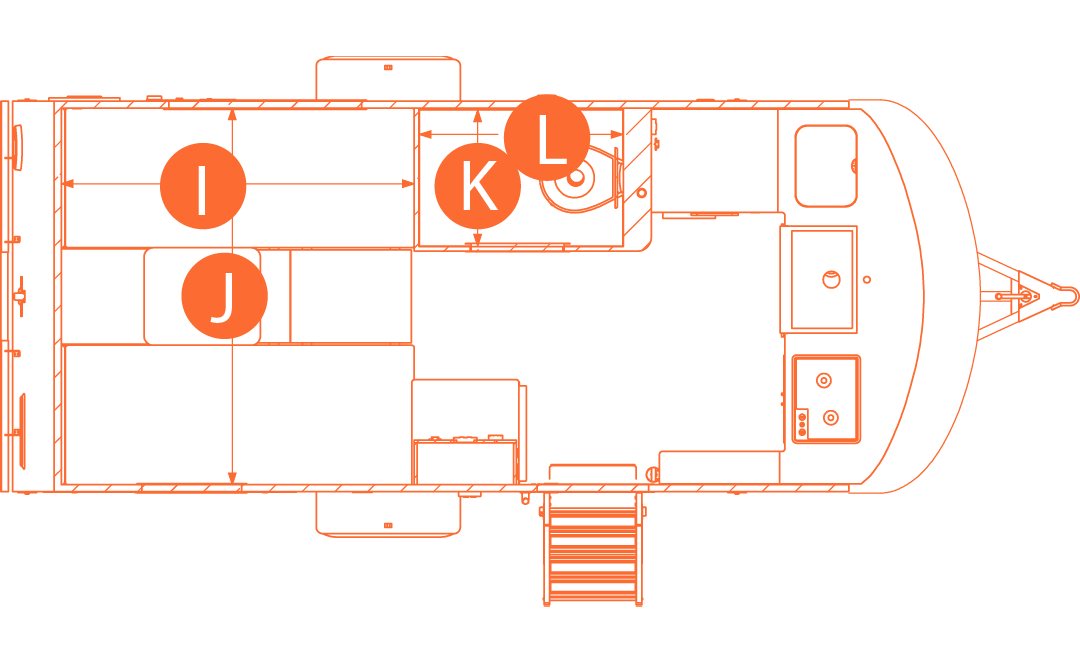

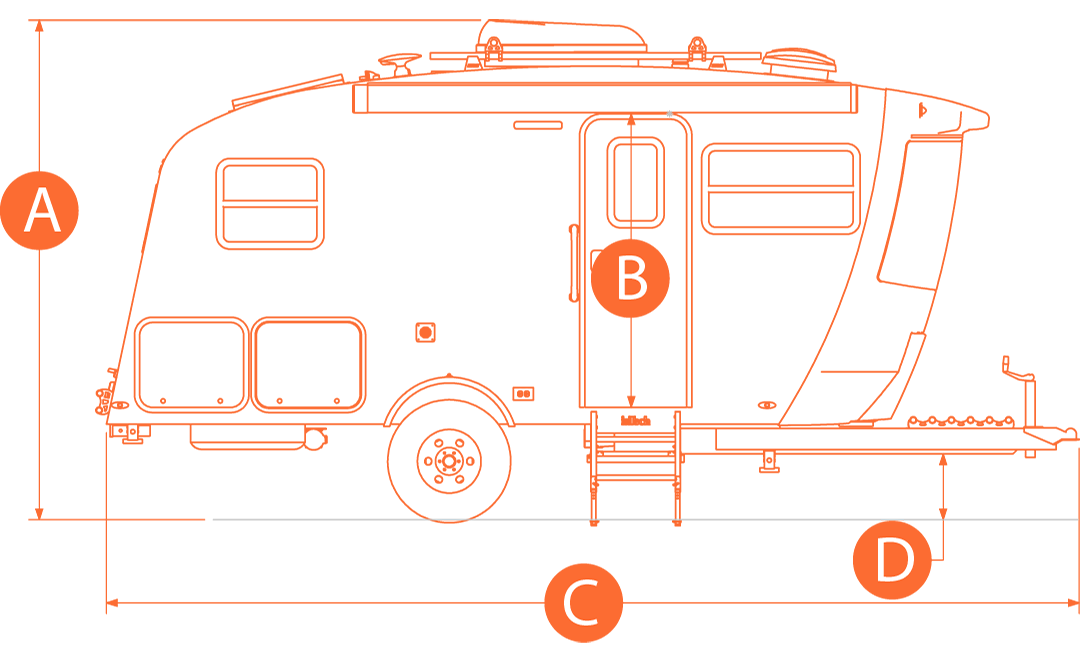

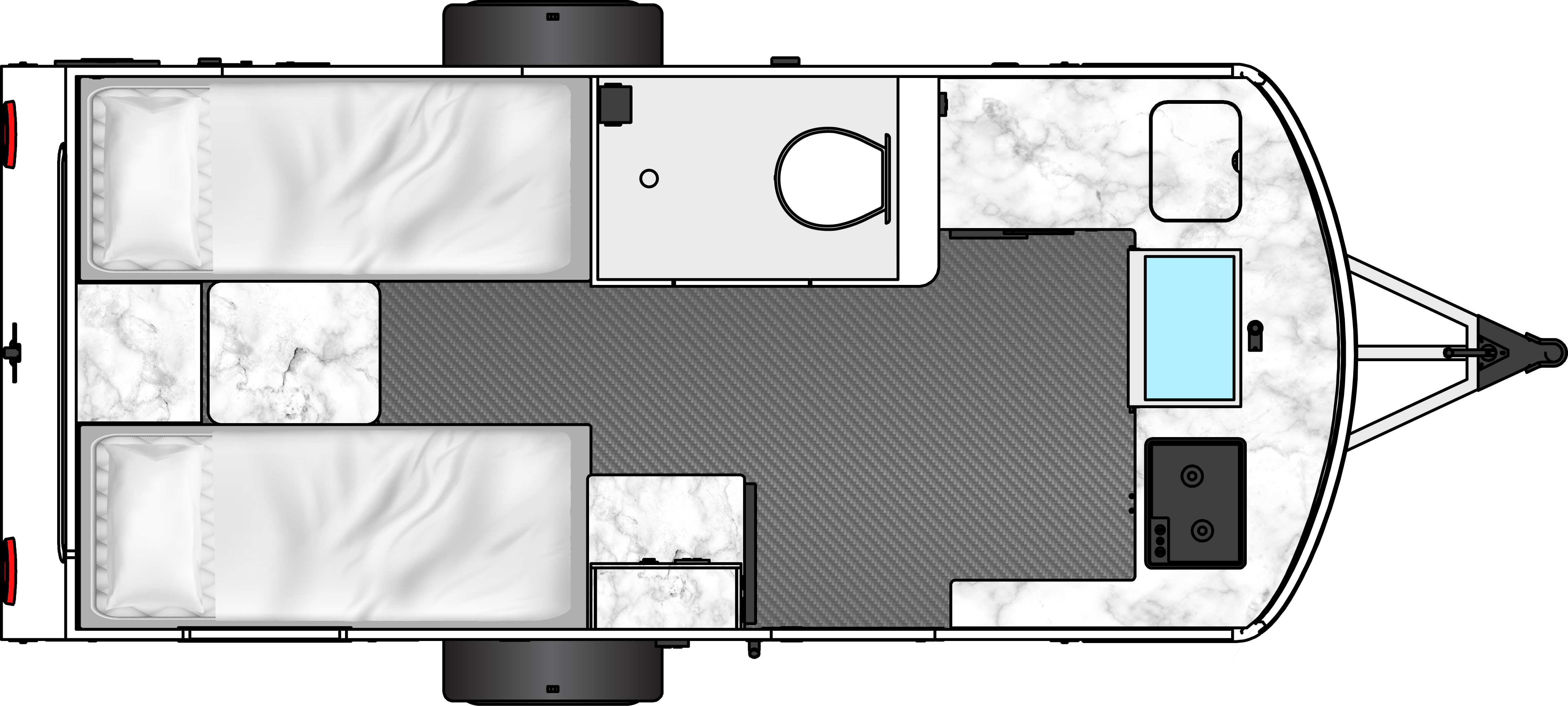

Dimensions
- (A) Overall Height - 9' 5"
- (B) Interior Height - 6' 6"
- (C) Overall Length - 19'
- (D) Ground Clearance - 15"

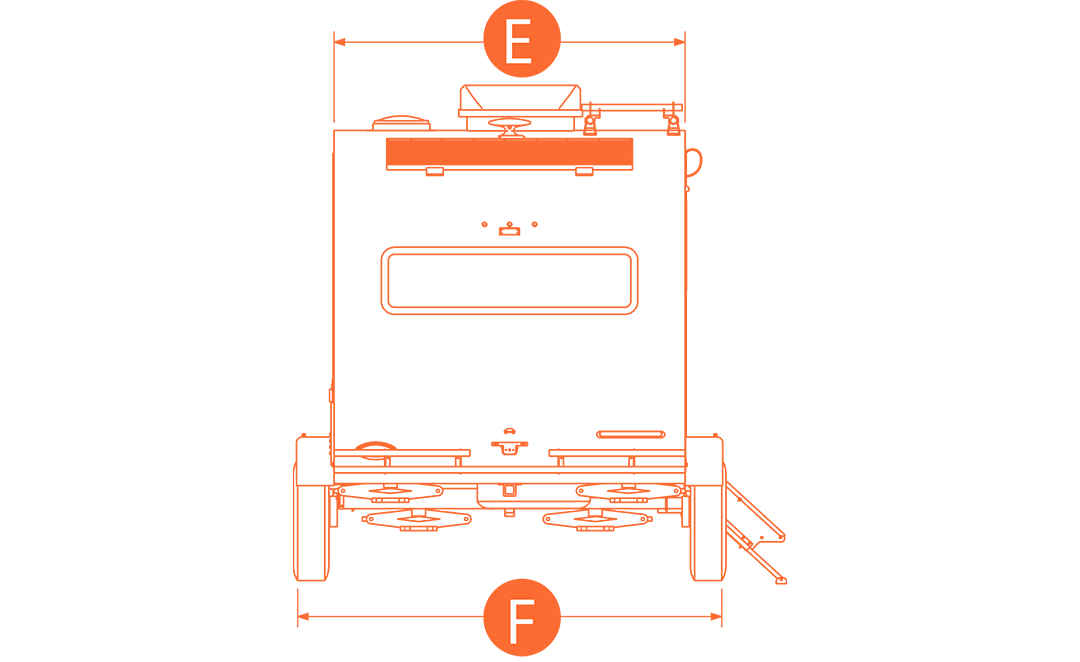

- (E) Box Width - 7'
- (F) Overall Width - 8' 6"
- (I/J) Dinette - 55" x 80"
- (K/L) Bathroom - 29" x 44"
Specifications
Dimensions, equipment, and pricing are subject to change without notice. For complete and up-to-date details regarding inTech RVs, please speak to an authorized inTech RV dealer.
Overview
| Exterior Width | 8' 6" |
| Exterior Height | 9' 9" |
| Exterior Length | 19' |
| Dry Weight | 3,240 - 3,660 lbs |
| Tongue Weight | 490 - 550 lbs |
| GVWR | 4,800 lbs |
| Net Carrying Capacity | 1,140 - 1,560 lbs |
| Ball Height | 21" |
| Sleeps Capacity | 4 |
Tanks
| Fresh Water Capacity | 28 Gallons |
| Black Water Capacity | 24 Gallons |
| Holding Tank Heating | Tank Heat Pads |
| Under Belly | Open |
Construction and Exterior Features

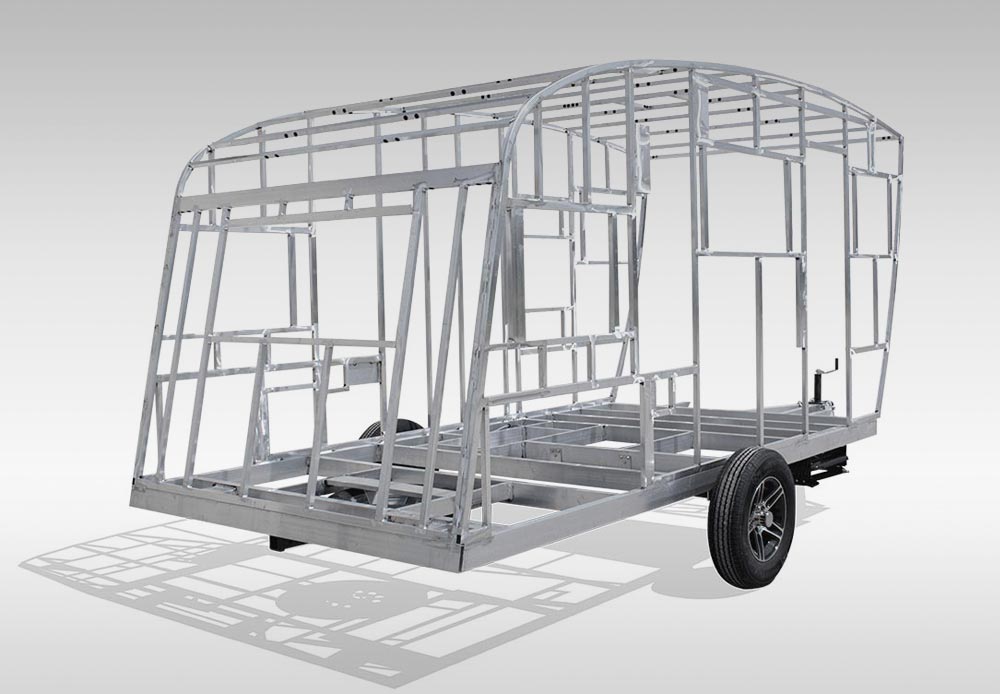

| Frame | inTech Fully Welded Aluminum Cage Frame |
| Coupler | 2 5/16" Ball |
| Axle | Smooth Ride Torsion Suspension |
| Rear Receiver | 2" Receiver - 175# Capacity |
| Tires | Rugged ST235/75R15 on Aluminum Wheels |
| Bumper | Black Powder coated Aluminum Tube |
| Shore Power Inlet | 30 Amp - 120 V |
| Solar Prep | Pre-Wired Solar Port on Side Wall |
| Exterior Walls | Hung Fiberglass over Azdel (Wood Free) |
| Roof | One-Piece Fiberglass w/ Azdel Backer |
| Insulation | Comfort Shell Insulation |
| LP Tank | (2) 20 lbs Tanks |
| LP Quick Connect Port | 1 |
| Entry Step | inTech SureStep |
| Tongue Jack | 12V Electric Power Jack |
| Tongue Storage | Black Powder coated Aluminum Tube |
| Awning | 10' Power |
| Backup Camera | Pre-Wired |
| Spare Tire | Undermounted |
Kitchen and Dining
| Countertops | Thinscape Solid Surface |
| Sink | Farmhouse Undermounted Sink w/ Thinscape Sink Covers |
| Faucet | Pullout Spray Faucet |
| Dinette | Comfort Lounge Dinette |
| Dinette Table | Solid Hardwood Maple Table - Black |
| Cabinets | European Style Flush Cabinets w/ Soft Close Hinges & Drawer Slides |
Windows, Doors and Floors
| SubFloor | Solid NoFlex 3/4" Floor |
| Flooring | Premium Woven Floor |
| Baggage Doors | Locking Doors w/ Slam Latches |
| Window Style | Frameless |
| Window Valance | inTech Aluminum Valance System w/ Integrated Accent Lighting |
| Window Covering | Blackout Roll Shades |
| Panoramic Front Windshield | Automotive Grade 3-Ply Windshield w/ Travel Cover |
Appliances & Utilities
| Refrigerator | 4.5 Cu Ft w/ 12V Compressor |
| Cooktop | 3 Burner LP Cooktop w/ Glass Cover |
| Microwave | 1 Cu Ft Microwave |
| Water Heater | On Demand LP |
| Furnace | 16K BTU LP Furnace |
| A/C | 15K BTU Low Profile w/ Soft Start |
| Exhaust Fan | (1) Multi-Speed w/ Rain Sensor / (1) Single Speed for Shower |
| TV | 32" |
| Stereo | Bluetooth Stereo w/ 2 Interior Speakers |
Bed Configurations or Sleeping Spaces
| Master Bed | 30" x 78" Twin Beds w/ 5" Memory Foam Mattress |
| Dinette Bed | 44" x 80" |
Bathroom and Shower
| Bathroom Style | Wet Bath |
| Bathroom Mirror | Frameless Mirror |
| Toilet | Porcelain Toilet w/ Foot Flush |
| Shower Head | Shower Wand System - Height Adjustable |
| Shower Door | inTech Aluminum SureSeal Shower |
