Sycamore
Escape the Ordinary
Aucta Sycamore displays ingenuity, elegance, and originality. Its perfect balance of size, functionality, and style will pique your interest for adventure.

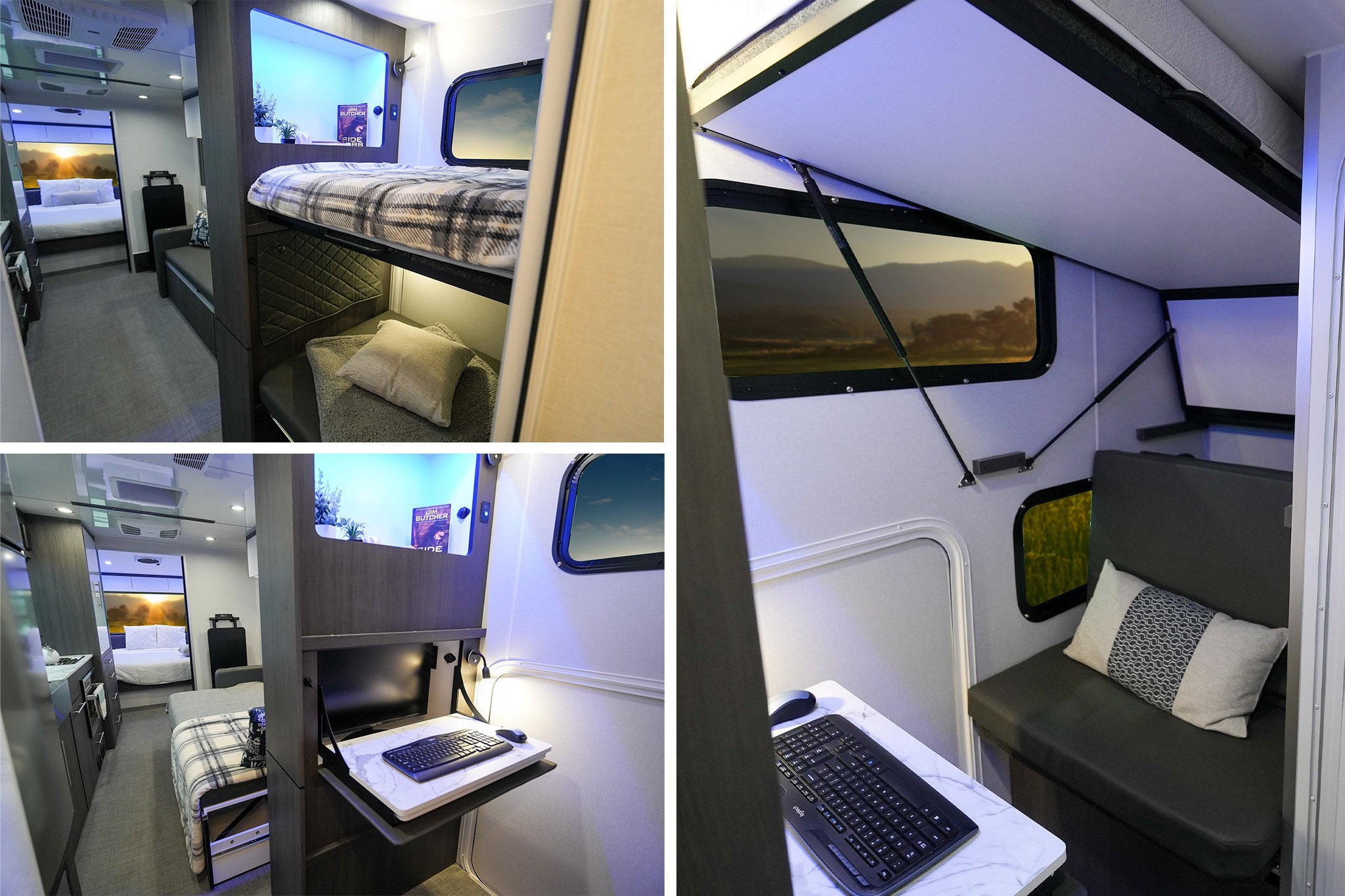

Experience the Ultimate in RV Versatility

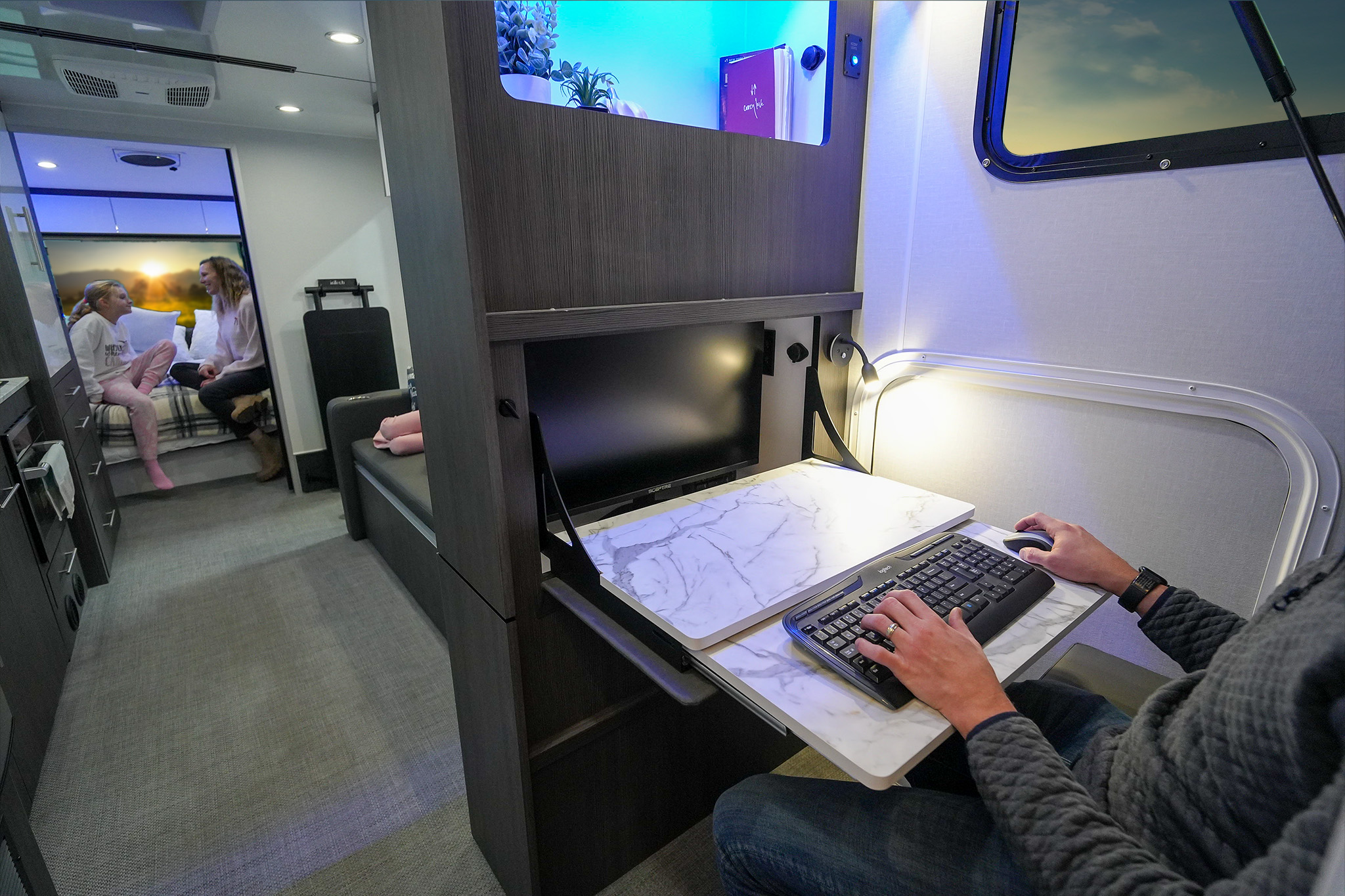

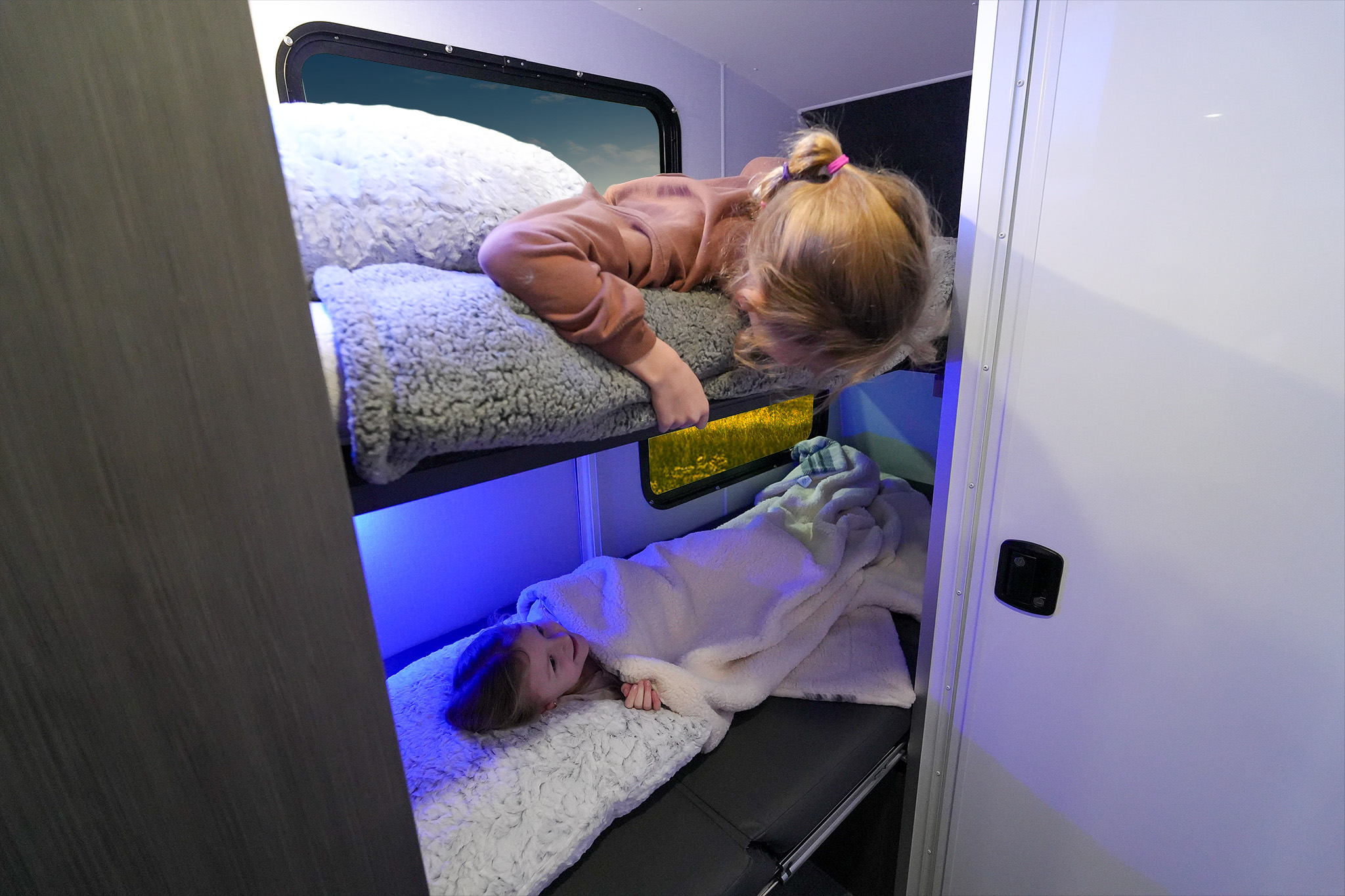

This first-of-its-kind RV features a transformational bunk area that easily converts into an office space, offering unmatched flexibility for family travel or work on the road. This innovative layout provides both, ensuring comfort and convenience for every adventure. This RV is built for families seeking a multi-use space that adapts to their lifestyle. Whether it's sleeping, working, or storing your essentials, this RV redefines family-friendly, multi-purpose travel.

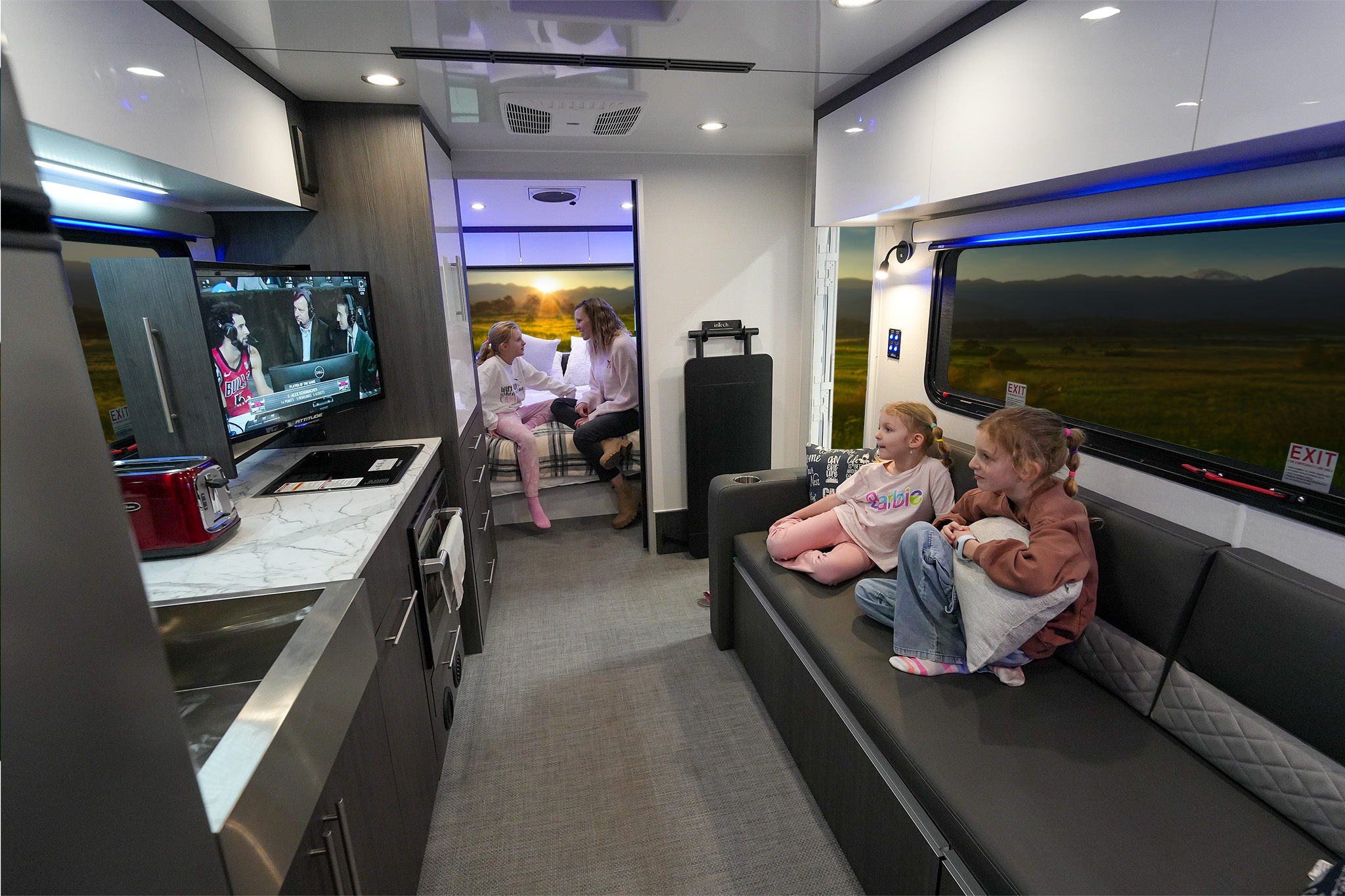

A Theater Experience in Your RV
This innovative dinette with a trundle bed design transforms your RV into a versatile living space. This offers a reclining setup and extra sleeping area, combining comfort and functionality. Paired with a slide-out TV positioned over the kitchen for optimal viewing, this setup creates the ultimate theater room on wheels. Finally, to enhance your experience we’ve included a premium sound system featuring a subwoofer, all seamlessly connected to the TV for immersive entertainment.

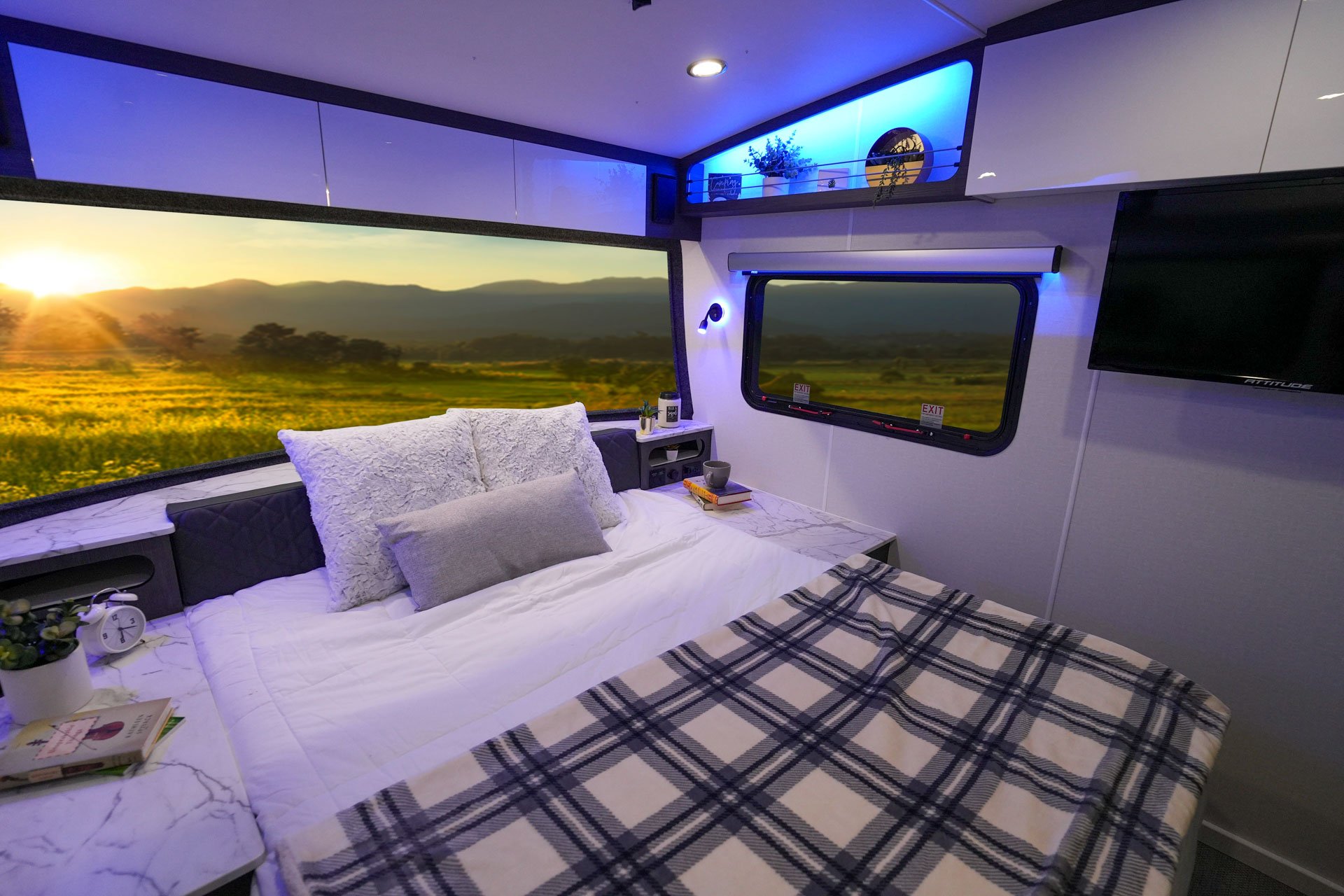

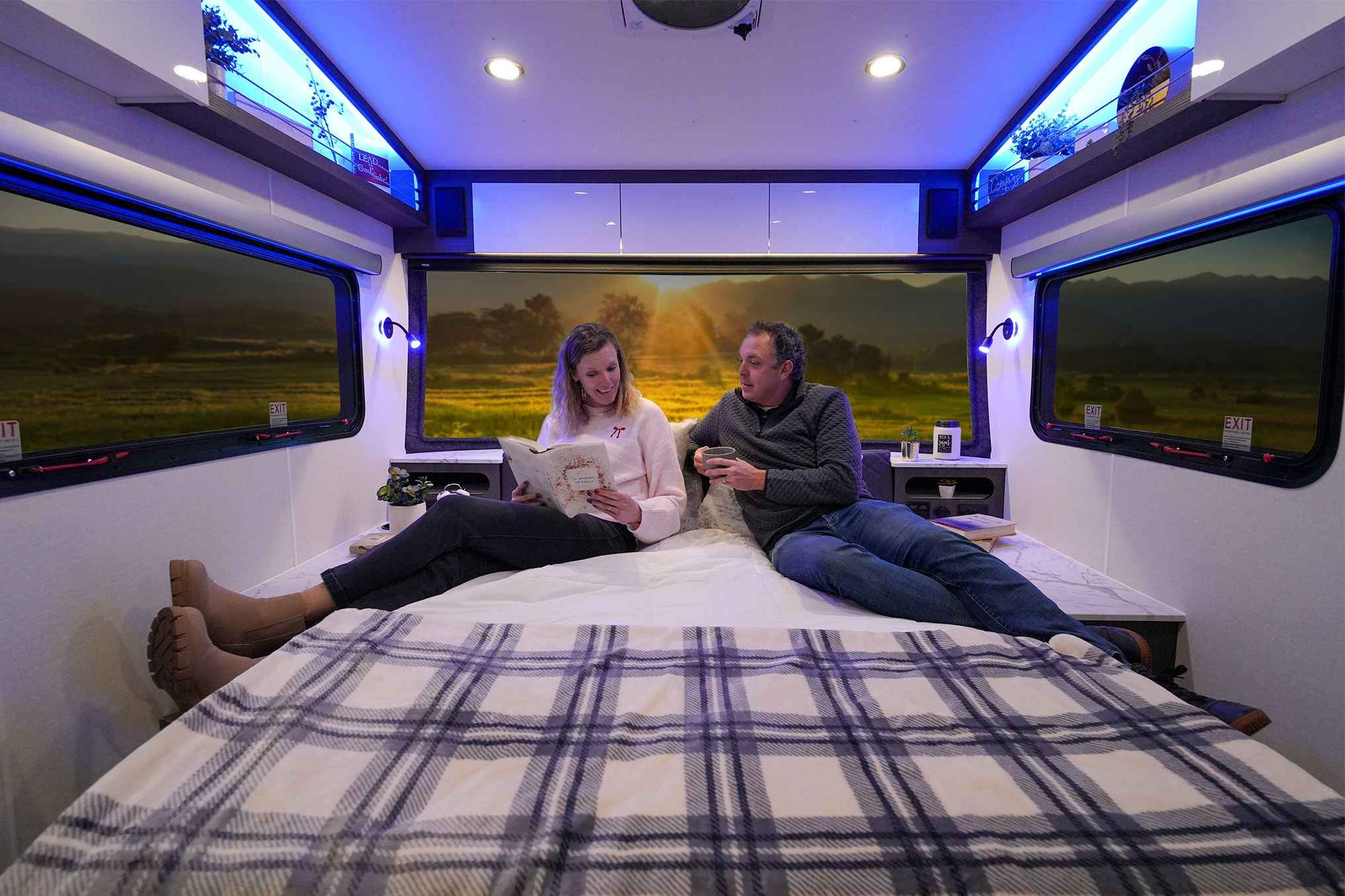

Spacious Comfort with Stunning Views
Enjoy a large front bedroom featuring a breathtaking panoramic windshield that fills the space with natural light and offers stunning views. Sleep soundly on a true residential 60x80 queen bed, designed for ultimate comfort. This thoughtful design ensures a perfect night's rest with the convenience of standard sheets.
Large Bathroom for Maximum Comfort
This large dry bath offers more space, providing a comfortable and practical solution for your travels. The fully enclosed shower is designed to seal off completely from the rest of the bathroom, preventing water and steam from escaping and ensuring a clean, dry environment every time you shower.
360° Interior
Interior

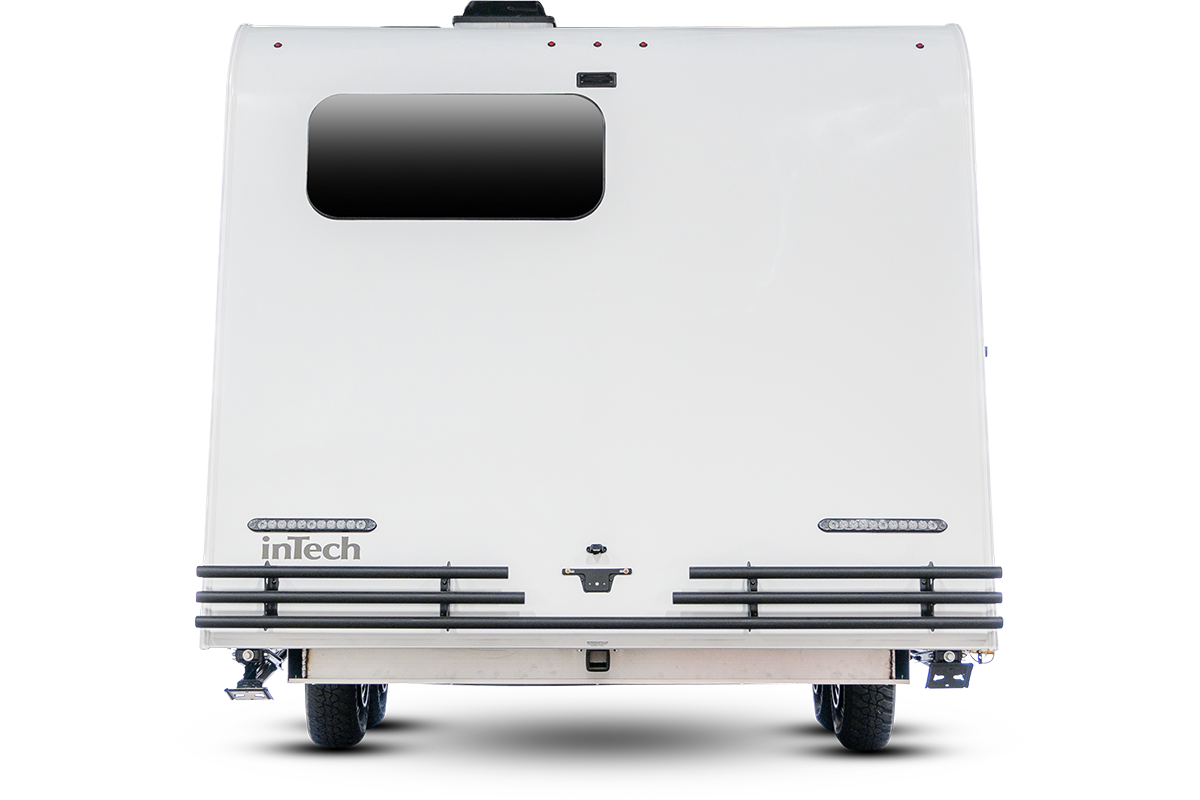

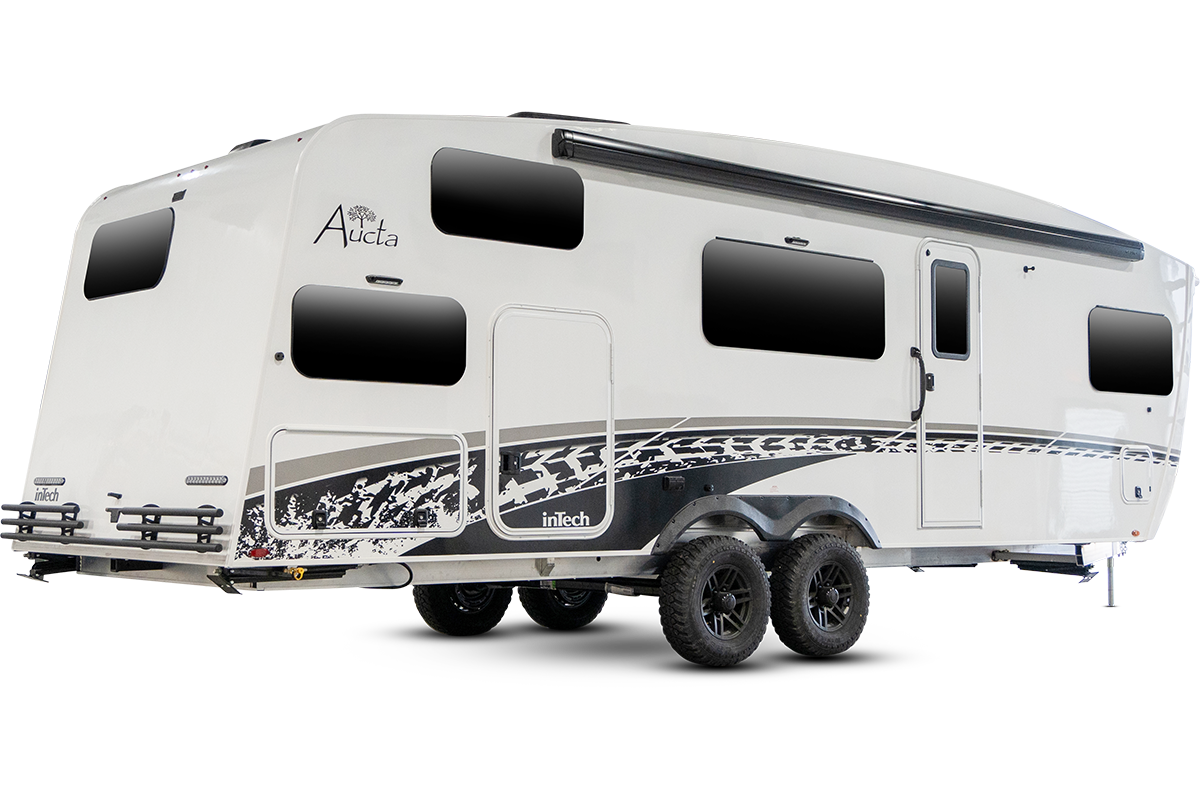

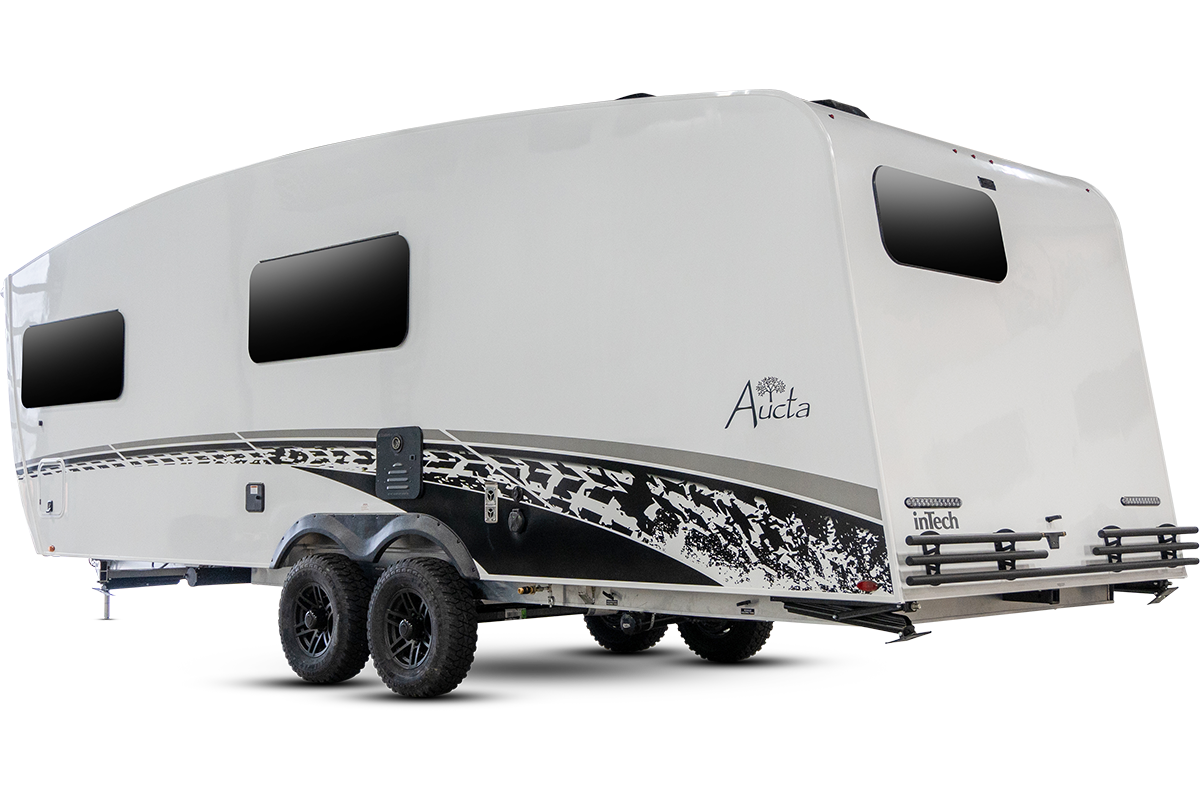

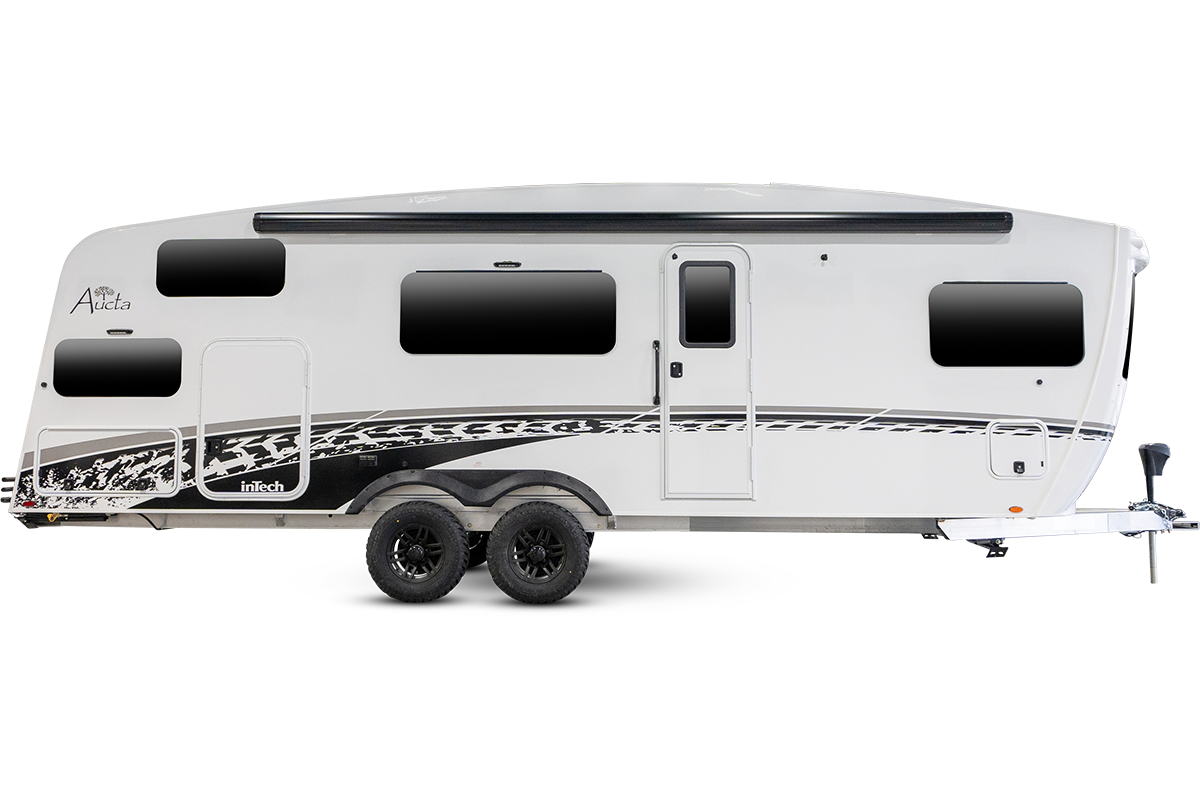

Exterior
Options

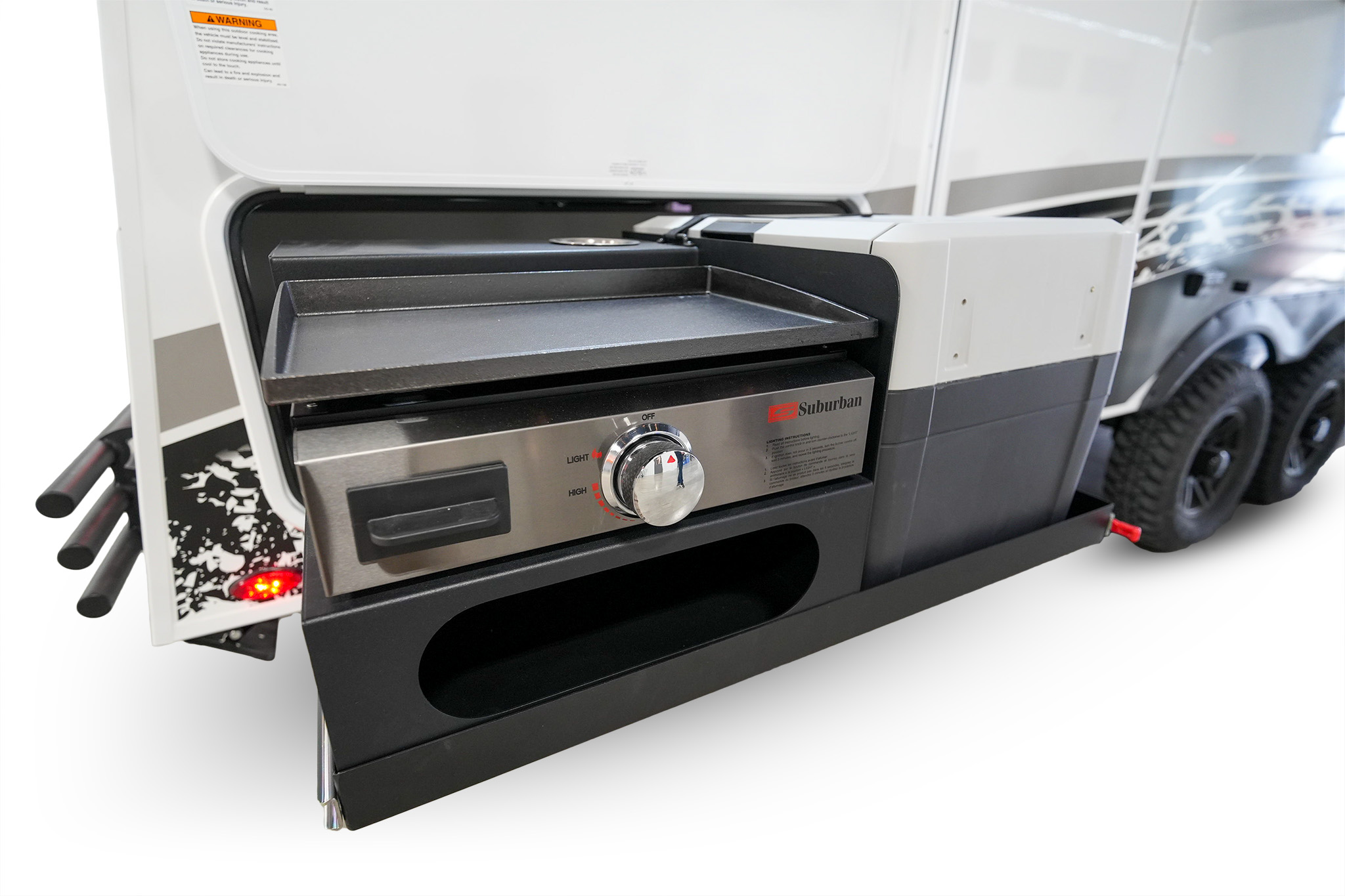

Slide-out Rear Kitchen w/Griddle
Take cooking outside into the great outdoors with the innovative Slide-out Rear Kitchen.

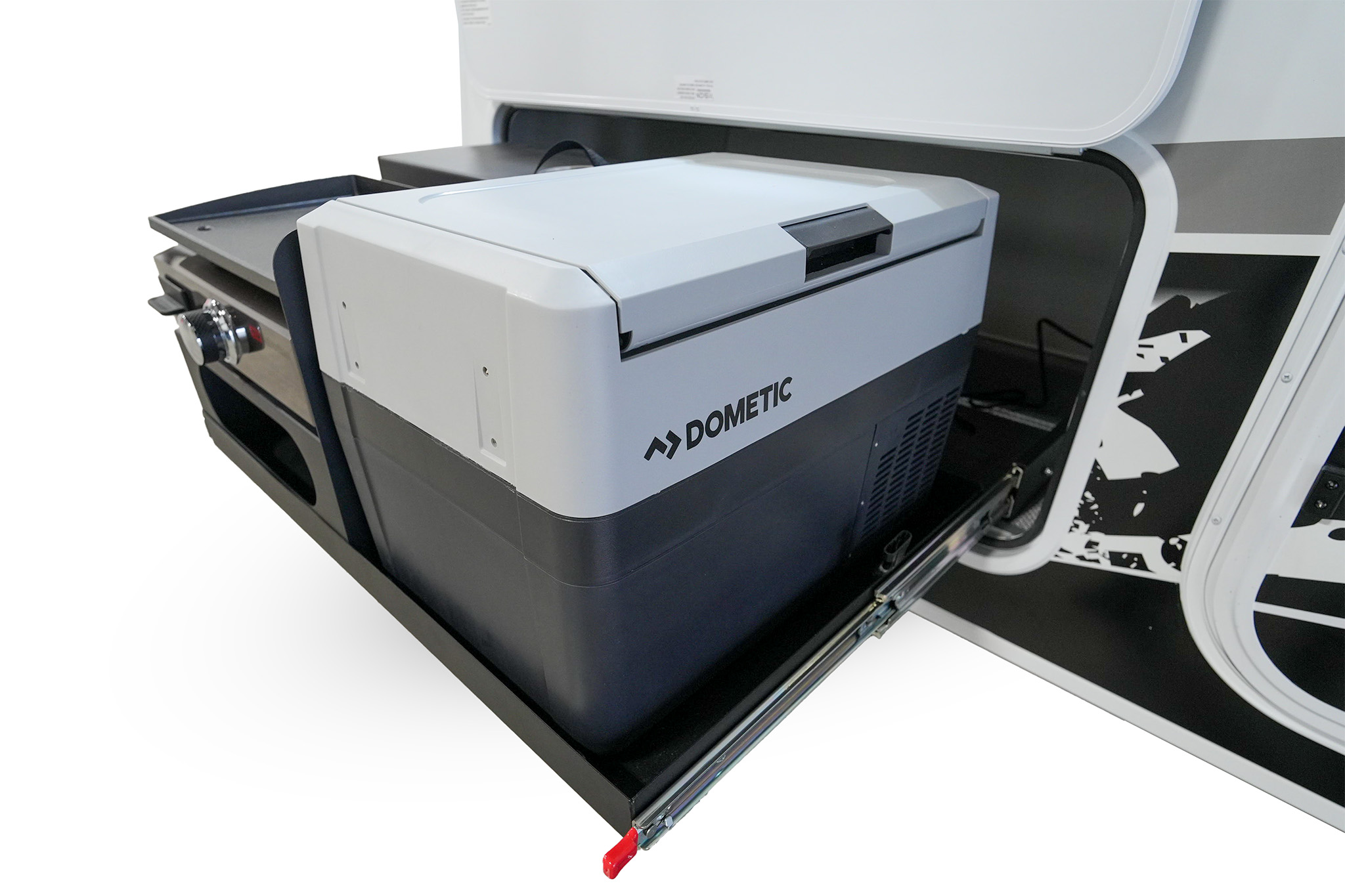

Slide-out Kitchen Refrigerator
Increases the overall refrigerator space for those extra long getaways.
Off-grid Package
Enjoy true freedom getting off-grid with inTech’s Solar and Lithium Package. 400 watts of solar, mixed with an MPPT charger controller, 200 amp hrs of lithium batteries and a 2,000 Watt inverter allow you to take a path less traveled.
200 Watt Solar Charging System
The available 200-watt solar charging system includes a high-efficiency solar panel and a 30-amp charge controller, delivering reliable energy to keep your essentials running. This system gives you the freedom to explore remote locations without worrying about power limitations.

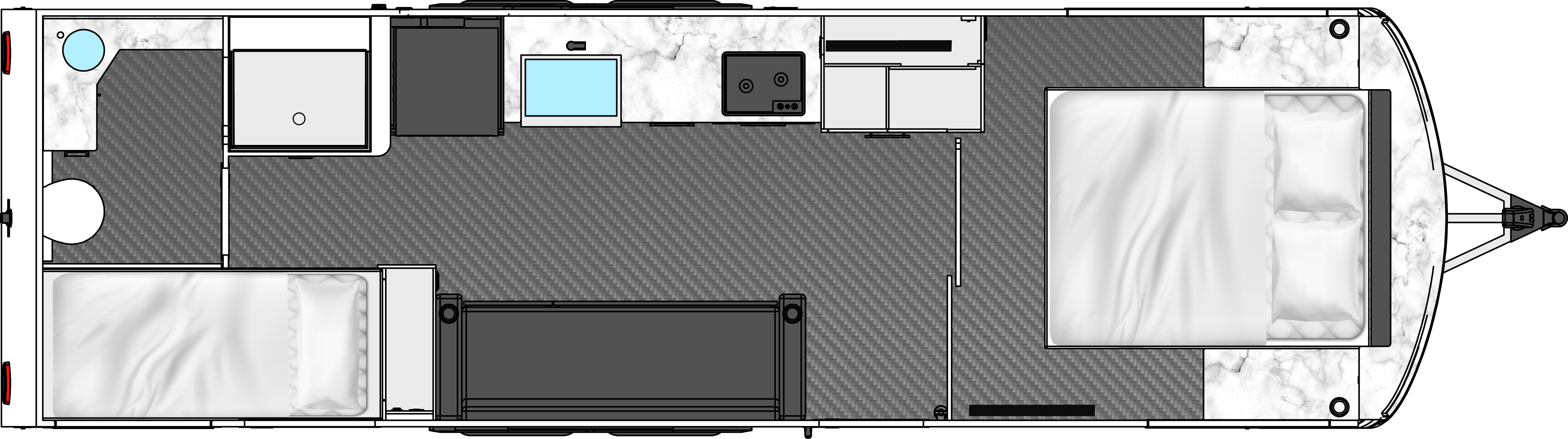

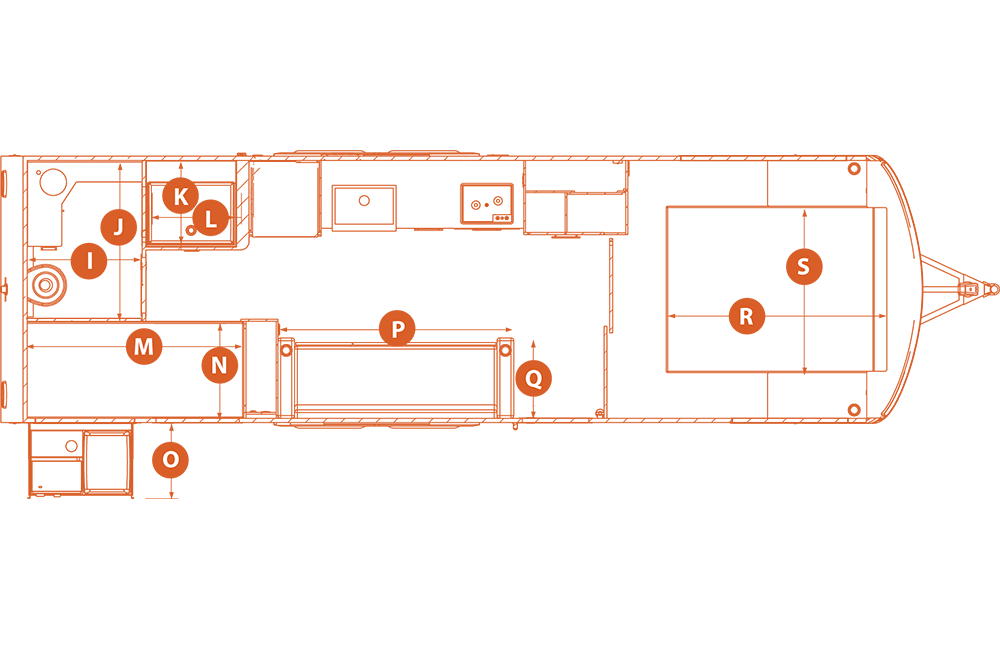

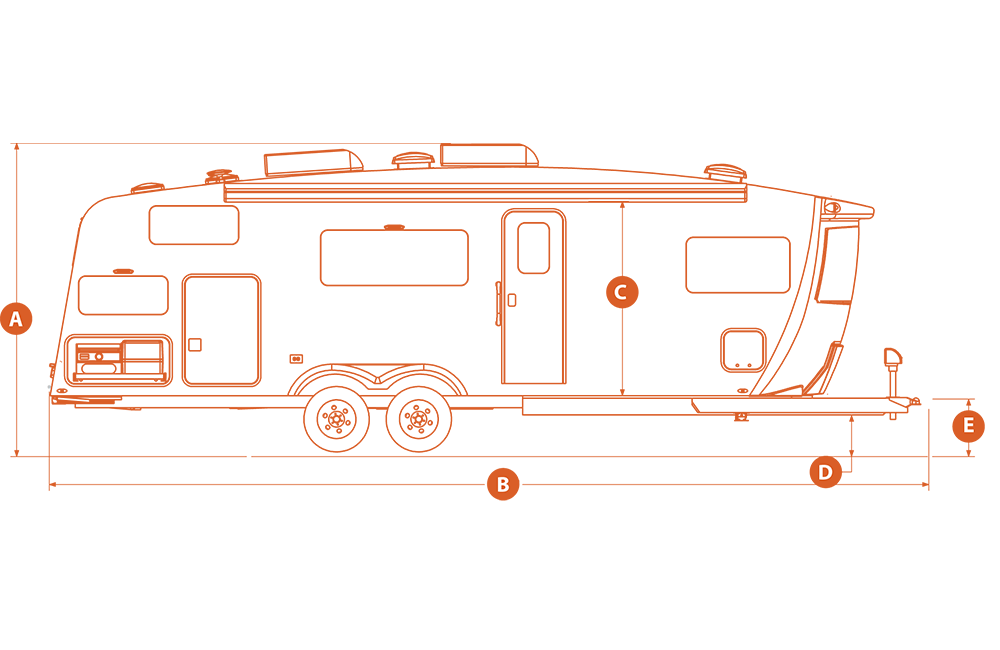

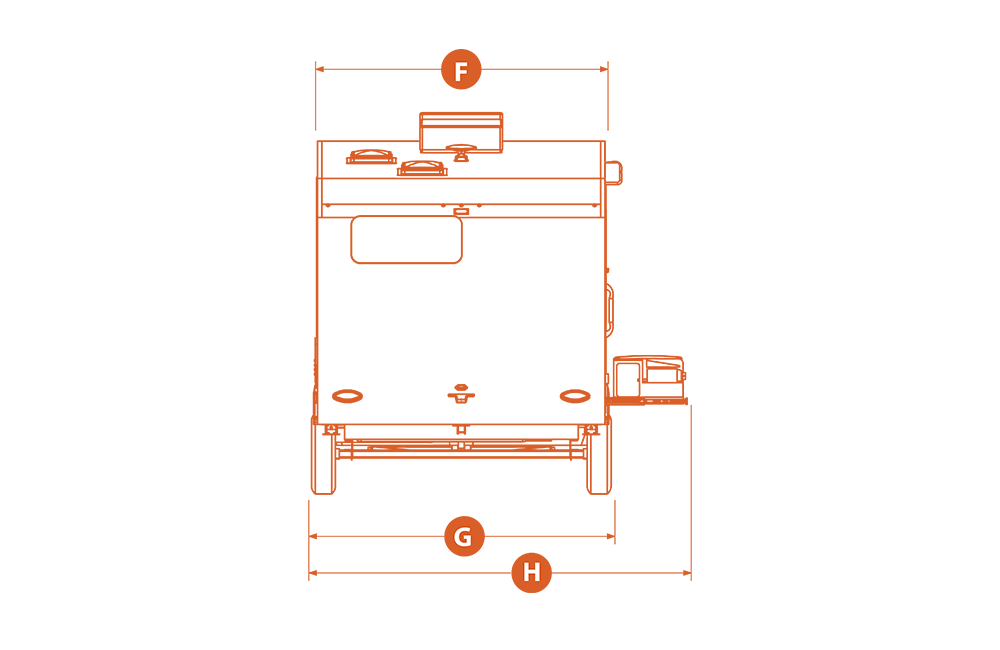

Dimensions
- (A) Overall Height - 10' 9"
- (B) Overall Length - 30'
- (C) Interior Height - 6' 8"
- (D) Ground Clearance - 16.5"
- (E) Ball Height - 24"
- (F) Box Width - 8'
- (G) Overall Width - 8' 4"
- (H) Overall Width w/ Slide-out - 10' 1"
- (I/J) Bathroom - 47.5" x 56.5"
- (K/L) Shower - 31" x 33"
- (M/N) Top / Bottom Bunk - 34" x 75" / 34" x 81"
- (O) Slide-out Kitchen - 2' 1"
- (P/Q) Dinette - 73" x 26"
- (R/S) Master Bed - 80" x 60"
Specifications
Dimensions, equipment, and pricing are subject to change without notice. For complete and up-to-date details regarding inTech RVs, please speak to an authorized inTech RV dealer.
Overview
| Exterior Width | 8' 4" |
| Exterior Height | 10' 9" |
| Exterior Length | 30' |
| Dry Weight | 6,750 - 7,100 lbs |
| Tongue Weight | 700 - 750 lbs |
| GVWR | 9,400 lbs |
| Net Carrying Capacity | 2,300 - 2,650 lbs |
| Ball Height | 21" |
| Sleeps Capacity | 6 |
Tanks
| Fresh Water Capacity | 90 Gallons |
| Gray Water Capacity | 52 Gallons |
| Black Water Capacity | 30 Gallons |
| Holding Tank Heating | Enclosed w/ Ducted Heat, 12V Line Heaters, & Tank Heat Pads |
| Under Belly | Enclosed |
Construction and Exterior Features
| Frame | inTech Fully Welded Aluminum Cage Frame |
| Coupler | 2 5/16" Ball |
| Axle | Smooth Ride Torsion Suspension |
| Rear Receiver | 2" Receiver - 175# Capacity |
| Tires | Rugged ST235/75R15 on Aluminum Wheels |
| Bumper | Black Powder coated Aluminum Tube |
| Shore Power Inlet | 50 Amp - 240V |
| Solar Prep | Pre-Wired Solar Port on Side Wall & Roof |
| Exterior Walls | Hung Fiberglass over Azdel (Wood Free) |
| Roof | One-Piece Fiberglass w/ Azdel Backer |
| Insulation | Comfort Shell Insulation |
| LP Tank | (2) 20 lbs Tanks |
| LP Quick Connect Port | 1 |
| Entry Step | inTech SureStep |
| Tongue Jack | 12V Electric Power Jack |
| Awning | 18' Power Lateral Arm w/ Motion Sensor |
| Backup Camera | Pre-Wired |
| Spare Tire | Undermounted |
Kitchen and Dining
| Countertops | Thinscape Solid Surface |
| Sink | Farmhouse Undermounted Sink w/ Thinscape Sink Covers |
| Faucet | Pullout Spray Faucet |
| Dinette | VersaLounge Dinette System |
| Dinette Table | Solid Hardwood Maple Table - Black |
| Cabinets | European Style Flush Cabinets w/ Soft Close Hinges & Drawer Slides |
Windows, Doors and Floors
| SubFloor | Solid NoFlex 3/4" Floor |
| Flooring | Premium Woven Floor |
| Baggage Doors | Locking Doors w/ Slam Latches |
| Bedroom Privacy Door | Solid Hardwood Maple Barn Door - Black |
| Window Style | Frameless |
| Window Valance | inTech Aluminum Valance System w/ Integrated Accent Lighting |
| Window Covering | Blackout Roll Shades |
| Panoramic Front Windshield | Automotive Grade 3-Ply Windshield w/ Travel Cover |
Appliances & Utilities
| Refrigerator | 10 Cu Ft w/ 12V Compressor |
| Cooktop | 3 Burner LP Cooktop w/ Glass Cover |
| Microwave | 1.1 Cu Ft Convection Microwave |
| Water Heater | On Demand LP |
| Furnace | 25K BTU Ducted LP Furnace |
| A/C | (2) 15K BTU Low Profile Ducted w/ Soft Start |
| Exhaust Fan | (3) Multi-Speed w/ Rain Sensor / (1) Single Speed for Shower |
| TV | 40" Slide away Kitchen TV & 32" Bedroom TV |
| Stereo | Bluetooth Stereo w/ 4 Interior Speakers & Subwoofer |
Bed Configurations or Sleeping Spaces
| Master Bed | 60" x 80" Queen Bed w/ 6" Memory Foam Mattress |
| Bunk Bed | Upper Bunk: 34" x 75" (Weight Capacity: 200 lbs) / Lower Bunk: 34" x 81" (Weight Capacity: 200 lbs for Bed and 250 lbs for Seat) |
| Sleeper Sofa | 76" Wall Mount Sofa |
Bathroom and Shower
| Bathroom Style | Combined Dry Bath |
| Bathroom Sink | Hand Sink w/ Brushed Nickel Faucet |
| Bathroom Mirror | Frameless Backlit Mirror |
| Toilet | Porcelain Toilet w/ Foot Flush |
| Shower Head | Shower Wand System - Height Adjustable |
| Shower Door | inTech Aluminum SureSeal Shower |
