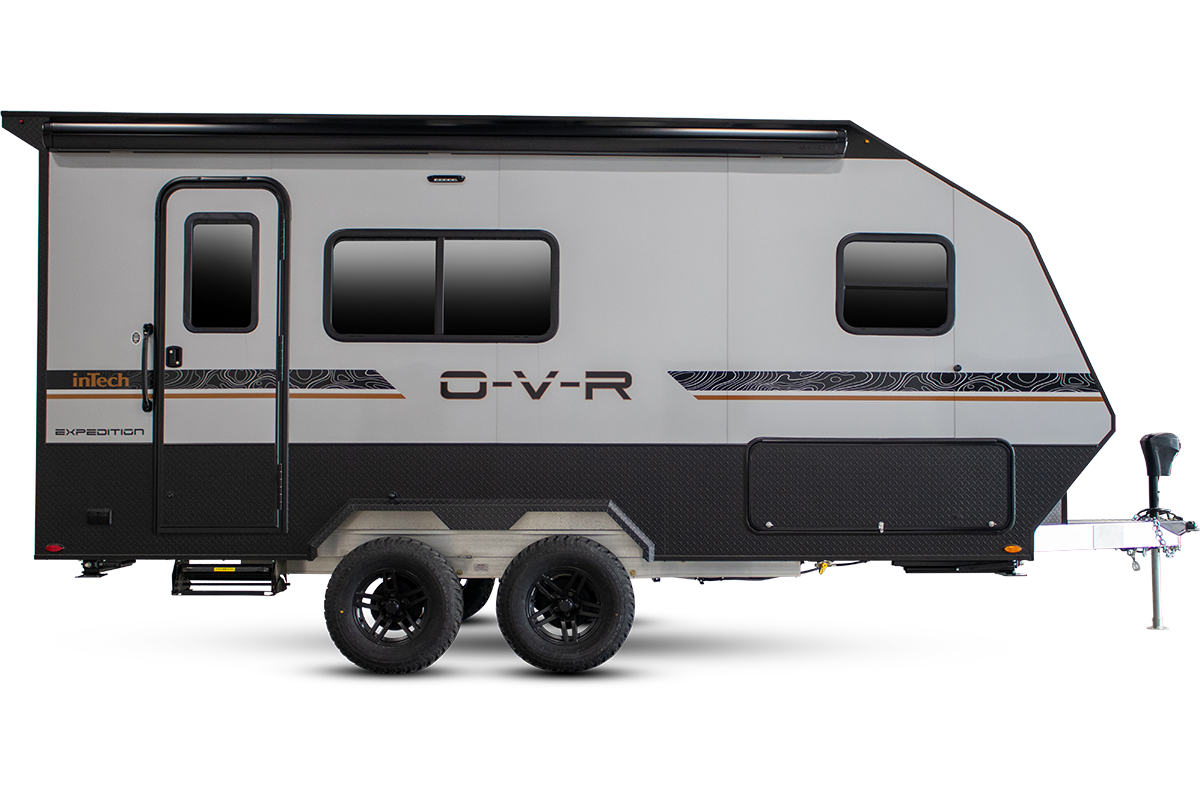

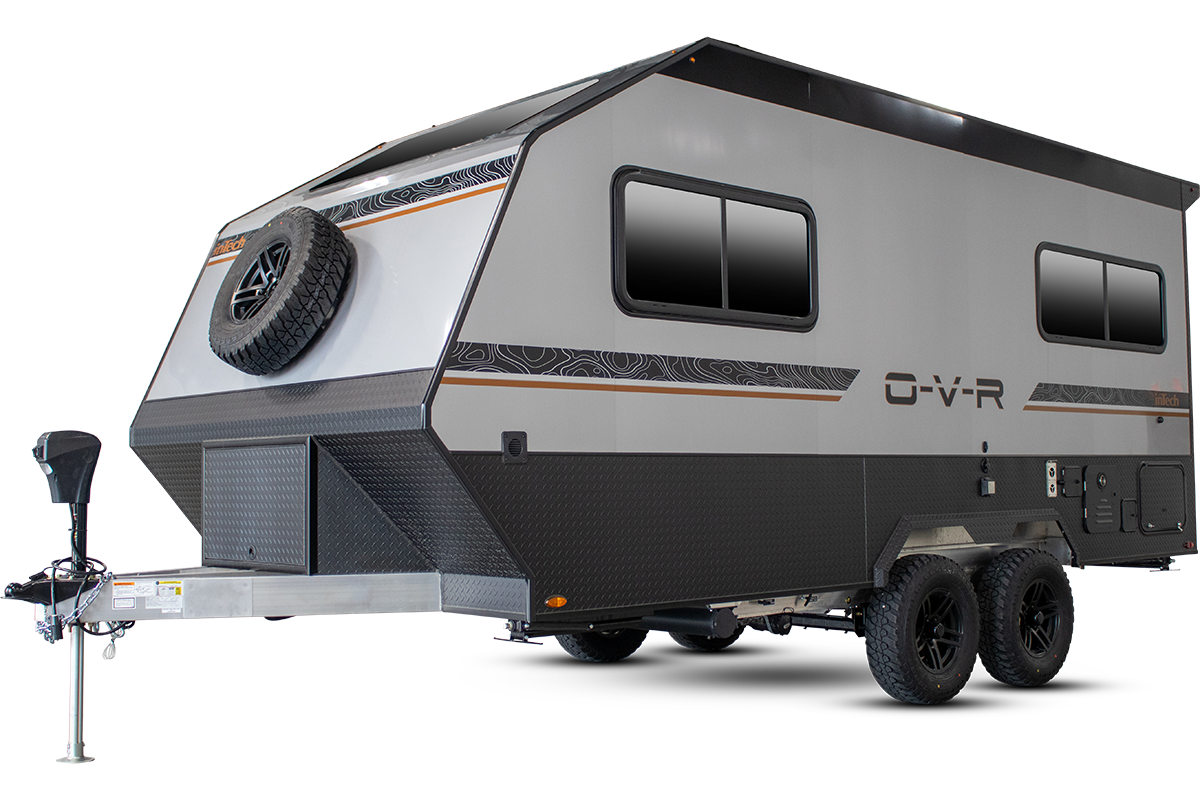

Expedition
Welcome to Expedition
This model has two distinct bedroom configurations.

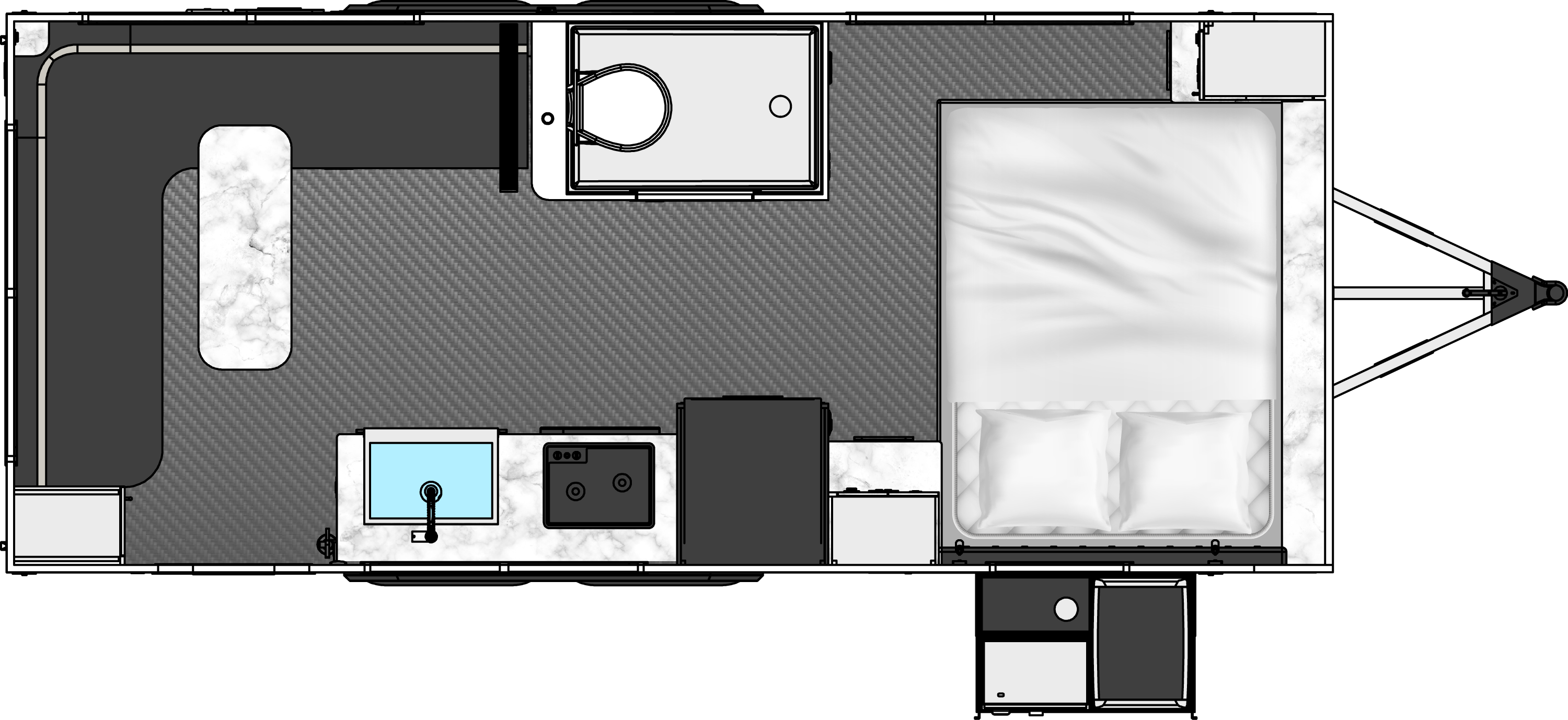

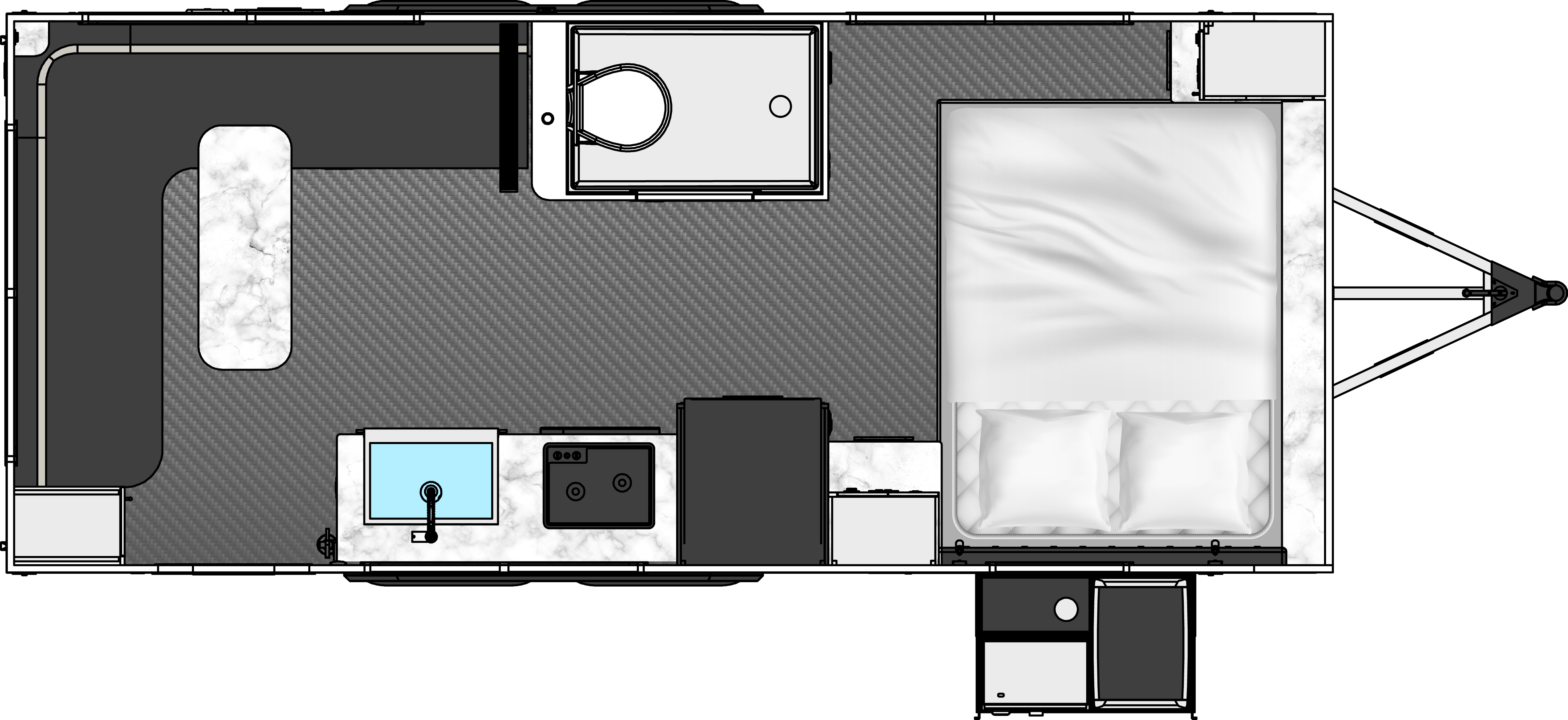

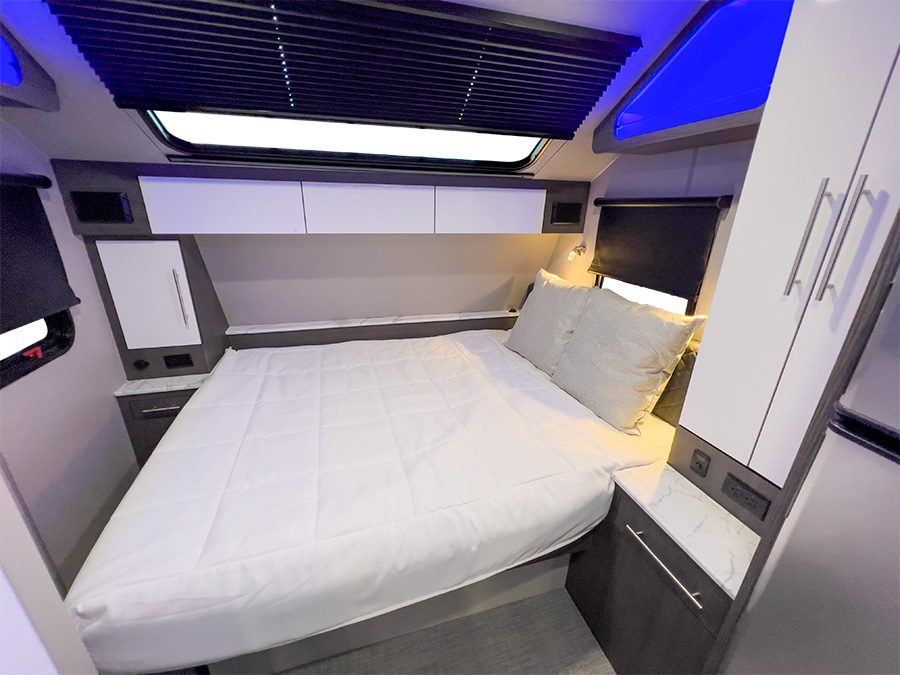

STANDARD QUEEN BED
OPTIONAL TWIN BEDS

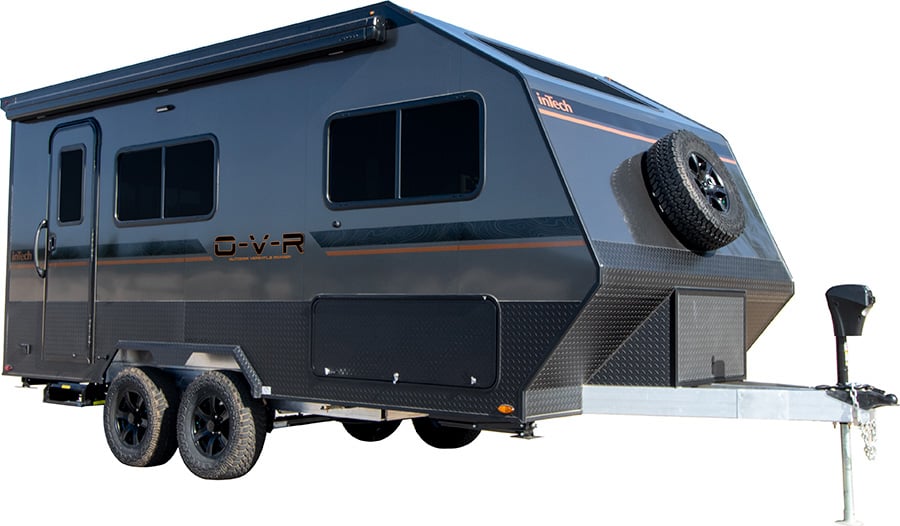

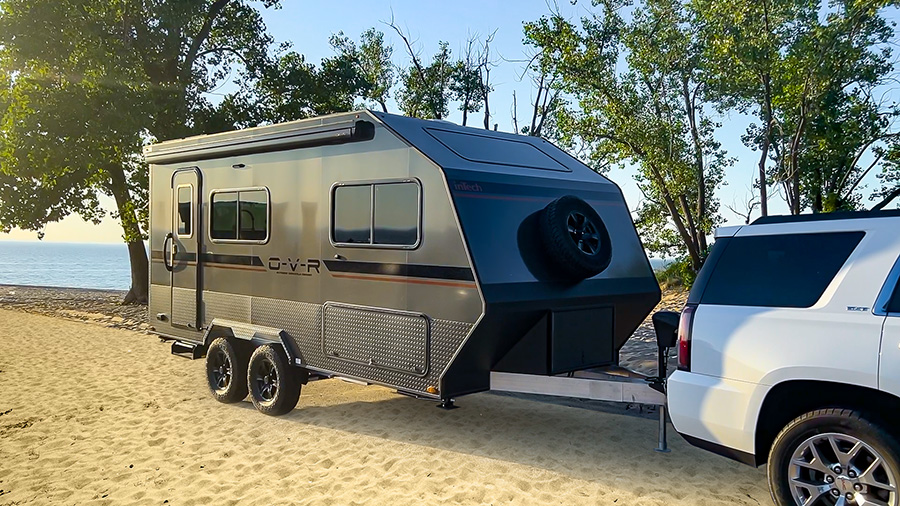

Rugged Design
The O-V-R line of adventure travel trailers is the perfect way to see the country. You can pack up your belongings and hit the open road, stopping wherever and whenever you please. However, conventional RVs can be difficult to take off the beaten path. That's where an off-road RV comes in. O-V-R is designed to handle rough terrain, giving you the freedom to explore even the most remote locations. With an off-road RV, you can find your piece of paradise, far from the hustle and bustle of everyday life. So if you're looking for a way to truly get away from it all, O-V-R is a perfect choice.

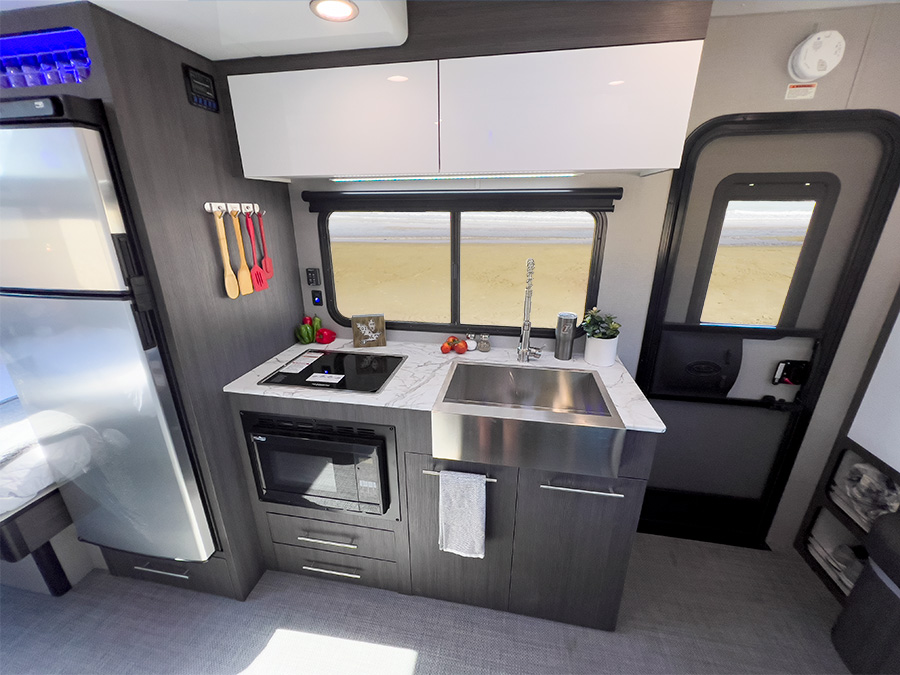

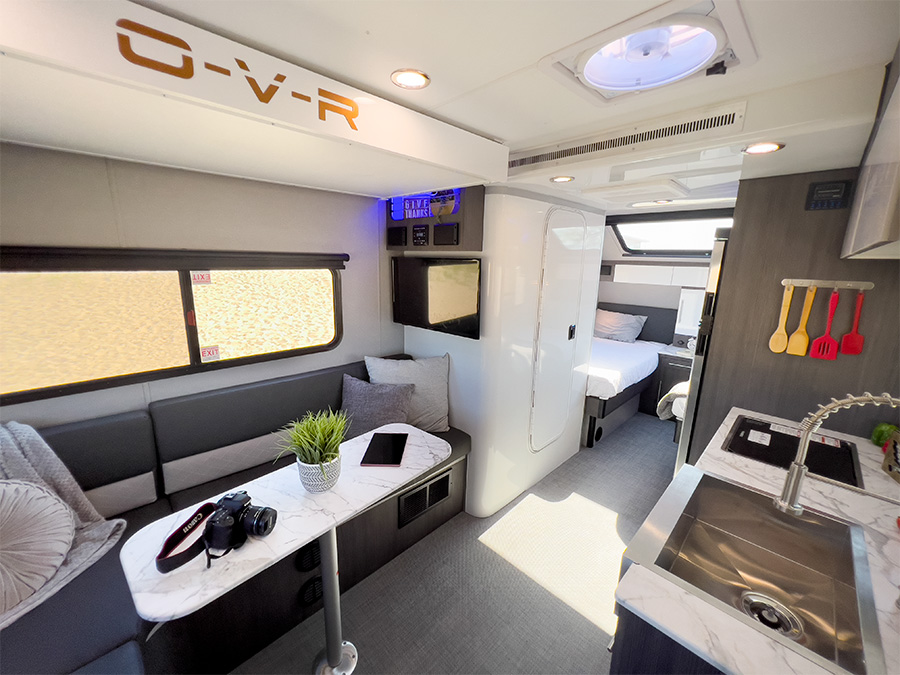

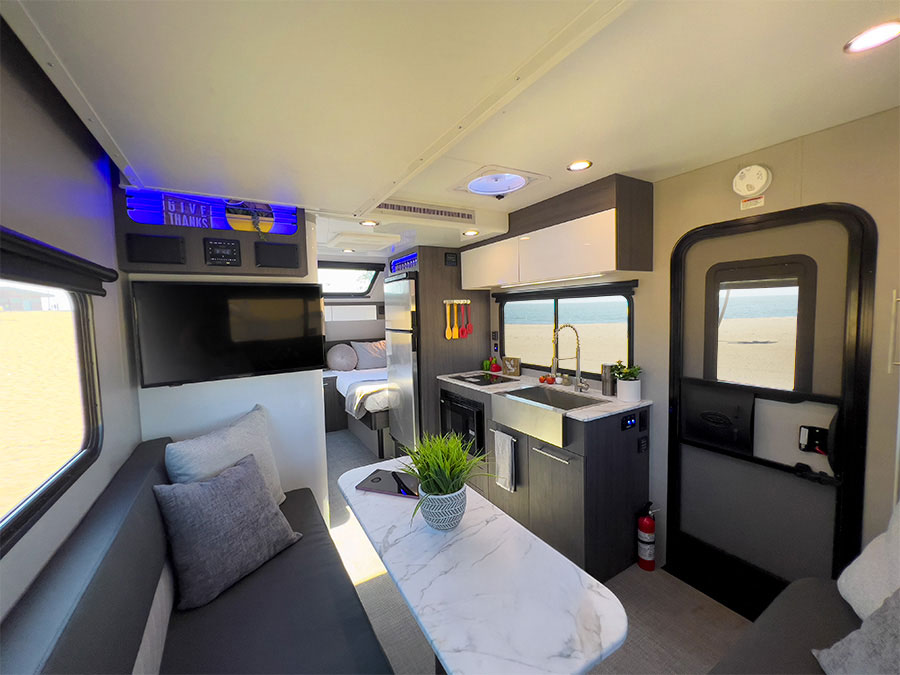

Spacious Interior
RVing is a great way to travel the country and see new sights, but it can be tough to find an RV that has enough space for your entire family. That's why we're proud to offer our spacious O-V-R line of RVs, which has plenty of room for everyone to stretch out and relax. Our RV has a large living area, a well-equipped kitchen, and a comfortable bedroom that will make you feel right at home on the road.
Versatile Interior
Versatility is a must in the RV Industry and we pride ourselves on engineering RVs that take things to the next level. Utilizing every inch of our RVs for storage, sleeping space, head height, and moving around is something we excel at.
Fully Welded Cage & Frame Construction
Just like the rest of inTech's products, O-V-R is built with a reliable all-aluminum fully welded cage frame. Simply put, our RVs handle any terrain as well as hold up to the elements. So if you're looking for an RV that has it all, look no further than O-V-R. We guarantee you won't be disappointed.
Extreme Off-Grid
When it comes to the world of recreational vehicles, nothing quite compares to the awe-inspiring O-V-R line. This revolutionary series of off-road, off-grid RVs offers an unparalleled level of freedom, versatility, and luxury for the modern adventurer.
Key Features

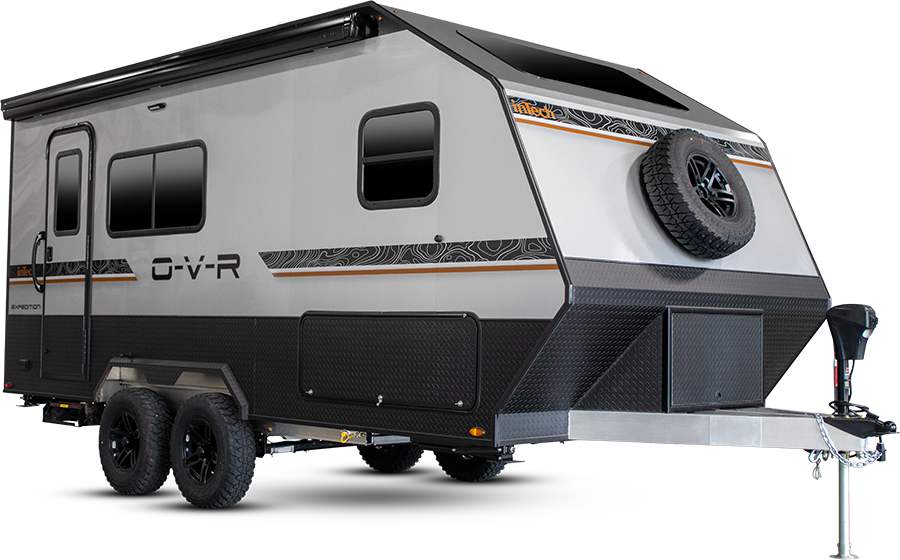

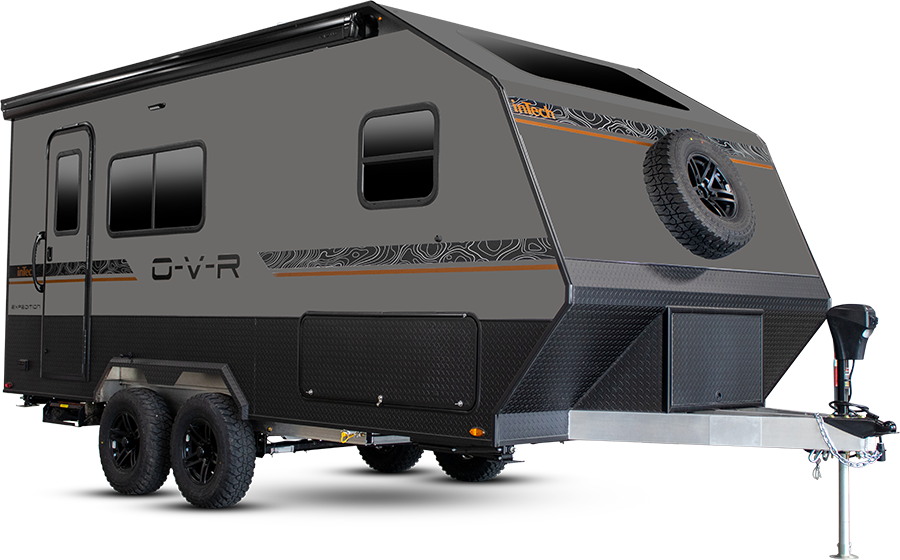

Colors

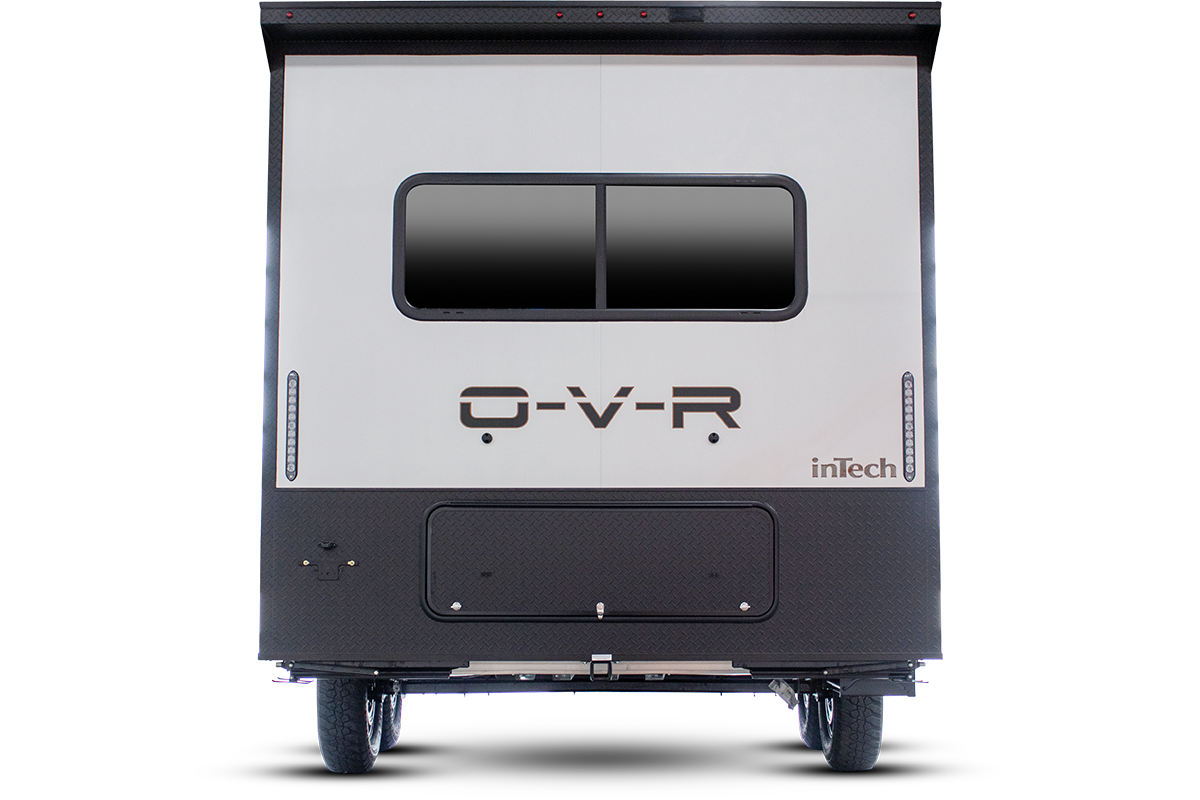

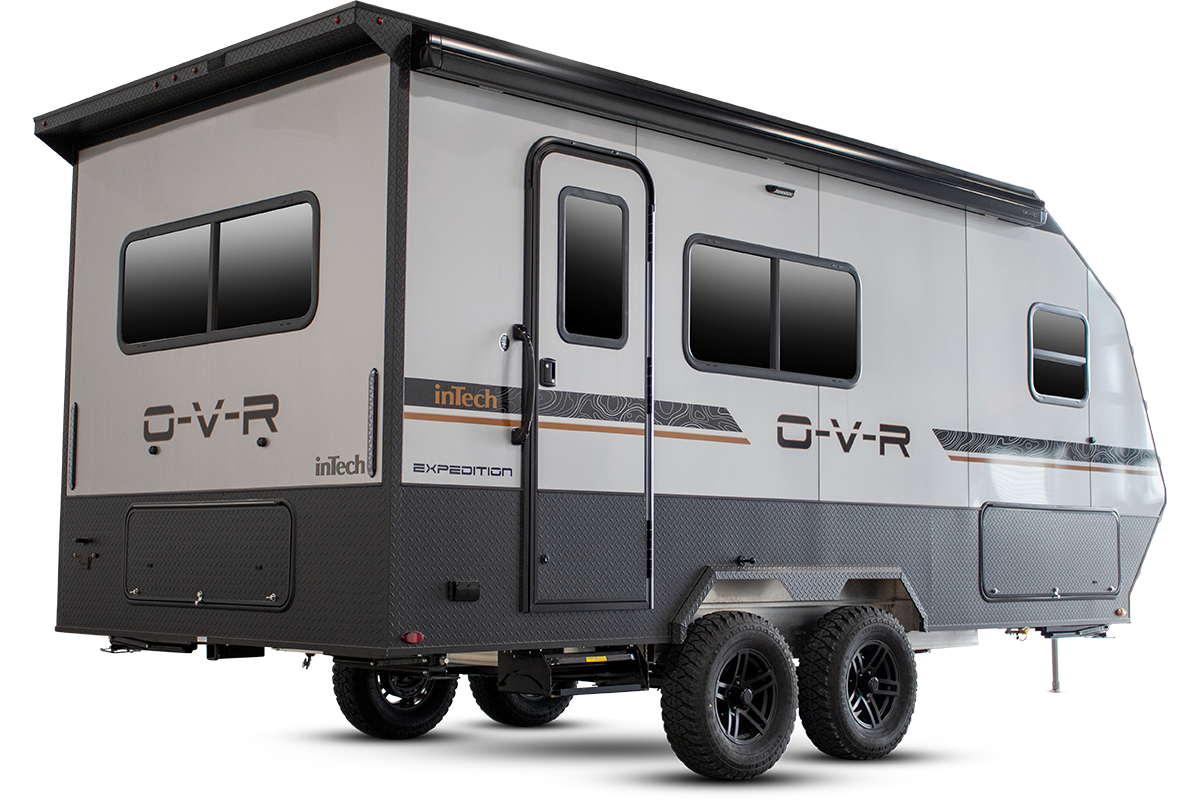

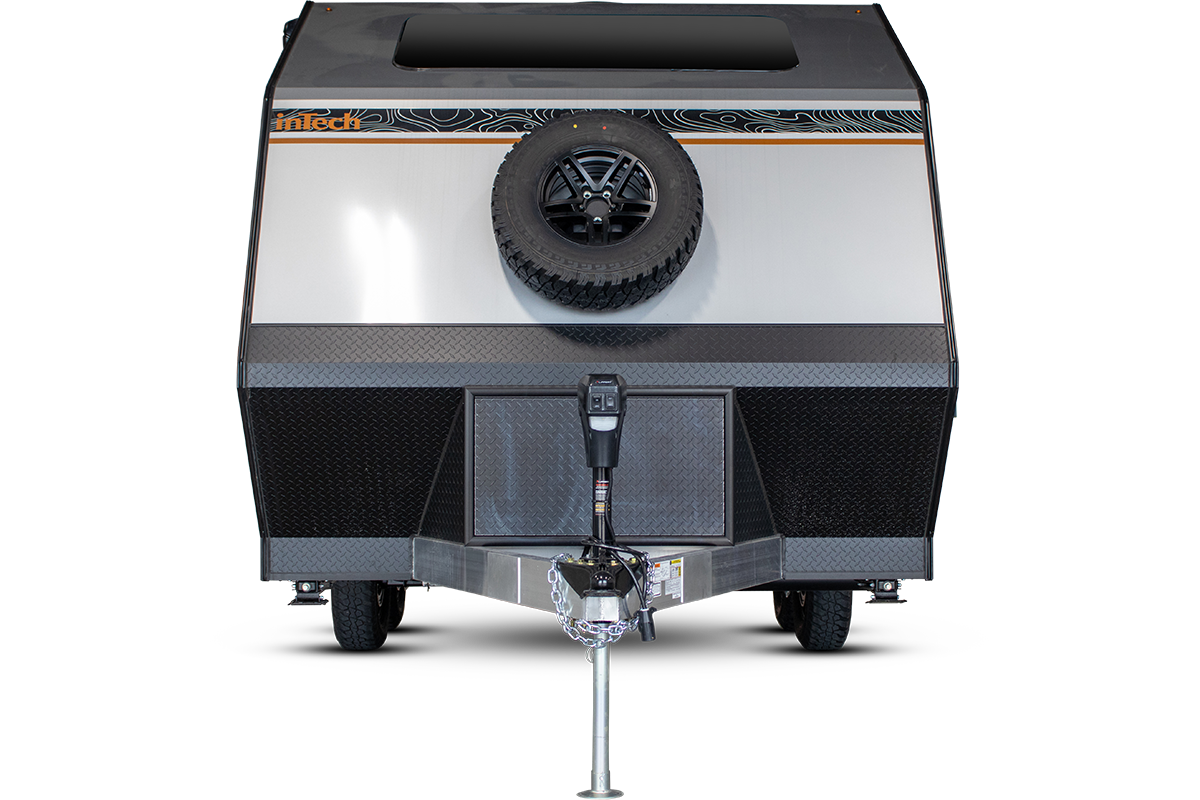

Exterior
360° Interior
Gallery
Options

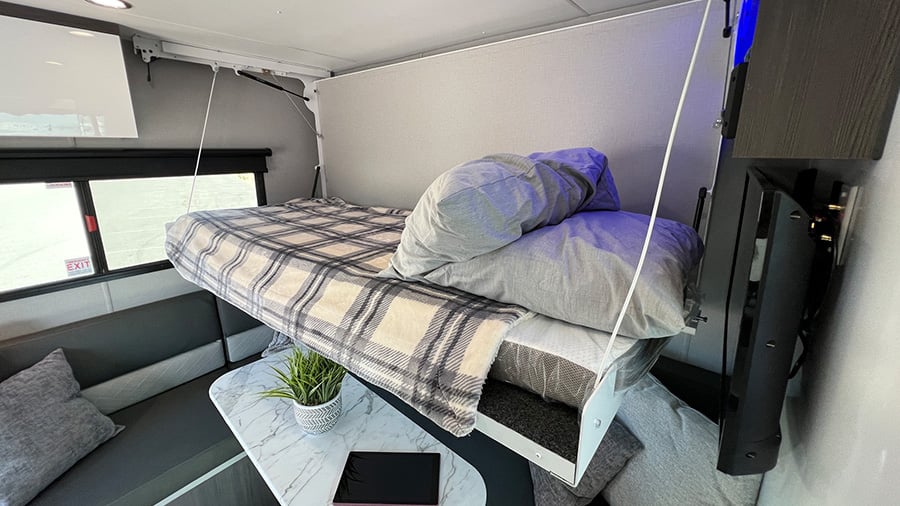

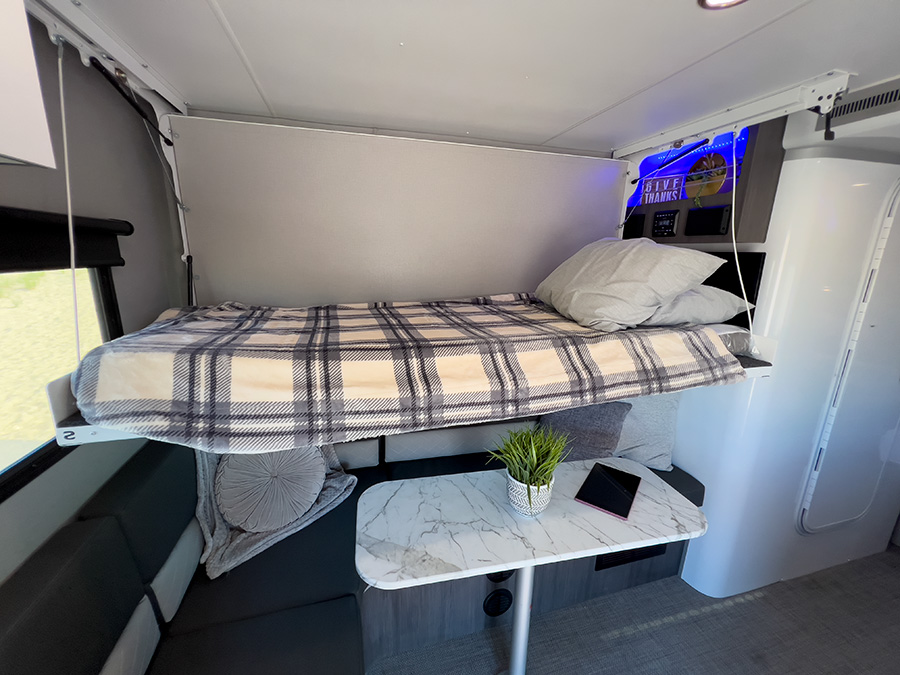

Drop-down Bunk
Need additional sleeping space? You can option in the drop-down bunk that quickly and conveniently folds up and out of the way.

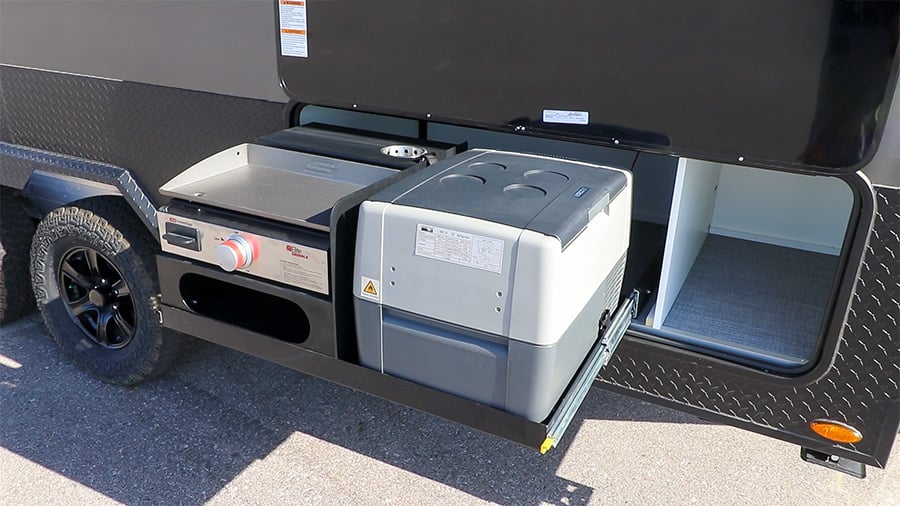

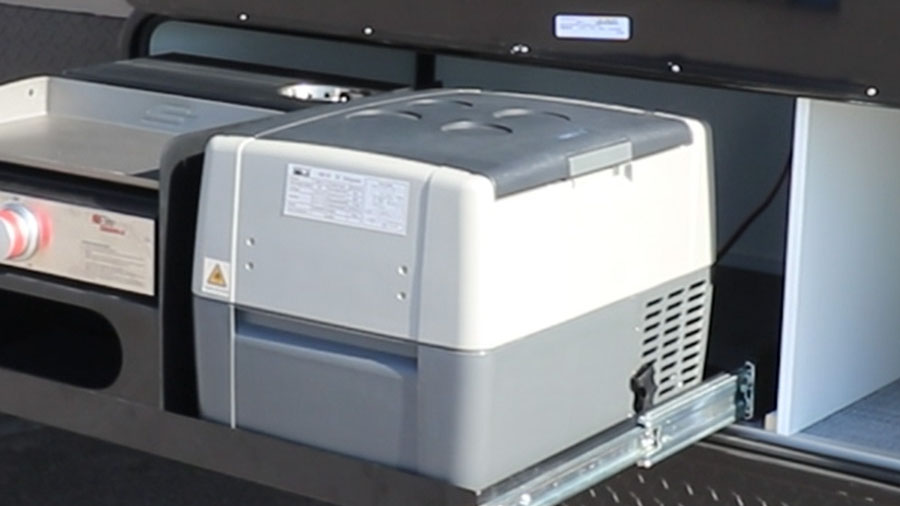

Exterior Slideout Kitchen
Option in the Exterior Slideout Kitchen and do all your cooking conveniently outside the camper.

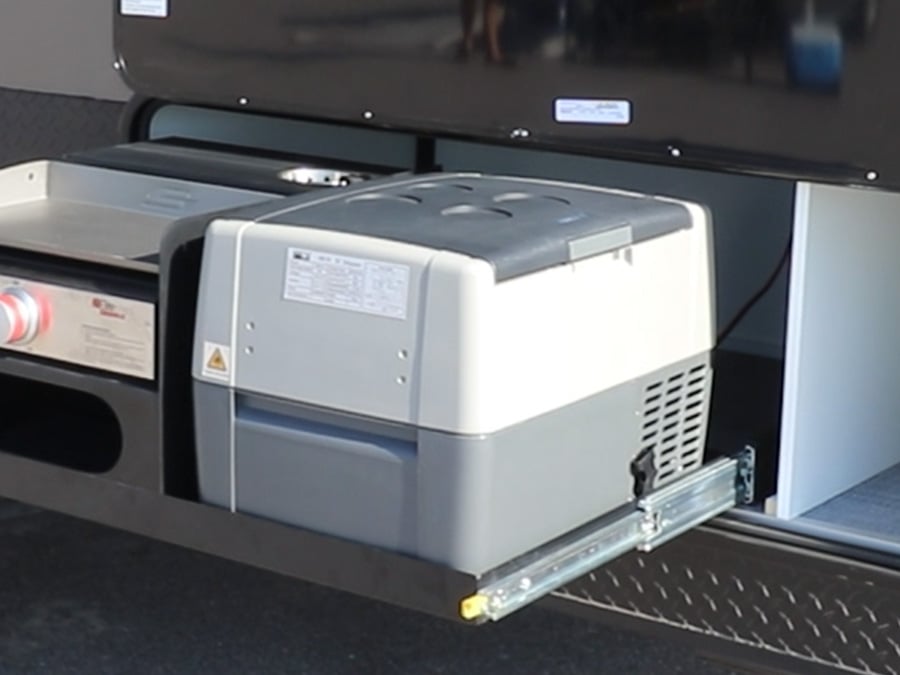

Slideout Kitchen Refrigerator
Keep everything cool. Exterior Slideout Kitchen Required.

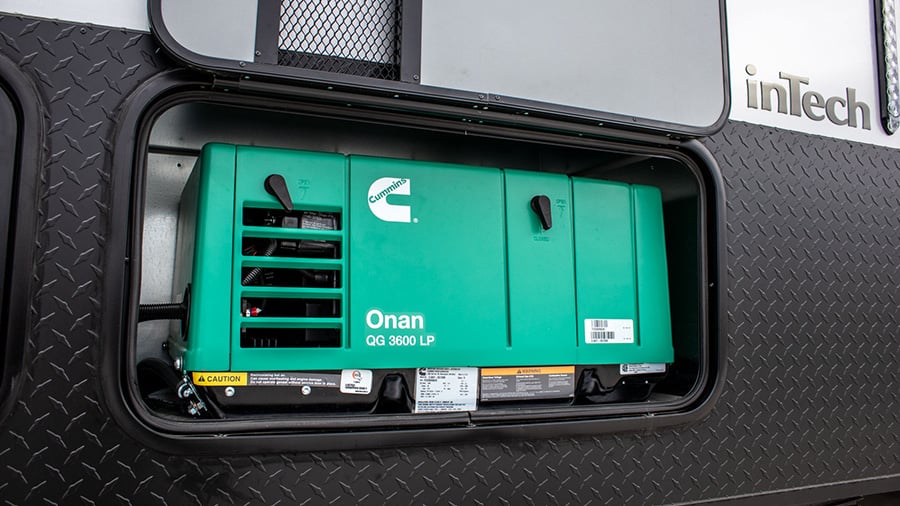

3.6 kW LP Generator
Upgrade your RV experience with our top-of-the-line generator option and redefine the way you travel.

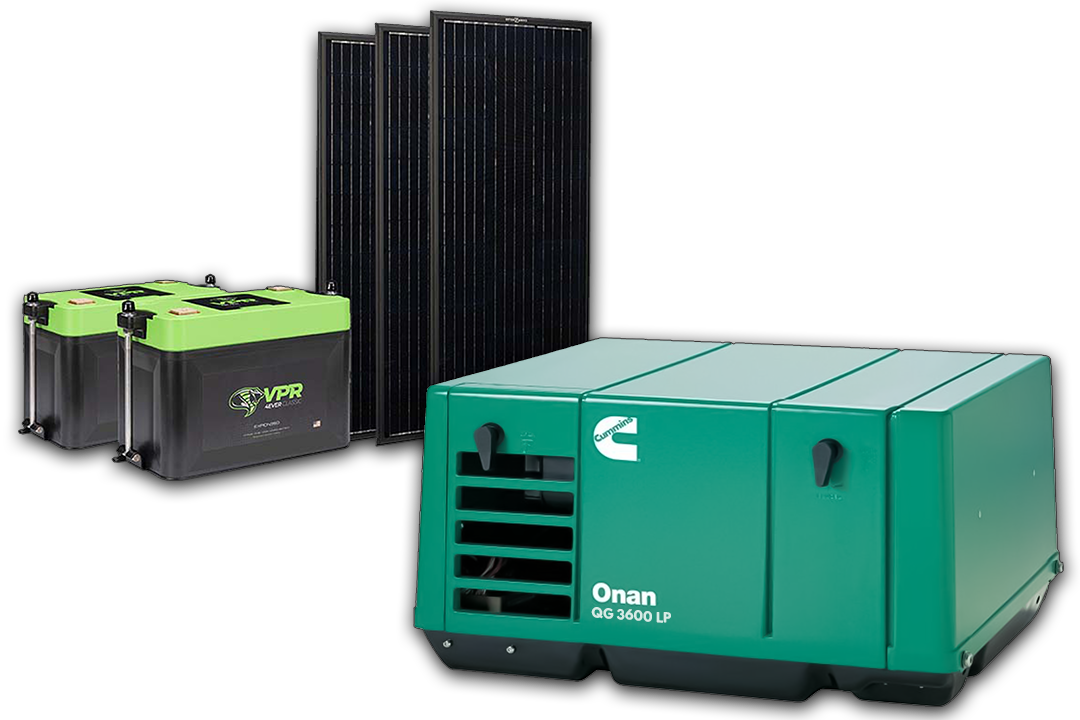

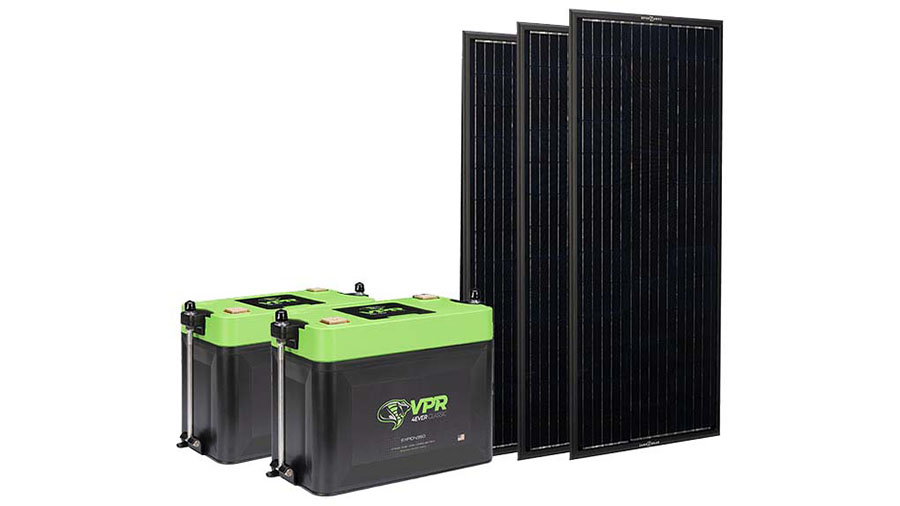

Off-grid Package
Enjoy true freedom getting off-grid with inTech's Off-Grid Off-grid Package. 400 watts of solar, mixed with an MPPT charger controller, 200 amp hrs of lithium batteries, and a 2,000 Watt inverter allow you to take a path less traveled.
200 Watt Solar Charging System
The available 200-watt solar charging system includes a high-efficiency solar panel and a 30-amp charge controller, delivering reliable energy to keep your essentials running. This system gives you the freedom to explore remote locations without worrying about power limitations.

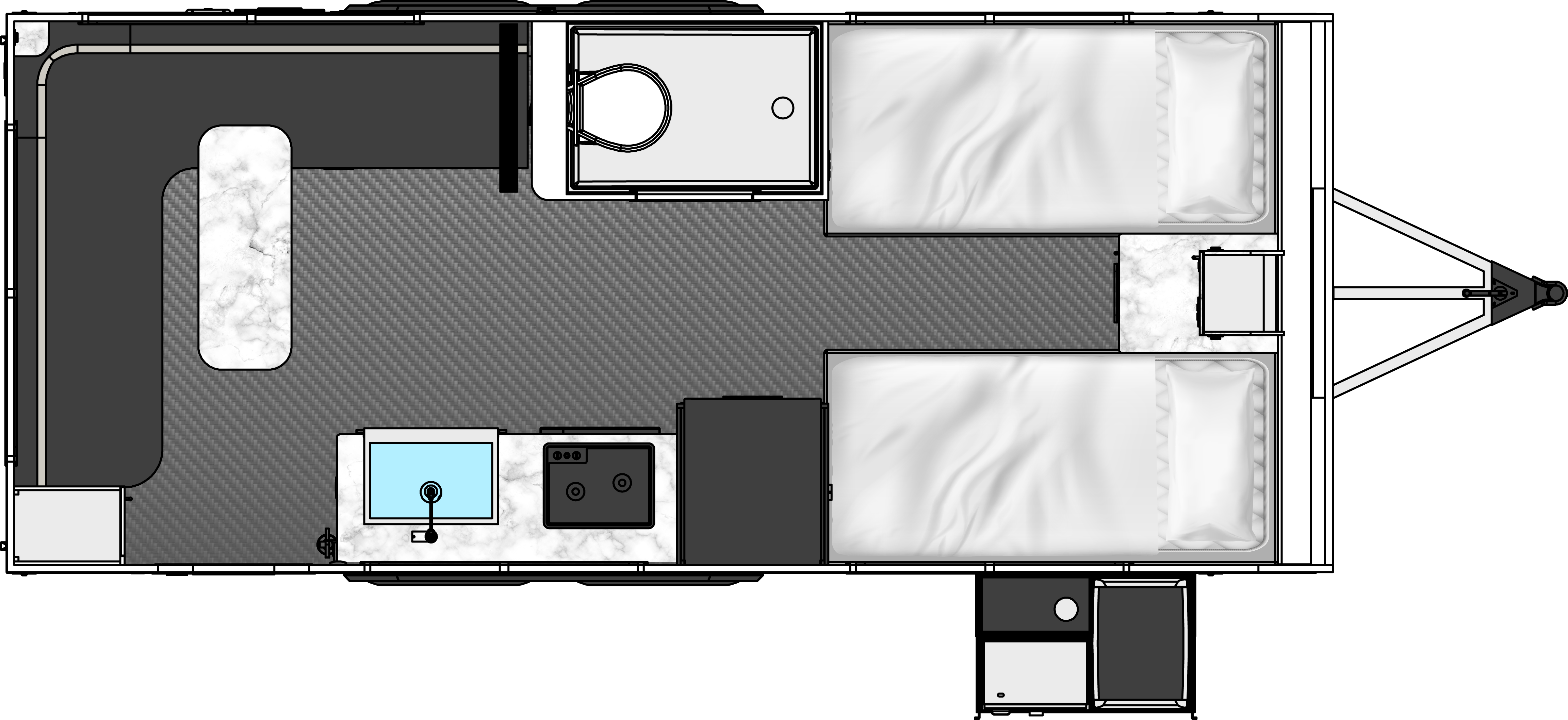

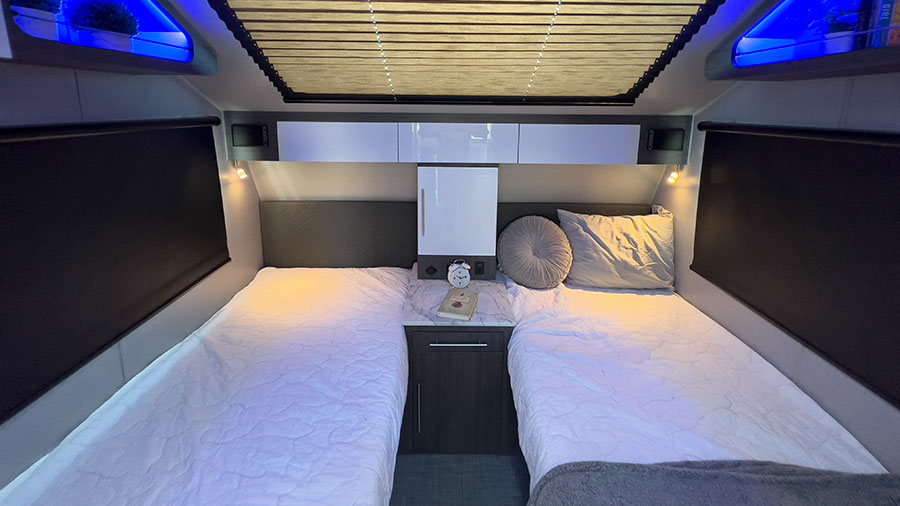

Twin Bed Layout
Enjoy 2 large twins beds in the O-V-R Expedition! By selecting the twin bed option you will swap out the 60”x80” queen bed for 38”x80” twin beds.

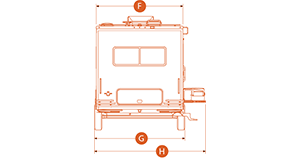

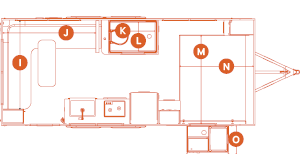

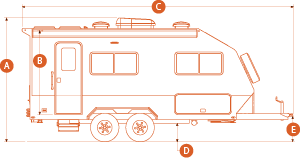

Dimensions
- (A) Overall Height w/ A/C - 10' 6"
- (B) Interior Height - 6' 11"
- (C) Overall Length - 22' 4"
- (D) Ground Clearance - 16"
- (E) Ball Height - 26"
- (F) Box Width - 8'
- (G) Overall Width - 8' 3"
- (H) Overall Width w/ Slideout - 10' 4"
- (I/J) Dinette - 78" x 87"
- (K/L) Wet Bath - 33" x 31"
- (M/N) Master Bed - 80" x 60"
- (O) Slideout Kitchen - 2'
Specifications
Dimensions, equipment, and pricing are subject to change without notice. For complete and up-to-date details regarding inTech RVs, please speak to an authorized inTech RV dealer.
Overview
| Exterior Width | 8' 3" |
| Exterior Height | 10' 6" |
| Exterior Length | 22' 4" |
| Dry Weight | 5200 lbs |
| Tongue Weight | 600 lbs |
| GVWR | 7,500 lbs |
| Net Carrying Capacity | 2,300 lbs |
| Ball Height | 26" |
| Sleeps Capacity | 4 - 5 |
Tanks
| Fresh Water Capacity | 44 Gallons |
| Gray Water Capacity | 30 Gallons |
| Black Water Capacity | 26 Gallons |
| Holding Tank Heating | Enclosed w/ Ducted Heat, 12V Line Heaters, & Tank Heat Pads |
| Under Belly | Enclosed |
Construction and Exterior Features
| Frame | inTech Fully Welded Aluminum Cage Frame |
| Coupler | 2 5/16" Ball |
| Axle | Smooth Ride Torsion Suspension |
| Rear Receiver | 2" Receiver - 175# Capacity |
| Tires | Rugged ST235/75R15 on Aluminum Wheels |
| Shore Power Inlet | 30 Amp - 120 V |
| Solar Prep | Pre-Wired Solar Port on Side Wall & Roof |
| Exterior Walls | Hung .040 Aluminum (Wood Free) |
| Roof | One-Piece Aluminum |
| Insulation | Comfort Shell Insulation |
| LP Tank | (2) 20 lbs Tanks |
| LP Quick Connect Port | 1 |
| Entry Step | inTech SureStep |
| Tongue Jack | 12V Electric Power Jack |
| Awning | 14' Power Lateral Arm w/ Motion Sensor |
| Backup Camera | Pre-Wired |
| Spare Tire | Full Size - Front Mounted |
Kitchen and Dining
| Countertops | Thinscape Solid Surface |
| Sink | Farmhouse Undermounted Sink w/ Thinscape Sink Covers |
| Faucet | Pullout Spray Faucet |
| Dinette | L - Shaped Dinette |
| Dinette Table | Solid Hardwood Maple Table - Black |
| Cabinets | European Style Flush Cabinets w/ Soft Close Hinges & Drawer Slides |
Windows, Doors and Floors
| SubFloor | Solid NoFlex 3/4" Floor |
| Flooring | Premium Woven Floor |
| Baggage Doors | Locking Doors w/ Slam Latches |
| Window Style | Frameless |
| Window Valance | inTech Aluminum Valance System w/ Integrated Accent Lighting |
| Window Covering | Blackout Roll Shades |
Appliances & Utilities
| Refrigerator | 10 Cu Ft w/ 12V Compressor |
| Cooktop | 3 Burner LP Cooktop w/ Glass Cover |
| Microwave | 1.1 Cu Ft Convection Microwave |
| Water Heater | On Demand LP |
| Furnace | 25K BTU Ducted LP Furnace |
| A/C | 15K BTU Low Profile Ducted w/ Soft Start |
| Exhaust Fan | (2) Multi-Speed w/ Rain Sensor / (1) Single Speed for Shower |
| TV | 32" |
| Stereo | Bluetooth Stereo w/ 4 Interior Speakers |
Bed Configurations or Sleeping Spaces
| Master Bed | 60" x 80" Queen Bed w/ 6" Memory Foam Mattress |
| Drop-Down Bunk Bed | 32" x 74" (Weight Capacity: 175 lbs) |
Bathroom and Shower
| Bathroom Style | Wet Bath |
| Bathroom Mirror | Frameless Mirror |
| Toilet | Porcelain Toilet w/ Foot Flush |
| Shower Head | Shower Wand System - Height Adjustable |
| Shower Door | inTech Aluminum SureSeal Shower |
