Gooseneck Trailers

Unmatched Quality

Highly Customizable

28' - 48' Long

Gooseneck Trailer Galleries

Browse the trailer galleries to discover ideas & configurations for your next trailer build!

View All Galleries

Option Gallery

Browse the option gallery to discover options that fit your needs!

View More Options

inTech Trailer Gooseneck Exterior Colors

Color Options

Choose a color and view it on the trailer.

*FH - This designates a thickness that is available as Full Hard only. A full hard metal aluminum cannot be bent at front or rear corners without cracking, additional upgrades may be required with a FH color selected. FH colors can not be used on cabinets.
Additional charges may apply for certain colors & thicknesses. Colors available are subject to change without notice.

Colors	.040	.050
Polar White		FH
Silver Frost (Metallic)
Black		FH
Matte Black
Med Charcoal Gray (Metallic)
Light Pewter (Metallic)
Metallic Gray	FH	FH
Sportsman Gray
Victory Red
Orange

Premium Colors	.030	.040	.050
Royal Blue
Penske Yellow		FH

Standard Features

See what features come standard on our Gooseneck Trailers.

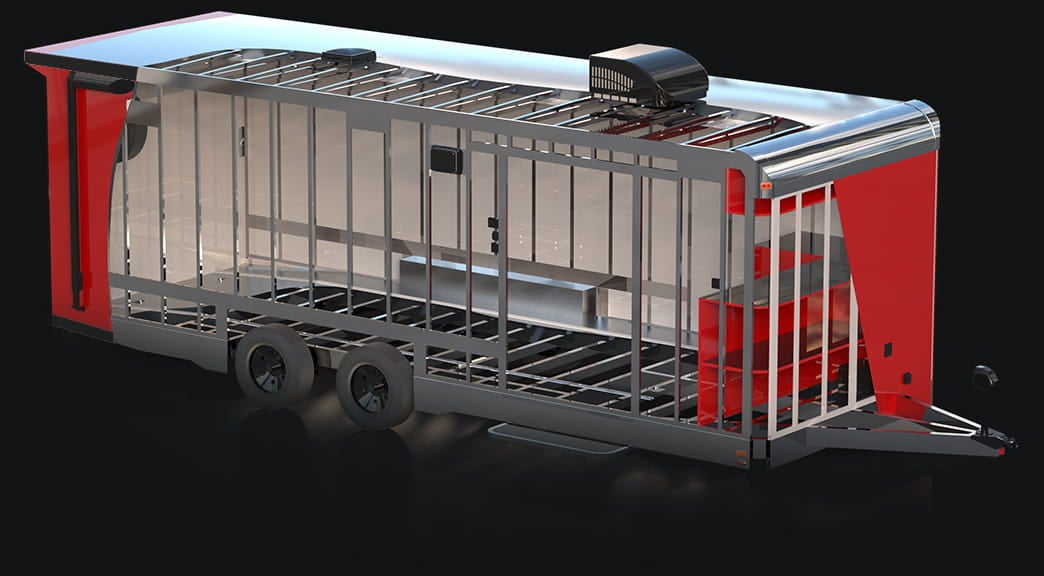

Full Perimeter Aluminum Frame
All Tube Construction
Dexter Torsion Axles W/ Electric Brakes On All Axles
Breakaway Battery Kit
7-Way Trailer Plug
2 5/16” Adjustable GN Coupler
Safety Chains W/ Storage Loops
Dual Leg Manual Landing Gear
16" O/C Floor Crossmembers
16" O/C Wall & Roof Studs
Smooth Aluminum Wheel Boxes W/ Rounded Edges
Spread Axle Design W/ Individual Fenderettes
Tires W/ Aluminum Wheels

One Piece Aluminum Sub-Floor Vapor Barrier
3/4" High Performance Drymax Sub-Floor
One Piece Aluminum Transition Flap
(3) 12V LED Dome Lights W/ Switch
(1) 12V Power Roof Vent W/ Wall Switch
7' Interior Height
(4) 5000# Recessed D-Rings
4' Interior Beavertail (Except 28' & 30' W/ 3' Beavertail)

.030 Aluminum Skin
Screwless/Rivetless Aluminum Exterior
One Piece Aluminum Roof
Arched & Trussed Service Walk-On Roof
4" Upper & 6" Lower Rub Rail
Clear Anodized Trim Package Including Stoneguard
LED Premium Clearance Lights
LED Slimline Tail Lights
ATP Enclosed Riser W/ (2) Storage Doors
Slideout Aluminum Step - Non-Slip
36" 405 Series Entrance Door
FMVSS Premium Entrance Door Latch
Color Matched Front Verticals
Rear Ramp Door W/ Gapless Continuous Hinge
Aluminum Bar Locks - Rear Ramp Door
Rear Caster Wheels - Pair

Design Layouts

Download & view prints by trailer size.

Pick A Size

Model	Flat Nose	Taper Nose
8.5 x 28
8.5 x 30
8.5 x 32
8.5 x 34
8.5 x 36
8.5 x 38
8.5 x 40
8.5 x 42
8.5 x 44
8.5 x 46
8.5 x 48

Specifications

Select and download axle specifications.

Download PDF

Tandem Axle

Model	5200 lbs	6000 lbs	7000 lbs	8000 lbs
8.5 x 28
8.5 x 30
8.5 x 32
8.5 x 34
8.5 x 36
8.5 x 38
8.5 x 40

Triple Axle

Model	5200 lbs	6000 lbs	7000 lbs	8000 lbs
8.5 x 42
8.5 x 44
8.5 x 46
8.5 x 48

Factory Tours

inTech Trailers welcomes potential customers and interested parties to visit our facility for a tour of our manufacturing process.

Schedule Tour

Model		BGA8528TA3
Overall	Length Box Width* Height**	28' 2"
		8' 4"
		9'
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	19' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		21"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		83"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	5,200
		2
		10,400
		All Wheel
Tire	Size Load Range / Ply	ST225/75R15
		D - 8
Hitch	Ball Size Height to Top	2 5/16"
		33" - 41"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		3'

Model		BGA8528TA4
Overall	Length Box Width* Height**	28' 2"
		8' 4"
		9'
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	19' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		21"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		82"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	6,000
		2
		12,000
		All Wheel
Tire	Size Load Range / Ply	ST235/80R16
		E - 10
Hitch	Ball Size Height to Top	2 5/16"
		33" - 41"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		3'

Model		BGA8528TA5
Overall	Length Box Width* Height**	28' 2"
		8' 4"
		9'
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	19' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		21"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		82"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	7,000
		2
		14,000
		All Wheel
Tire	Size Load Range / Ply	ST235/85R16
		G - 14
Hitch	Ball Size Height to Top	2 5/16"
		33" - 41"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		3'

Model		BGA8528TA6
Overall	Length Box Width* Height**	28' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	19' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		81"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	8,000
		2
		16,000
		All Wheel
Tire	Size Load Range / Ply	LT215/75R17.5
		H-16
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		3'

Model		BGA8530TA3
Overall	Length Box Width* Height**	30' 2"
		8' 4"
		9'
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	21' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		21"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		83"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	5,200
		2
		10,400
		All Wheel
Tire	Size Load Range / Ply	ST225/75R15
		D - 8
Hitch	Ball Size Height to Top	2 5/16"
		33" - 41"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		3'

Model		BGA8530TA4
Overall	Length Box Width* Height**	30' 2"
		8' 4"
		9'
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	21' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		21"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		82"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	6,000
		2
		12,000
		All Wheel
Tire	Size Load Range / Ply	ST235/80R16
		E - 10
Hitch	Ball Size Height to Top	2 5/16"
		33" - 41"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		3'

Model		BGA8530TA5
Overall	Length Box Width* Height**	30' 2"
		8' 4"
		9'
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	21' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		21"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		82"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	7,000
		2
		14,000
		All Wheel
Tire	Size Load Range / Ply	ST235/85R16
		G - 14
Hitch	Ball Size Height to Top	2 5/16"
		33" - 41"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		3'

Model		BGA8530TA6
Overall	Length Box Width* Height**	30' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	21' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		81"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	8,000
		2
		16,000
		All Wheel
Tire	Size Load Range / Ply	LT215/75R17.5
		H-16
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		3'

Model		BGA8532TA3
Overall	Length Box Width* Height**	32' 2"
		8' 4"
		9'
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	23' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		21"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		83"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	5,200
		2
		10,400
		All Wheel
Tire	Size Load Range / Ply	ST225/75R15
		D - 8
Hitch	Ball Size Height to Top	2 5/16"
		33" - 41"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8532TA4
Overall	Length Box Width* Height**	32' 2"
		8' 4"
		9'
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	23' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		21"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		82"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	6,000
		2
		12,000
		All Wheel
Tire	Size Load Range / Ply	ST235/80R16
		E - 10
Hitch	Ball Size Height to Top	2 5/16"
		33" - 41"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8532TA5
Overall	Length Box Width* Height**	32' 2"
		8' 4"
		9'
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	23' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		21"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		82"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	7,000
		2
		14,000
		All Wheel
Tire	Size Load Range / Ply	ST235/85R16
		G - 14
Hitch	Ball Size Height to Top	2 5/16"
		33" - 41"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8532TA6
Overall	Length Box Width* Height**	32' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	23' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		81"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	8,000
		2
		16,000
		All Wheel
Tire	Size Load Range / Ply	LT215/75R17.5
		H-16
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8534TA3
Overall	Length Box Width* Height**	34' 2"
		8' 4"
		9'
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	25' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		21"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		83"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	5,200
		2
		10,400
		All Wheel
Tire	Size Load Range / Ply	ST225/75R15
		D - 8
Hitch	Ball Size Height to Top	2 5/16"
		33" - 41"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8534TA4
Overall	Length Box Width* Height**	34' 2"
		8' 4"
		9'
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	25' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		21"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		82"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	6,000
		2
		12,000
		All Wheel
Tire	Size Load Range / Ply	ST235/80R16
		E - 10
Hitch	Ball Size Height to Top	2 5/16"
		33" - 41"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8534TA5
Overall	Length Box Width* Height**	34' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	25' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		82"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	7,000
		2
		14,000
		All Wheel
Tire	Size Load Range / Ply	ST235/85R16
		G - 14
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8534TA6
Overall	Length Box Width* Height**	34' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	25' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		81"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	8,000
		2
		16,000
		All Wheel
Tire	Size Load Range / Ply	LT215/75R17.5
		H-16
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8536TA4
Overall	Length Box Width* Height**	36' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	27' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		82"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	6,000
		2
		12,000
		All Wheel
Tire	Size Load Range / Ply	ST235/80R16
		E - 10
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8536TA5
Overall	Length Box Width* Height**	36' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	27' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		82"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	7,000
		2
		14,000
		All Wheel
Tire	Size Load Range / Ply	ST235/85R16
		G - 14
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8536TA6
Overall	Length Box Width* Height**	36' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	27' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		81"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	8,000
		2
		16,000
		All Wheel
Tire	Size Load Range / Ply	LT215/75R17.5
		H-16
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8538TA4
Overall	Length Box Width* Height**	38' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	29' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		82"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	6,000
		2
		12,000
		All Wheel
Tire	Size Load Range / Ply	ST235/80R16
		E - 10
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8538TA5
Overall	Length Box Width* Height**	38' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	29' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		82"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	7,000
		2
		14,000
		All Wheel
Tire	Size Load Range / Ply	ST235/85R16
		G - 14
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8538TA6
Overall	Length Box Width* Height**	38' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	29' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		81"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	8,000
		2
		16,000
		All Wheel
Tire	Size Load Range / Ply	LT215/75R17.5
		H-16
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8540TA4
Overall	Length Box Width* Height**	40' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	31' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		82"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	6,000
		2
		12,000
		All Wheel
Tire	Size Load Range / Ply	ST235/80R16
		E - 10
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8540TA5
Overall	Length Box Width* Height**	40' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	31' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		82"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	7,000
		2
		14,000
		All Wheel
Tire	Size Load Range / Ply	ST235/85R16
		G - 14
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8540TA6
Overall	Length Box Width* Height**	40' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	31' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		81"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	8,000
		2
		16,000
		All Wheel
Tire	Size Load Range / Ply	LT215/75R17.5
		H-16
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

RV Home

Factory Tours

Customer Support

Adventure Club

Locate Dealer

Gooseneck Trailers

Unmatched Quality

Highly Customizable

28' - 48' Long

Gooseneck Trailer Galleries

Option Gallery

Color Options

Standard Features

Chassis

Interior

Exterior

Design Layouts

Pick A Size

Specifications

Tandem Axle

Triple Axle

Factory Tours

How Can We Help You?

Options & Packages

Customer Portal

Factory Tours

Customer Support

Marketplace

Ready To Buy?

Model		BGA8542TTA3
Overall	Length Box Width* Height**	42' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	33 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		83"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	5,200
		3
		15,600
		All Wheel
Tire	Size Load Range / Ply	ST225/75R15
		D - 8
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8542TTA4
Overall	Length Box Width* Height**	42' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	33 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		82"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	6,000
		3
		18,000
		All Wheel
Tire	Size Load Range / Ply	ST235/80R16
		E - 10
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8542TTA5
Overall	Length Box Width* Height**	42' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	33 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		82"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	7,000
		3
		21,000
		All Wheel
Tire	Size Load Range / Ply	ST235/85R16
		G - 14
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8542TTA6
Overall	Length Box Width* Height**	42' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	33 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		81"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	8,000
		3
		24,000
		All Wheel
Tire	Size Load Range / Ply	LT215/75R17.5
		H-16
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8544TTA3
Overall	Length Box Width* Height**	44' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	35' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		83"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	5,200
		3
		15,600
		All Wheel
Tire	Size Load Range / Ply	ST225/75R15
		D - 8
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8544TTA4
Overall	Length Box Width* Height**	44' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	35' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		82"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	6,000
		3
		18,000
		All Wheel
Tire	Size Load Range / Ply	ST235/80R16
		E - 10
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8544TTA5
Overall	Length Box Width* Height**	44' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	35' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		82"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	7,000
		3
		21,000
		All Wheel
Tire	Size Load Range / Ply	ST235/85R16
		G - 14
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8544TTA6
Overall	Length Box Width* Height**	44' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	35' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		81"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	8,000
		3
		24,000
		All Wheel
Tire	Size Load Range / Ply	LT215/75R17.5
		H-16
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8546TTA3
Overall	Length Box Width* Height**	46' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	37' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		83"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	5,200
		3
		15,600
		All Wheel
Tire	Size Load Range / Ply	ST225/75R15
		D - 8
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'

Model		BGA8546TTA4
Overall	Length Box Width* Height**	46' 2"
		8' 4"
		9' 1"
Interior	Floor Length Bunk Floor Length Bunk Height off Floor Clear Height in Bunk Width Height	37' 3"
		8' 8"
		4' 2"
		2' 10"
		8' 2"
		7'
Deck Height		22"
Ground Clearance		13"
Rear Ramp Width x Height		90" x 84"
Width Between Wheel Wells		82"
Dexter Torsion Axle	Rating Quantity GVWR Brakes	6,000
		3
		18,000
		All Wheel
Tire	Size Load Range / Ply	ST235/80R16
		E - 10
Hitch	Ball Size Height to Top	2 5/16"
		34" - 42"
Studs	Wall Floor Ceiling	16" on Center
		16" on Center
		16" on Center
Beavertail Length - Standard 3" Drop		4'
