724-X
Welcome to Black Wing 724-X

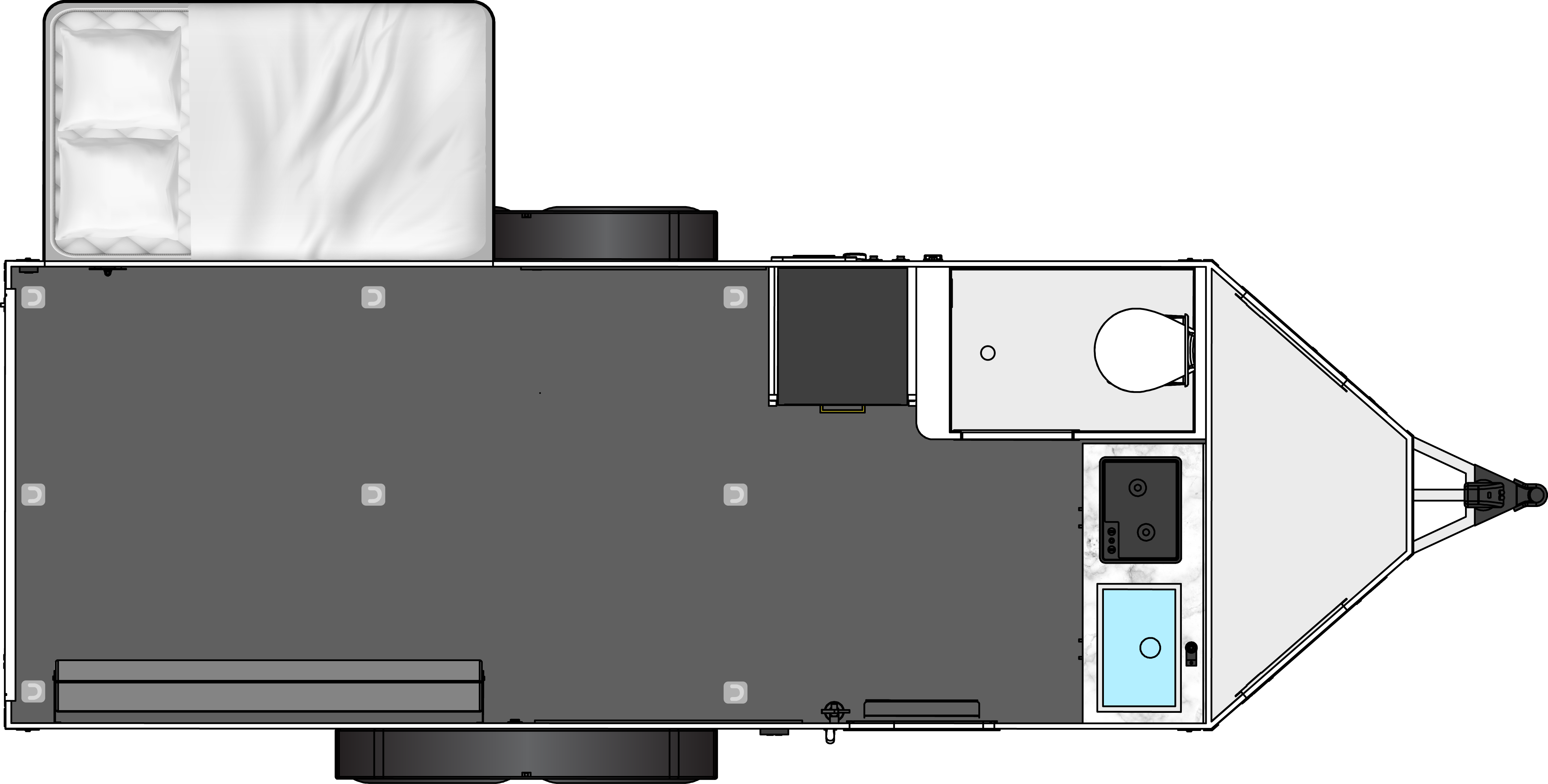

Take a look at the Black Wing 724-X Floorplan
Compact Design. Maximum Freedom
Designed for smaller tow vehicles, this toy hauler delivers room for the whole family and all your gear. Its unique layout maximizes space, offering a versatile sleeping and lounge area, premium aluminum finishes, and the durability you expect from inTech. With the 724-X, you can go farther, tow easier, and experience more—because adventure should never be limited by size.
The Ultimate Camper for Your Toys

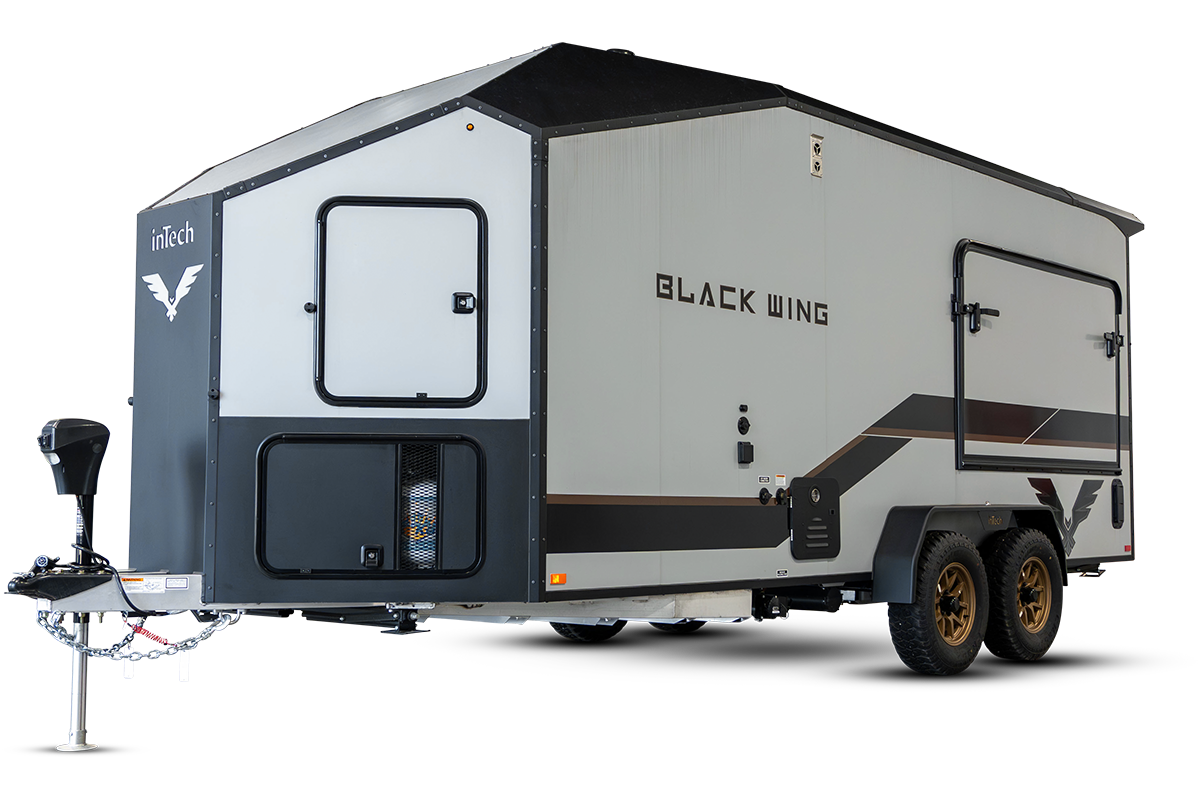

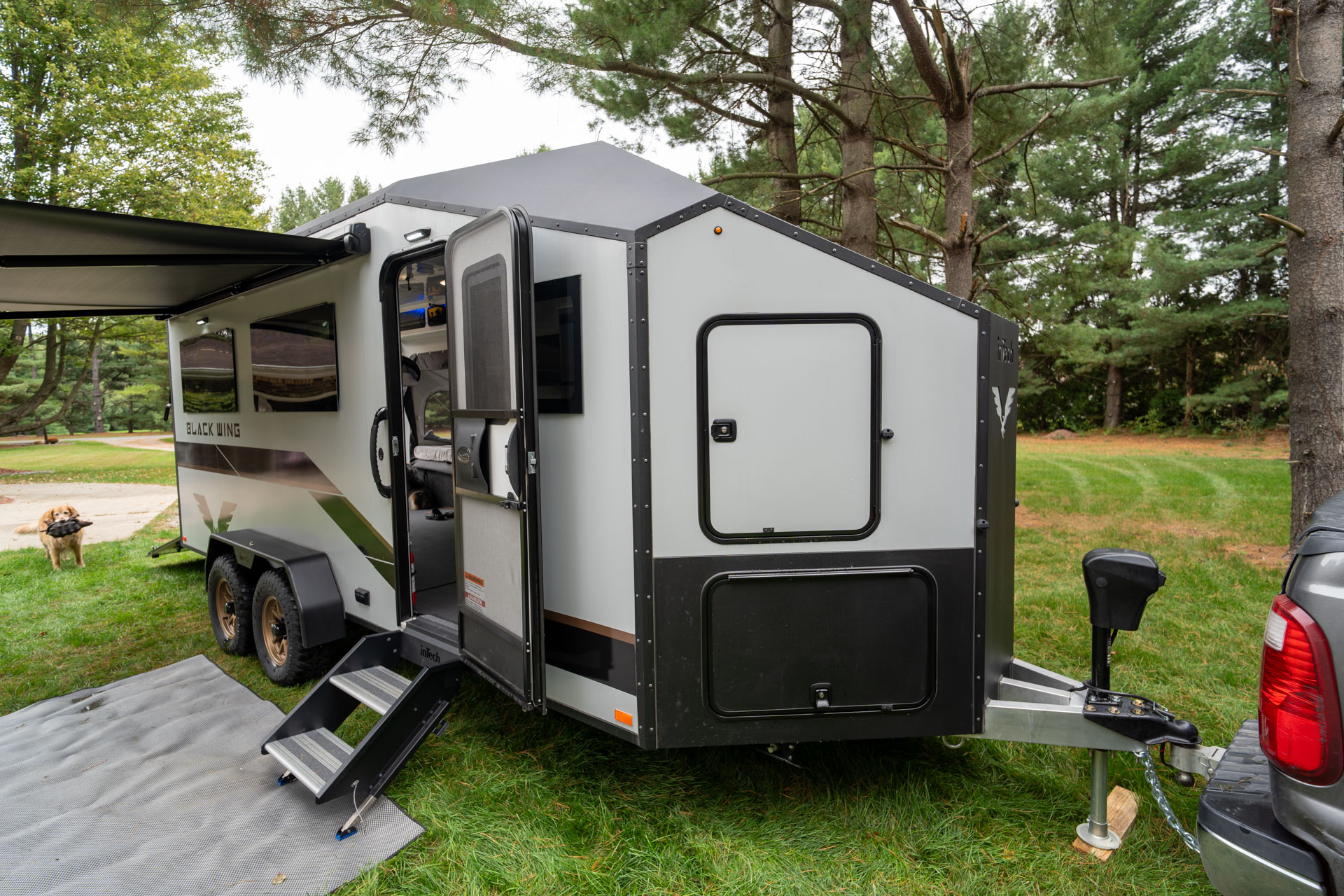

Experience the ultimate in powersports fun. The 724-X has a large garage featuring a 11-foot open space that accommodates ATV’s, dirt bikes, and most 2 door UTV’s with ease. Designed for easy towing, the innovative front wedge design reduces wind resistance for smoother towing and improved fuel efficiency. Plus, with ample exterior storage compartments, you can effortlessly pack all your gear and essentials.

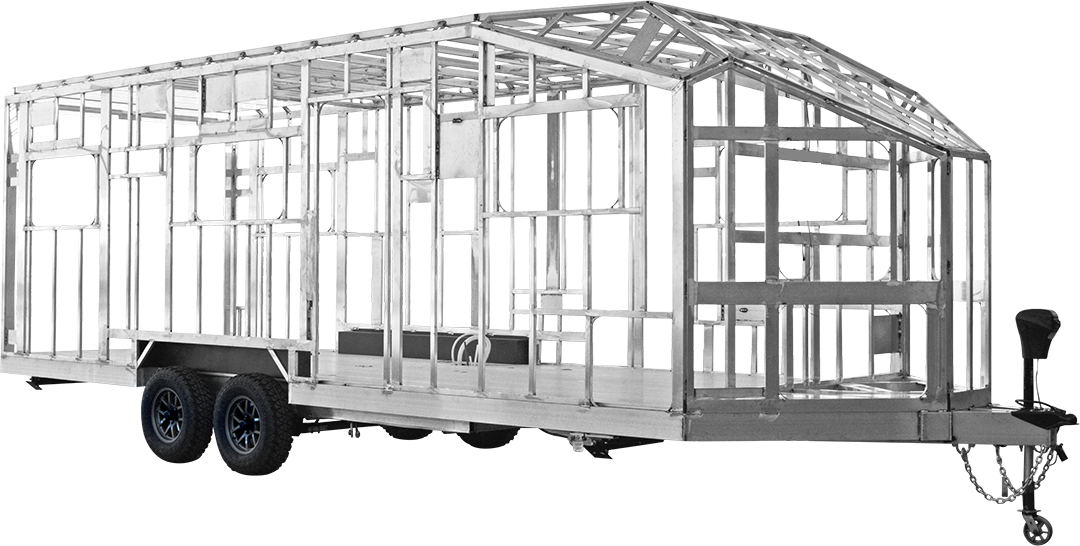

Wood-Free All-Aluminum Construction
Built with 100% wood-free construction, the Black Wing boasts an all-aluminum cage frame that allows it to handle the toughest elements. Additional features like extruded aluminum flooring, aluminum cabinetry, and composite walls make it perfect for the outdoor enthusiasts. Go ahead and load up your UTVs, dirt bikes, or ATVs, because this interior is designed for easy cleanup, allowing you to spray it out with a hose after a muddy adventure. Combining strength, flexibility, and premium amenities, this toy hauler is ready for any journey.
The Perfect Fusion of Strength and Sophistication

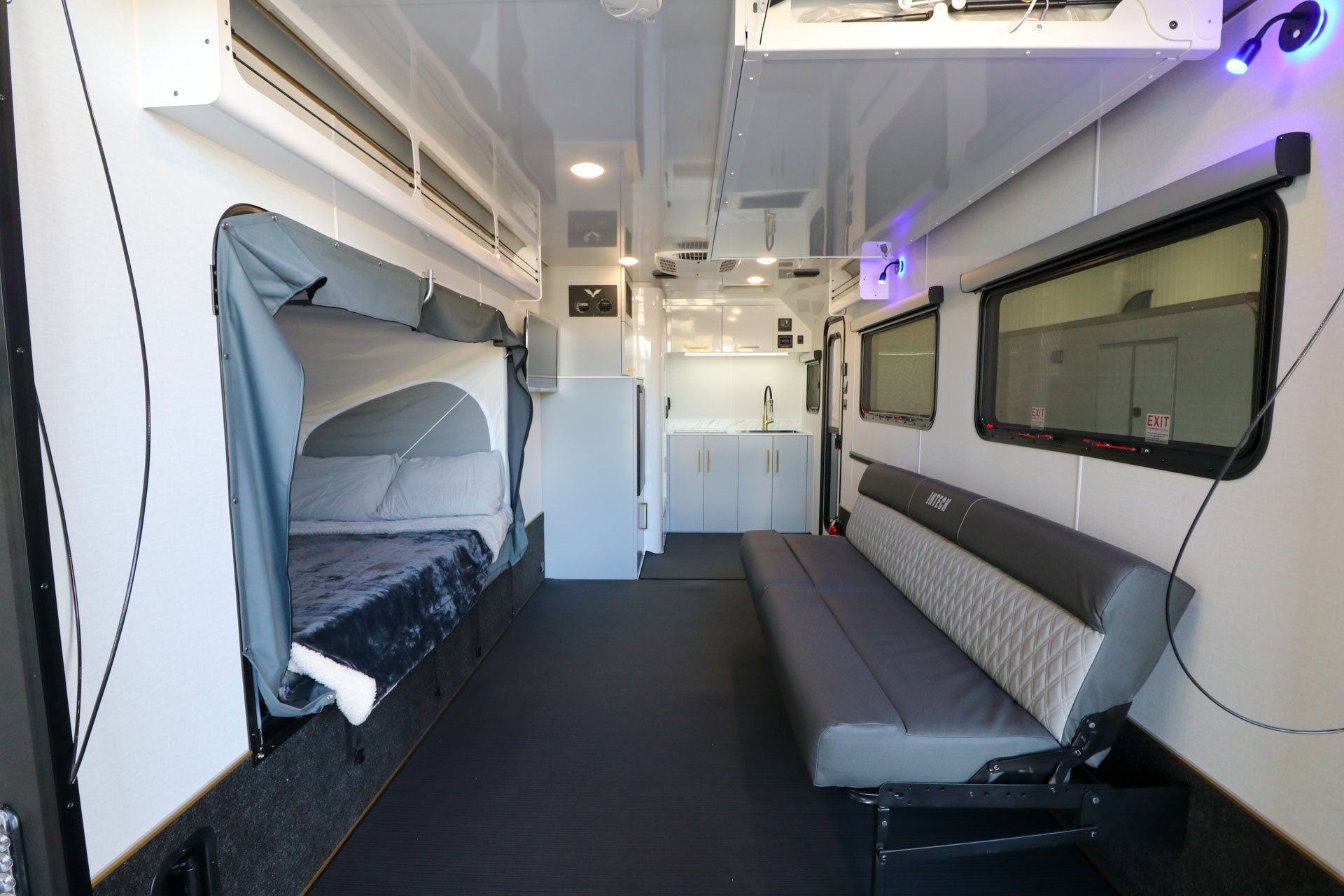

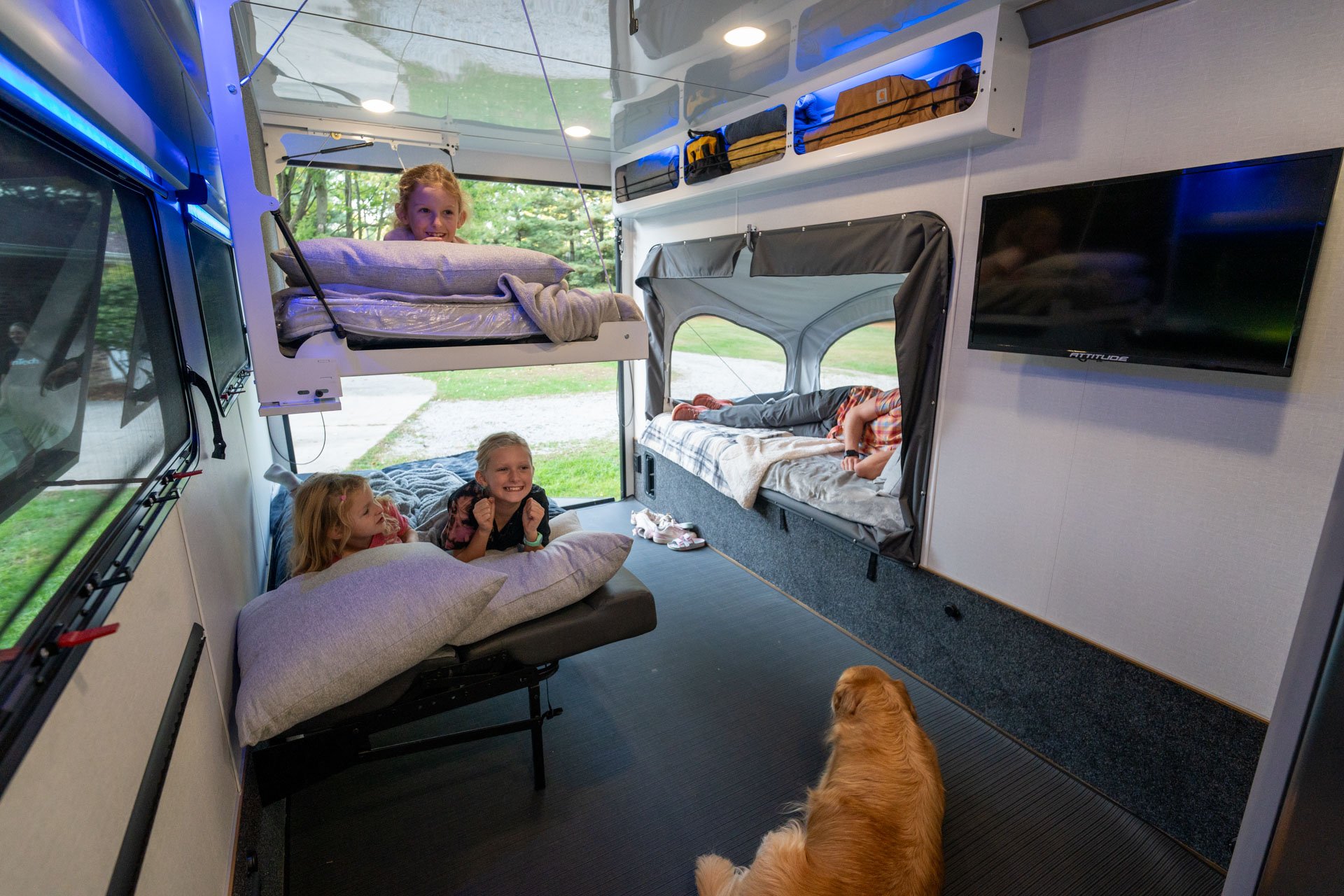

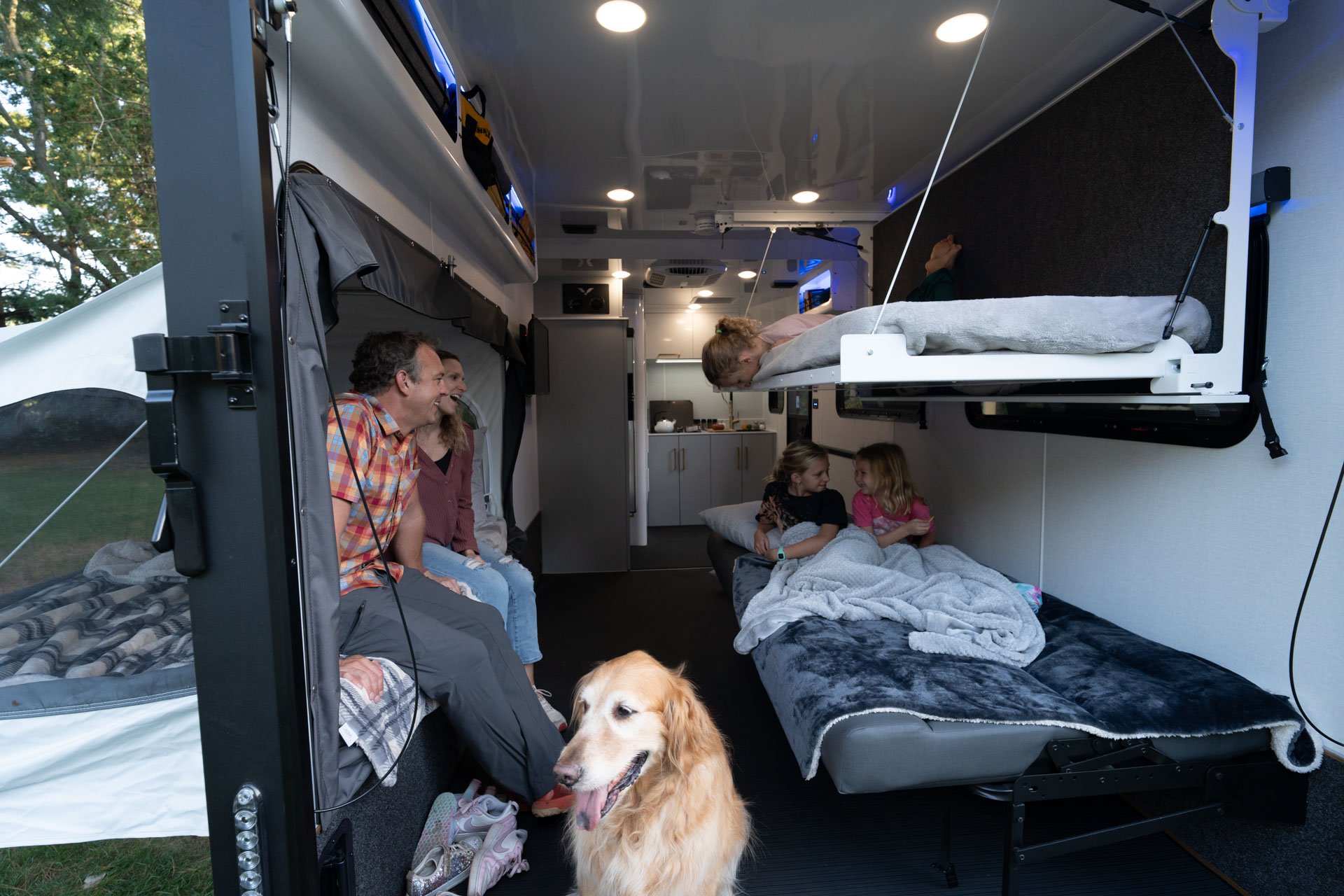

This rugged toy hauler combines durability with all the comforts of home, featuring high-end residential aluminum cabinetry, solid surface countertops, and abundant storage throughout. The innovative sleeping and lounge design includes a full 48” x 78” wall-mounted tip-out bed, plus an optional drop-down bunk that stows against the ceiling and sets up in seconds. A versatile sofa converts into extra sleeping space and folds away to keep the garage open for gear. Custom floor mats offer a comfortable surface underfoot and can be easily removed when loading dirty equipment.
Key Features
Exterior
360° Interior
Gallery
Options

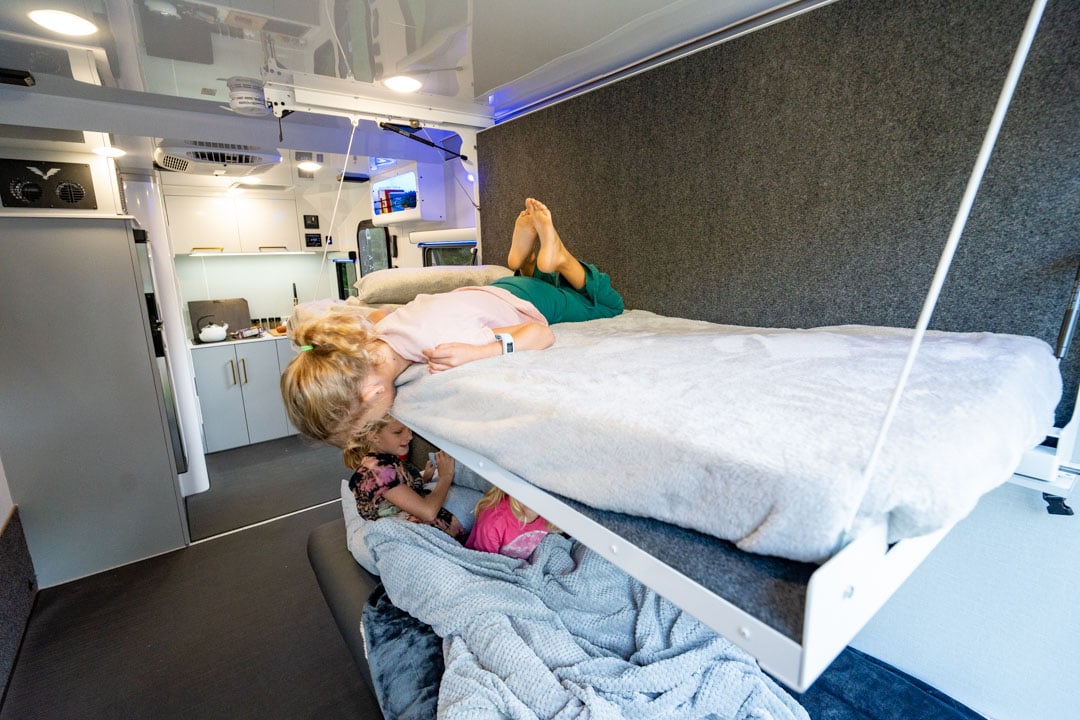

Drop Down Bunk Bed
Maximize your sleeping capacity without sacrificing space. This innovative design seamlessly integrates into the ceiling, ensuring zero loss of usable area when stored. When deployed, enjoy a comfortable 32" x 74" bed with a 175 lbs weight capacity, perfect for additional guests or family members.

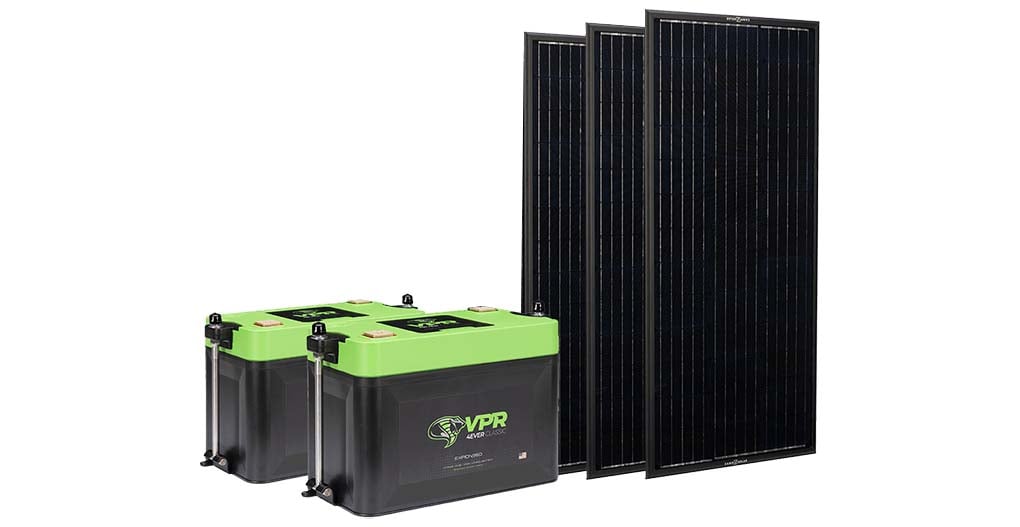

Off-Grid Package
Enjoy true freedom getting off-grid with inTech's Off-Grid Off-grid Package. 400 watts of solar, mixed with an MPPT charger controller, 200 amp hrs of lithium batteries, and a 2,000 Watt inverter allow you to take a path less traveled.
200 Watt Solar Charging System
The available 200-watt solar charging system includes a high-efficiency solar panel and a 30-amp charge controller, delivering reliable energy to keep your essentials running. This system gives you the freedom to explore remote locations without worrying about power limitations.

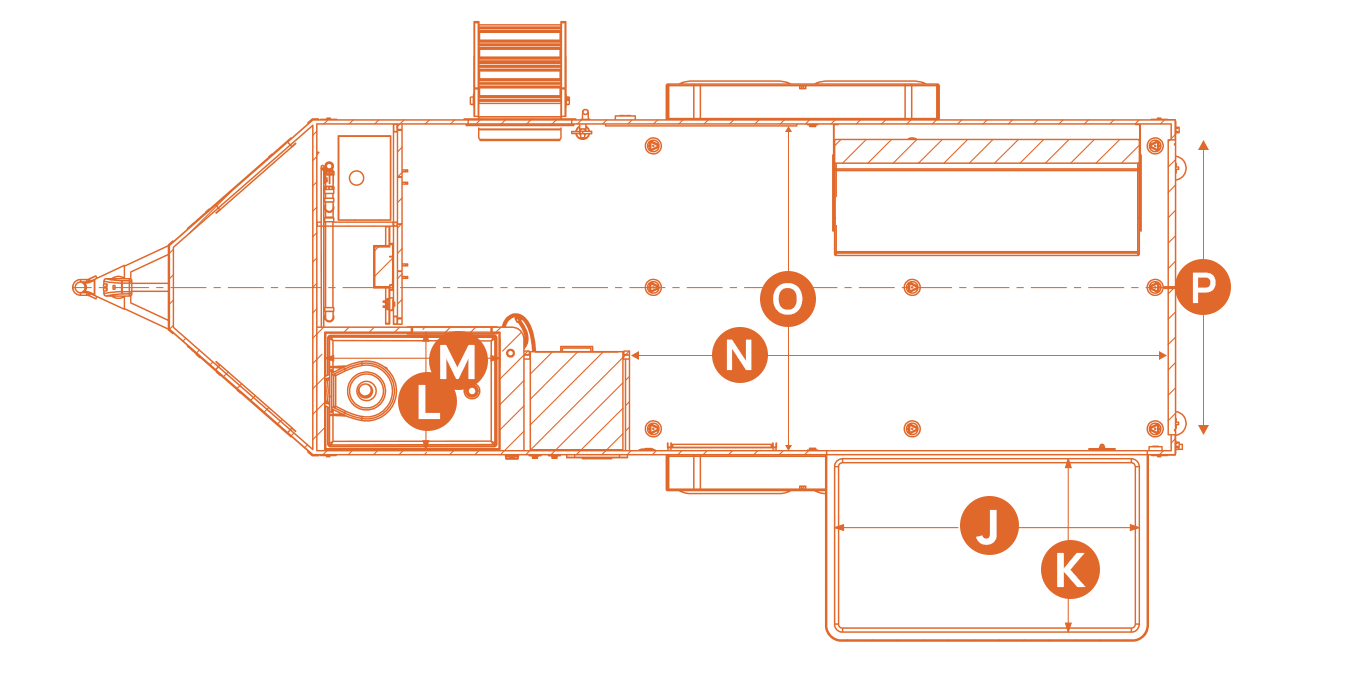

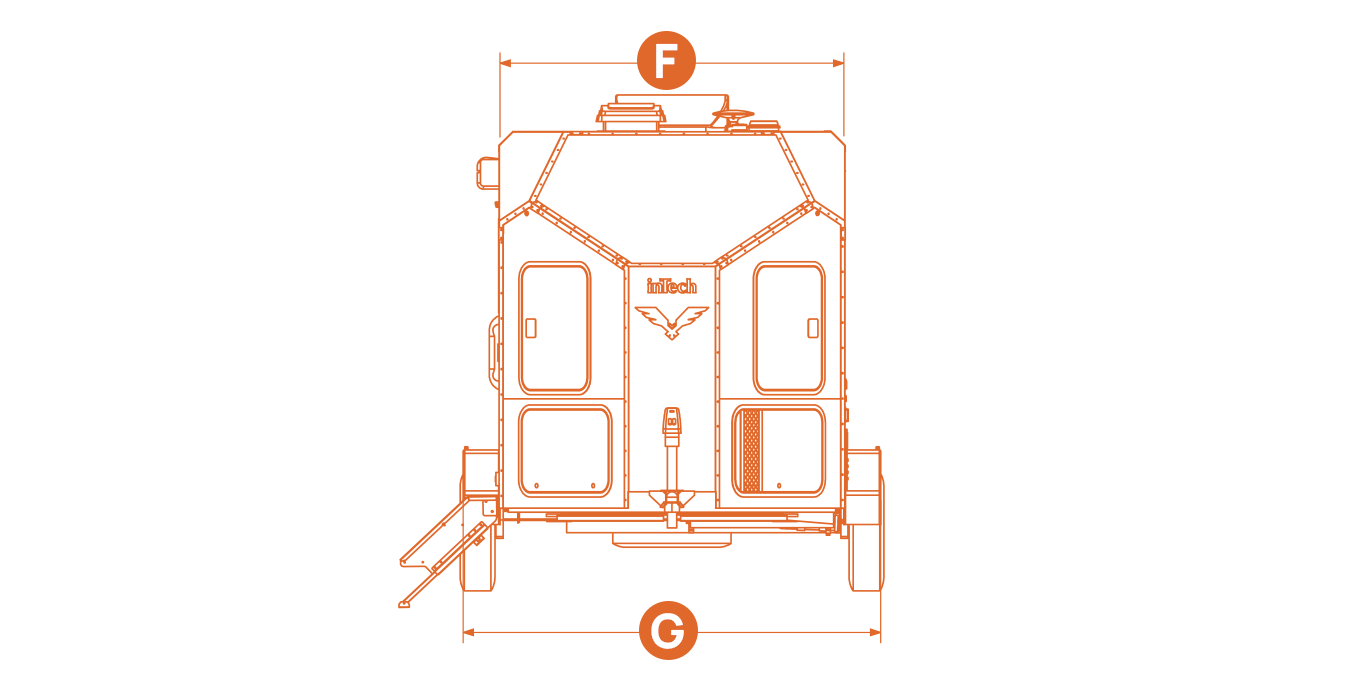

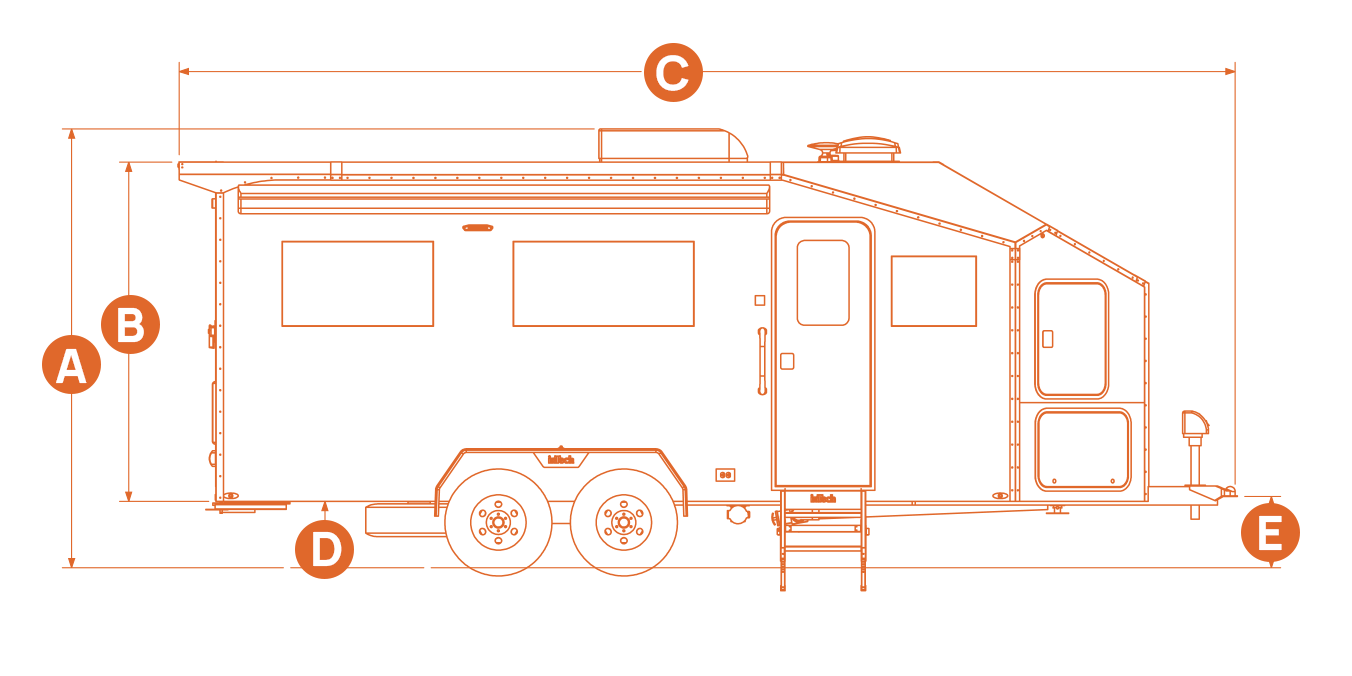

Dimensions
- (A) Overall Height w/ A/C - 9' 11"
- (B) Interior Height - 6' 9.5"
- (C) Overall Length - 23' 11"
- (D) Ground Clearance - 18"
- (E) Ball Height - 24"
- (F) Box Width - 7'
- (G) Overall Width - 8' 6"
- (J/K) Tip Out - 6' 4" x 3' 7"
- (L/M) Wet Bath - 29.5" x 44"
- (N/O) Garage Space - 11' 3" x 6' 8.5"

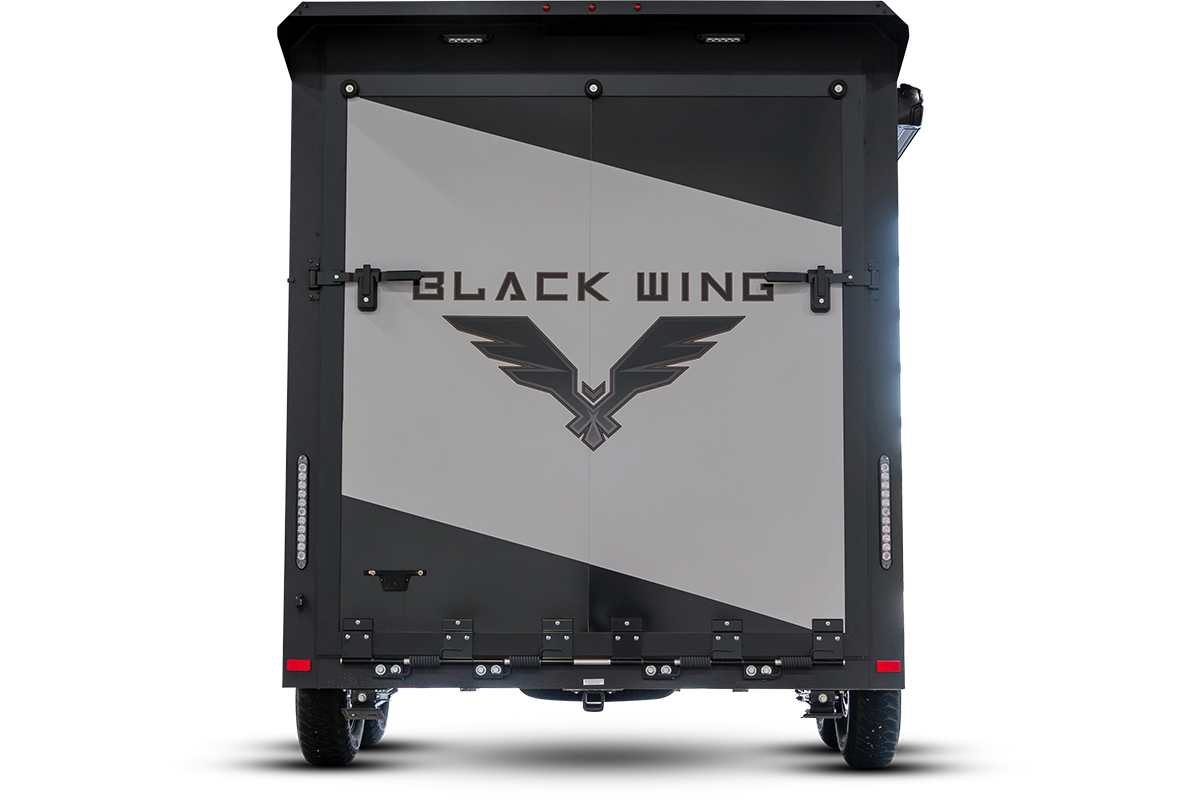

- (P) Ramp Door Opening - 80.5" x 79"
Specifications
Dimensions, equipment, and pricing are subject to change without notice. For complete and up-to-date details regarding inTech RVs, please speak to an authorized inTech RV dealer.
Overview
| Exterior Width | 8'6" |
| Exterior Height | 9'11" |
| Exterior Length | 23'11" |
| Dry Weight | 4,000 - 4,500 lbs |
| Tongue Weight | 800 lbs |
| GVWR | 7,000 lbs |
| Net Carrying Capacity | 2,500 - 3,000 lbs |
| Ball Height | 22" |
| Sleeps Capacity | 3 - 4 |
| Garage Space | 6'9" x 11'2.5" |
| Ramp Door Capacity | 2,200 lbs |
Tanks
| Fresh Water Capacity | 28 Gallons |
| Black Water Capacity | 38 Gallons |
| Holding Tank Heating | Tank Heat Pads |
| Under Belly | Open |
Construction and Exterior Features
| Frame | inTech Fully Welded Aluminum Cage Frame |
| Coupler | 2 5/16" Ball |
| Axle | Smooth Ride Torsion Suspension |
| Rear Receiver | 2" Receiver - 175# Capacity |
| Tires | Rugged ST235/75R15 on Aluminum Wheels |
| Shore Power Inlet | 30 Amp - 120 V |
| Solar Prep | Pre-Wired Solar Port on Side Wall |
| Exterior Walls | Hung .040 Aluminum (Wood Free) |
| Roof | One-Piece Aluminum |
| Insulation | Comfort Shell Insulation |
| LP Tank | (2) 20 lbs Tanks |
| LP Quick Connect Port | 1 |
| Entry Step | inTech SureStep |
| Tongue Jack | 12V Electric Power Jack |

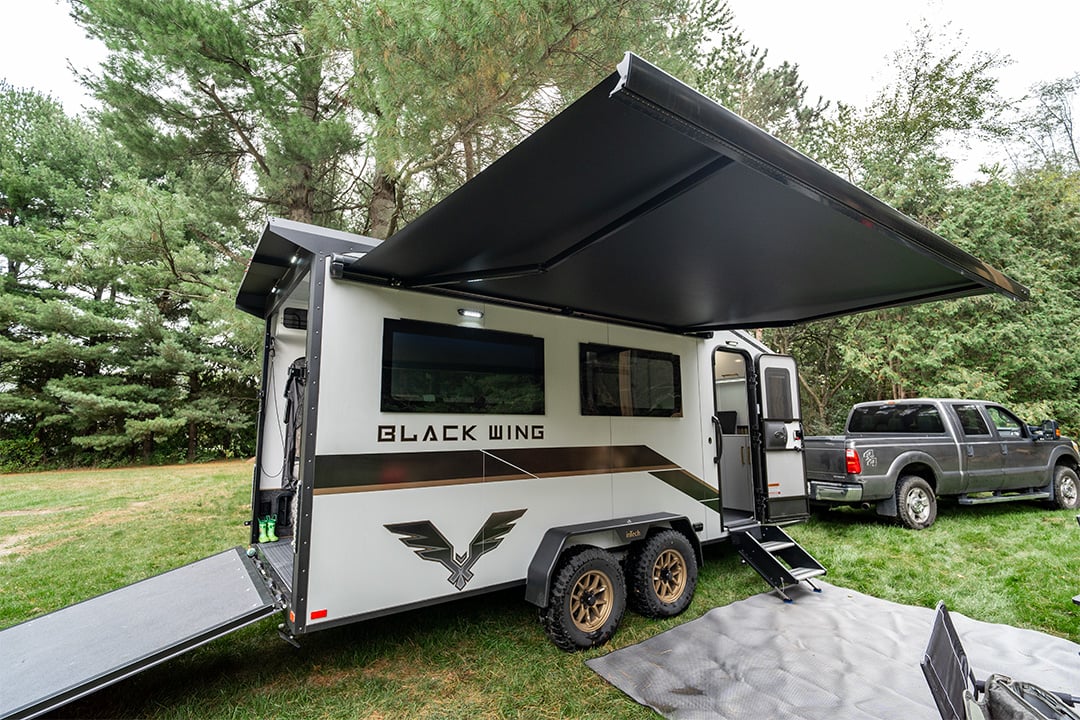

| Awning | 14' Power Lateral Arm w/ Motion Sensor |
| Backup Camera | Pre-Wired |
| Spare Tire | Undermounted |

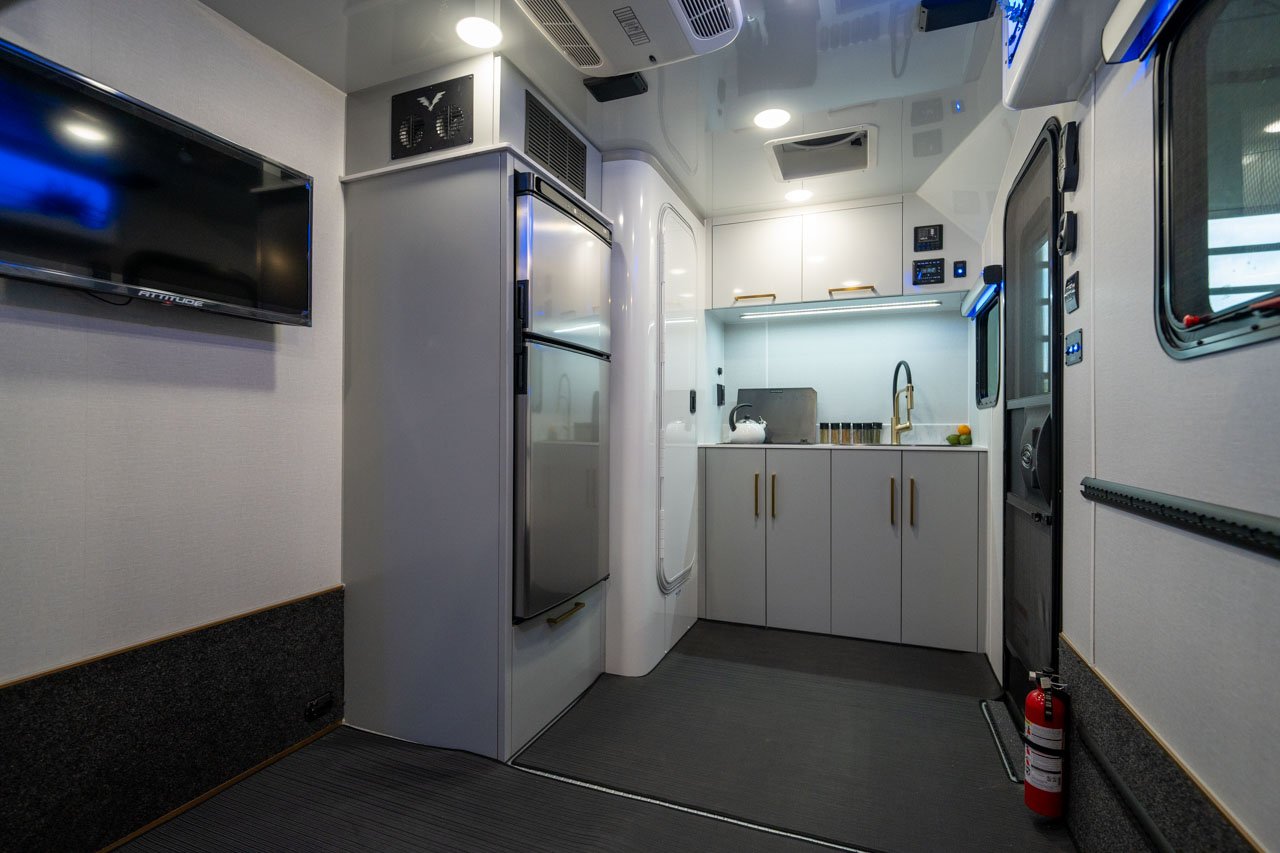

Kitchen and Dining
| Countertops | Thinscape Solid Surface |
| Sink | Farmhouse Undermounted Sink w/ Thinscape Sink Covers |
| Faucet | Pullout Spray Faucet |
| Cabinets | inTech Built All Aluminum Cabinets |
Windows, Doors and Floors
| SubFloor | Clear Anodized Aluminum Floor |
| Flooring | Premium Woven Floor Mats |
| Entry Door | 26" x 72" |
| Ramp Door | 74" x 79" |
| Baggage Doors | Locking Doors w/ Slam Latches |
| Window Style | Frameless |
| Window Valance | inTech Aluminum Valance System w/ Integrated Accent Lighting |
| Window Covering | Blackout Roll Shades |
Appliances & Utilities
| Refrigerator | 8 Cu Ft w/ 12V Compressor |

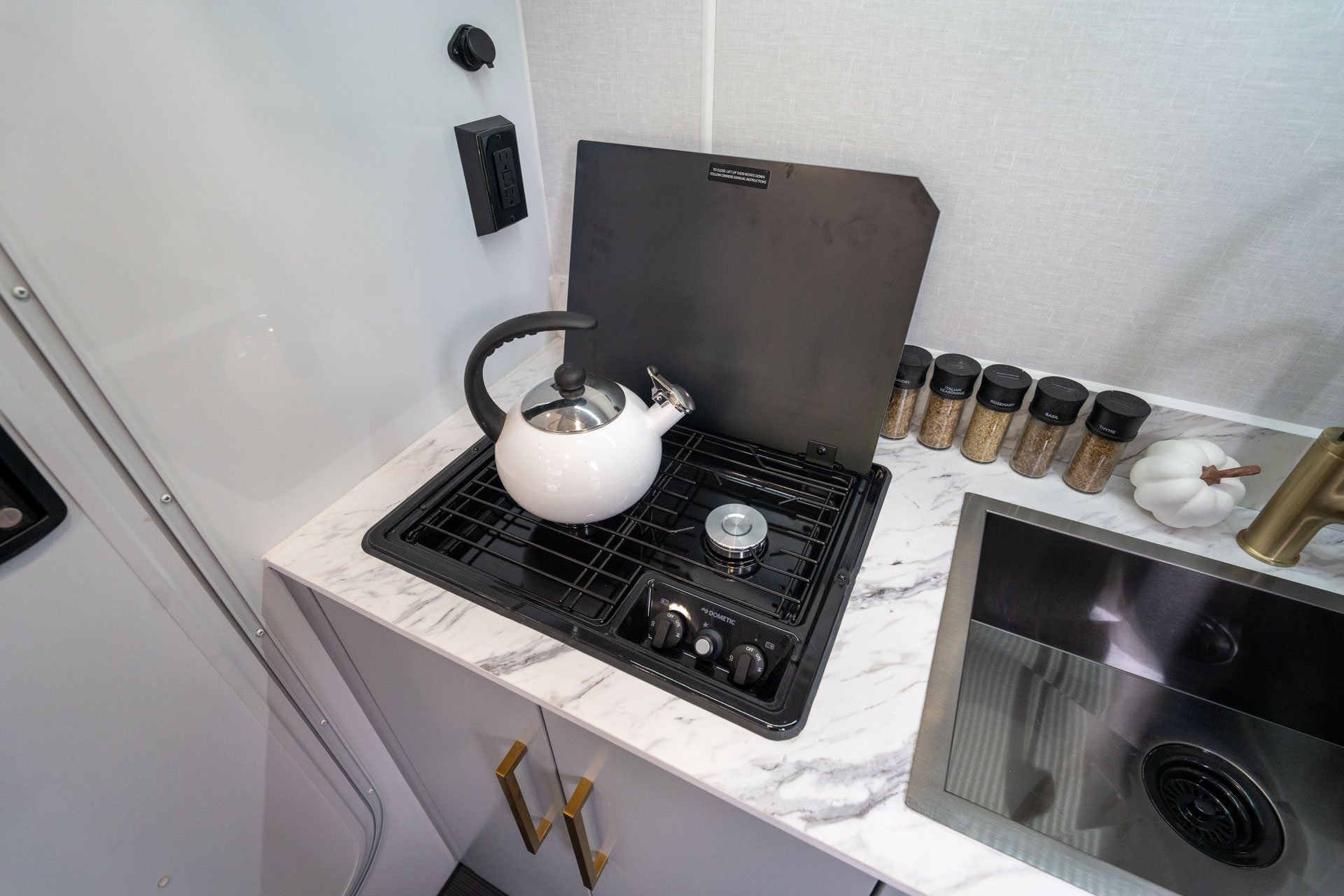

| Cooktop | 3 Burner LP Cooktop w/ Glass Cover |
| Water Heater | On Demand LP |
| Furnace | 20K BTU LP Furnace |
| A/C | 15K BTU Low Profile w/ Soft Start |
| Exhaust Fan | (1) Multi-Speed w/ Rain Sensor / (1) Single Speed for Shower |
| TV | 32" |
| Stereo | Bluetooth Stereo w/ 4 Interior Speakers |
Bed Configurations or Sleeping Spaces
| Master Bed | 46" x 81" Tip Out Bed |
| Sleeper Sofa | 76" Wall Mount Sofa |
| Drop-Down Bunk Bed | 32" x 74" (Weight Capacity: 175 lbs) |
Bathroom and Shower
| Bathroom Style | Wet Bath |
| Bathroom Mirror | Frameless Mirror |
| Toilet | Porcelain Toilet w/ Foot Flush |
| Shower Head | Shower Wand System - Height Adjustable |
| Shower Door | inTech Aluminum SureSeal Shower |
