GVWR
14,000 lbs
Est. Payload
Up to 8,250 lbs
Axle Size
(2) 7,000#
Interior Height
7'
Frame
All-Aluminum
Design Layouts & Specifications
Standard Features
All Options
- (A) Overall Height - 9' 4 1/2"
- (B) Ramp Door Height - 6' 10 1/2"
- (C) Interior Height - 7'
- (D) Rear Door to Riser - 31' 2 7/8"
- (E) Rear Door to Cabinets - 23' 2 7/8"
- (F) Ground Clearance - 14" Approx.
- (G) Overall Length - 41' 1/4"
- (H) Between Wheel Wells - 6' 9 1/2"
- (I) Box Width - 8' 4"
Standard Features
| Chassis |
|---|
| Full Perimeter Aluminum Frame |
| All Tube Construction |

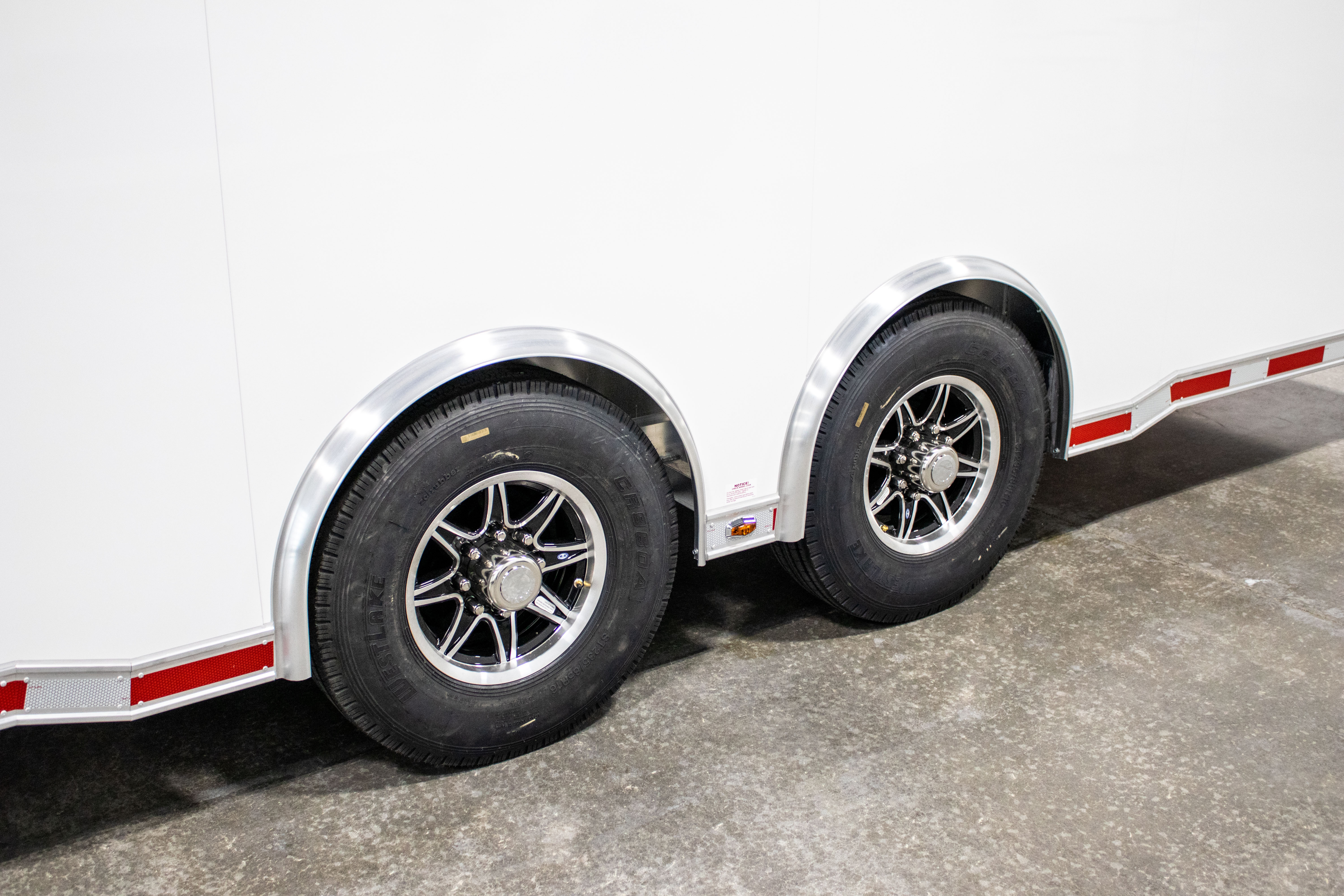

| Tandem 7000# Dexter Torsion Axles with ST235/85R16 Tires |

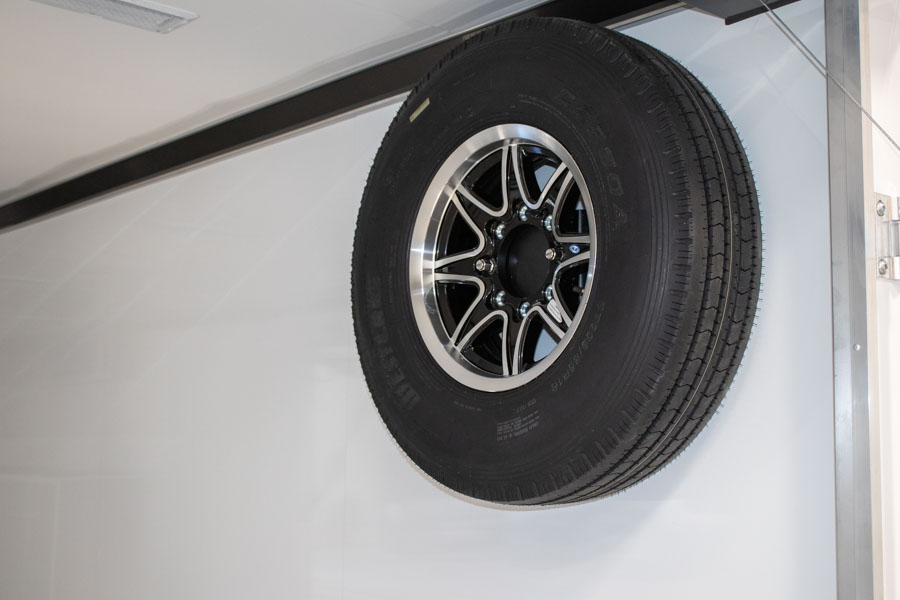

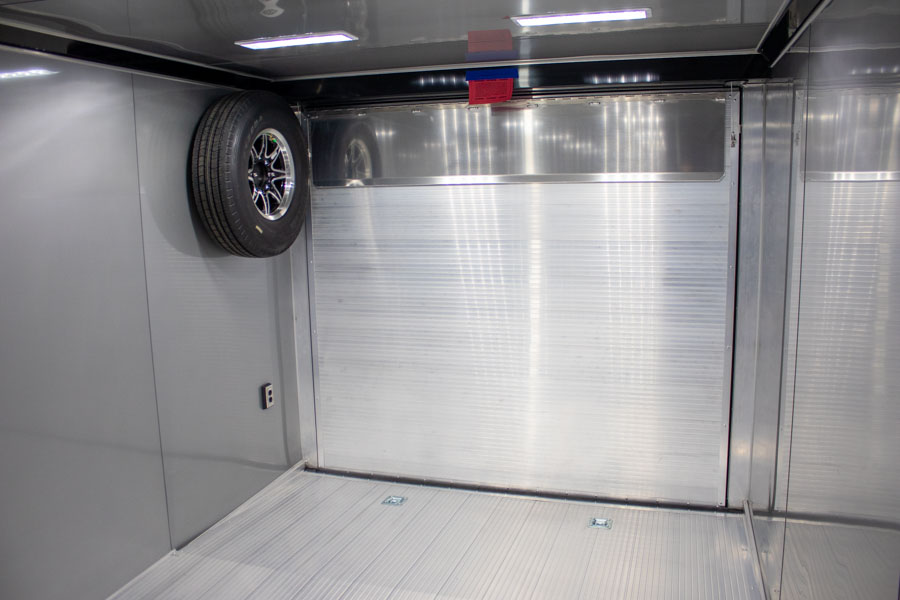

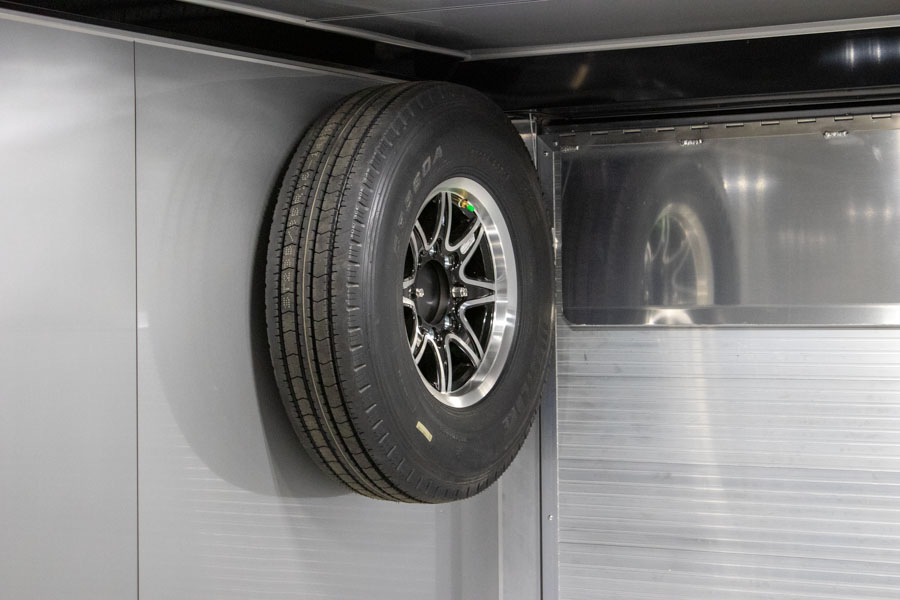

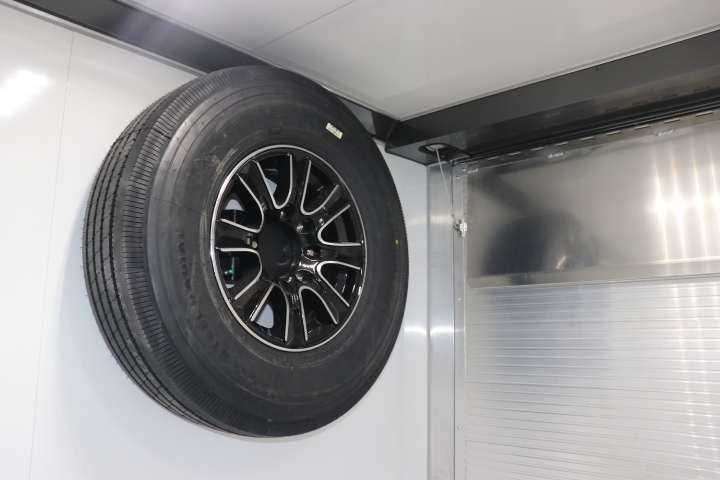

| Aluminum Wheels and Full Spare with Mount |
| Electric Brakes - All Axles |
| Breakaway Battery Kit |
| 7-Way Trailer Plug |

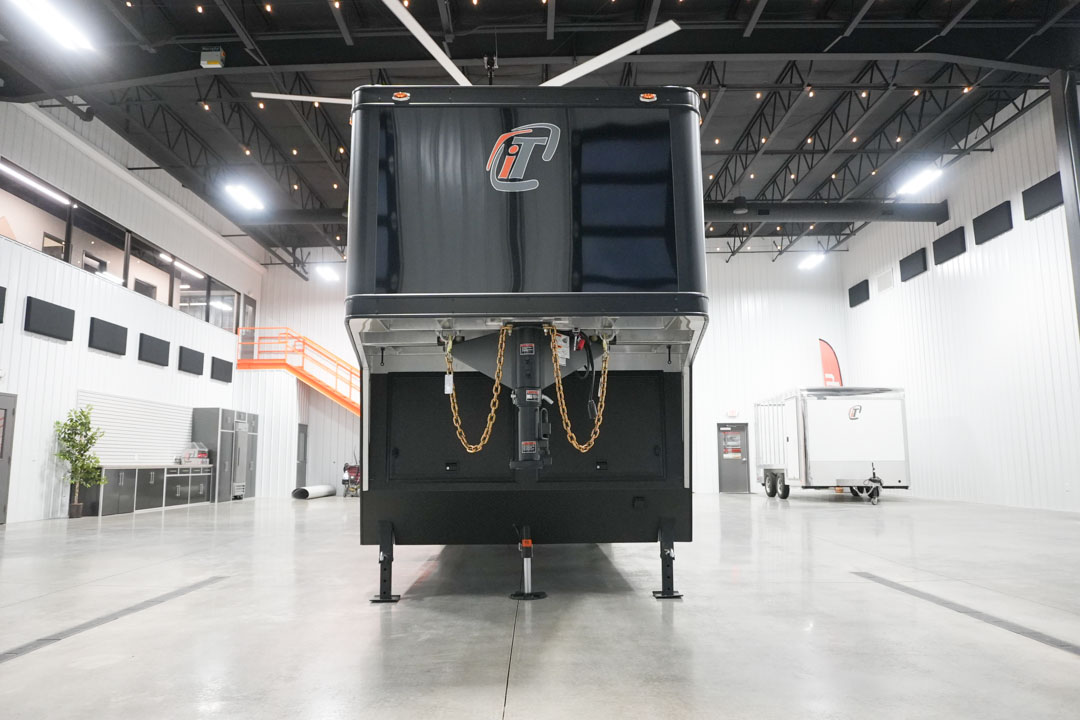

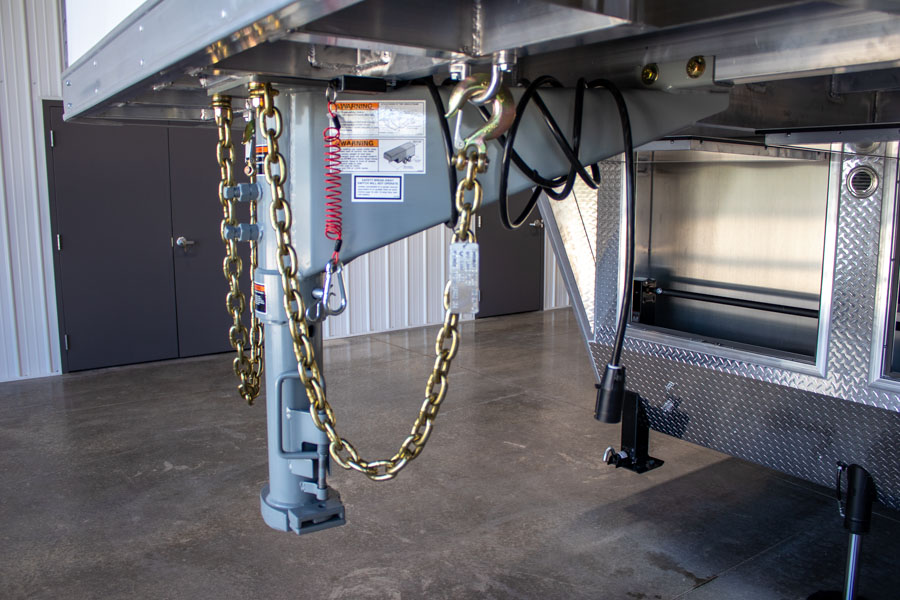

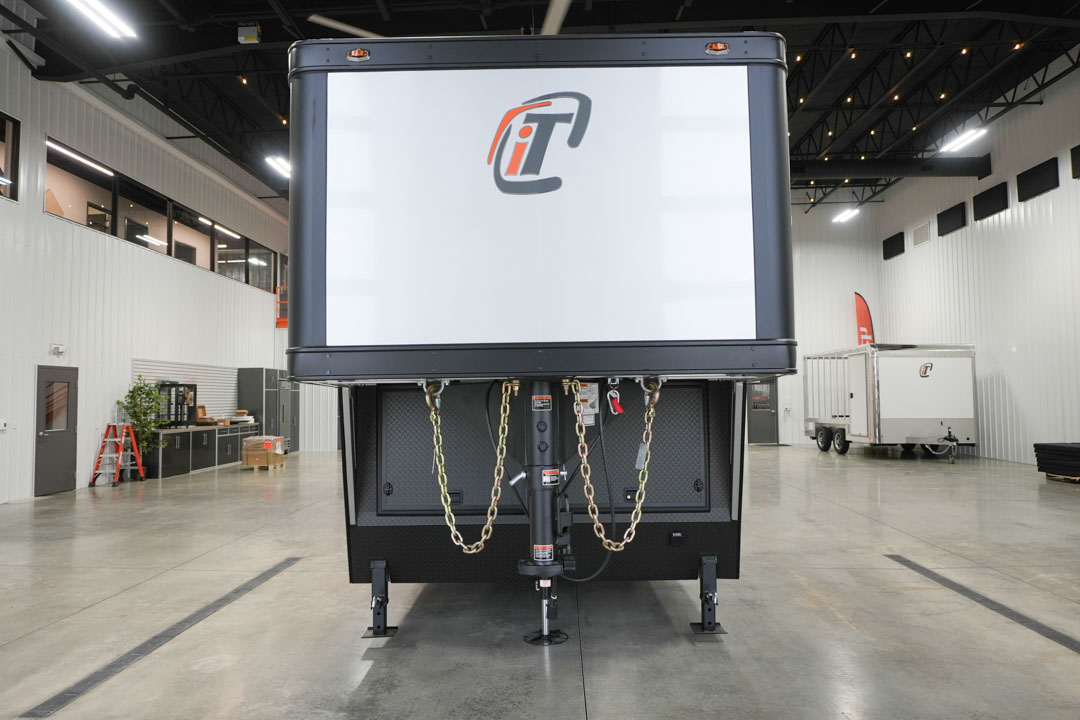

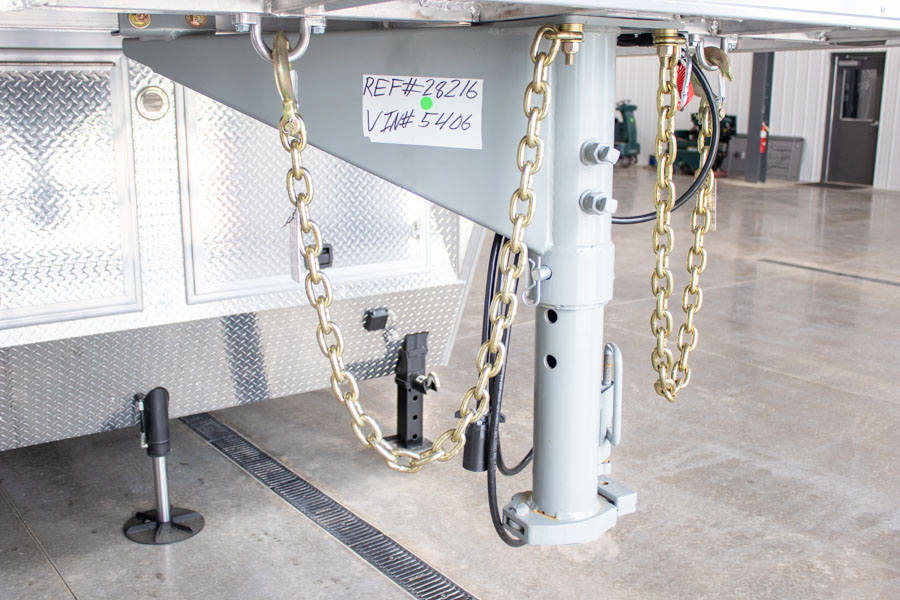

| 2 5/16" Adjustable Gooseneck Coupler |

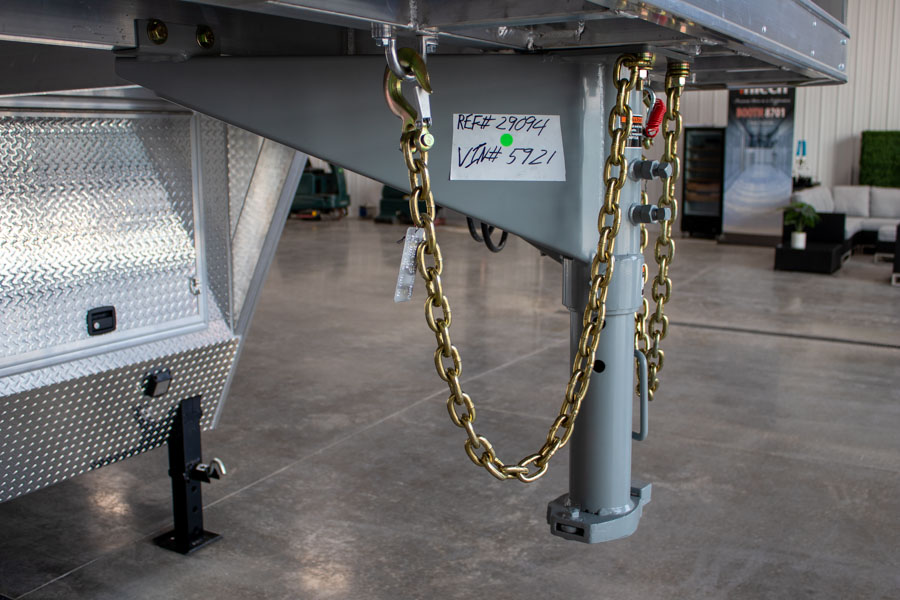

| Safety Chains |

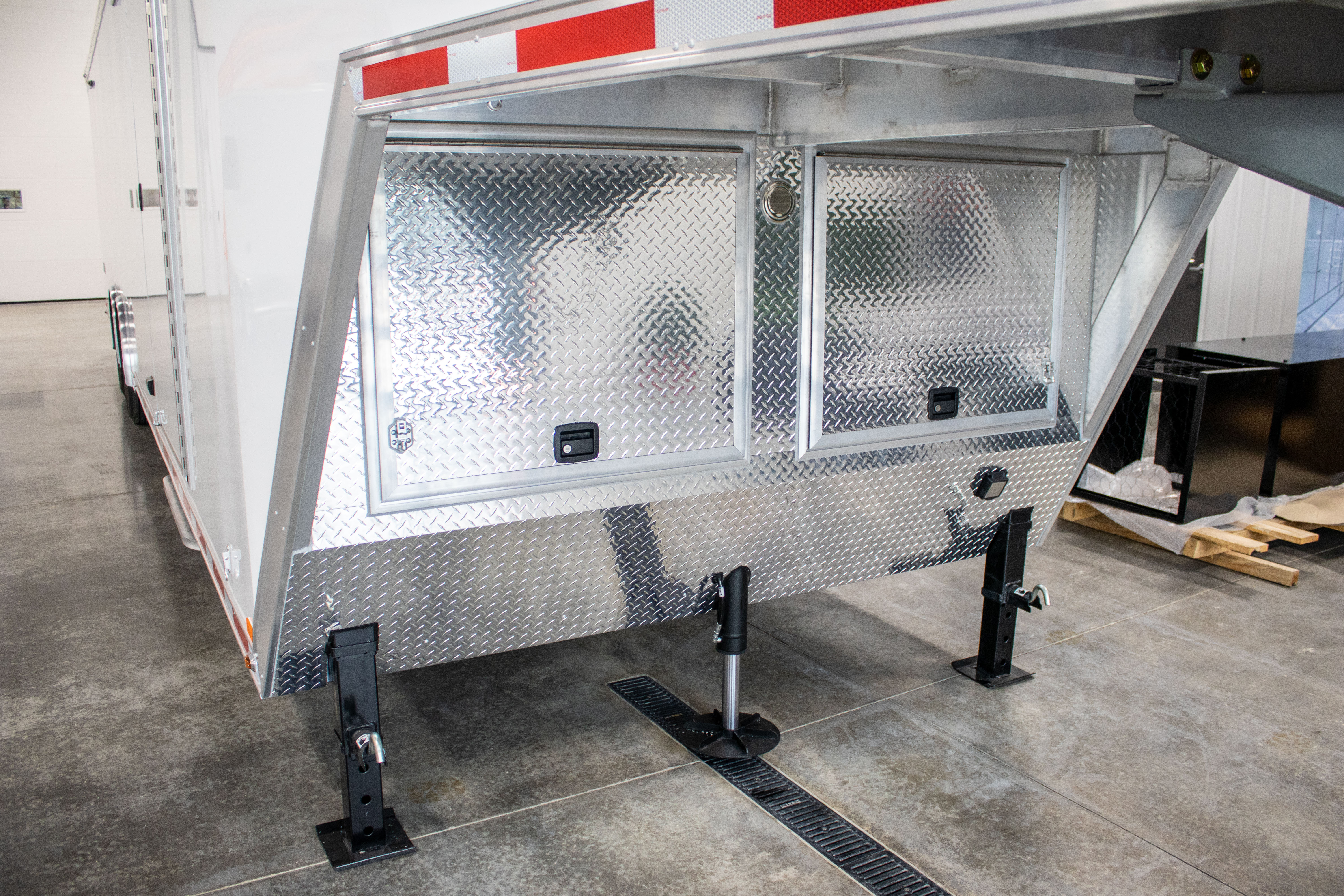

| Dual Leg Manual Landing Gear |

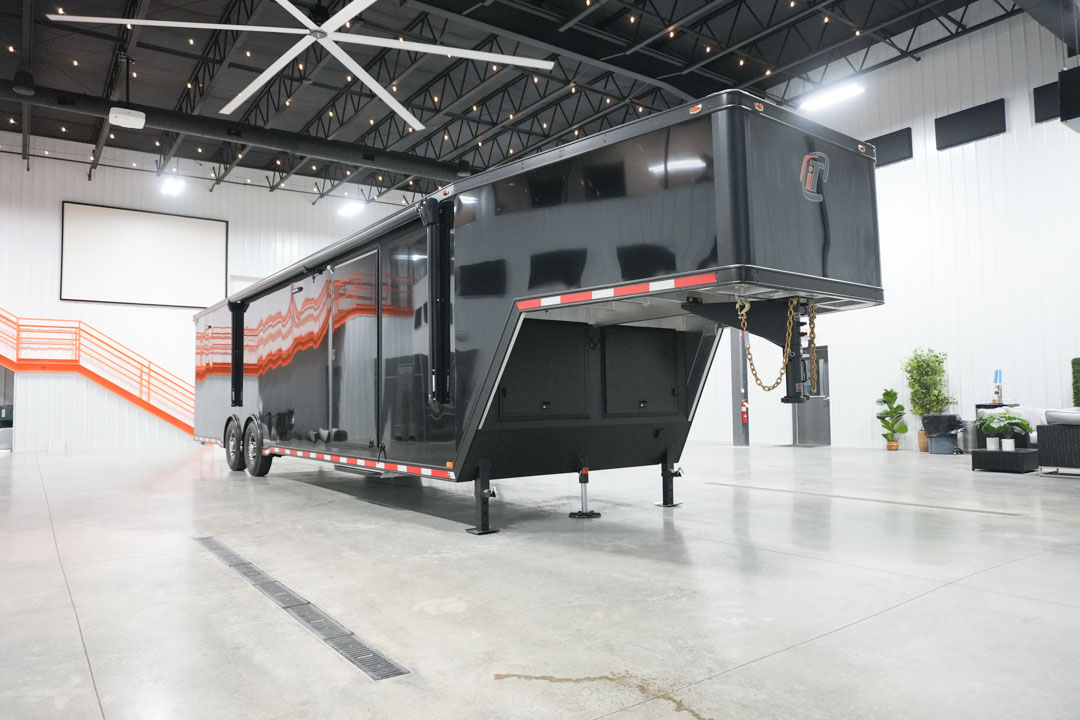

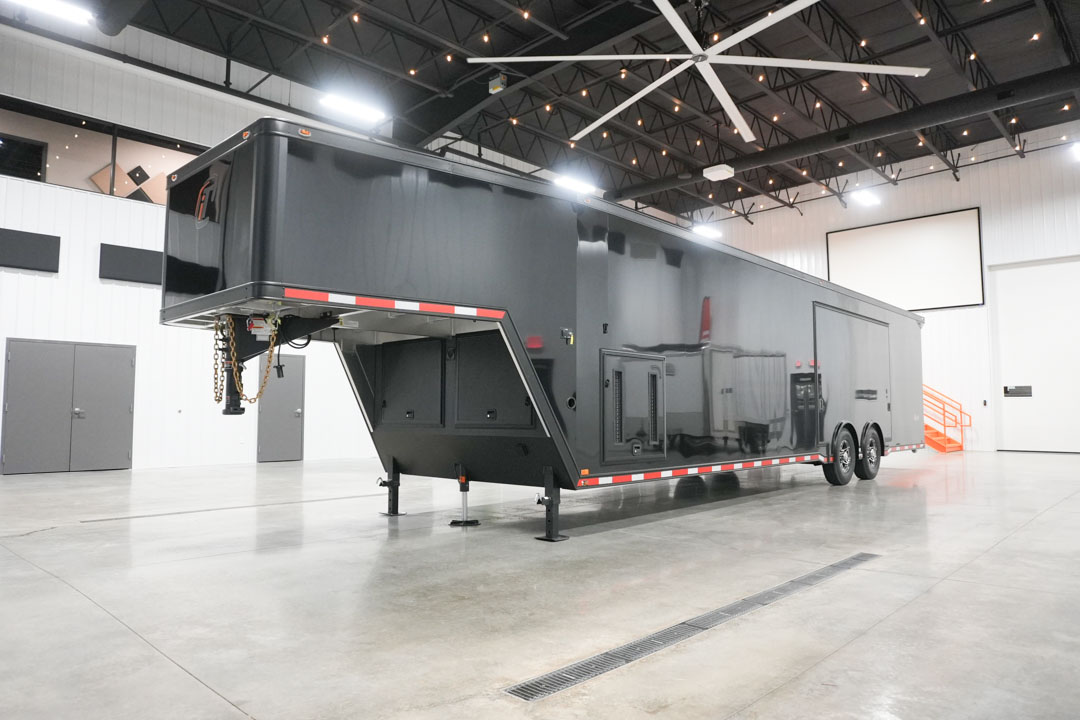

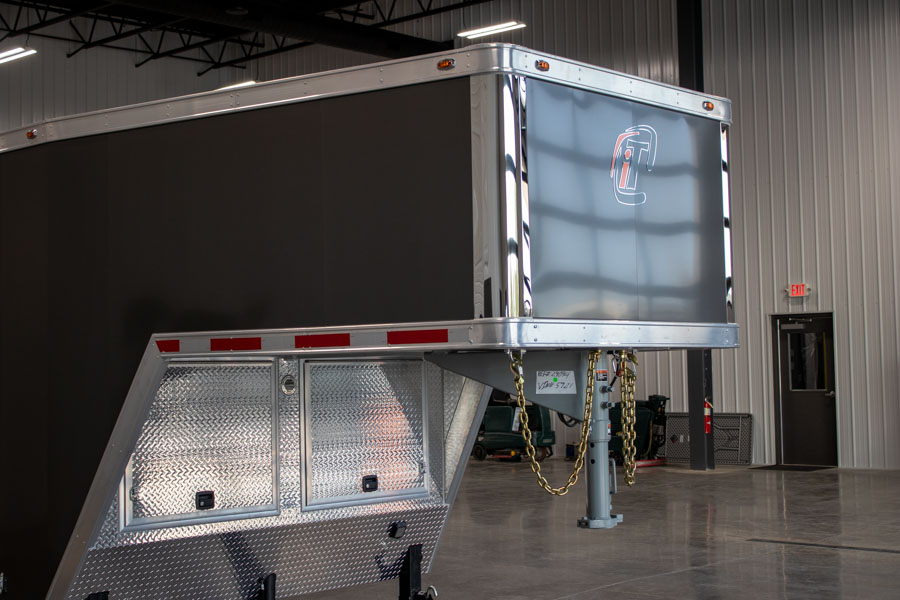

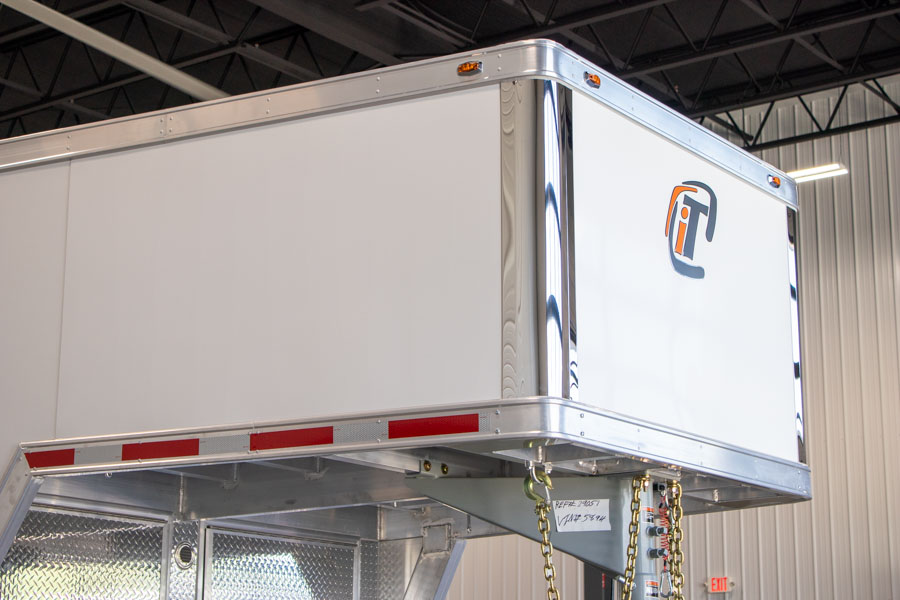

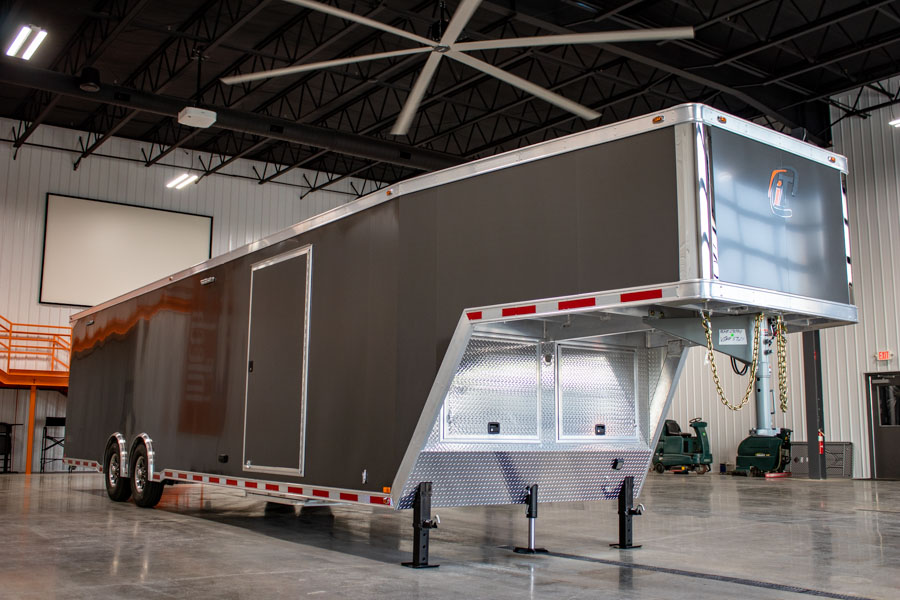

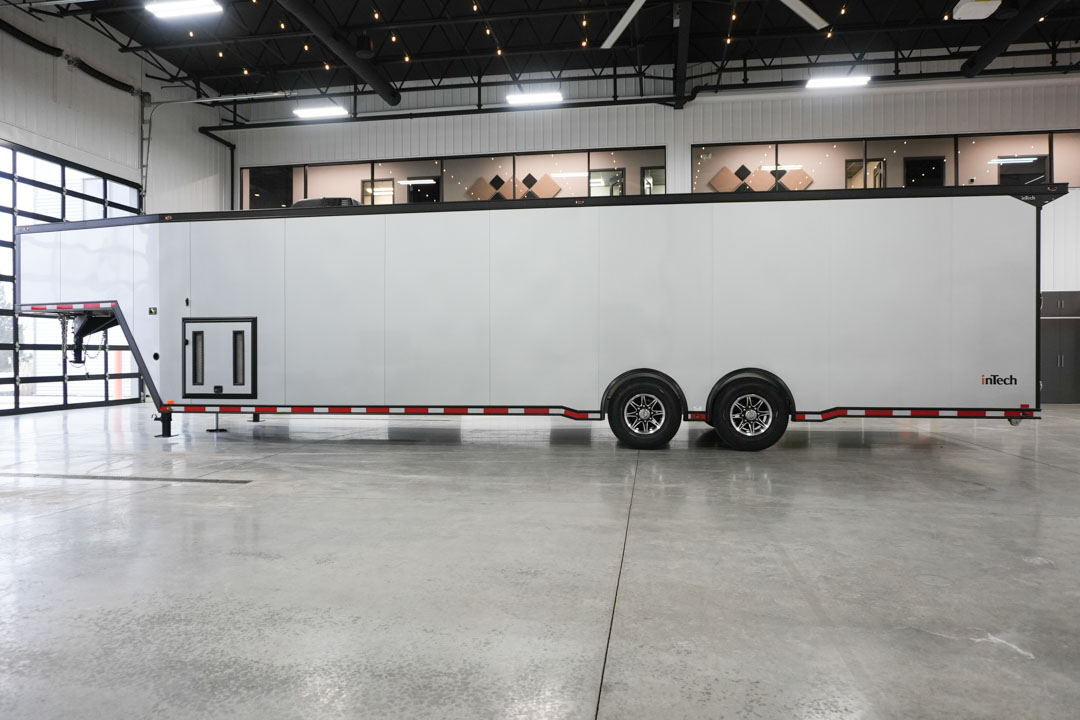

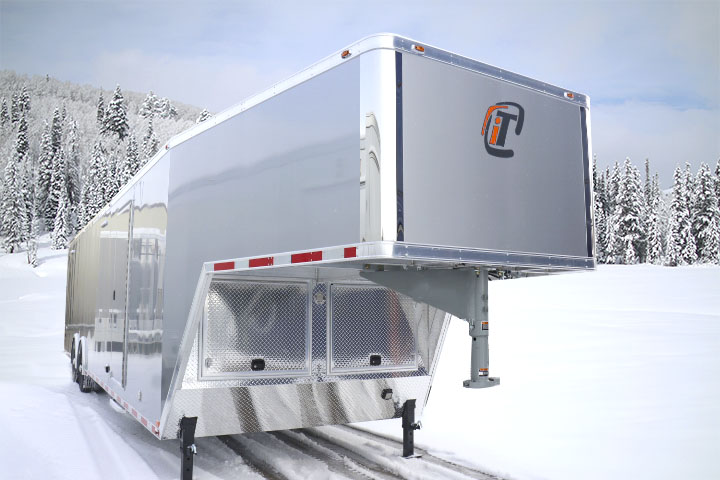

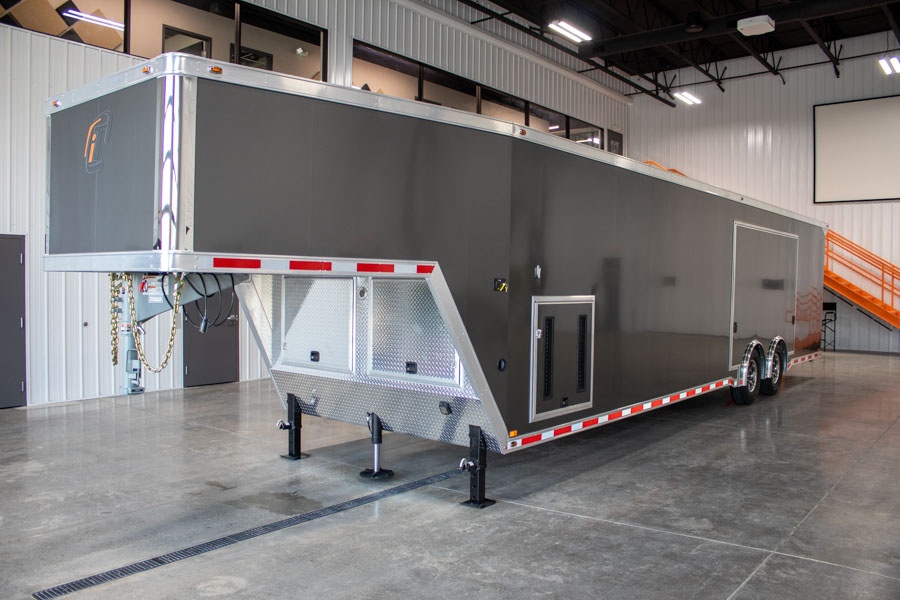

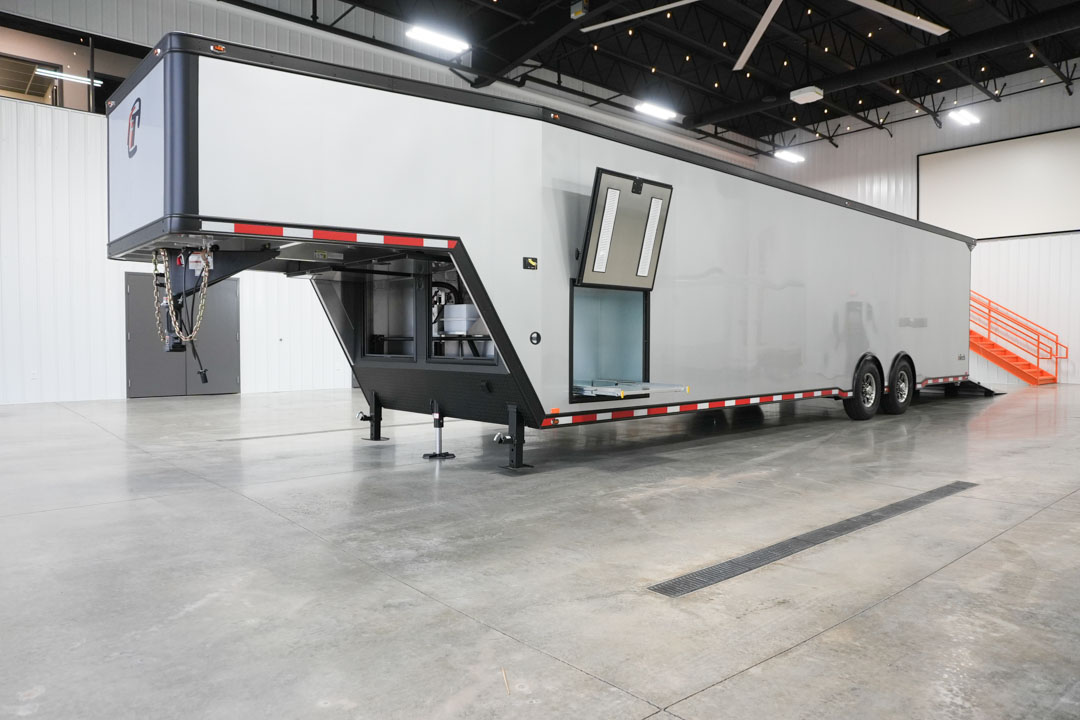

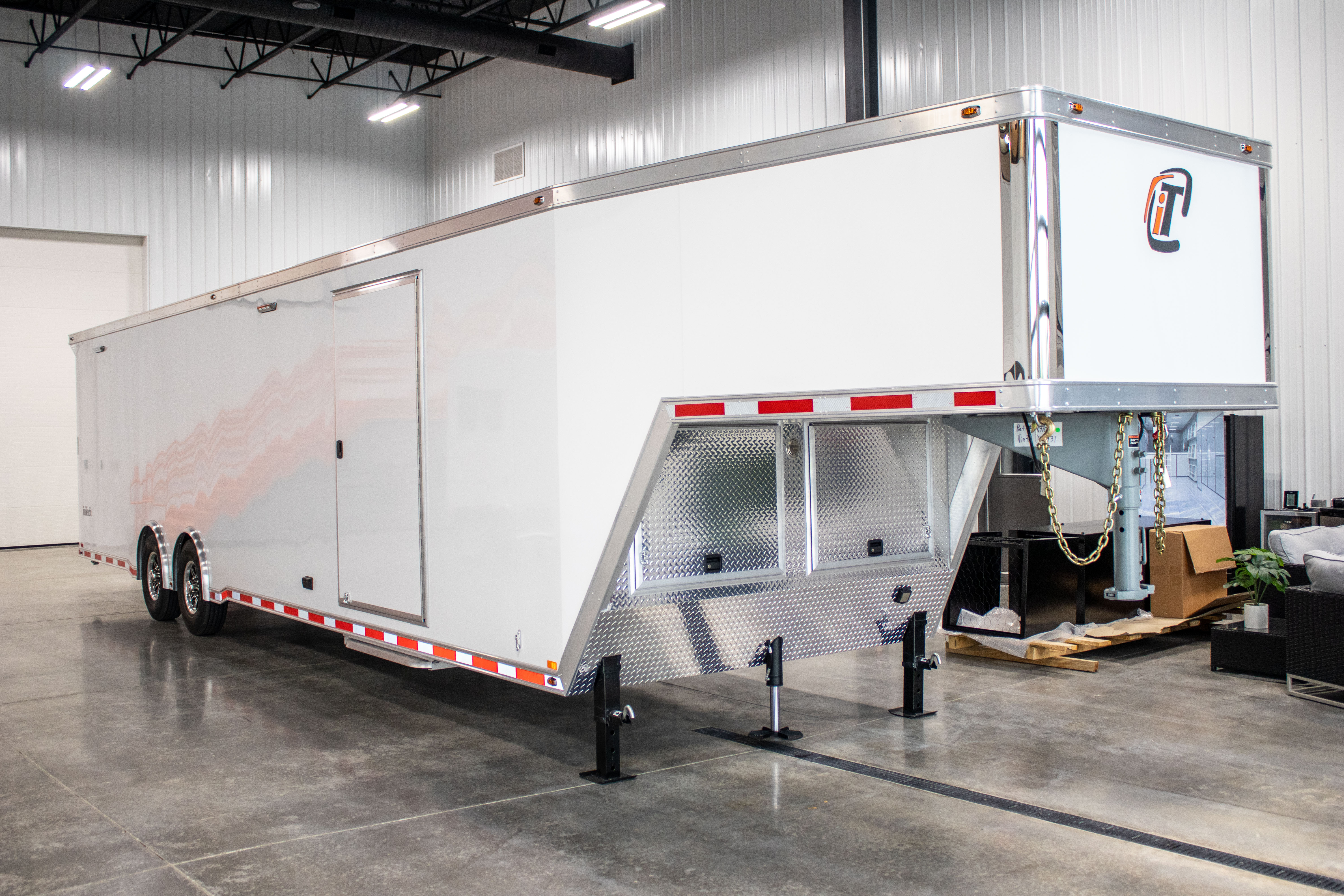

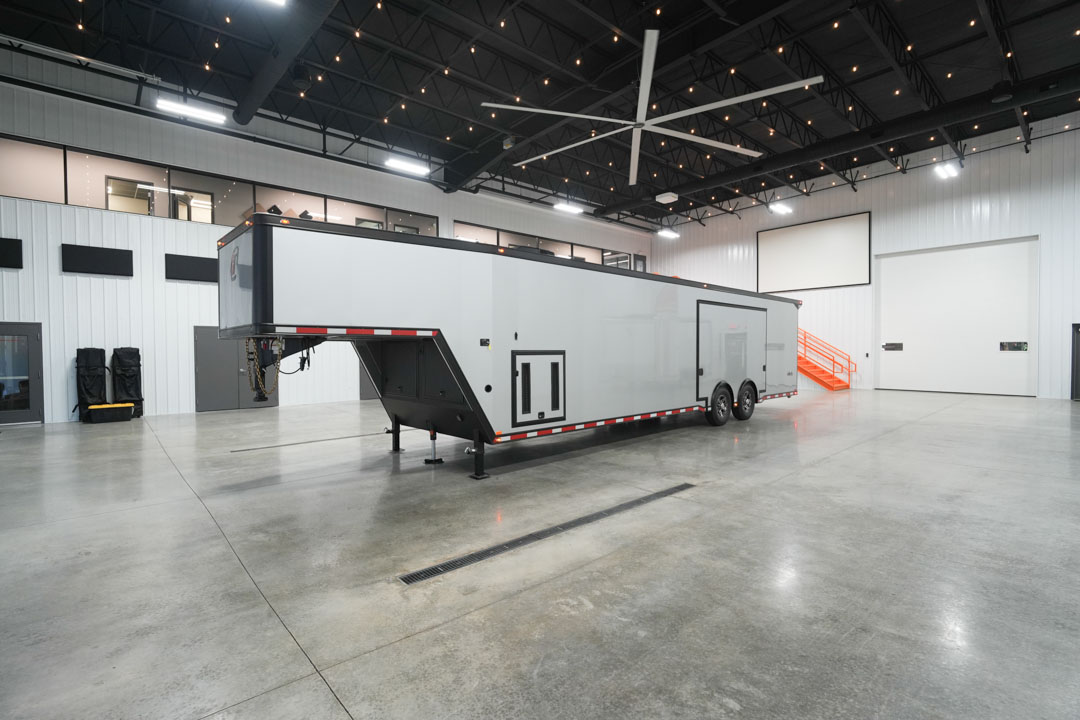

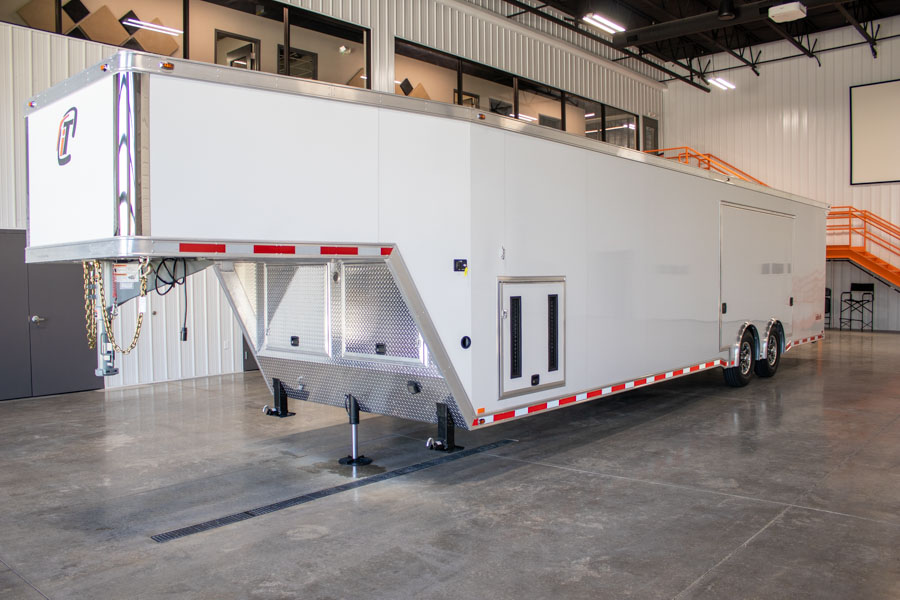

| Gooseneck Taper Nose Design |
| 16" O/C Floor Crossmembers |
| 16" O/C Roof & Wall Studs |

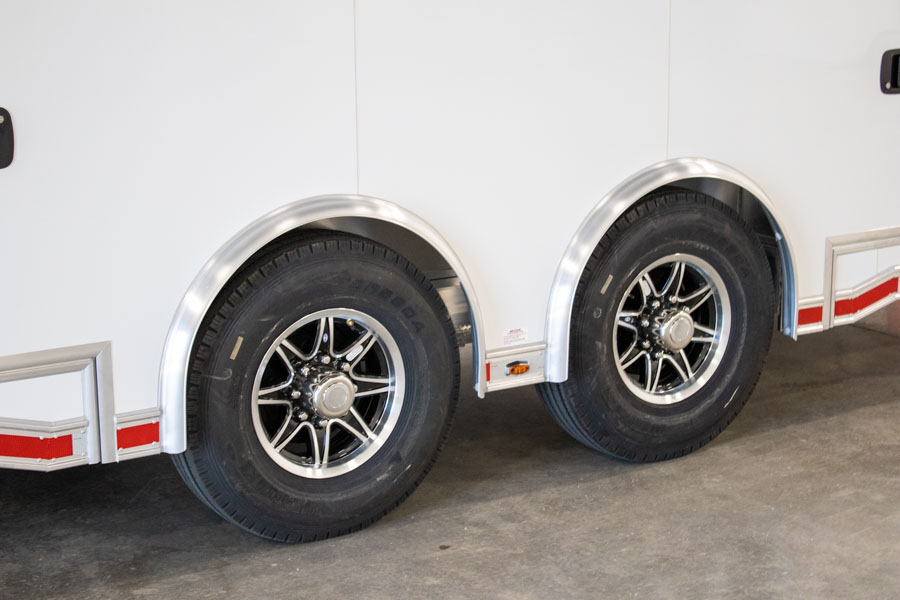

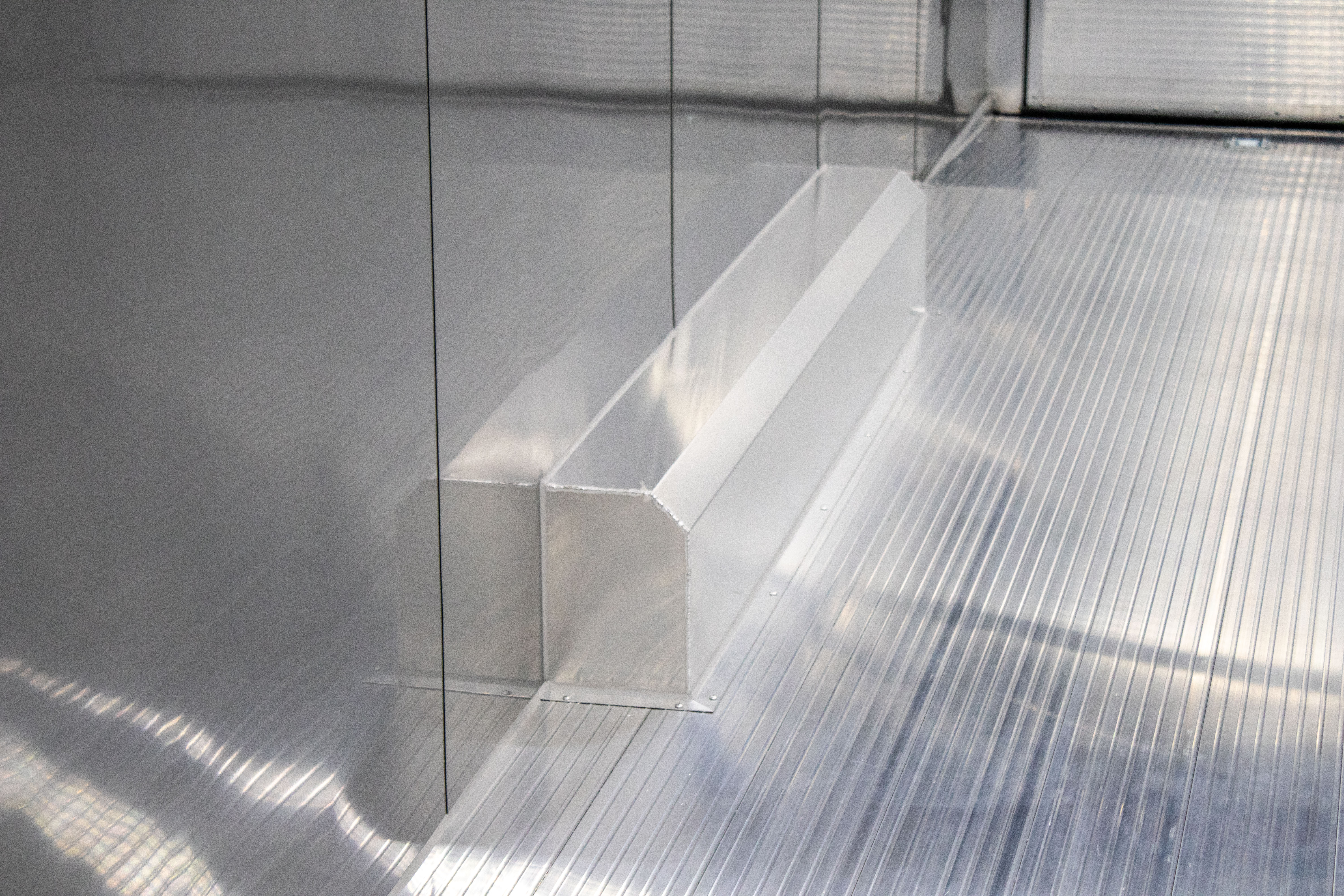

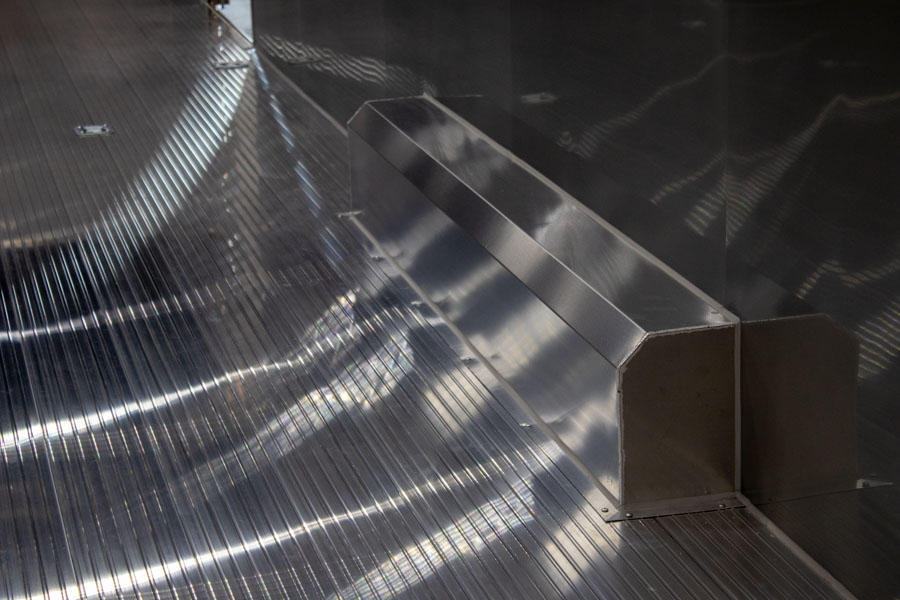

| Smooth Aluminum Wheel Boxes with Chamfered Edge |

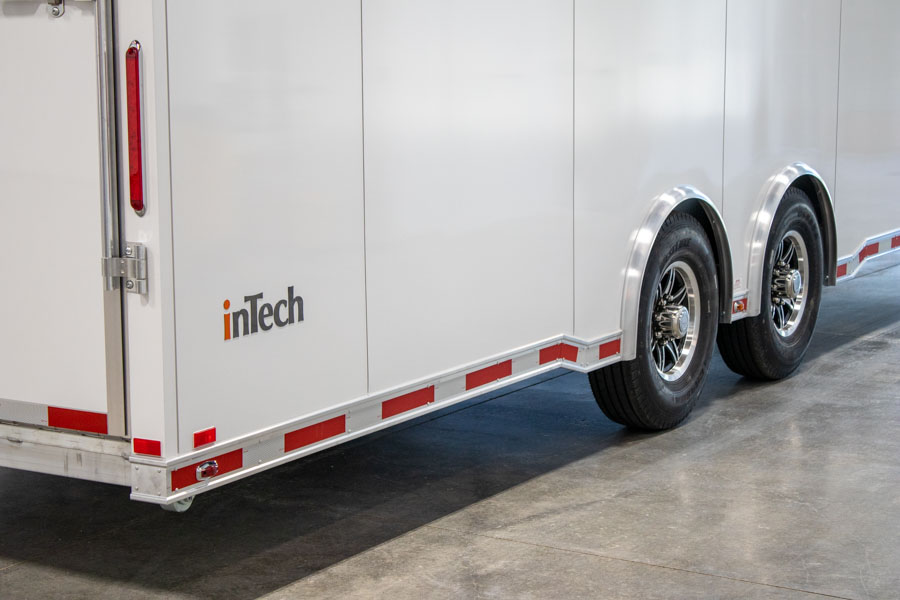

| Spread Axle Design with Individual Fenderettes and Wheel Skirt |

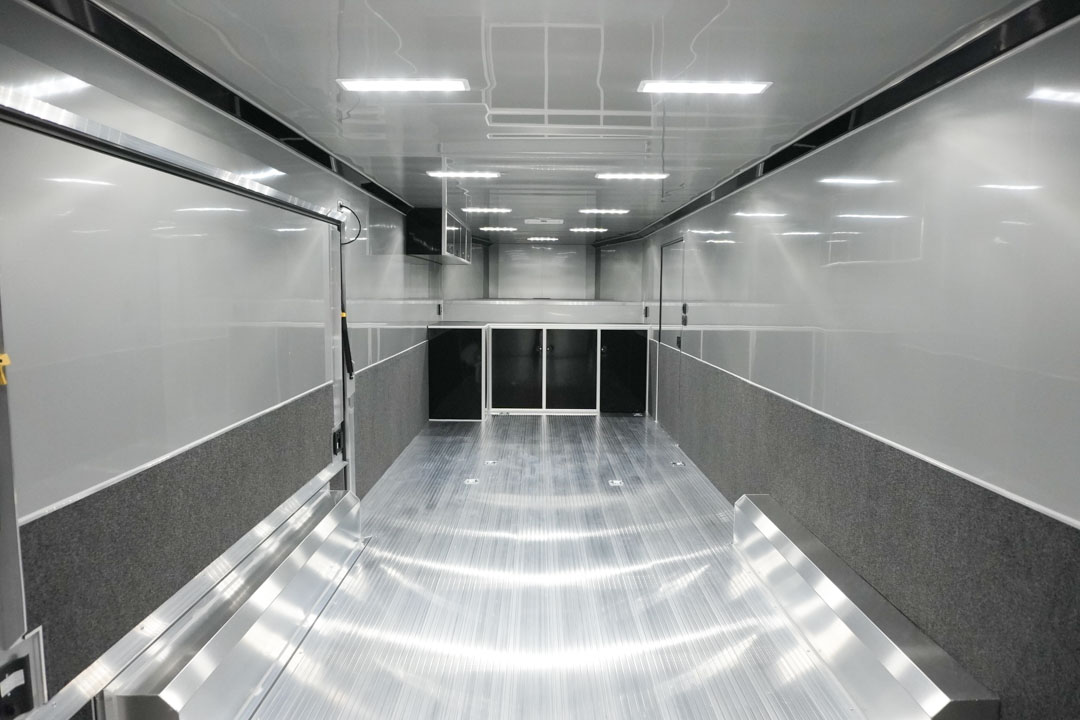

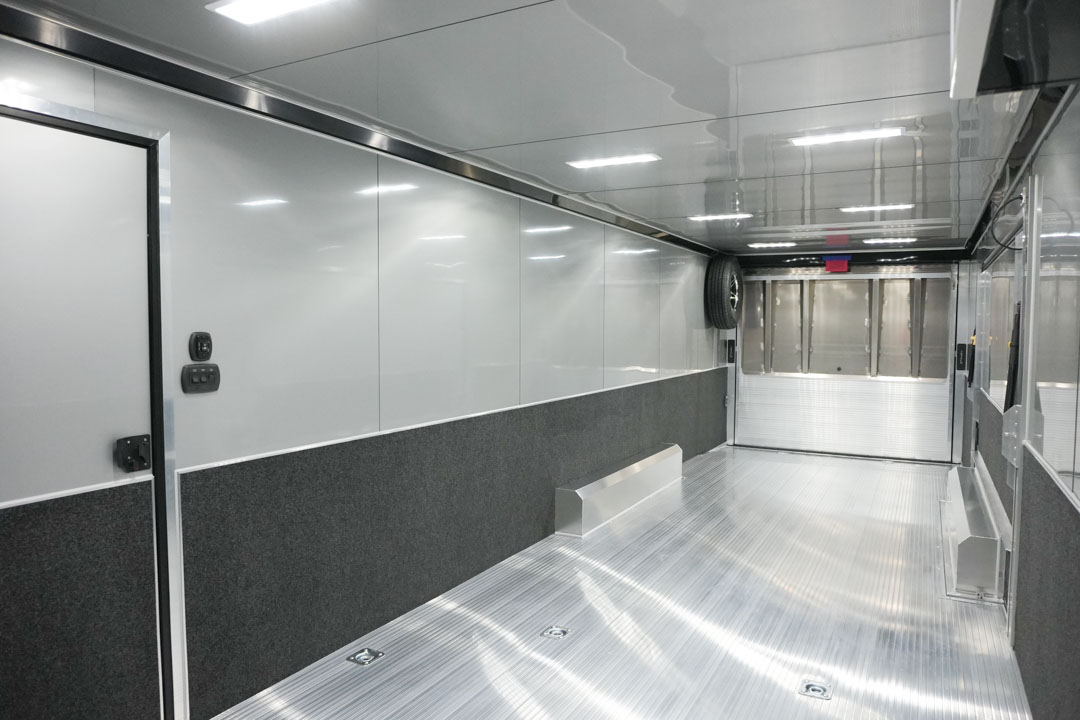

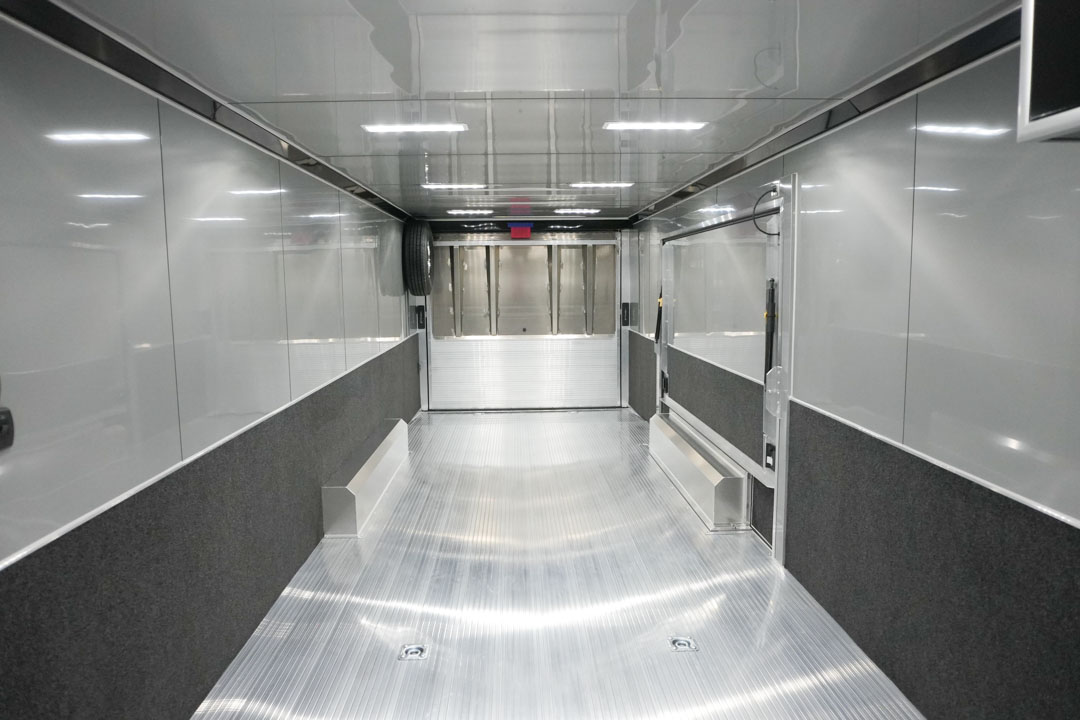

| Interior |
|---|

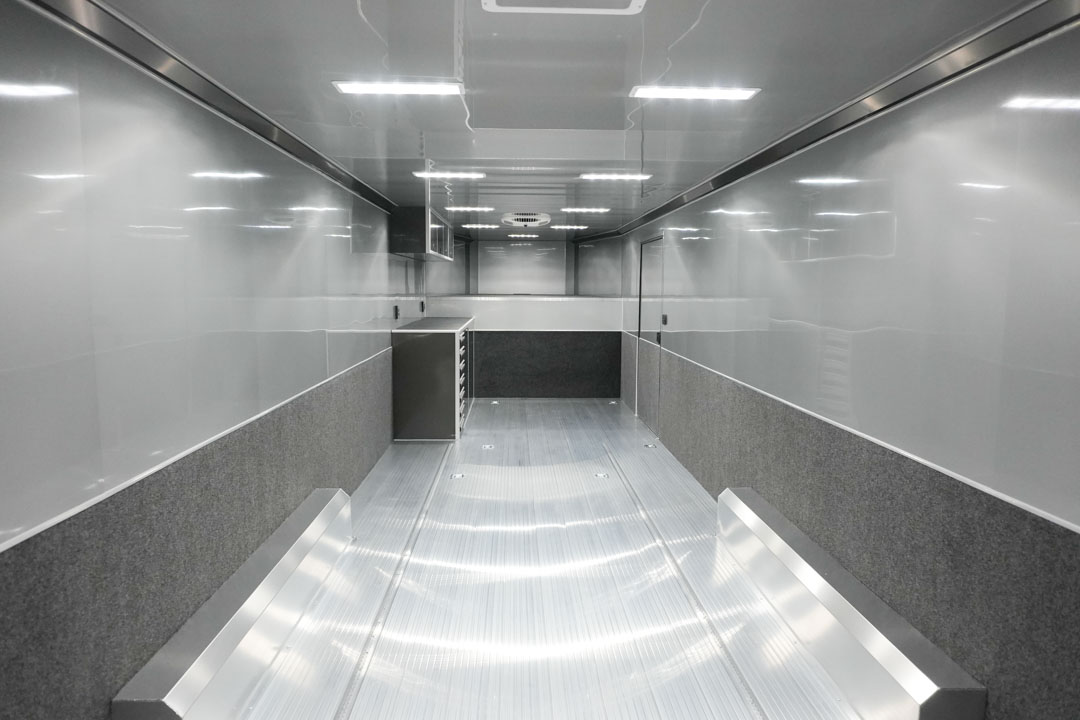

| White Vinyl Walls & Ceiling |

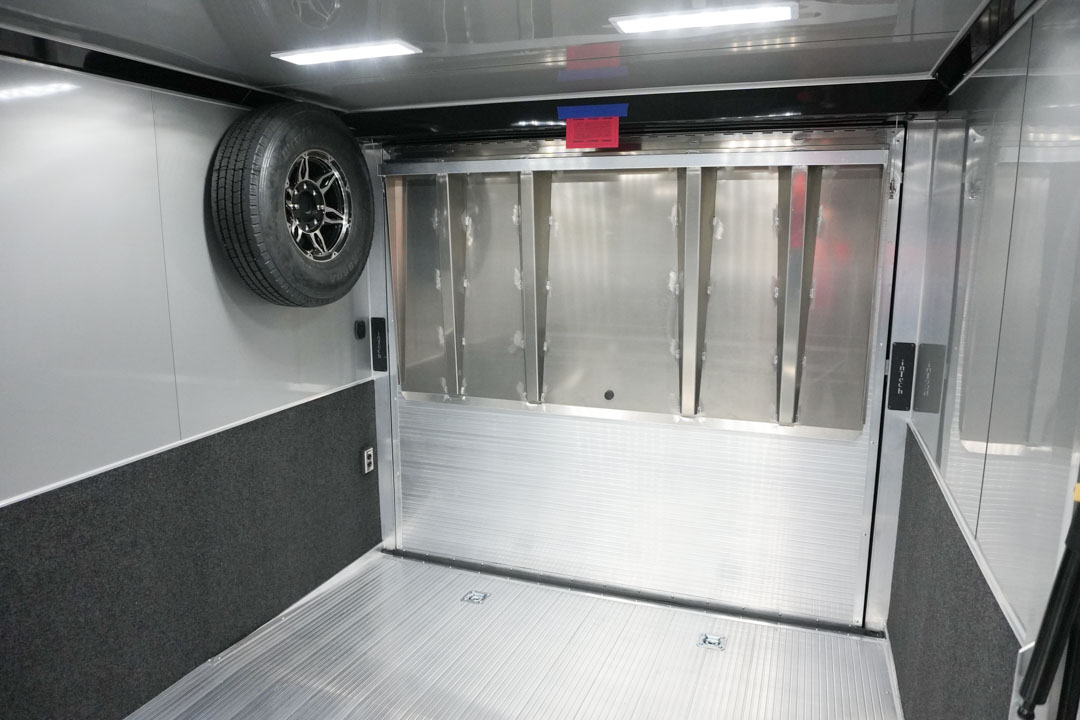

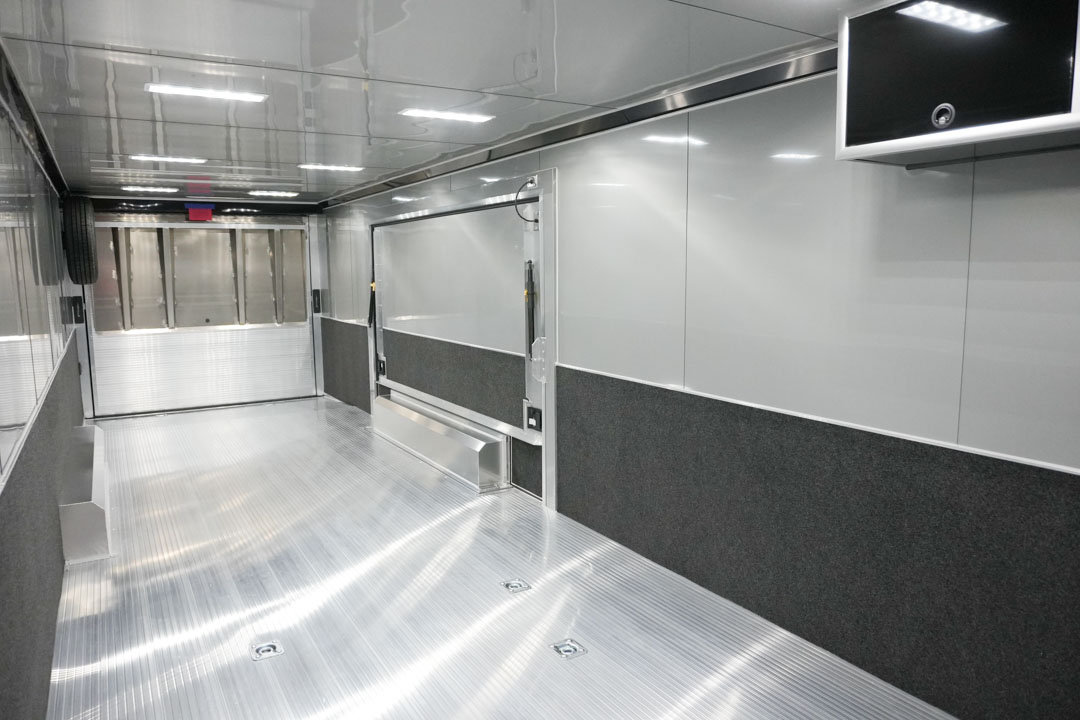

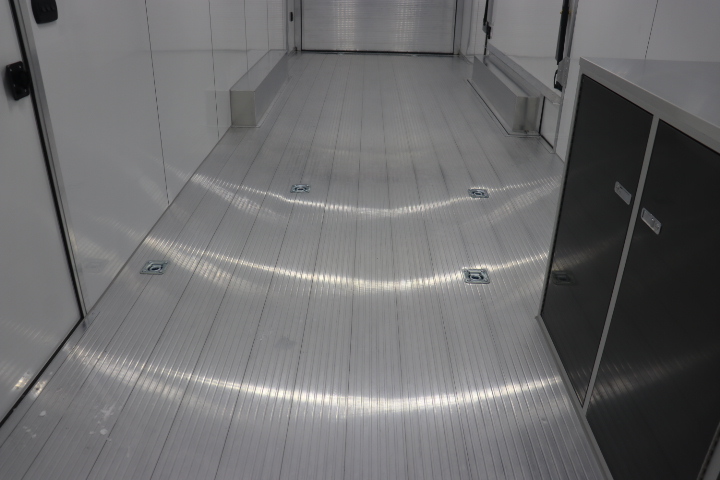

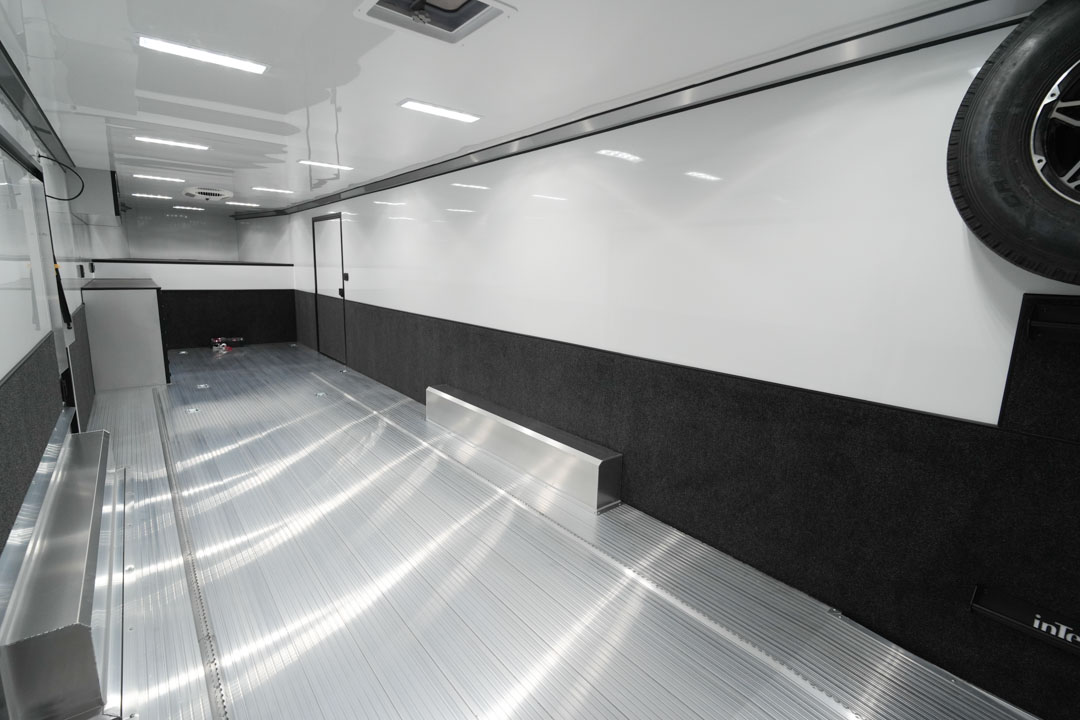

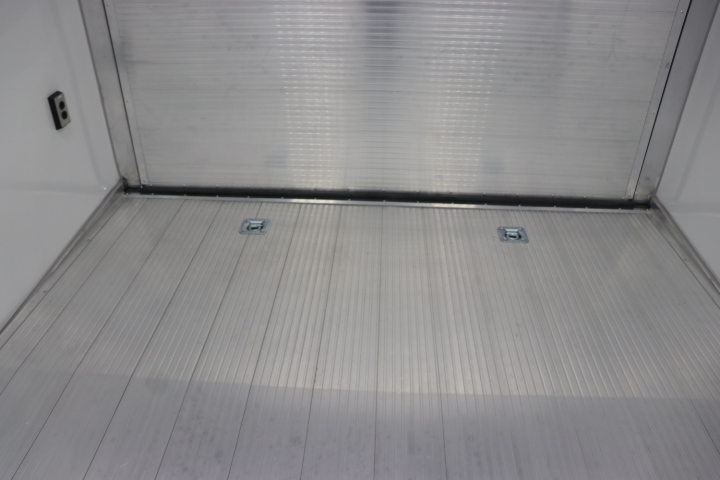

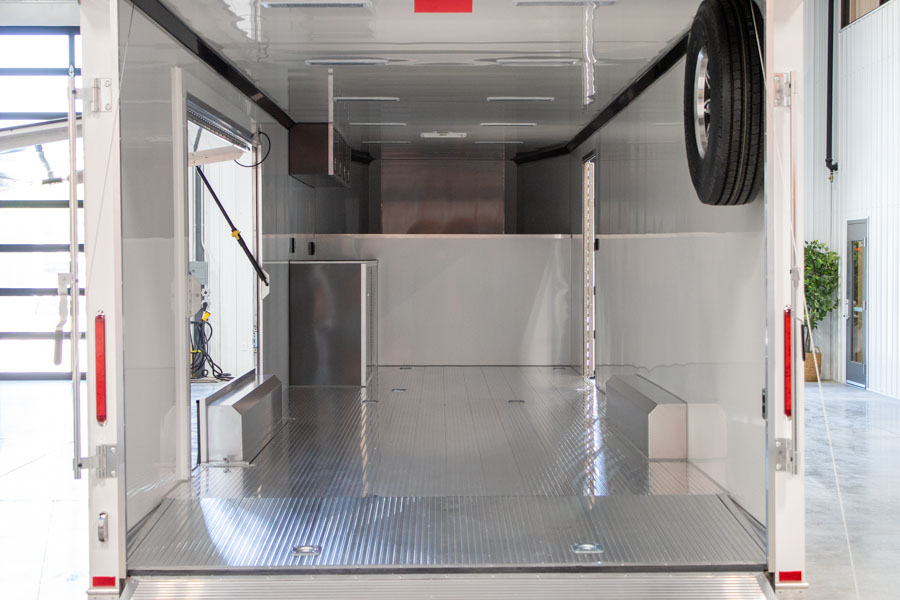

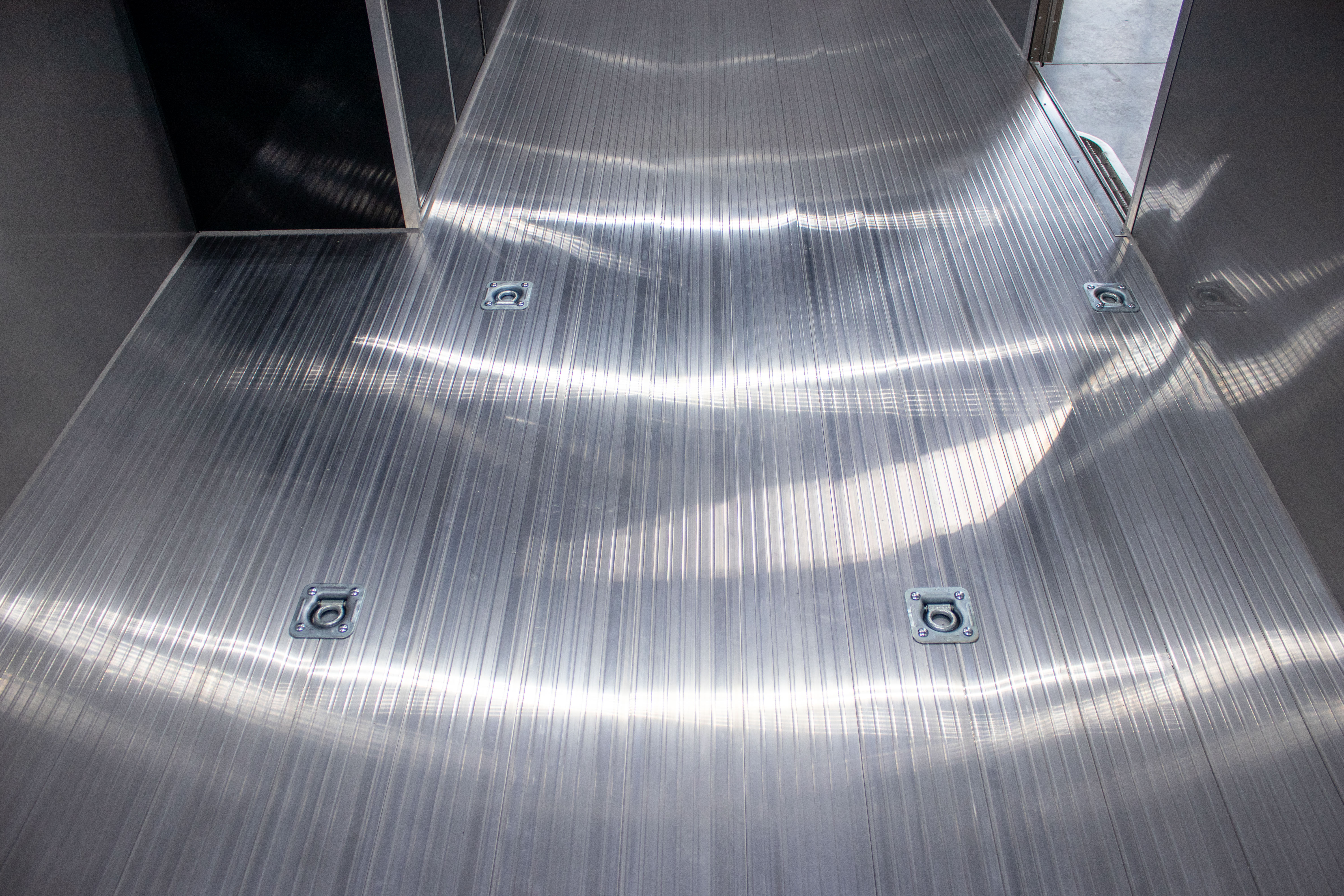

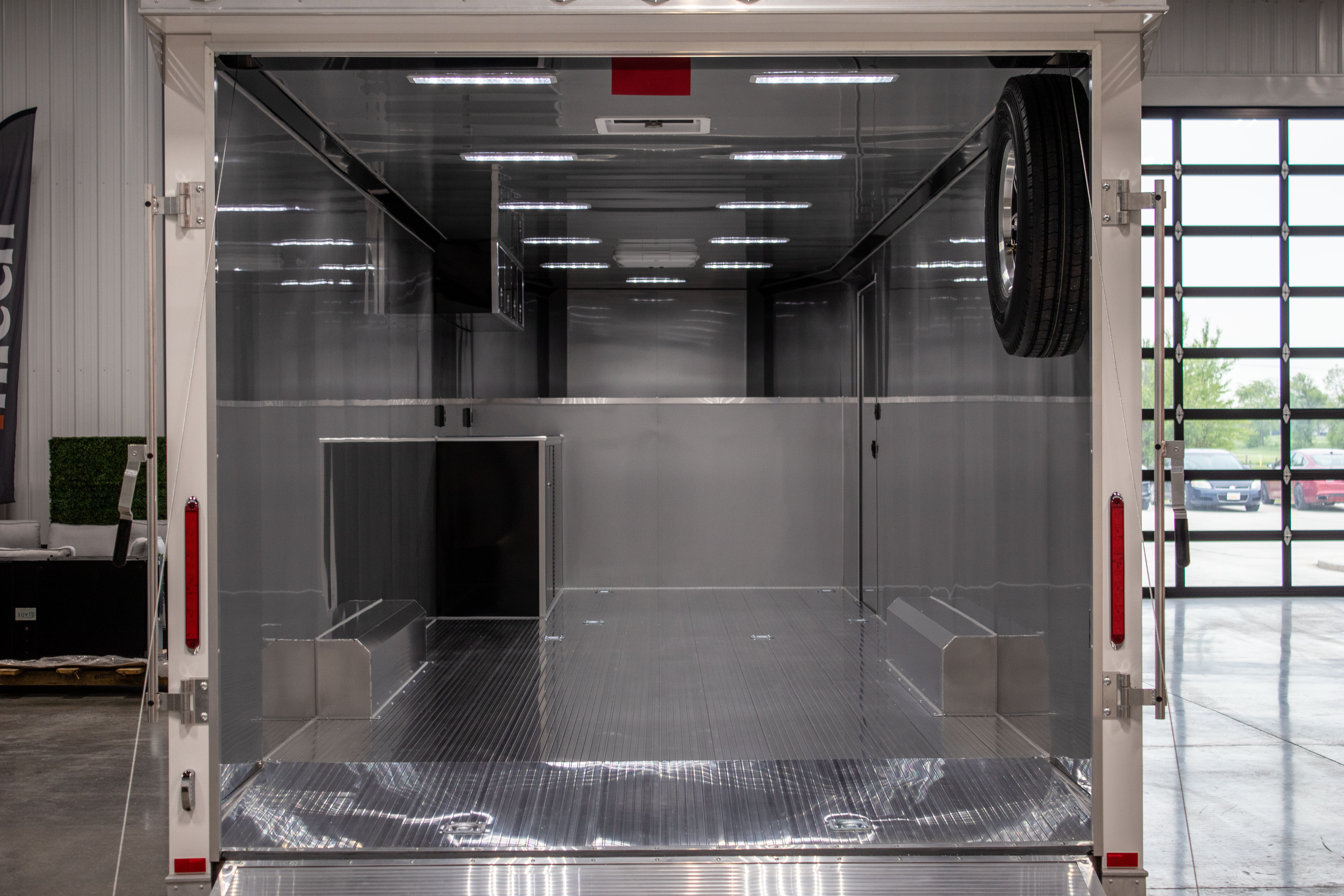

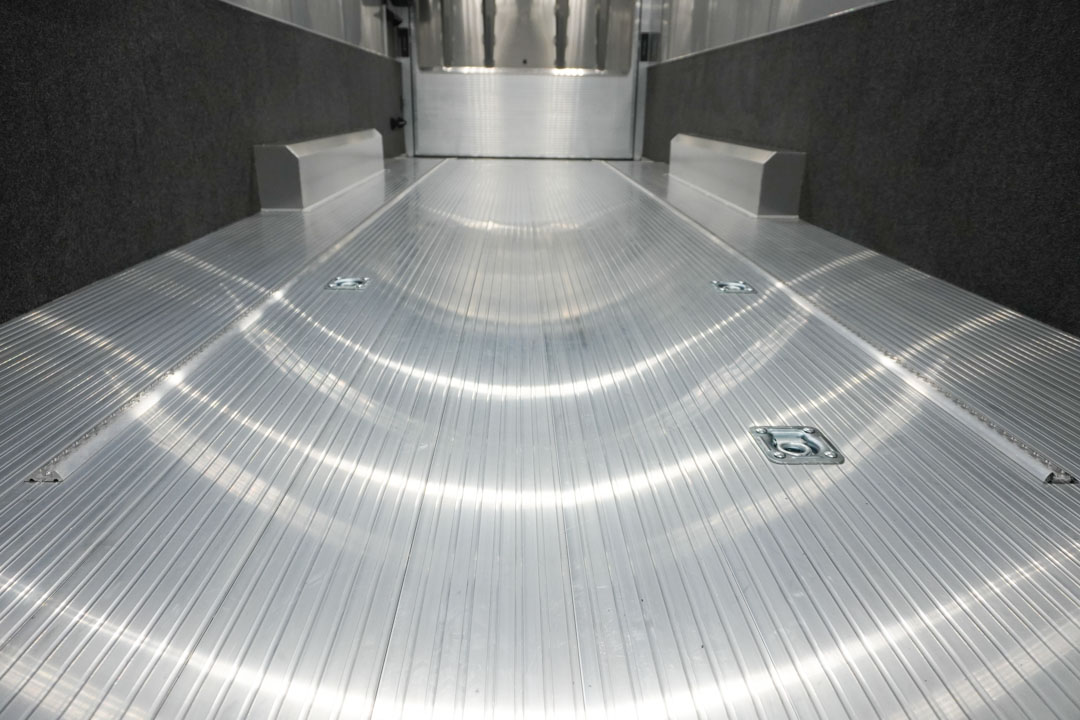

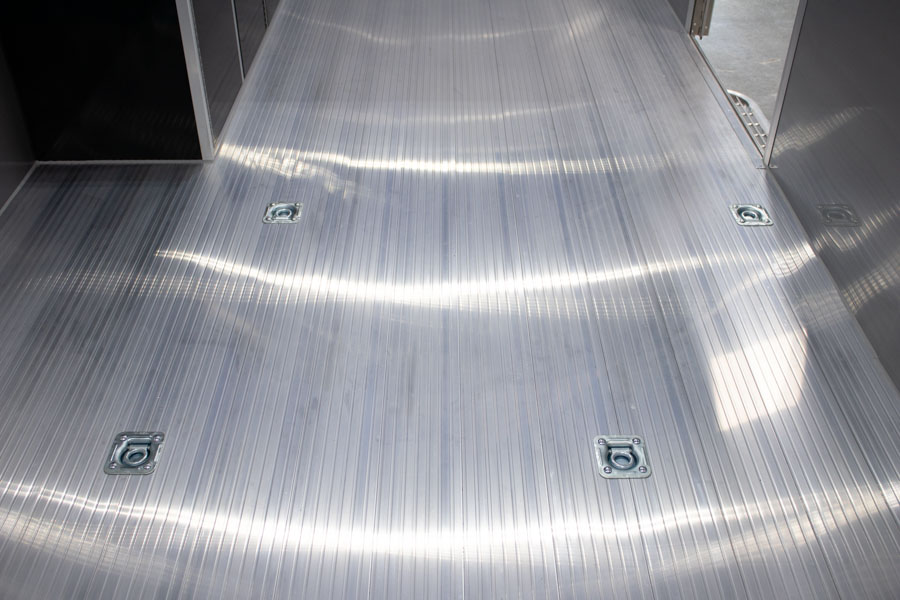

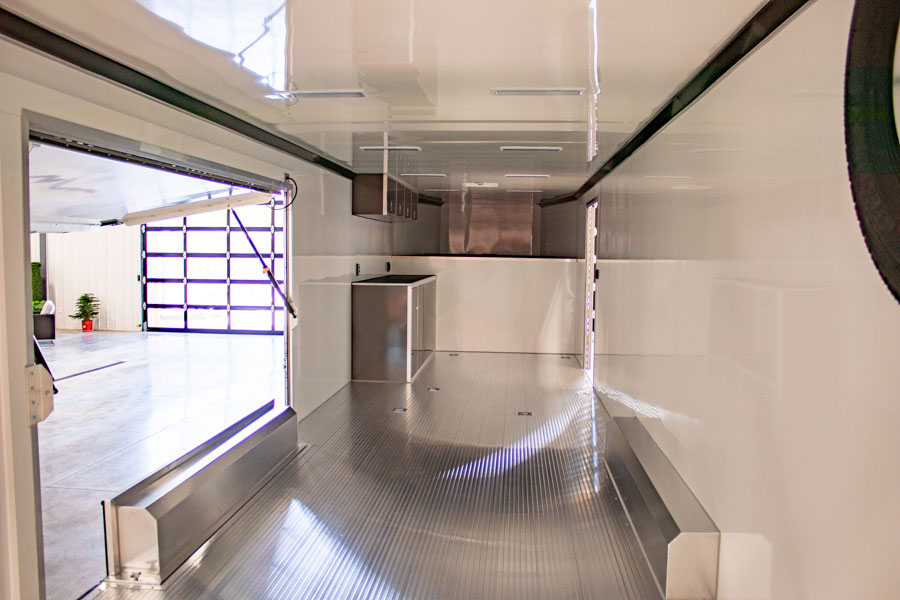

| Extruded Aluminum Flooring & Ramp Door |

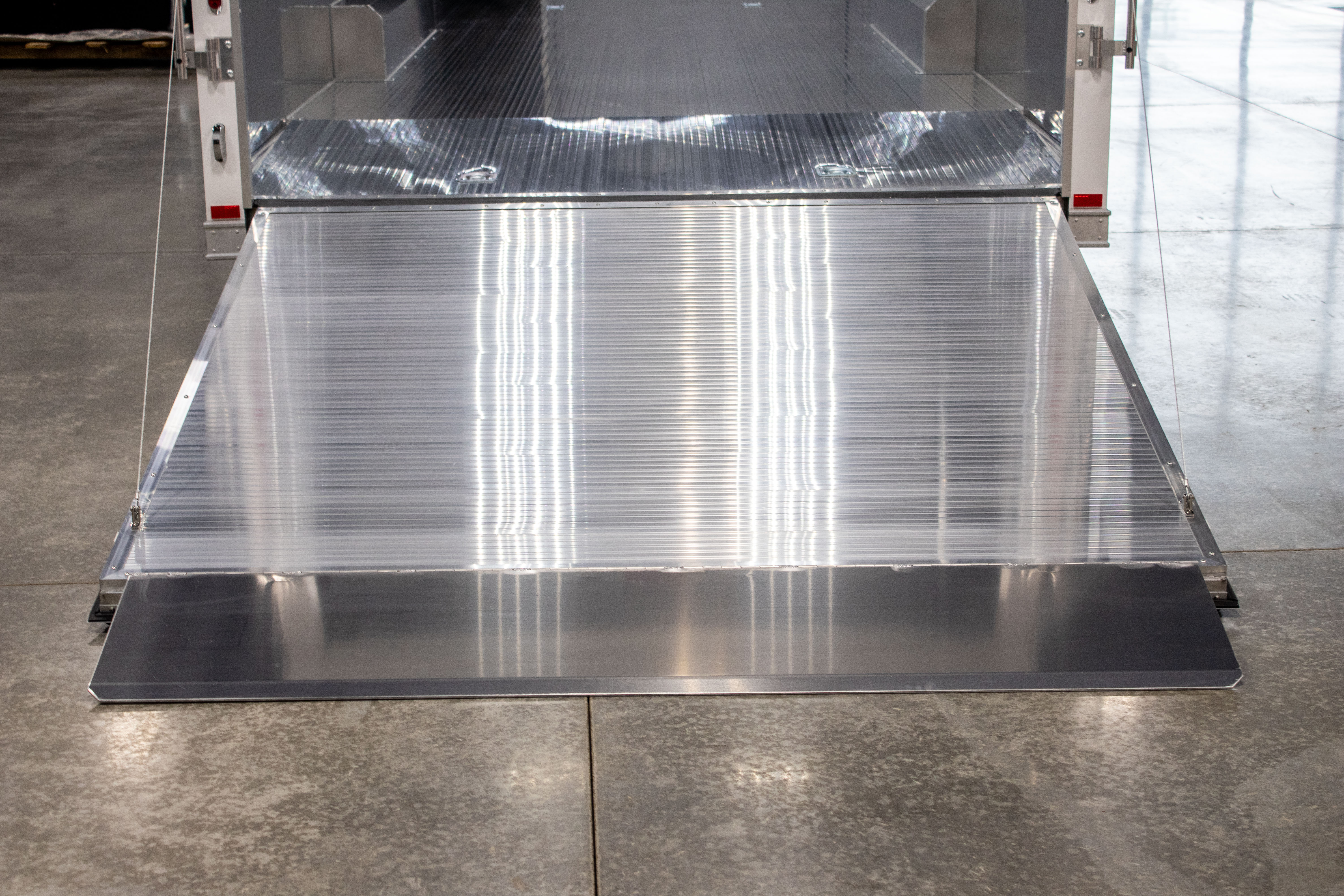

| One-Piece Aluminum Transition Flap |

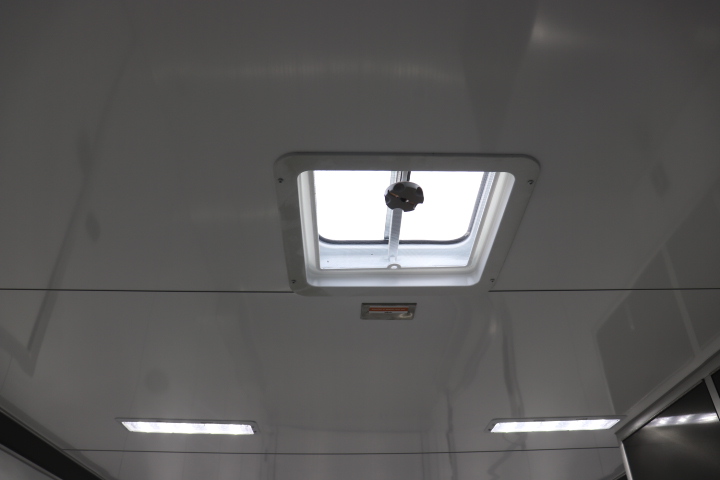

| (1) Manual Roof Vent |
| 7' Interior Height |
| (8) 5000# Recessed D-Rings |
| 4' Beavertail |

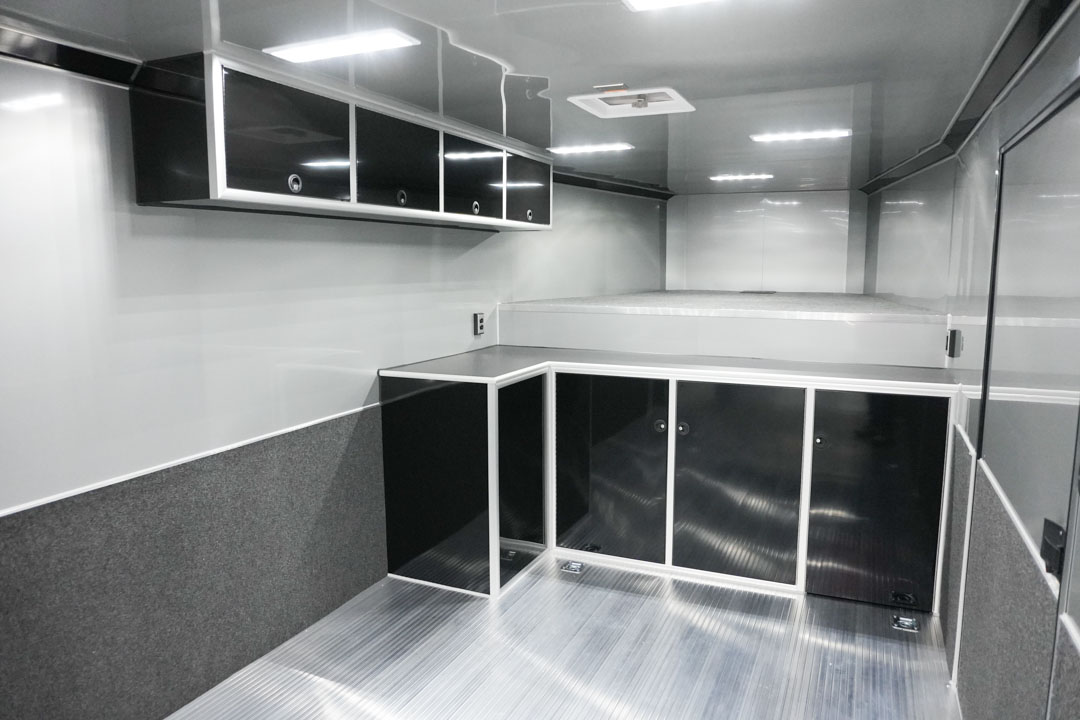

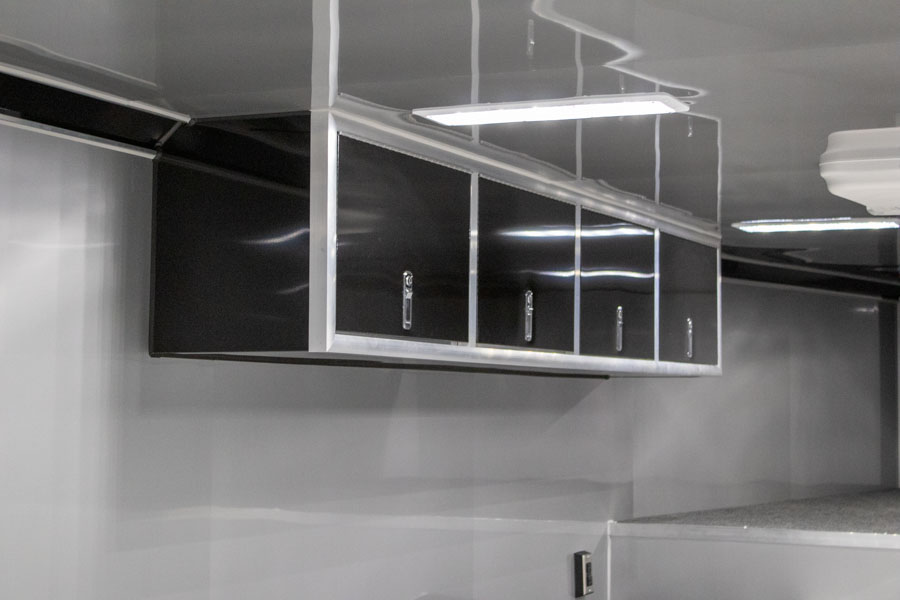

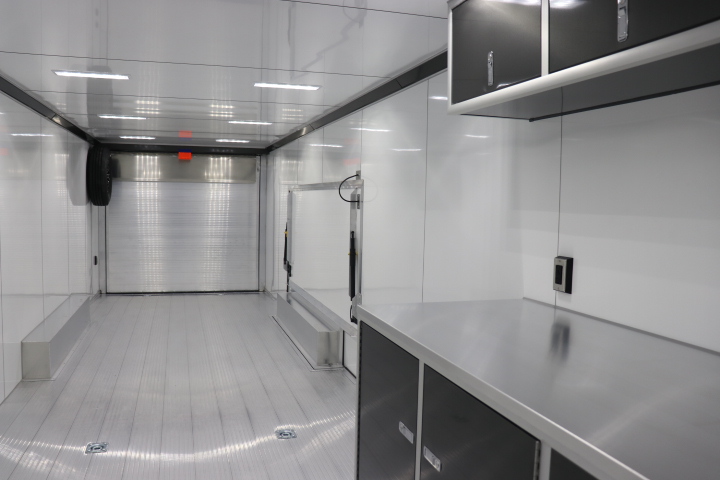

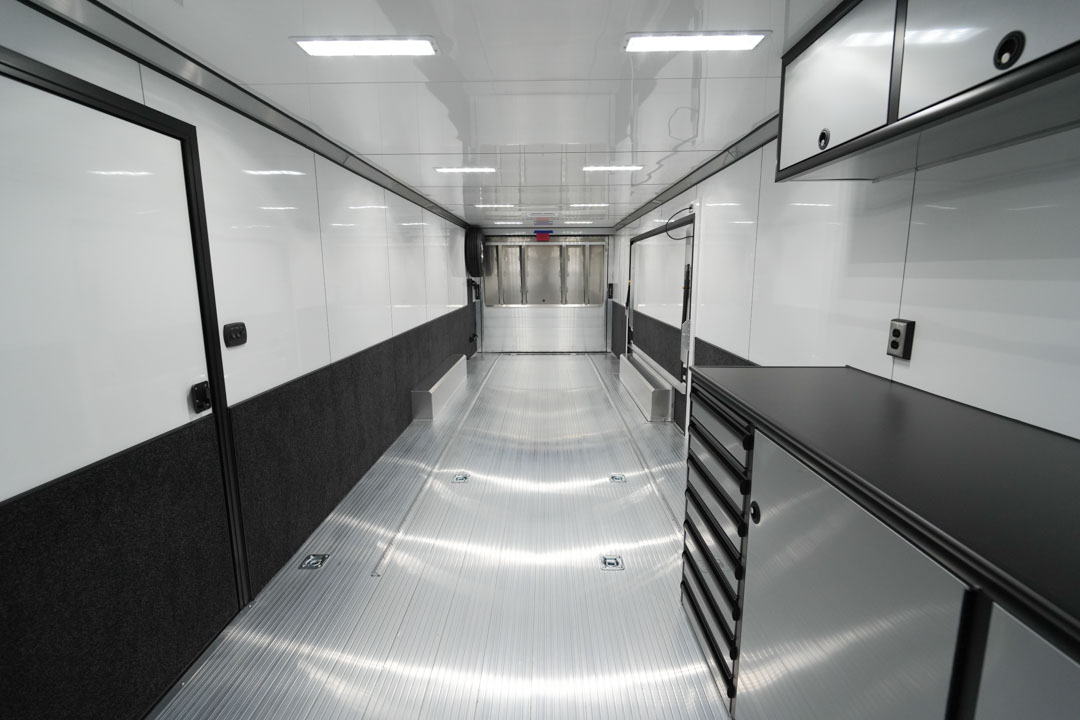

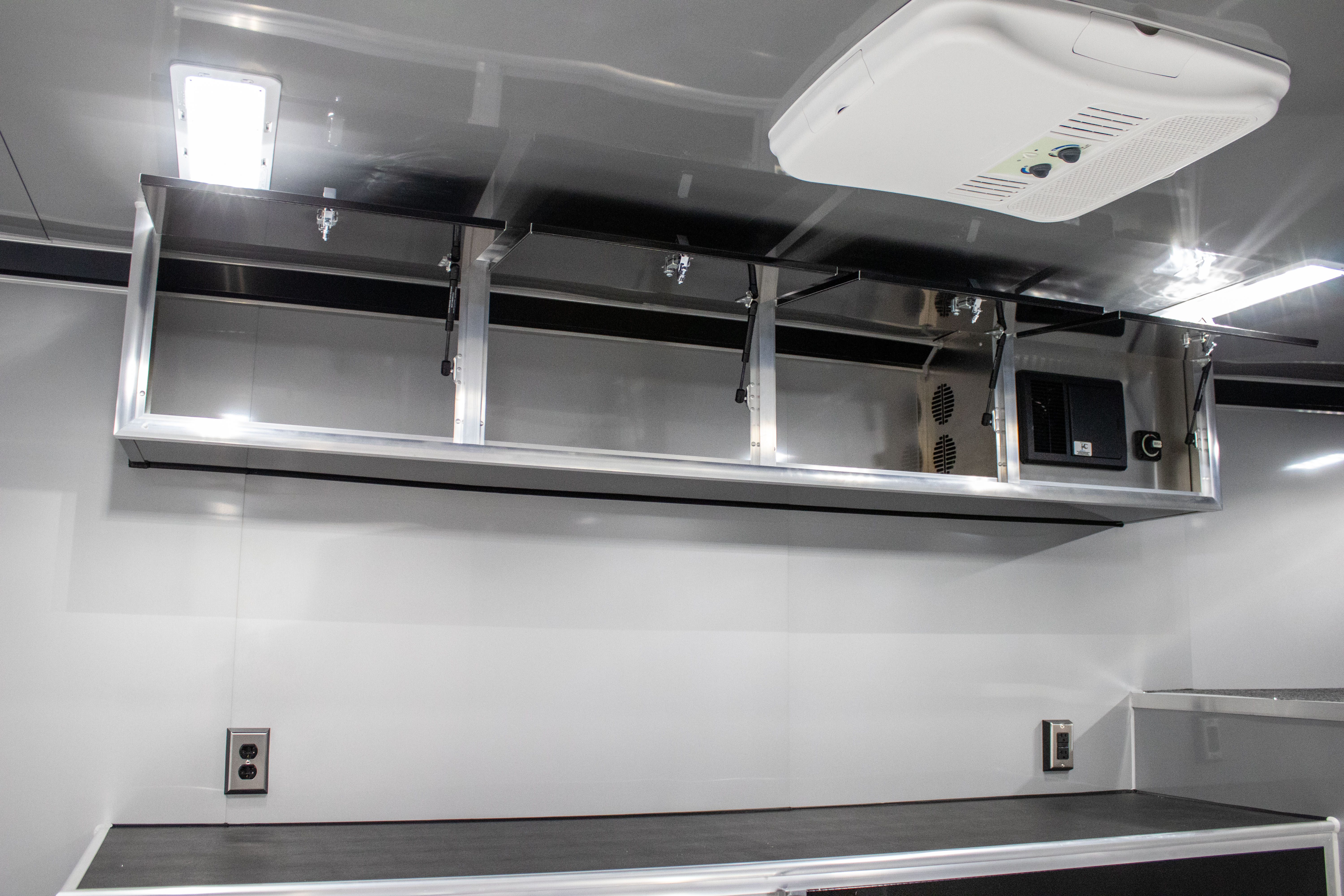

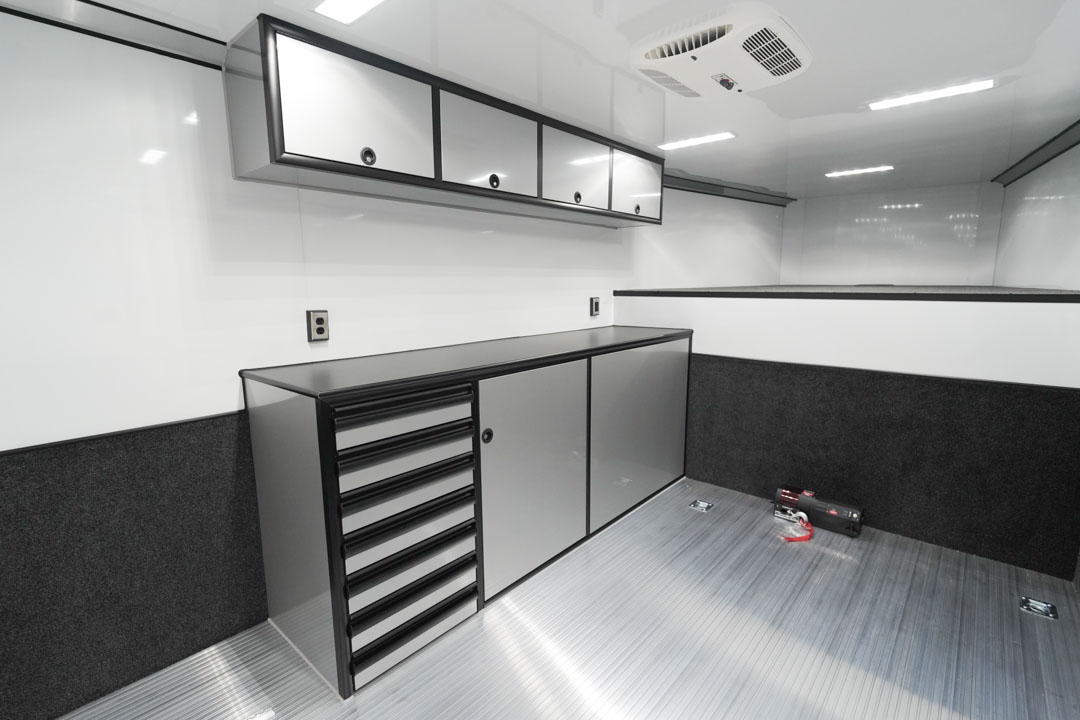

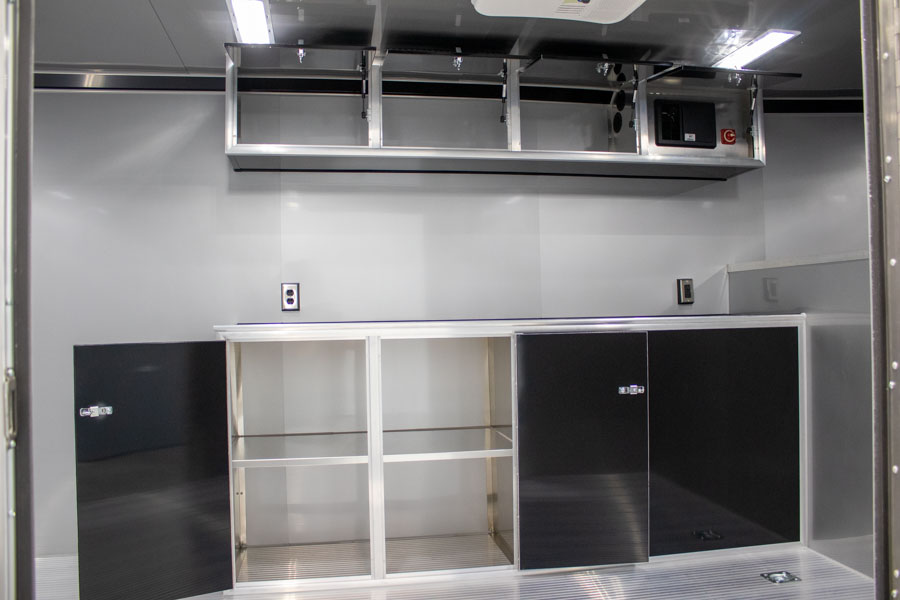

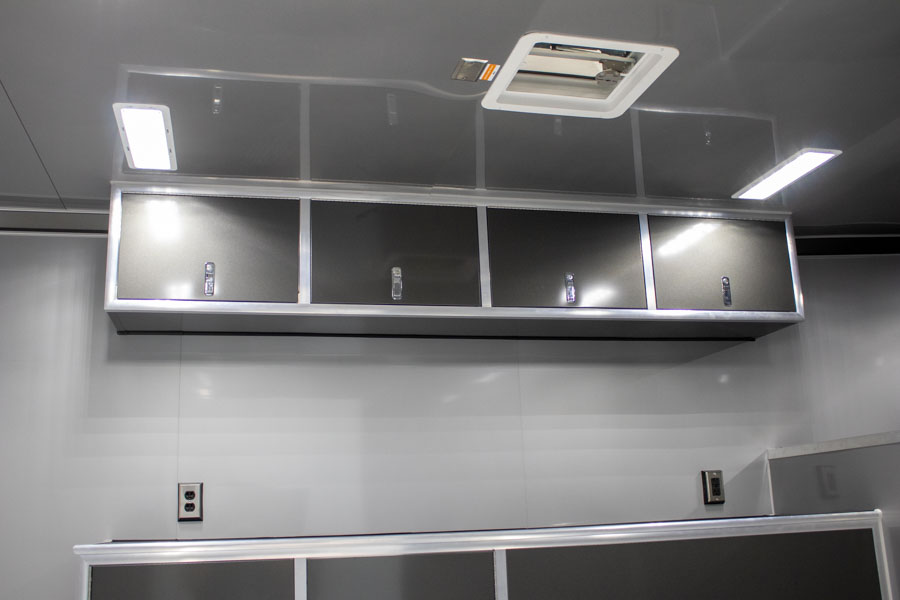

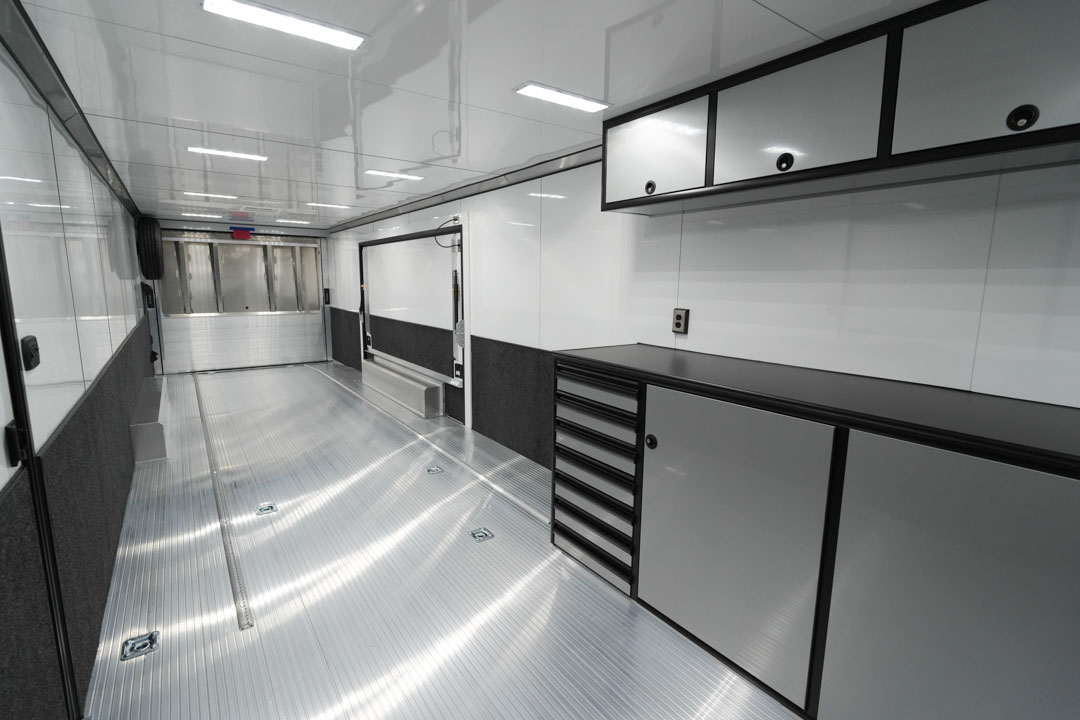

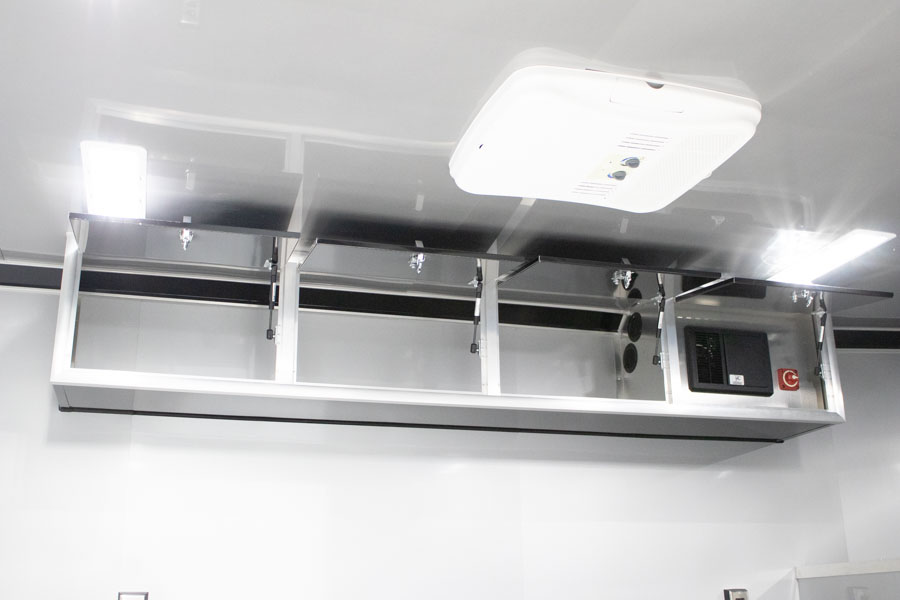

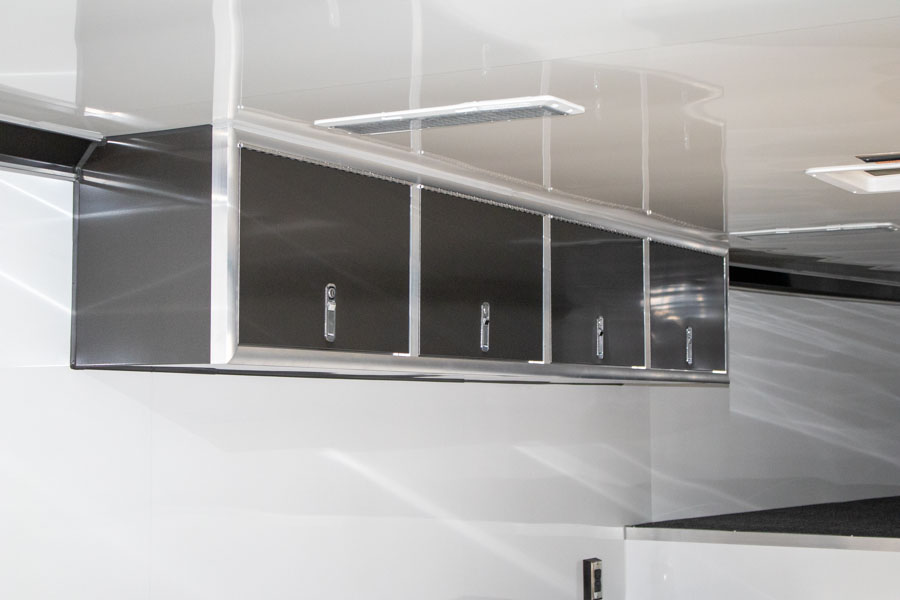

| 8' Upper Aluminum Cabinet w/ Top Hinged Doors & Shocks |

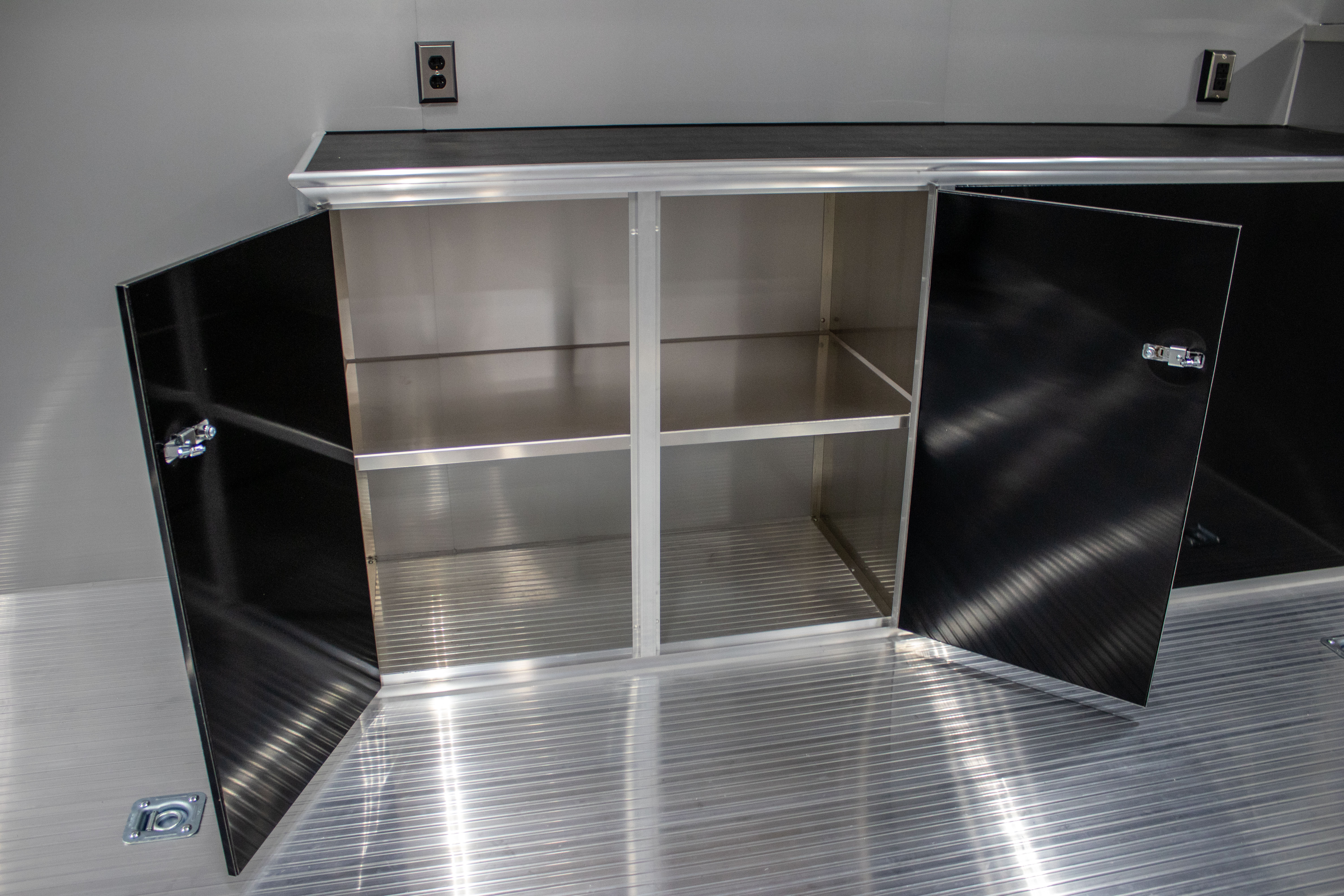

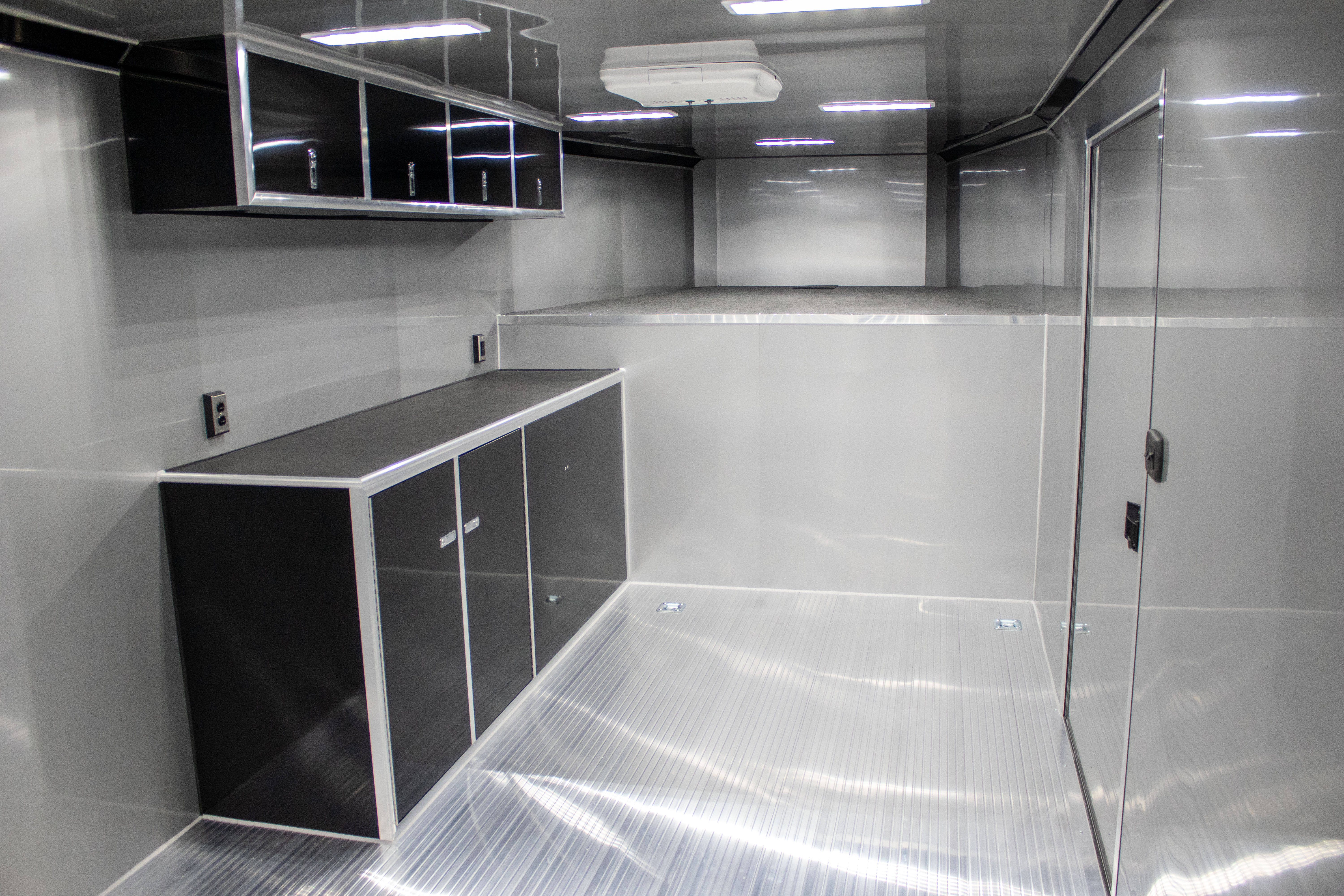

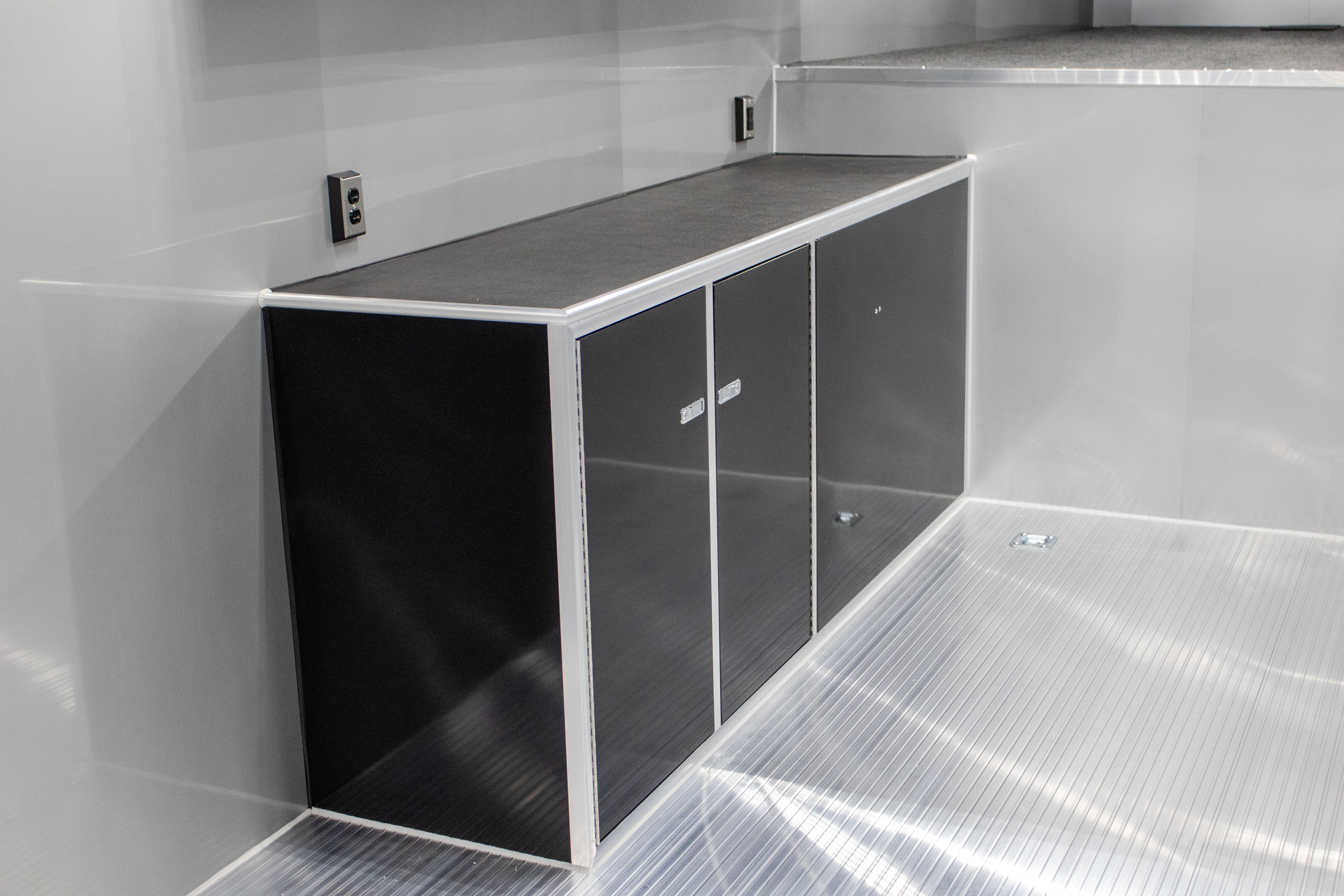

| 8' Lower Aluminum Cabinet w/ Black HDPE Countertop |

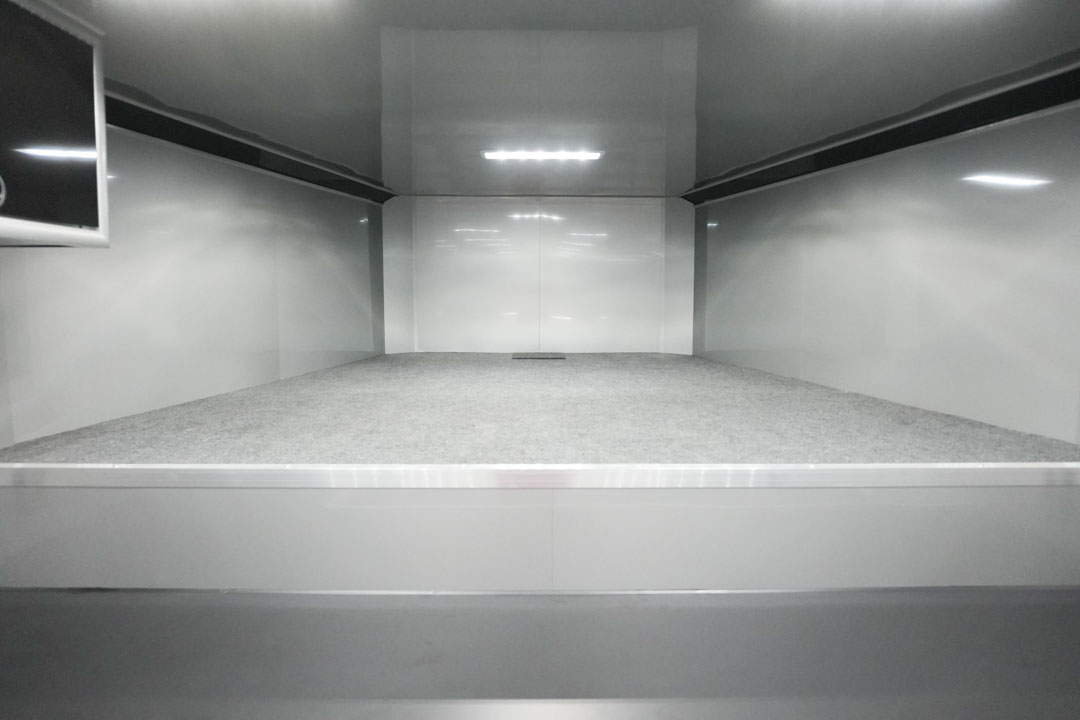

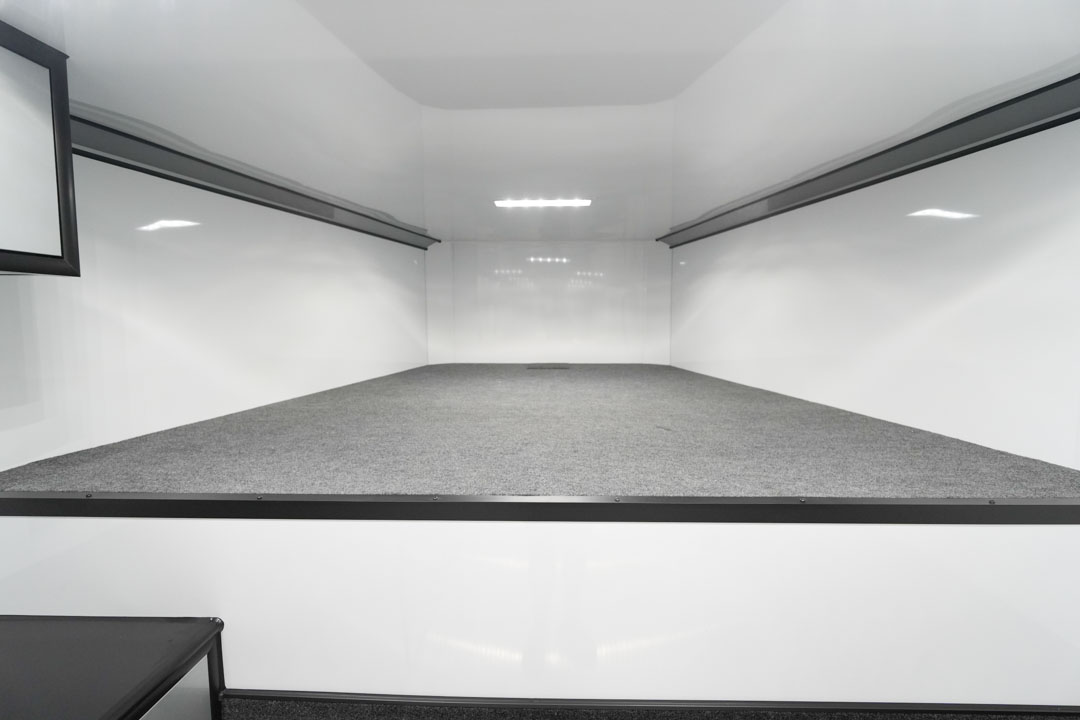

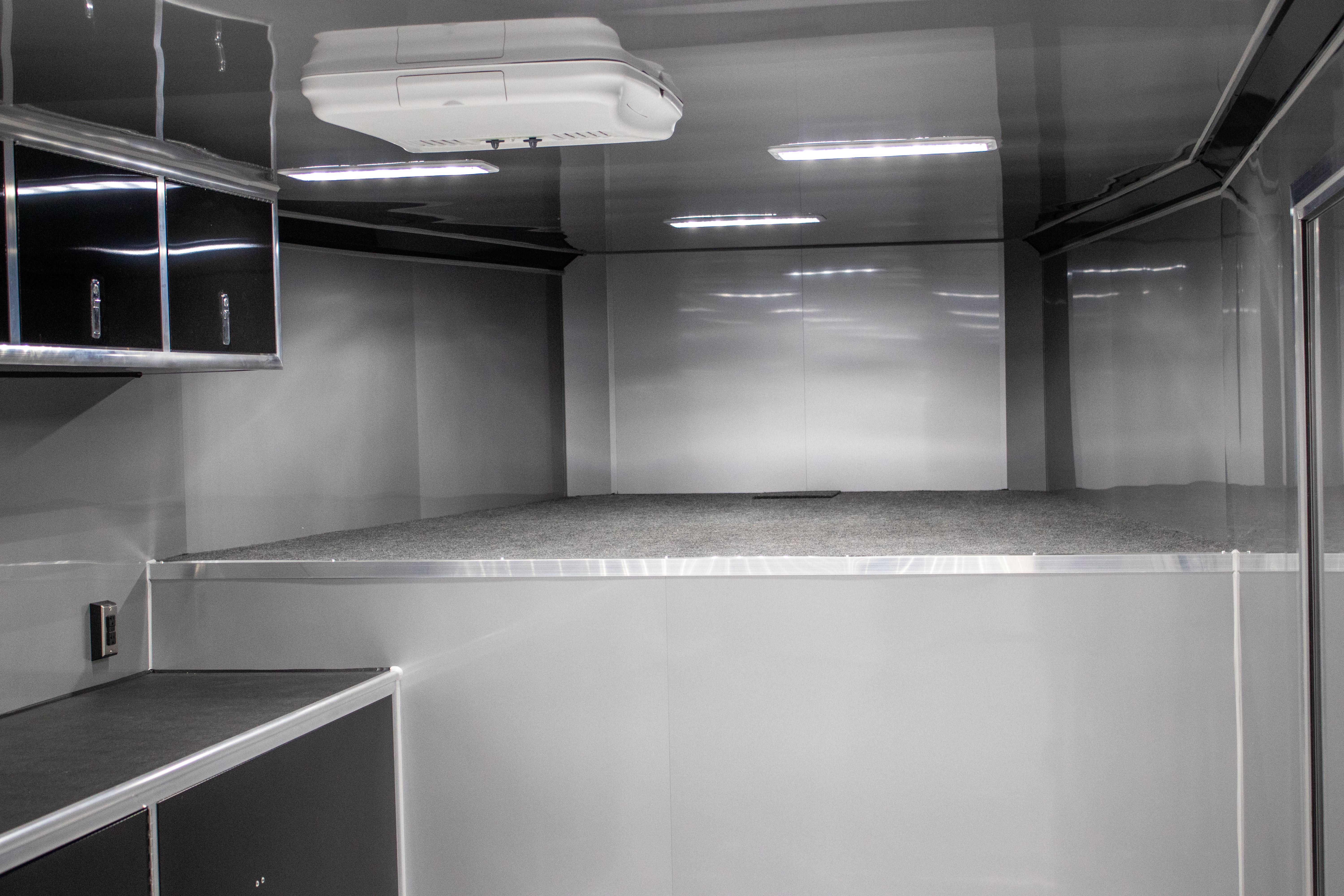

| Gray Carpet on Bunk Floor |
| (11) 18” 12v Ceiling Lights with Switch |
| Exterior |
|---|
| .040 Aluminum Skin |
| LED Exterior Flood Lights |

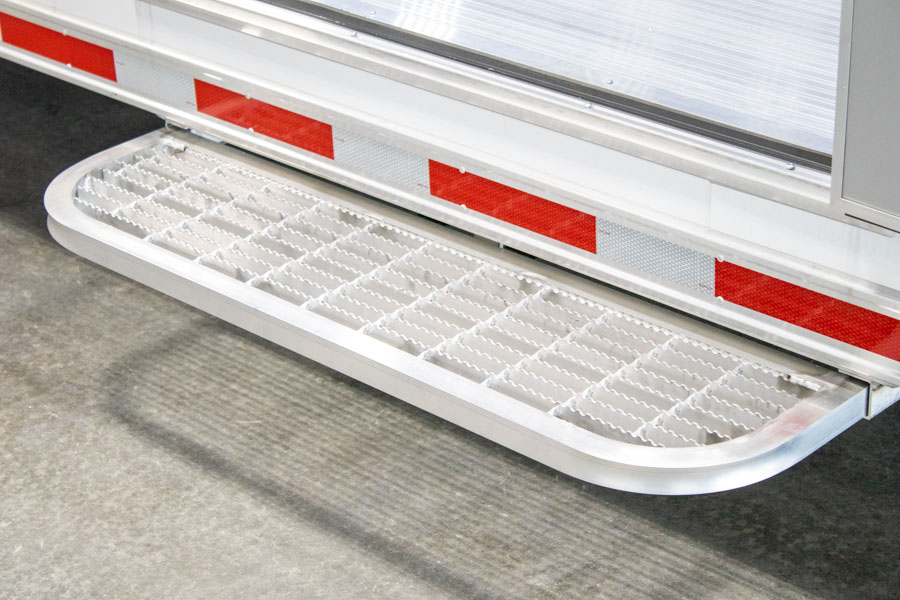

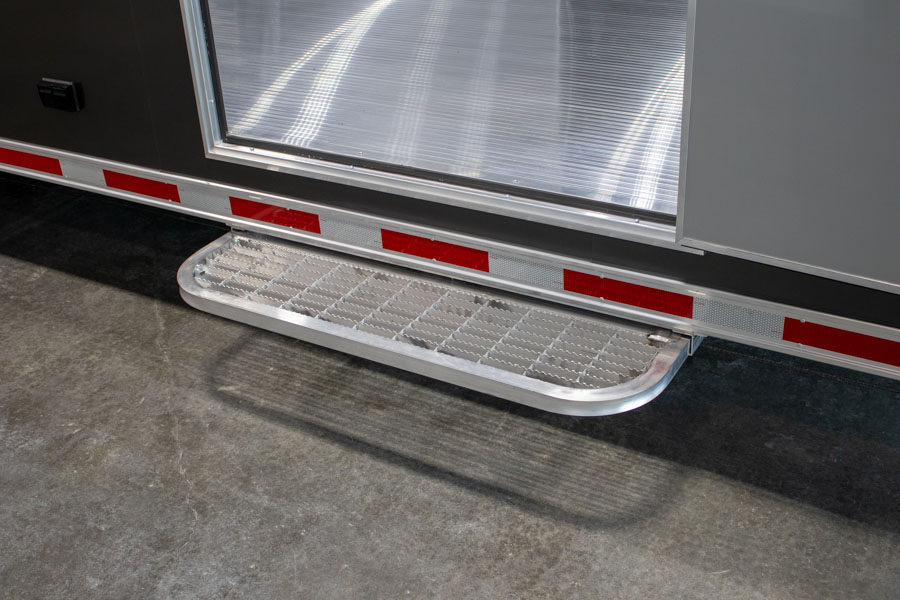

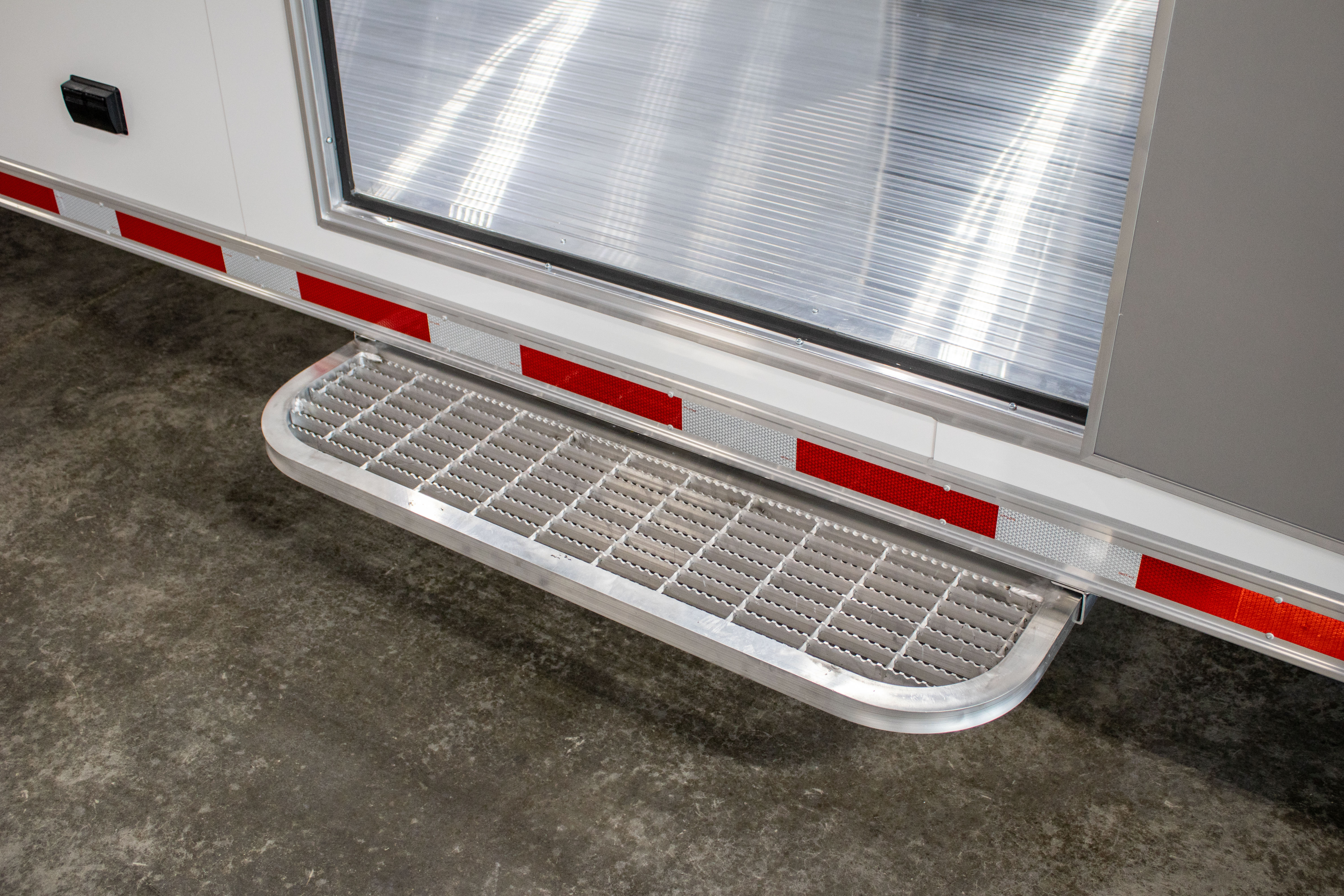

| Slide Out Aluminum Step at Entrance Door |

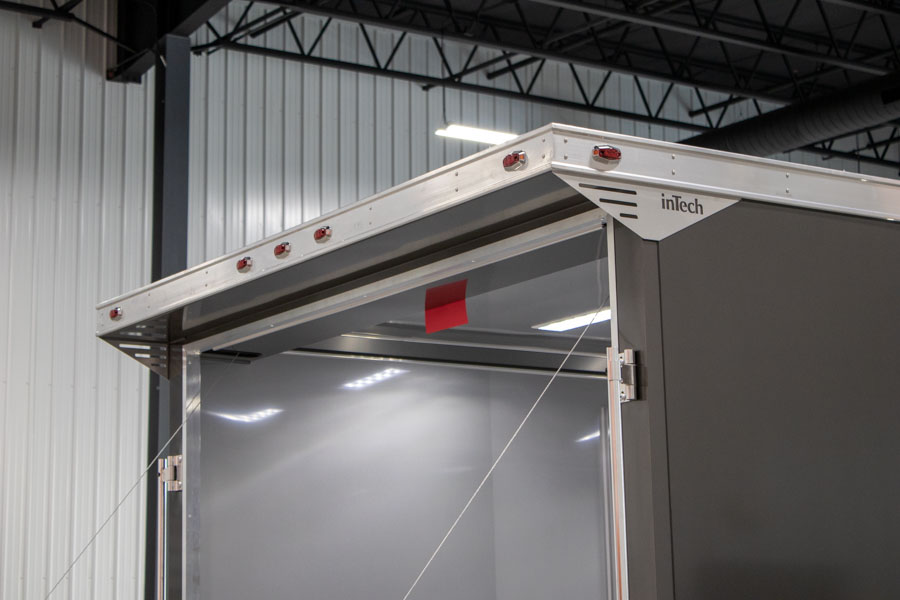

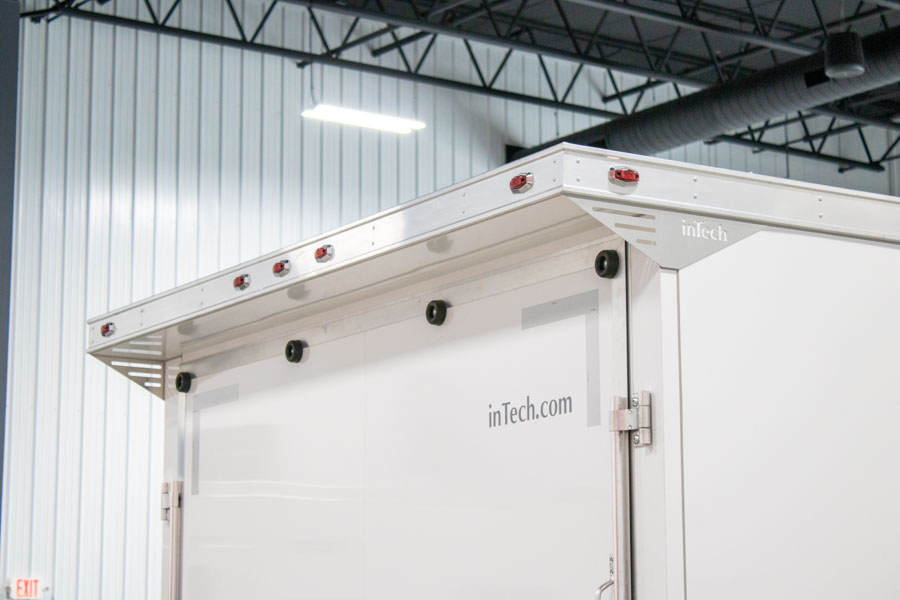

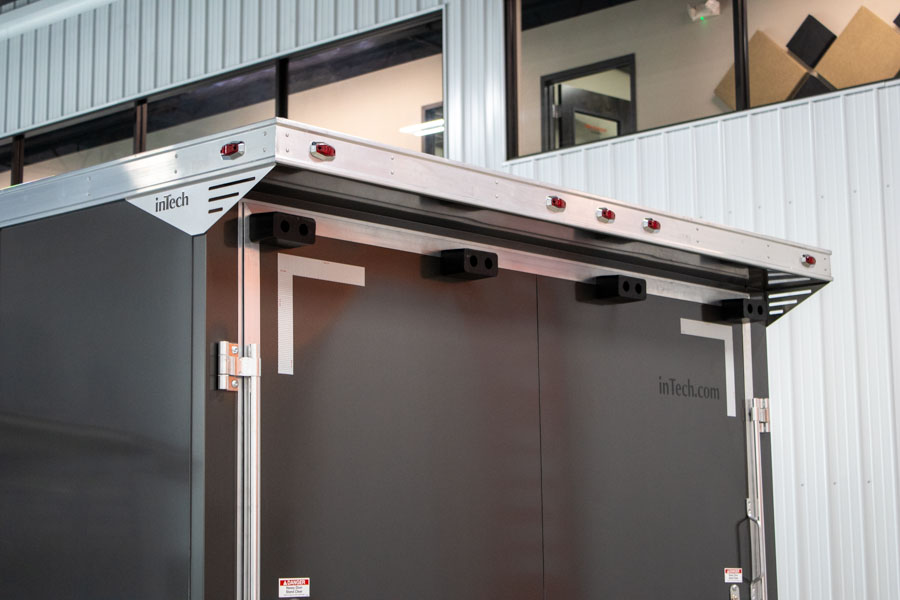

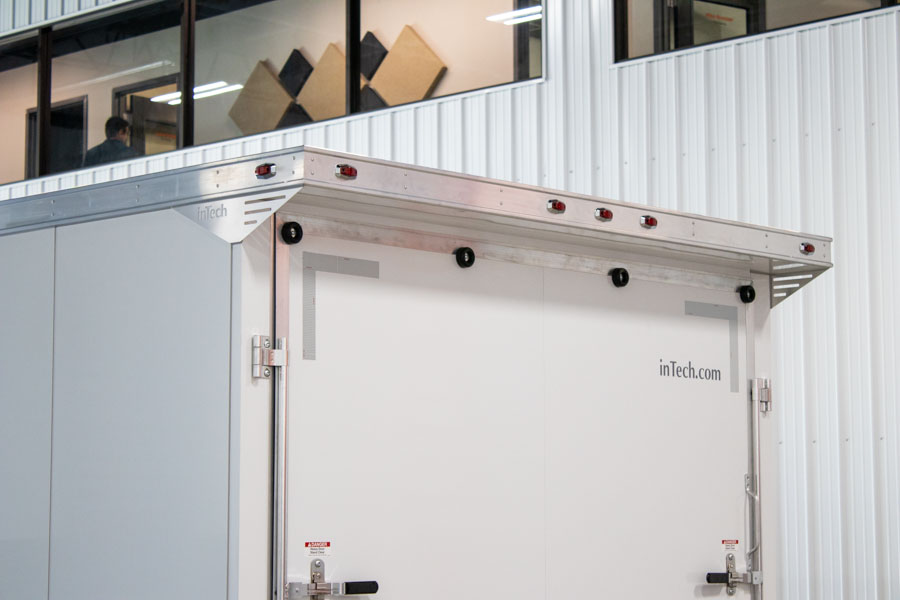

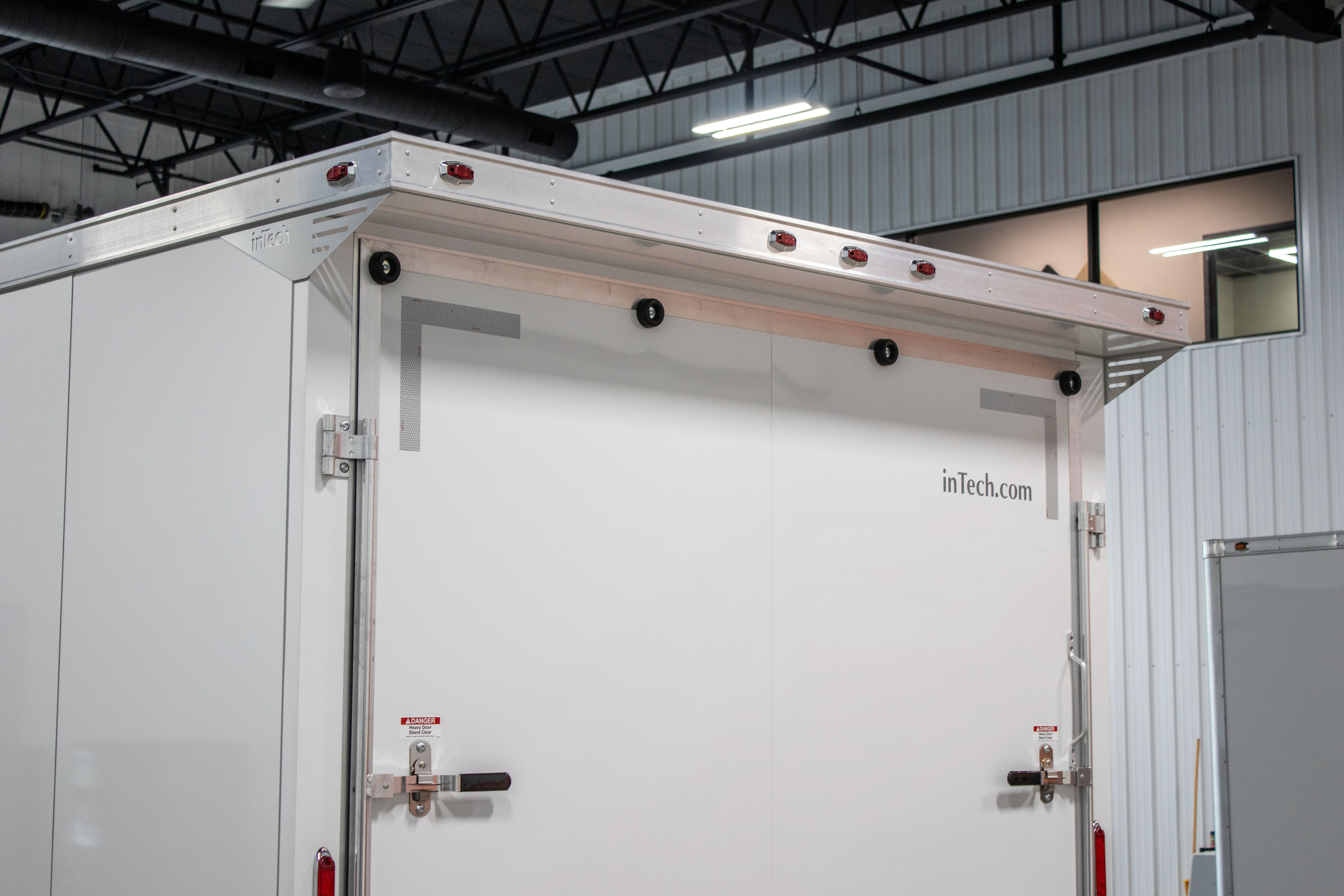

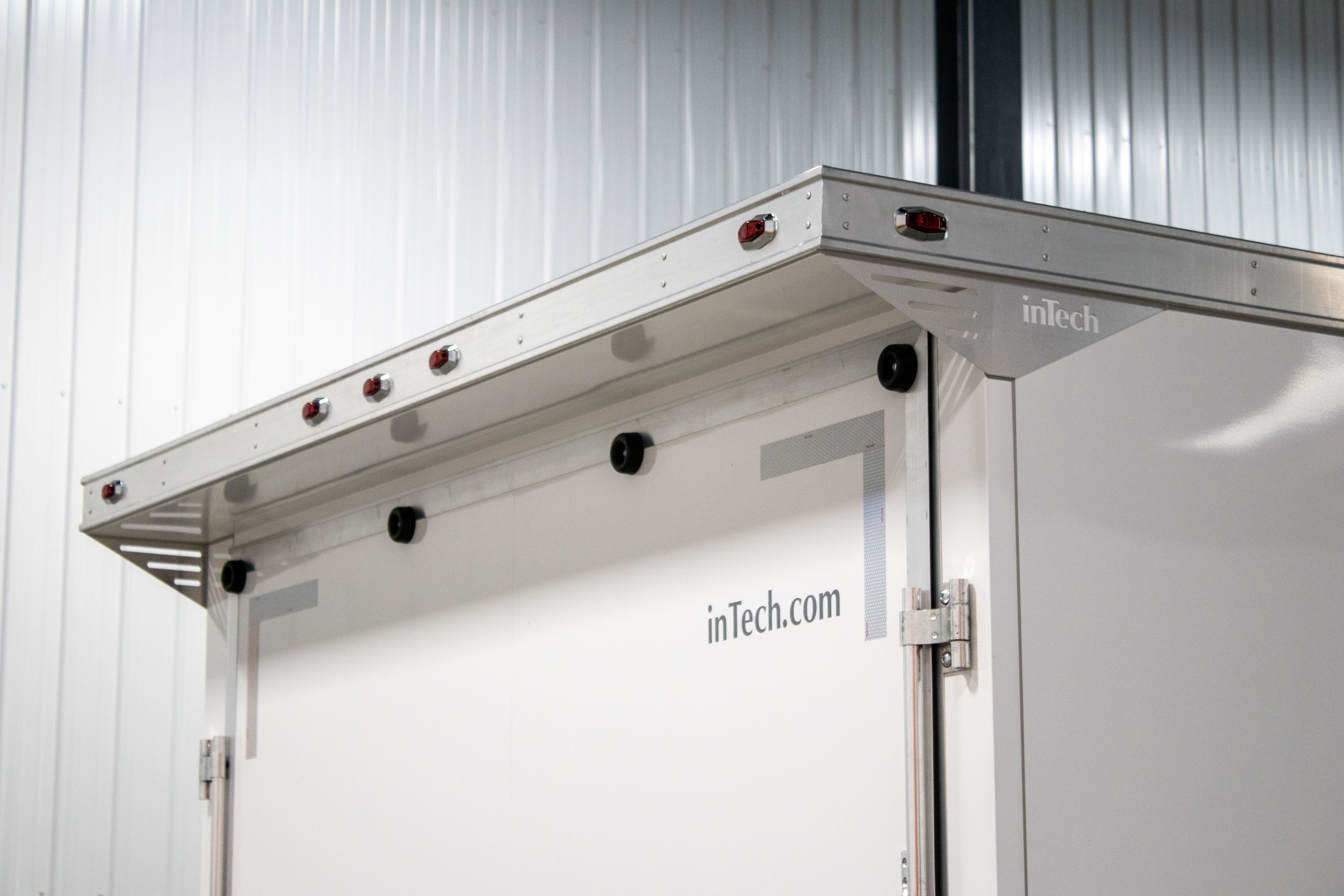

| Lite Series Rear Spoiler |
| Screwless/Rivetless Aluminum Exterior |
| One Piece Flat Aluminum Roof |
| 4” Mill Finish Upper & Lower Rub Rail |
| LED Clearance Lights |
| LED Slimline Taillights |
| 48” 405 Series Entrance Door |
| RV Flushlock Entrance Door Latch |

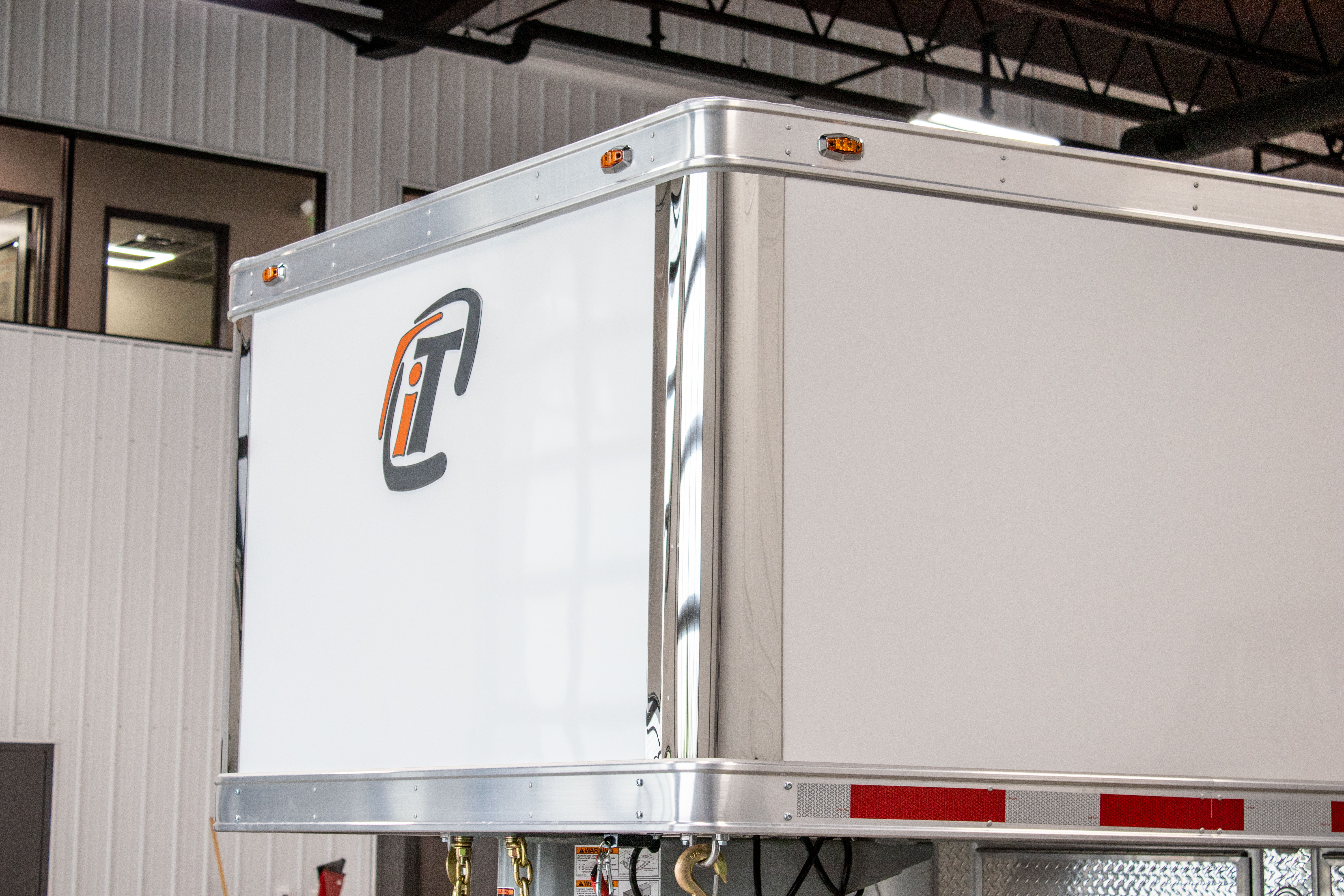

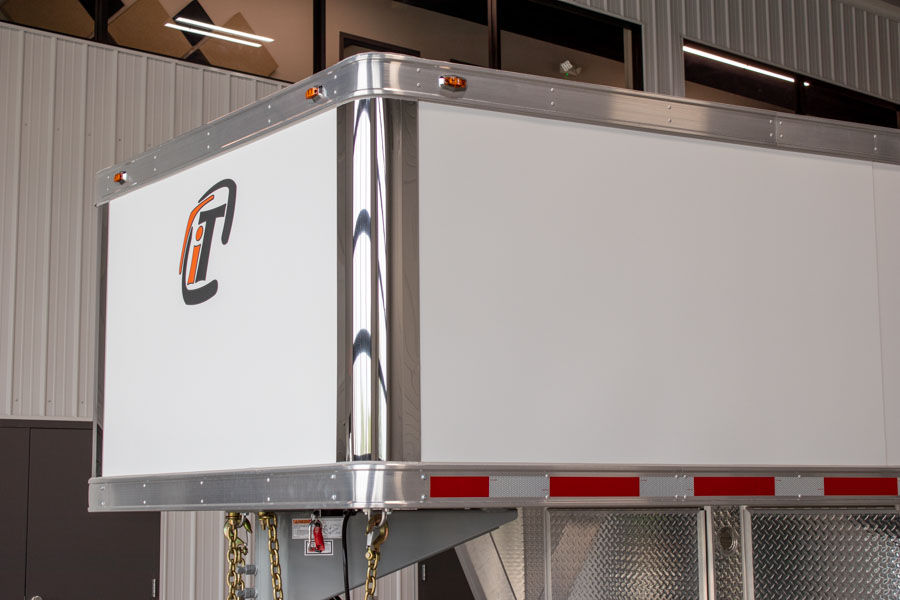

| Stainless Steel #8 High Polish Front Verticals |
| Polished Cast Aluminum Rear Corners |

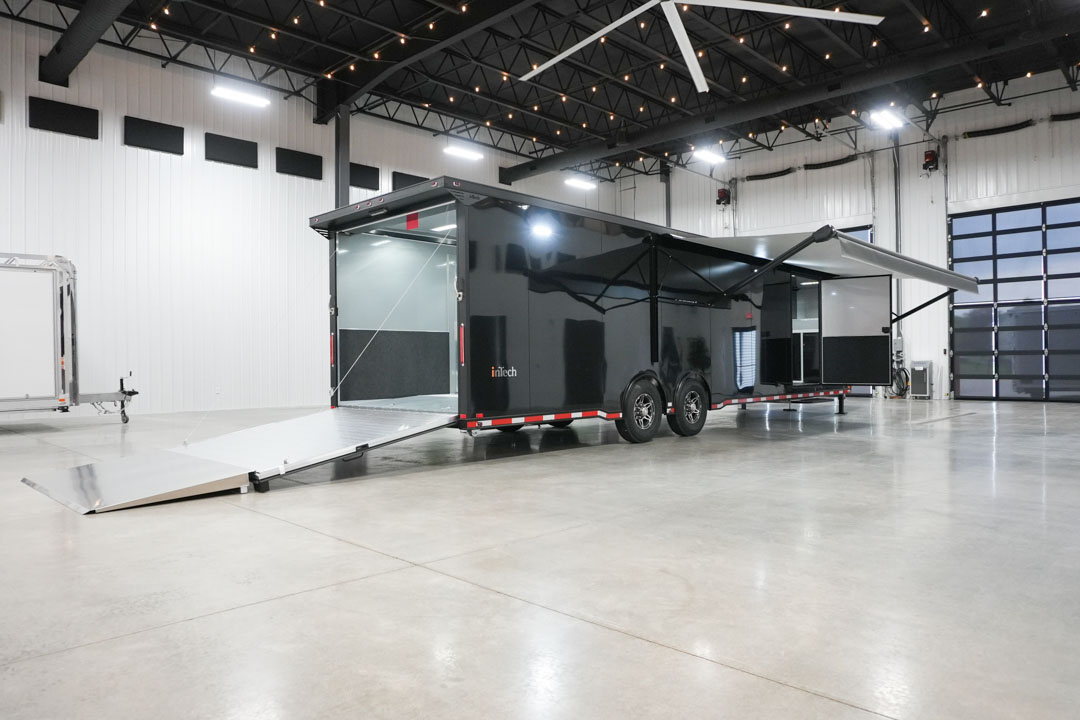

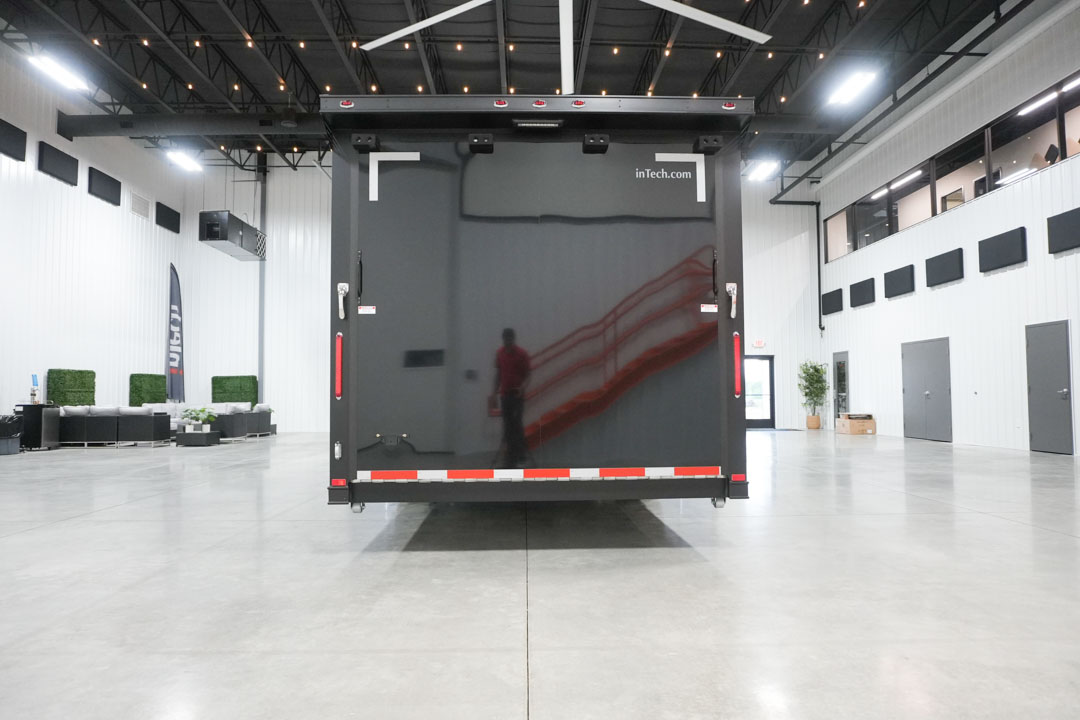

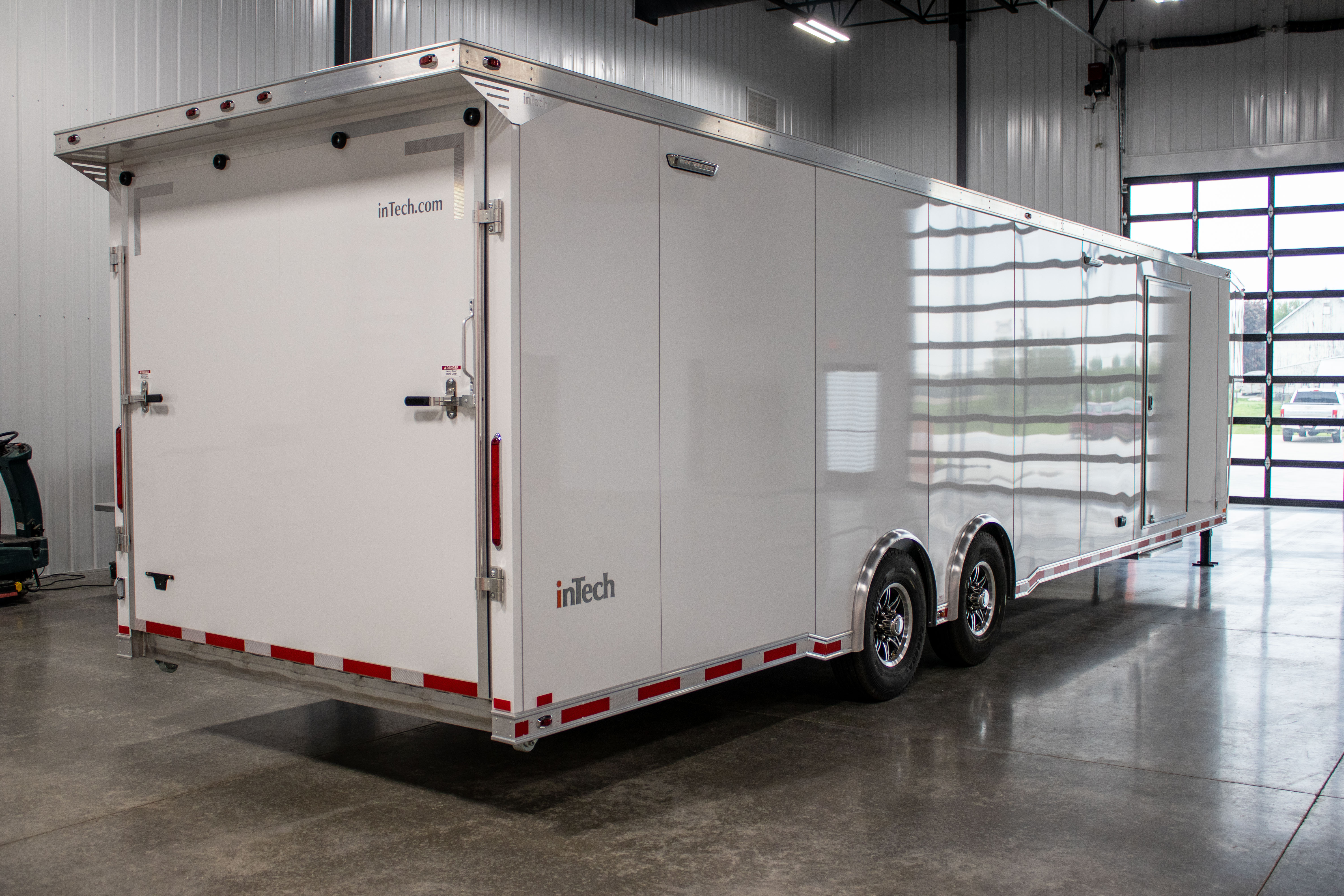

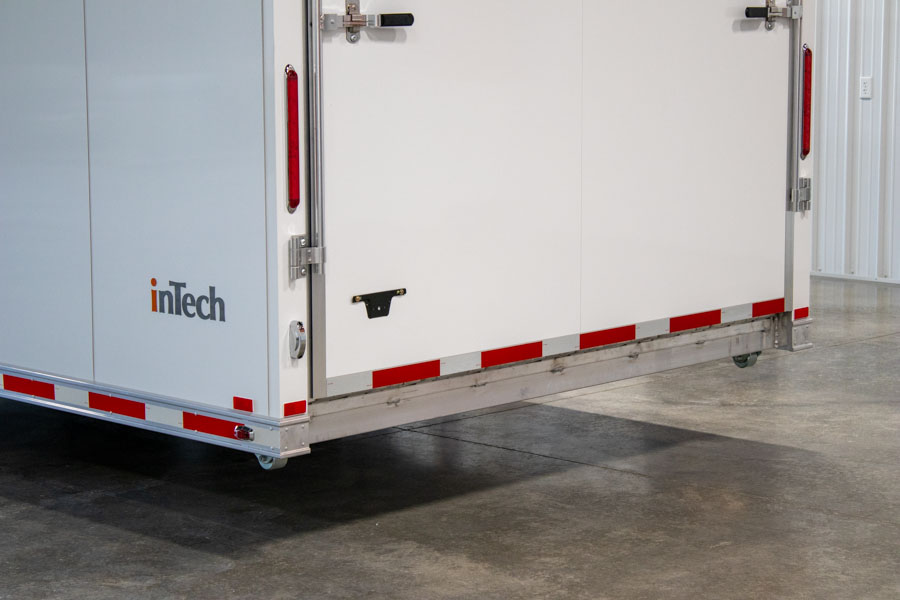

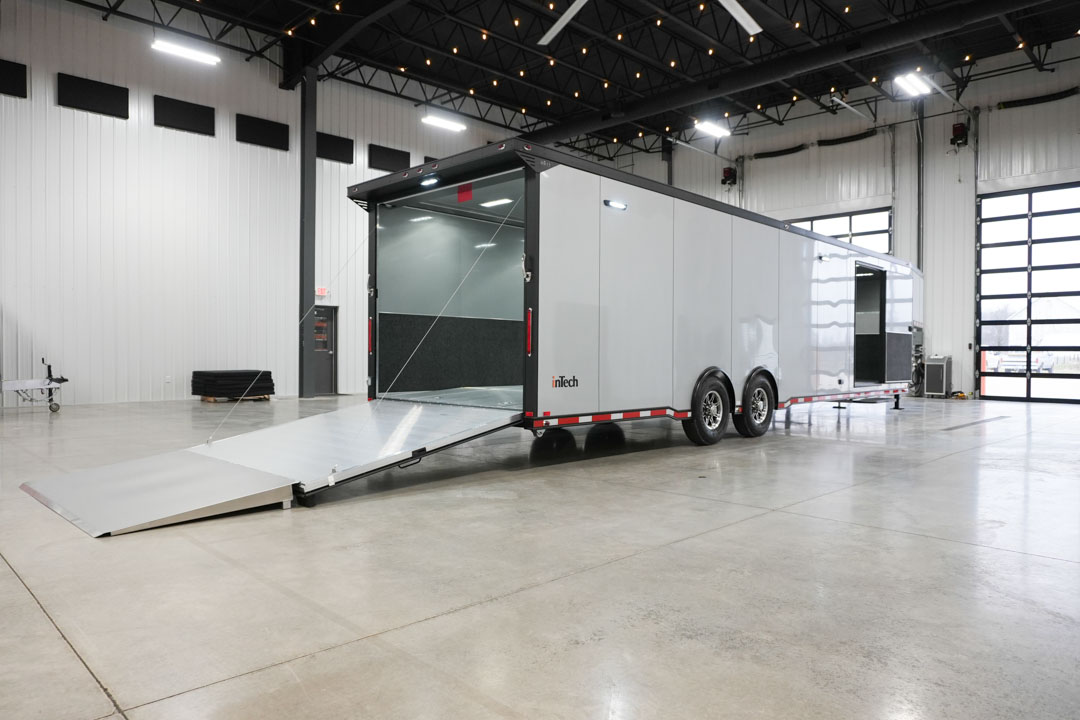

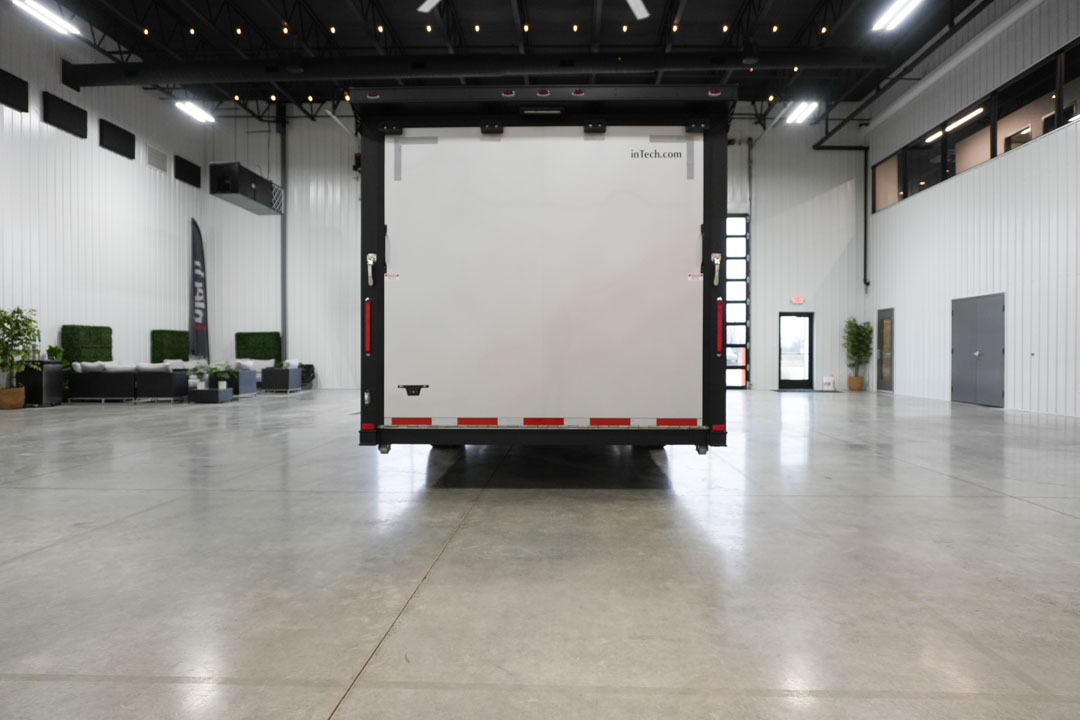

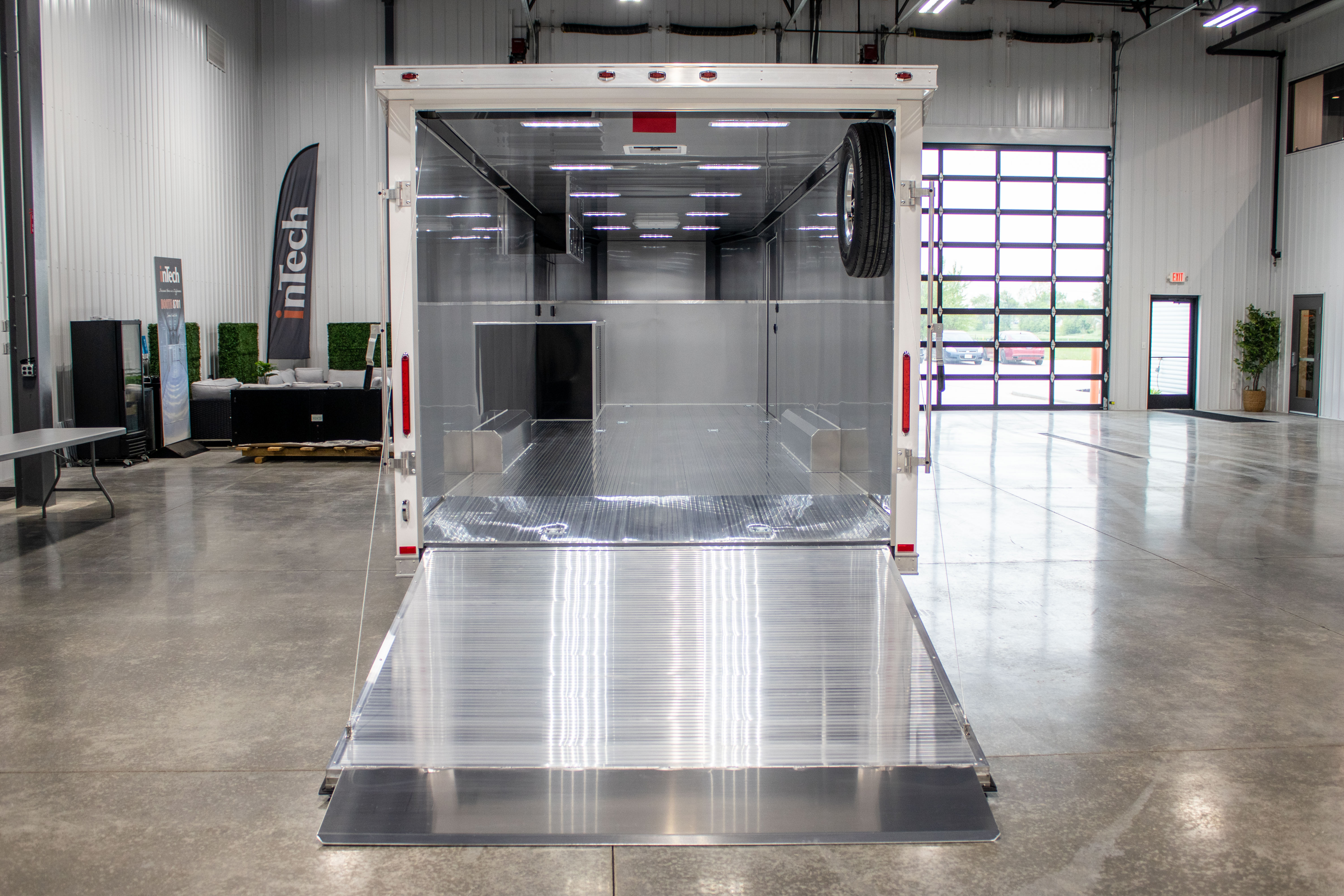

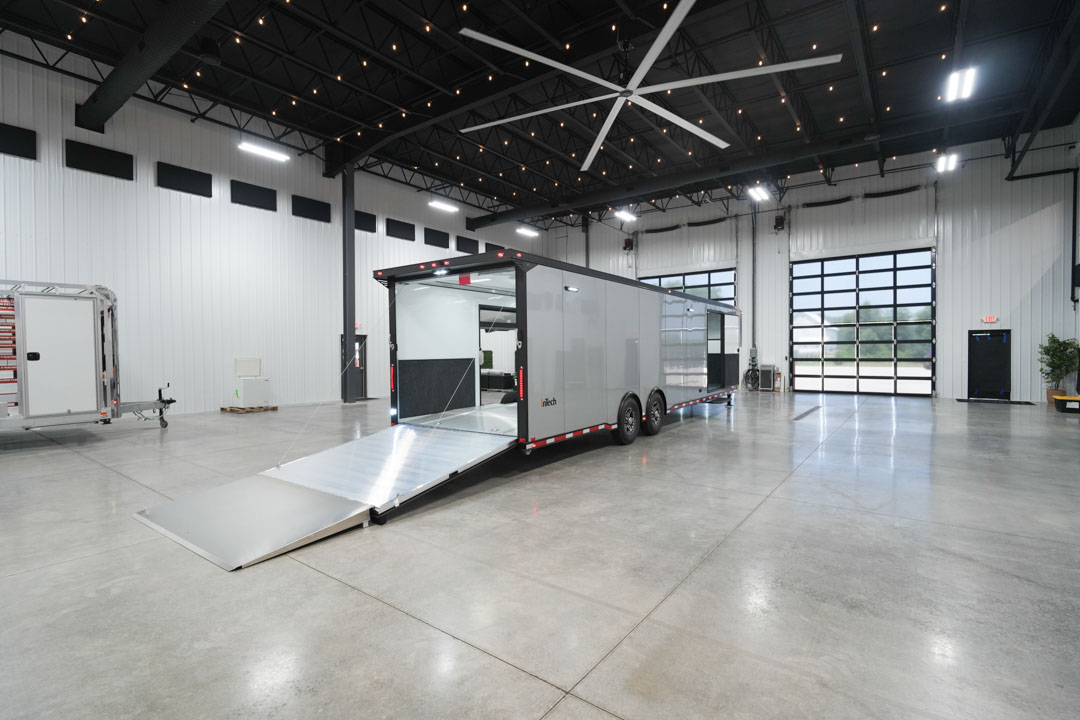

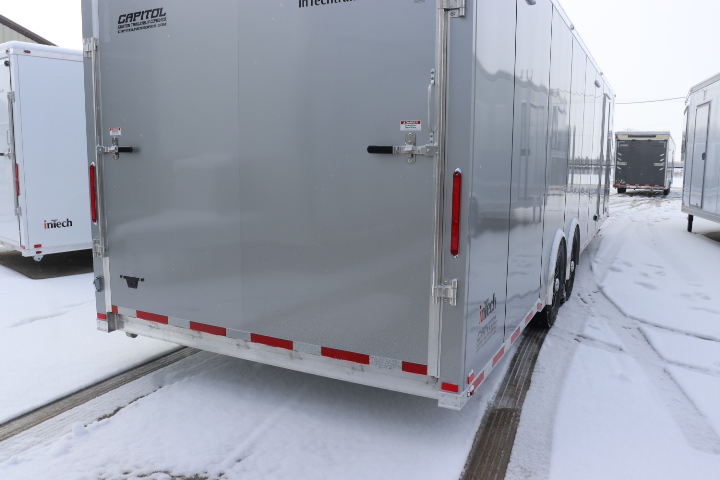

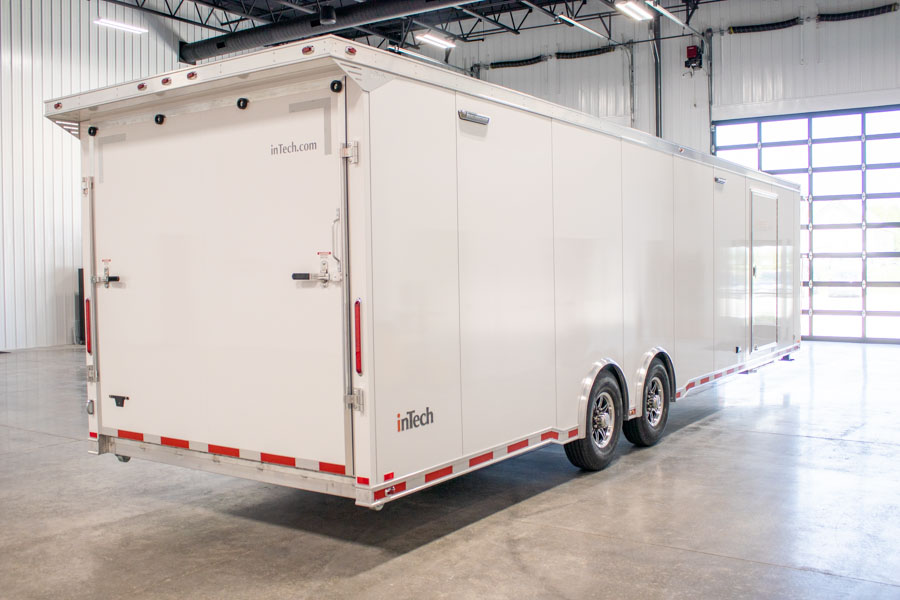

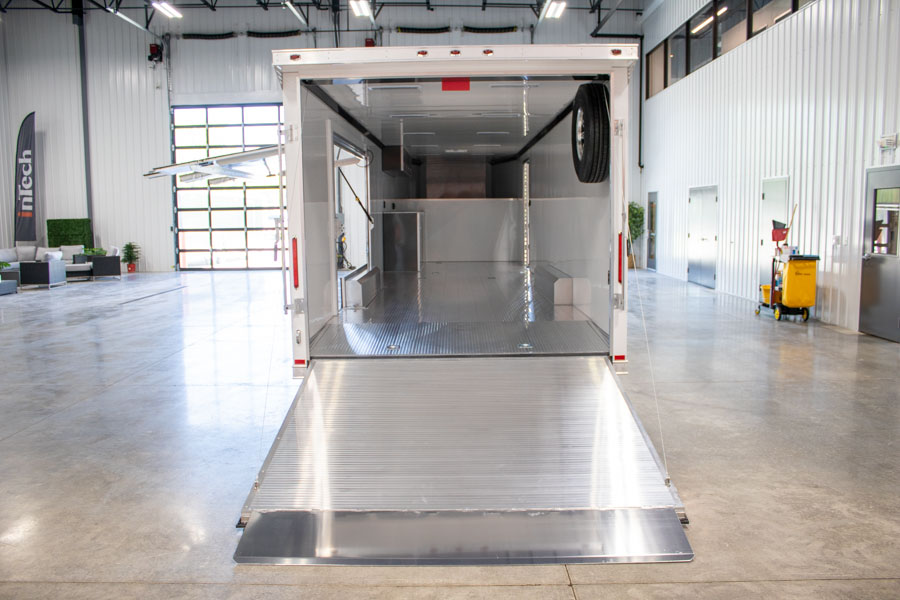

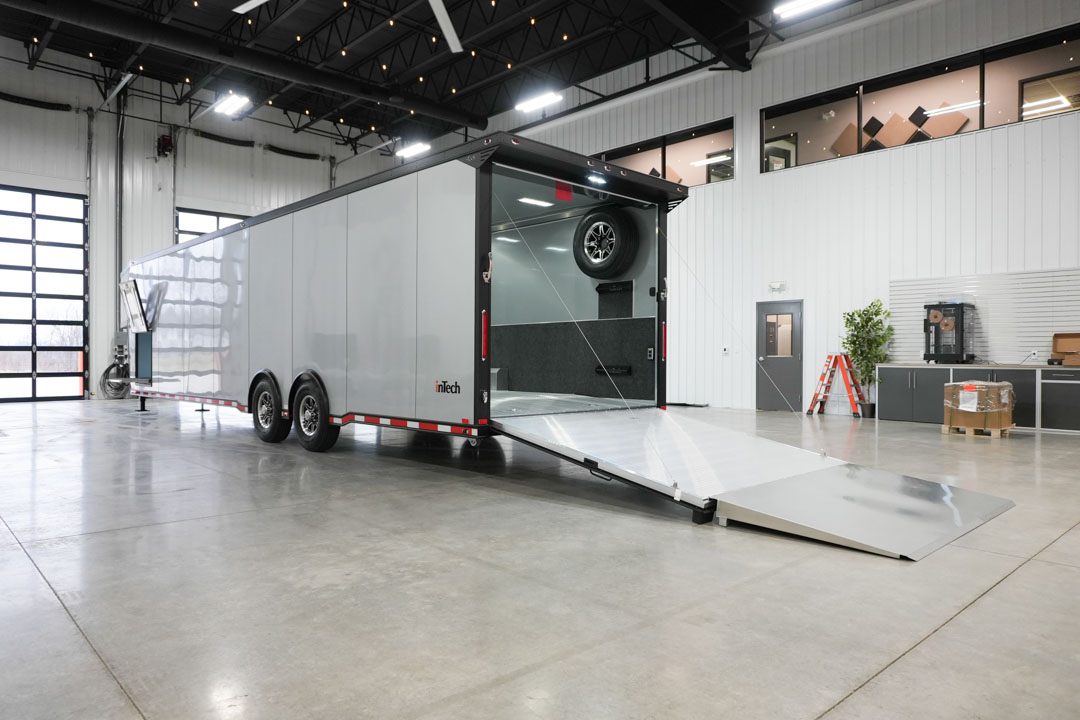

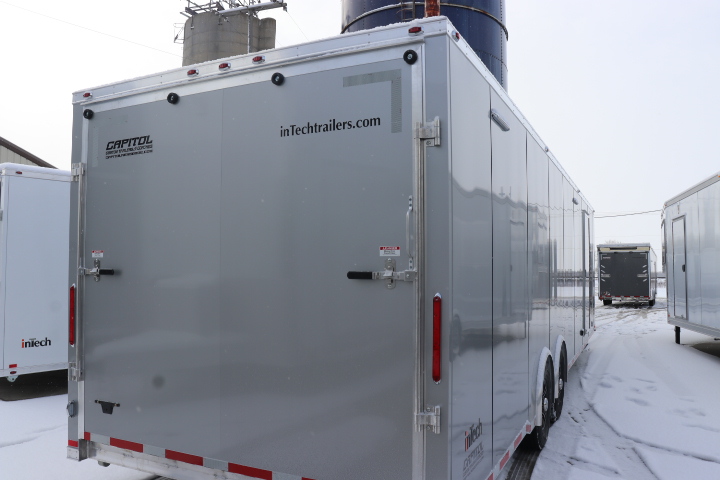

| Rear Ramp Door W/ Continuous Hinge |
| Aluminum Bar Locks - Rear Ramp Door |

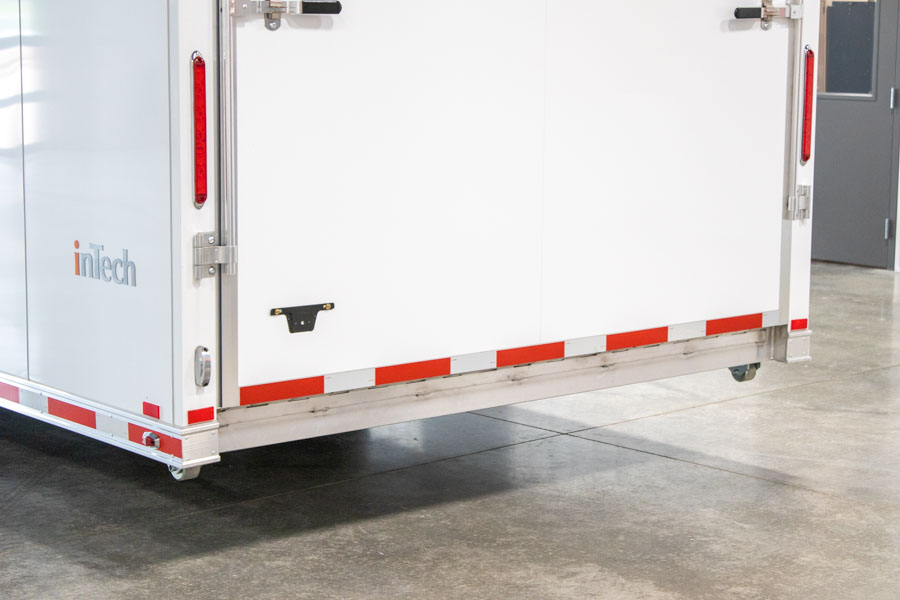

| Rear Caster Wheels |

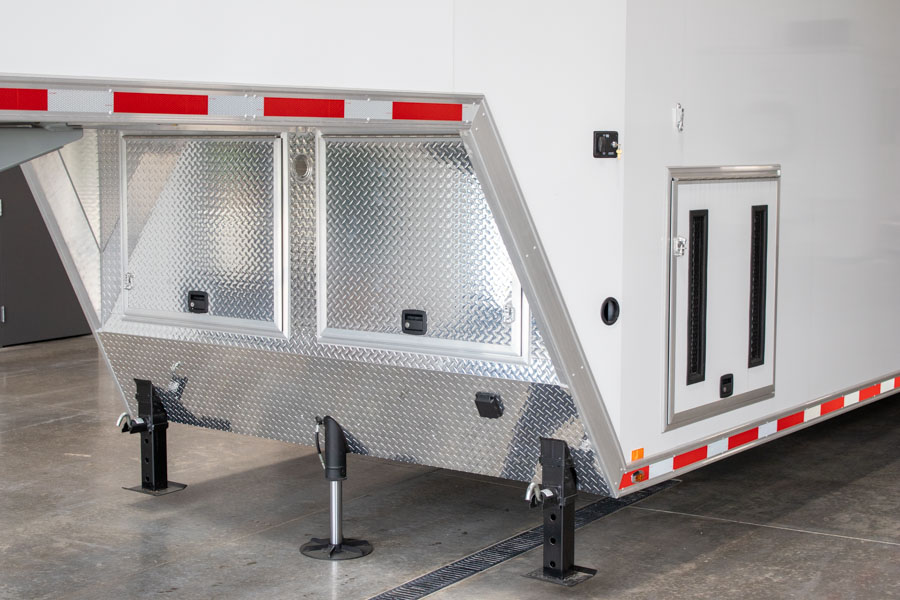

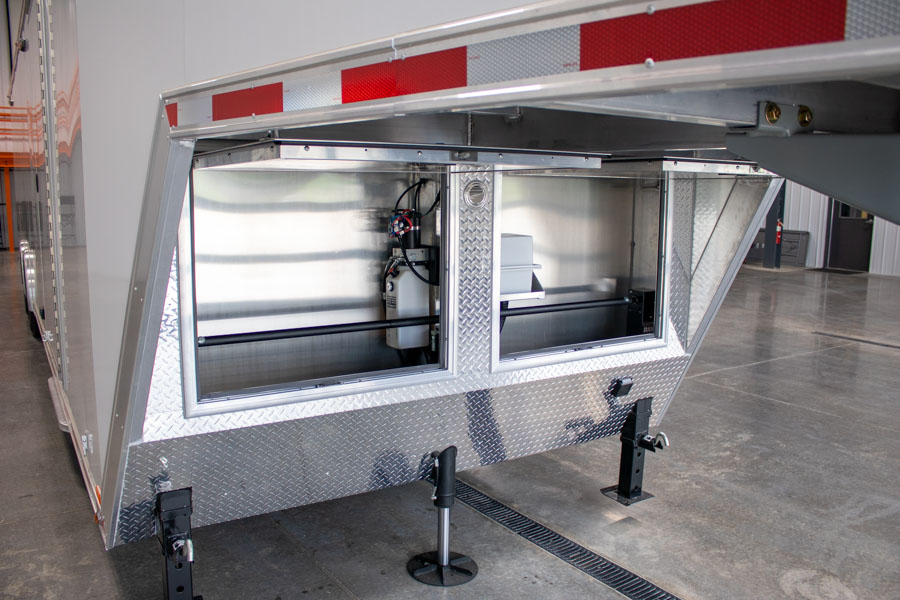

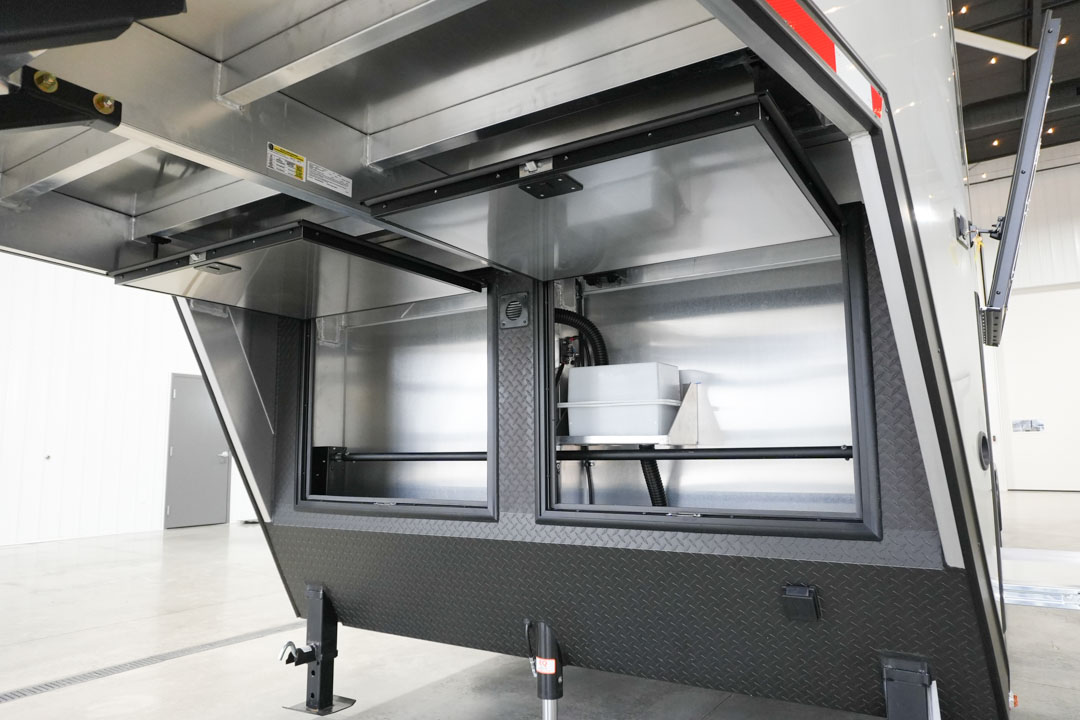

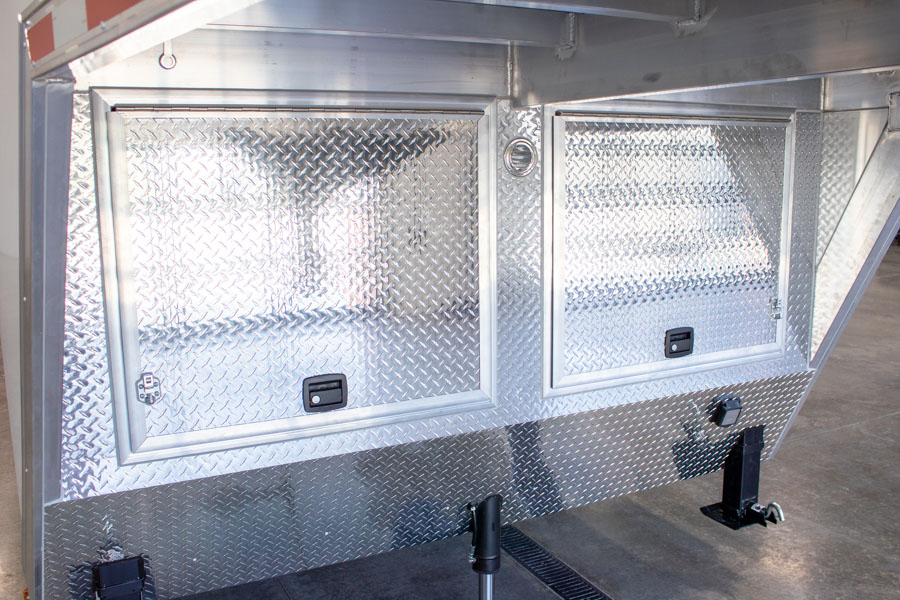

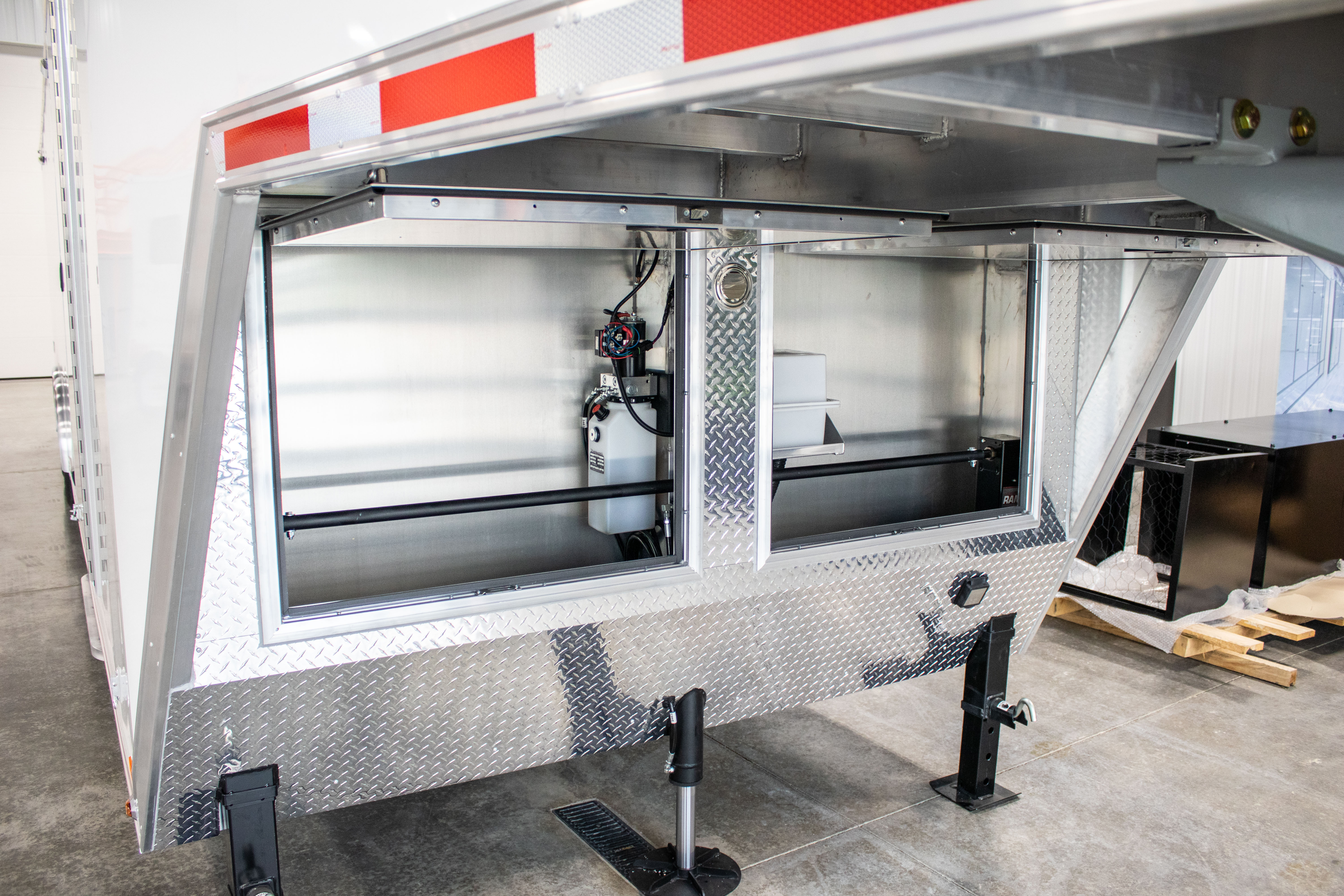

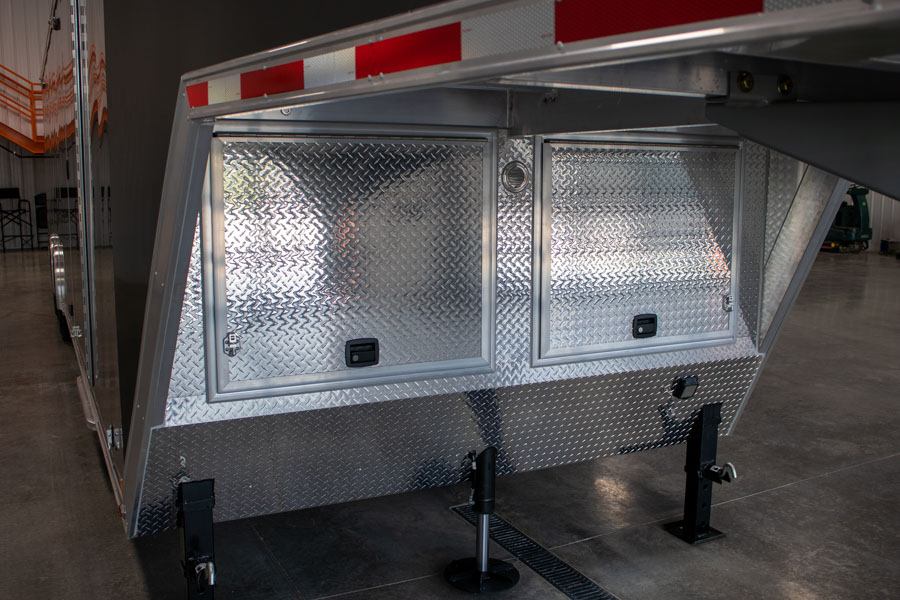

| ATP Enclosed Riser Compartment with 2 Storage Doors |
| Electrical |
|---|
| 30 Amp Load Center |
| 12V Battery |
| 12V Fuse Panel |
| (4) 120V/20 Amp Outlets |
| 60 Amp Converter W/ Charger |

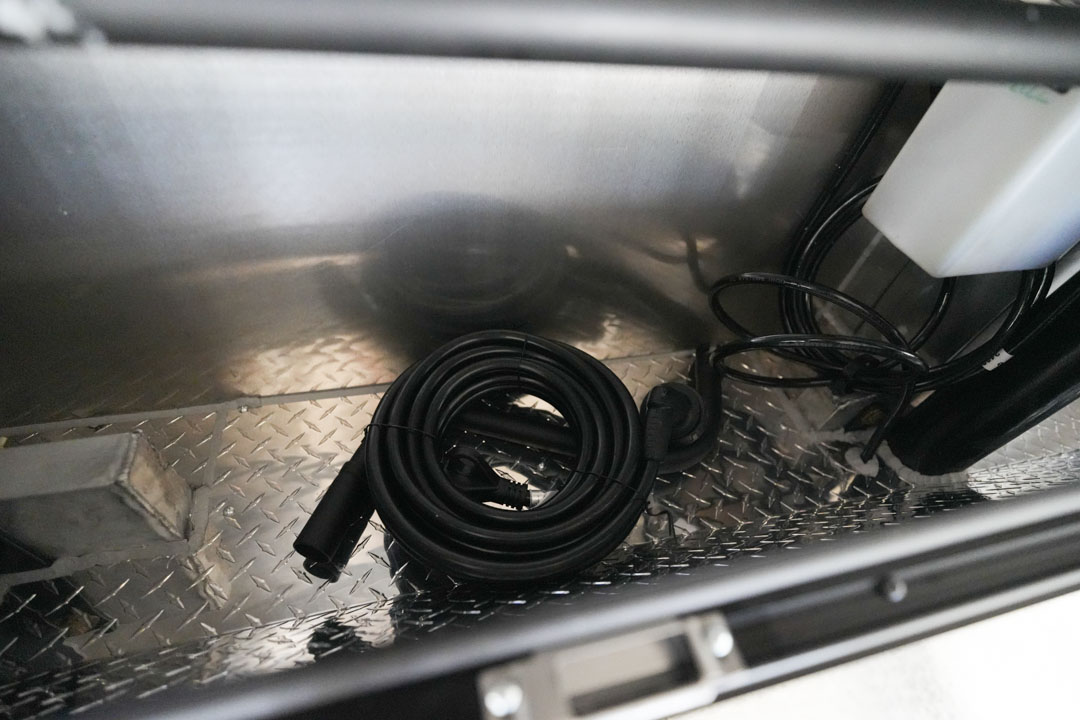

| Motorbase Plug with 25' Shore Cord |
| Brace & Wire for Future Roof A/C Installation |
Options Gallery

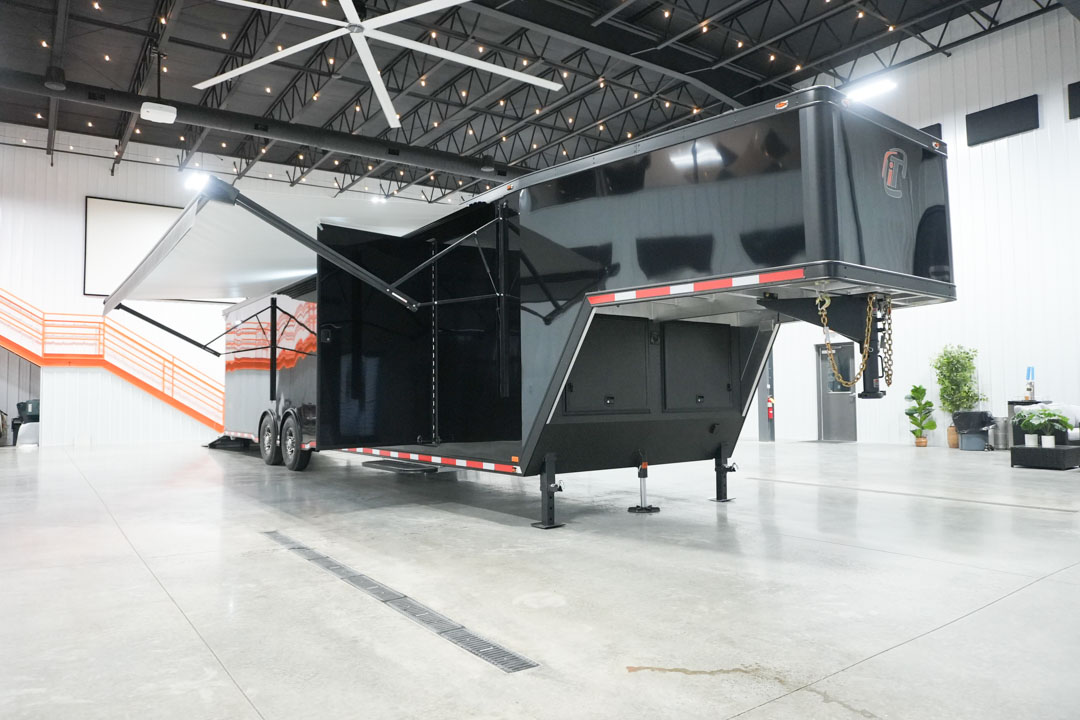

21’ Black Power Awning
This power awning offers extended coverage and ease of use.
(2) Rows Surface Mount Aluminum Airline Track
Made from high-quality aluminum, this lightweight track system provides a strong, corrosion-resistant foundation for attaching tie-downs, straps, and other securing equipment.

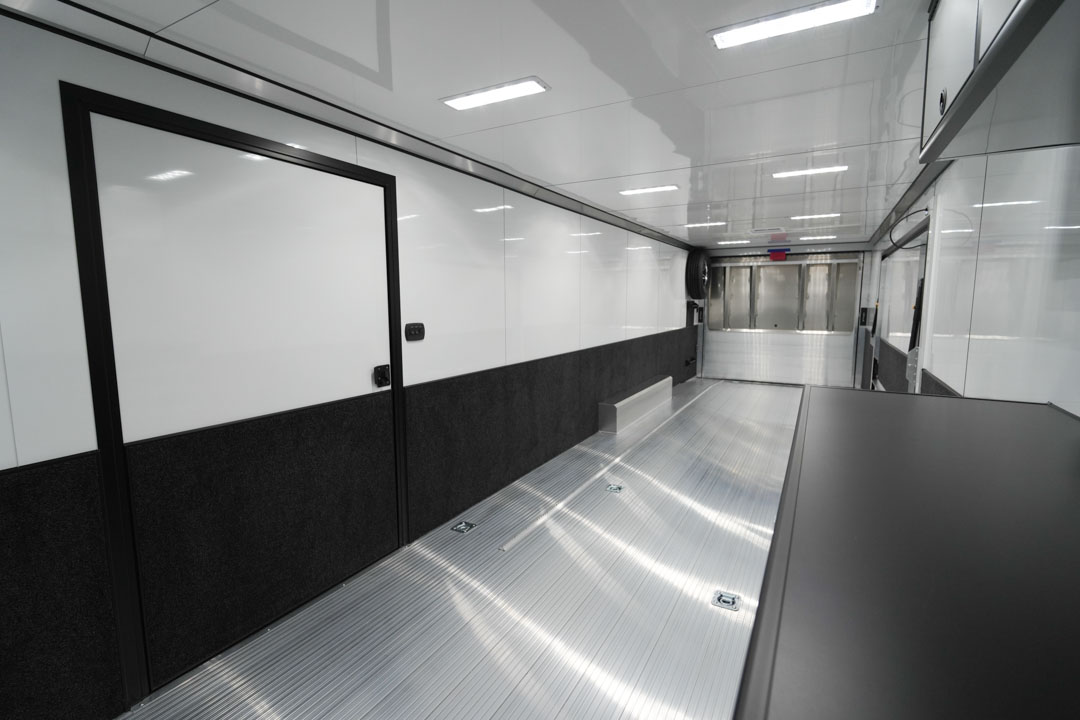

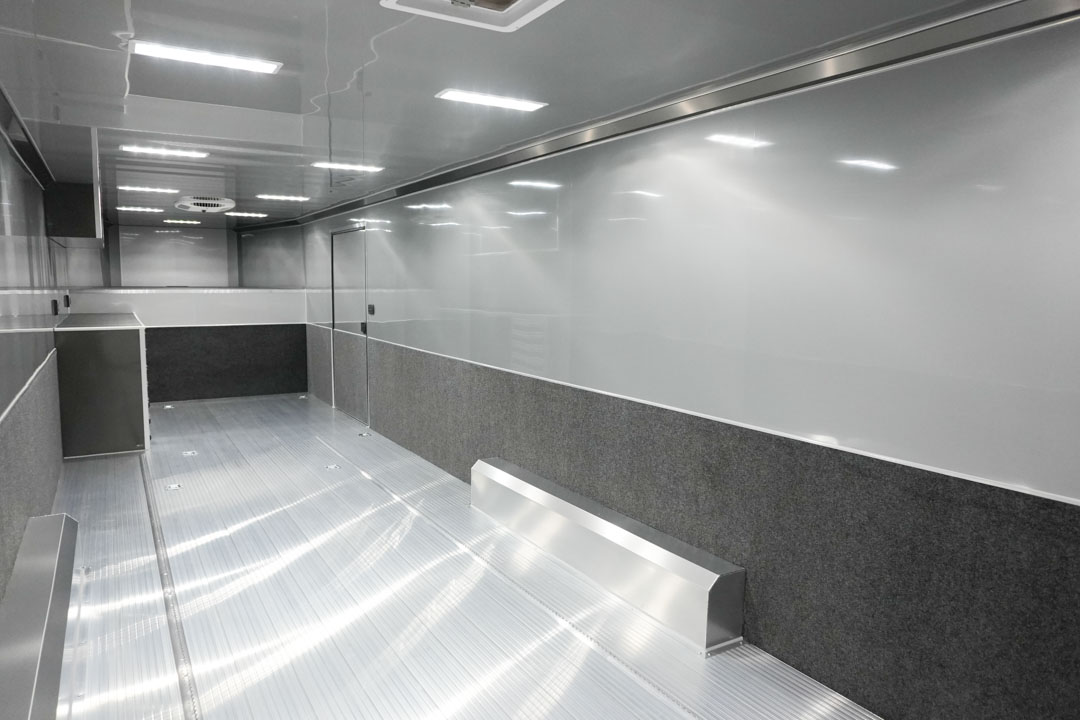

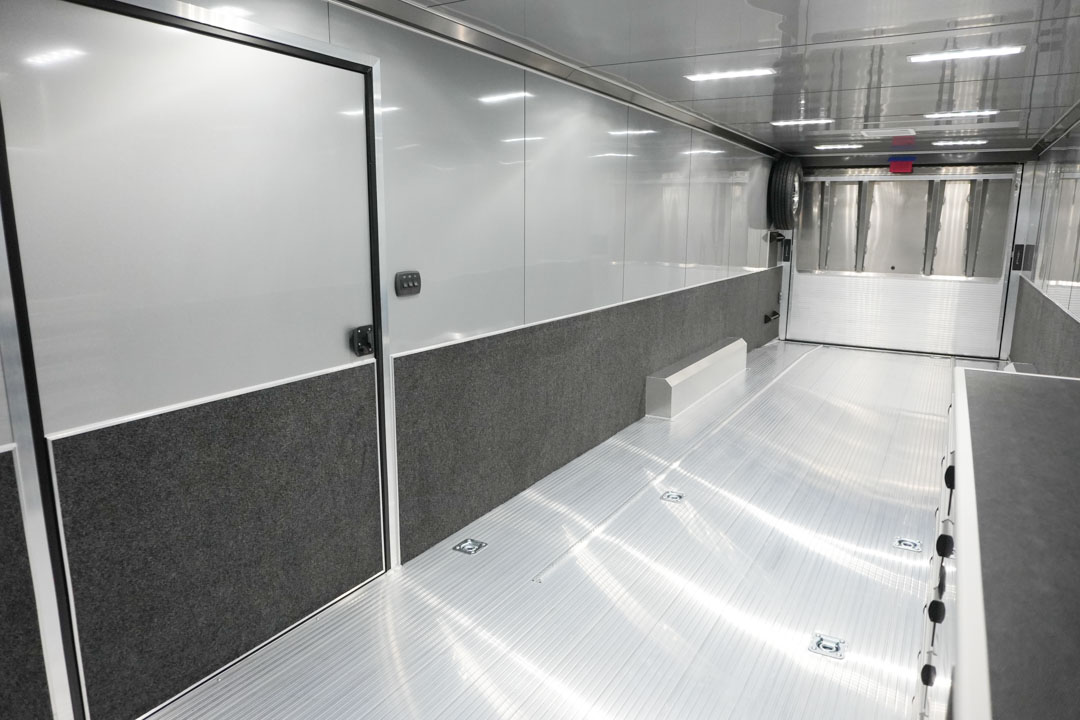

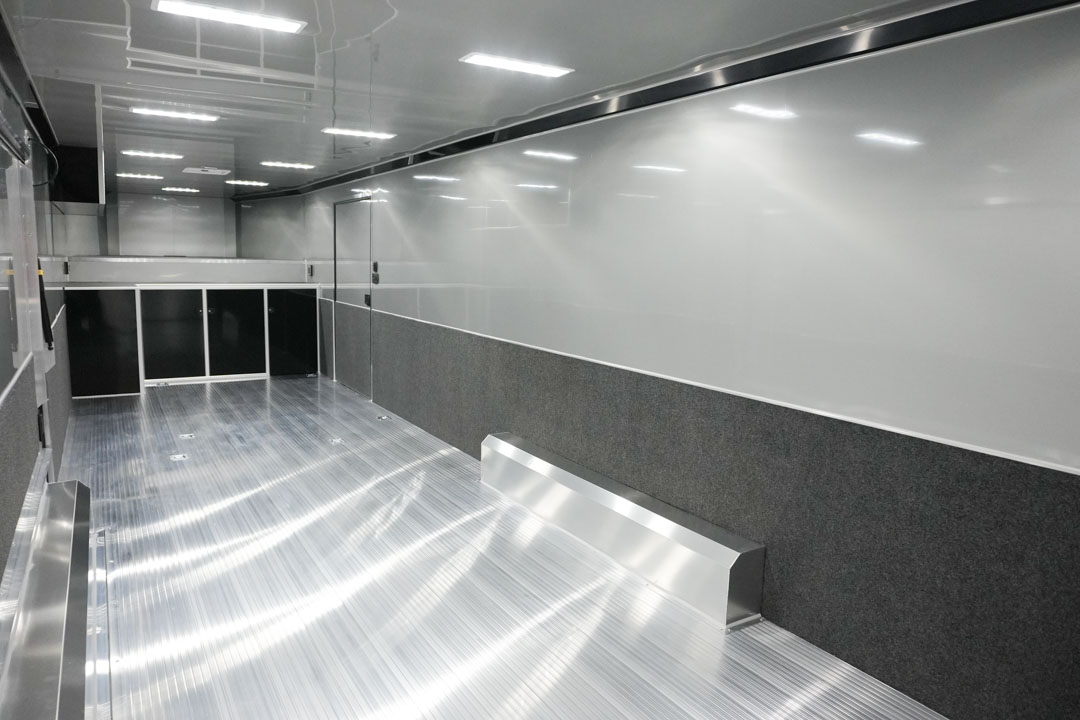

Add Carpet on Interior Walls
Carpeted Interior Walls combines secure cargo handling with added interior protection and noise reduction.
18” Strap Hangers Black Powder Coated w/ Carpet
Black powder-coated strap hangers with carpeting provide added protection and a sleek look.

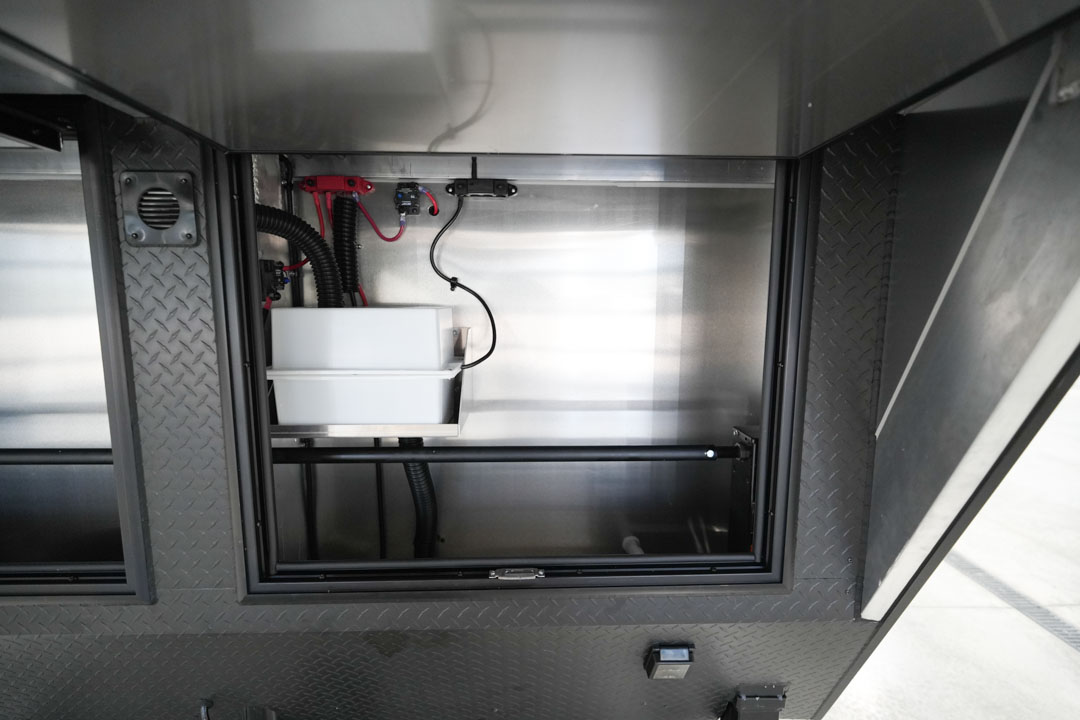

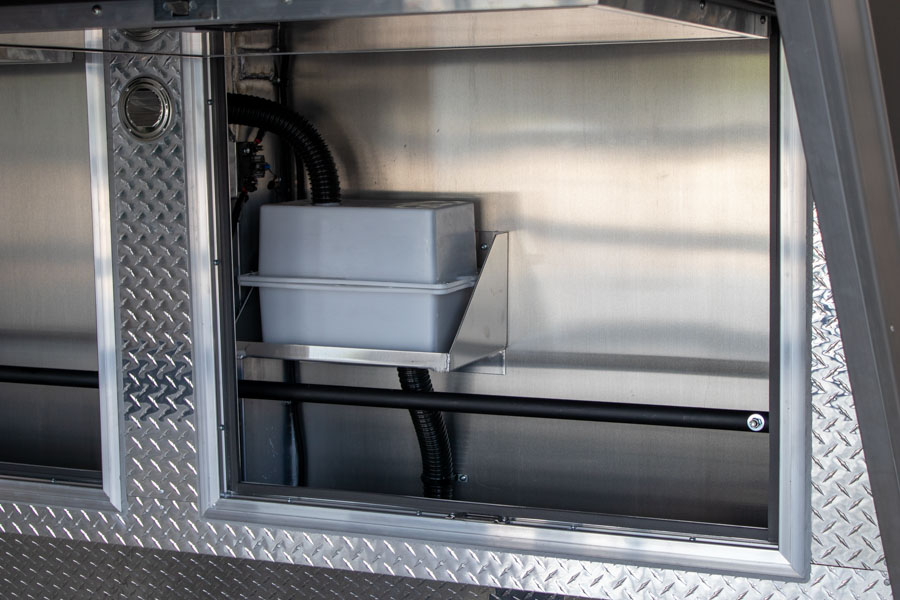

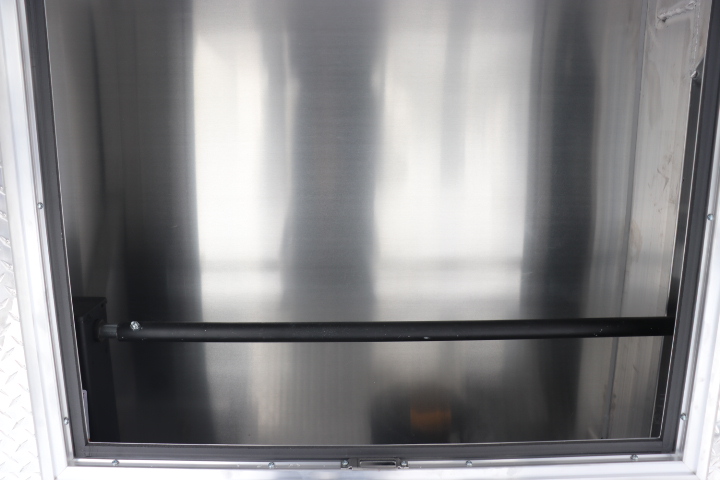

Generator Slides for Gen Box
Add sliding functionality to your generator box for easier access and use.

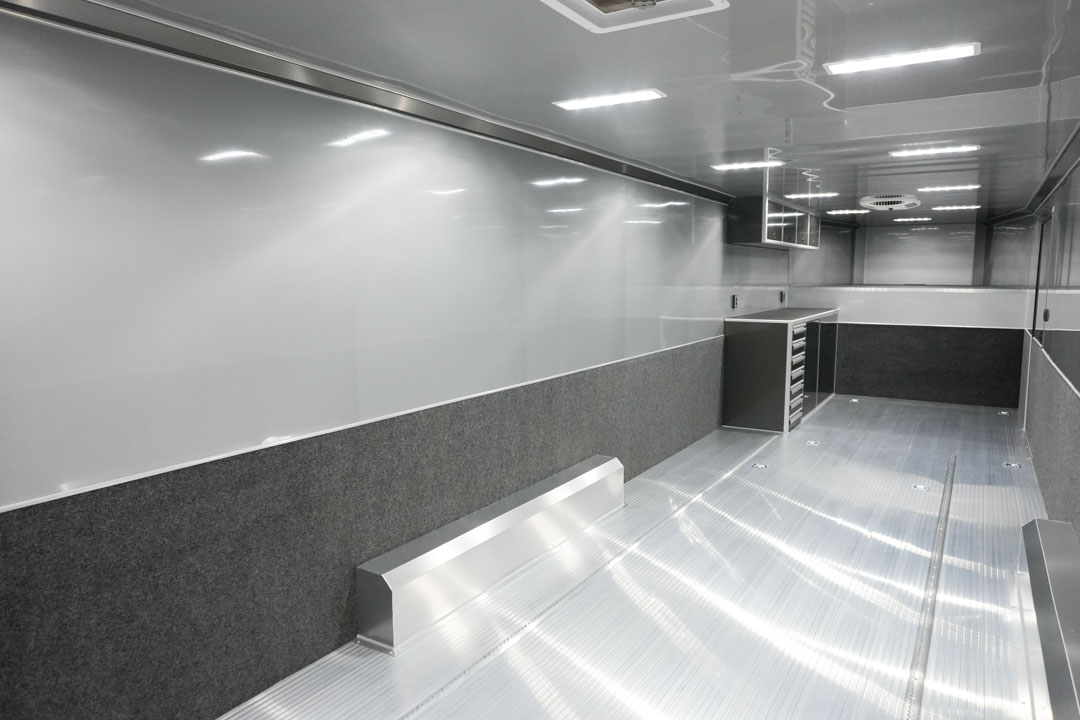

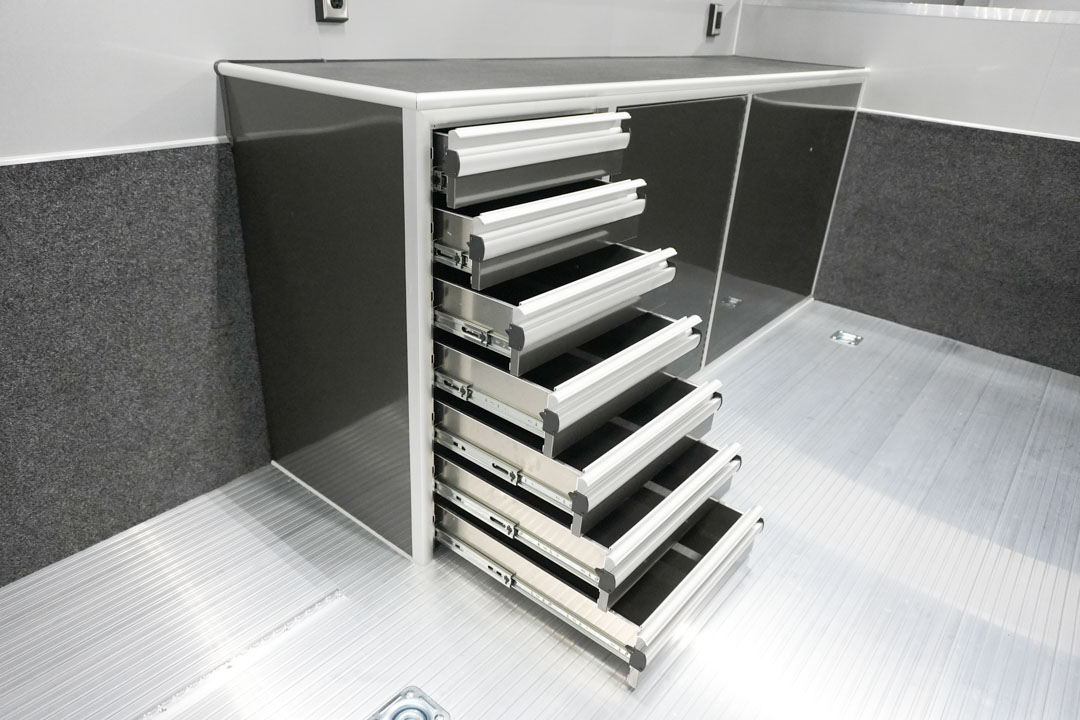

7 Drawer 24” EZ-Latch Tool Chest in Lower Cabinet
Maximize your storage space with the addition of a 7-drawer, 24" tool chest featuring EZ-latch technology.
Backup Camera w/ 7” Monitor
Enhance safety and visibility with a backup camera system that includes a 7” monitor for real-time visuals.
Aluminum Jack Holder (Jack in the Pouch) Powder Coated Black
Securely stow your jack in a convenient aluminum holder, powder-coated in black for a sleek finish.
inTech Door Caddy Mounted w/ Buttons
Keep your essentials organized and within reach with the inTech door caddy, mounted securely with buttons.
Black Anodized Exterior Package
Upgrade your trailer’s exterior look with the black anodized package for a sleek, modern finish.
48” inTech Flip Up Table w/ Exterior Mount Buttons
Available on all trailers except the 20' tag, this flip-up table adds functionality with minimal footprint.

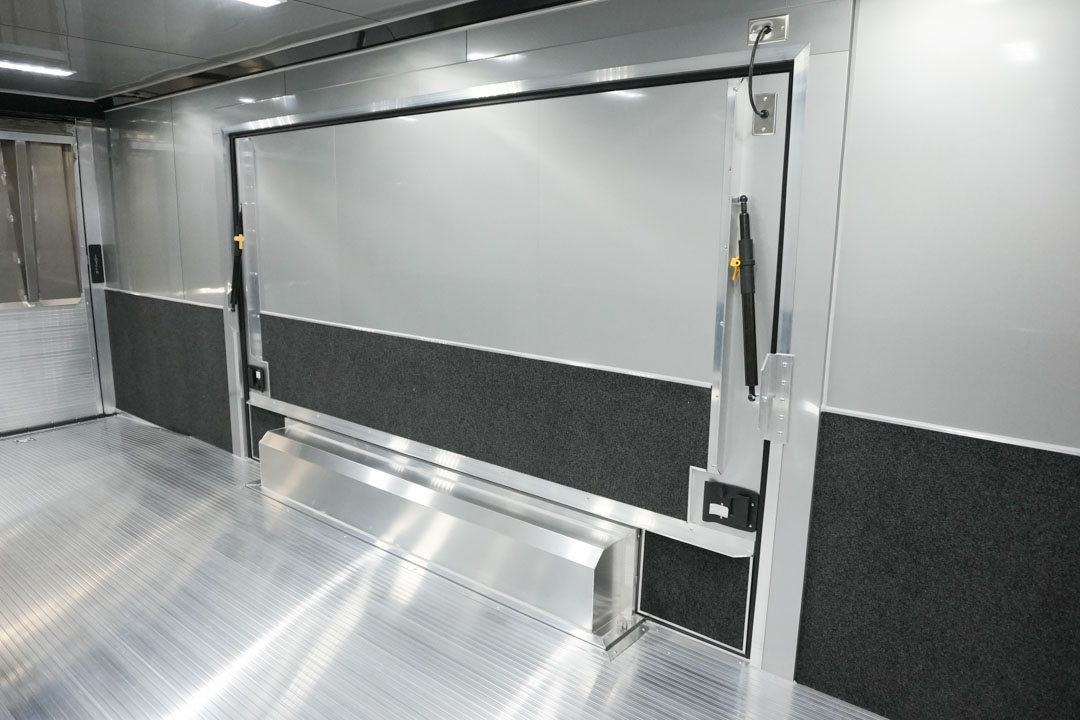

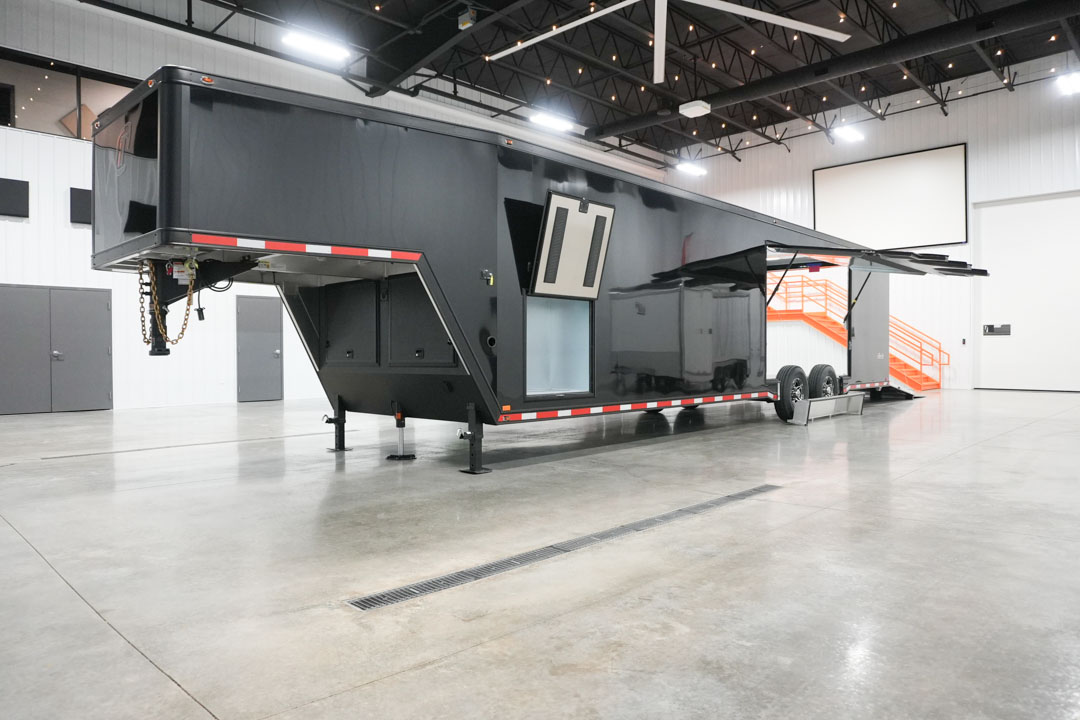

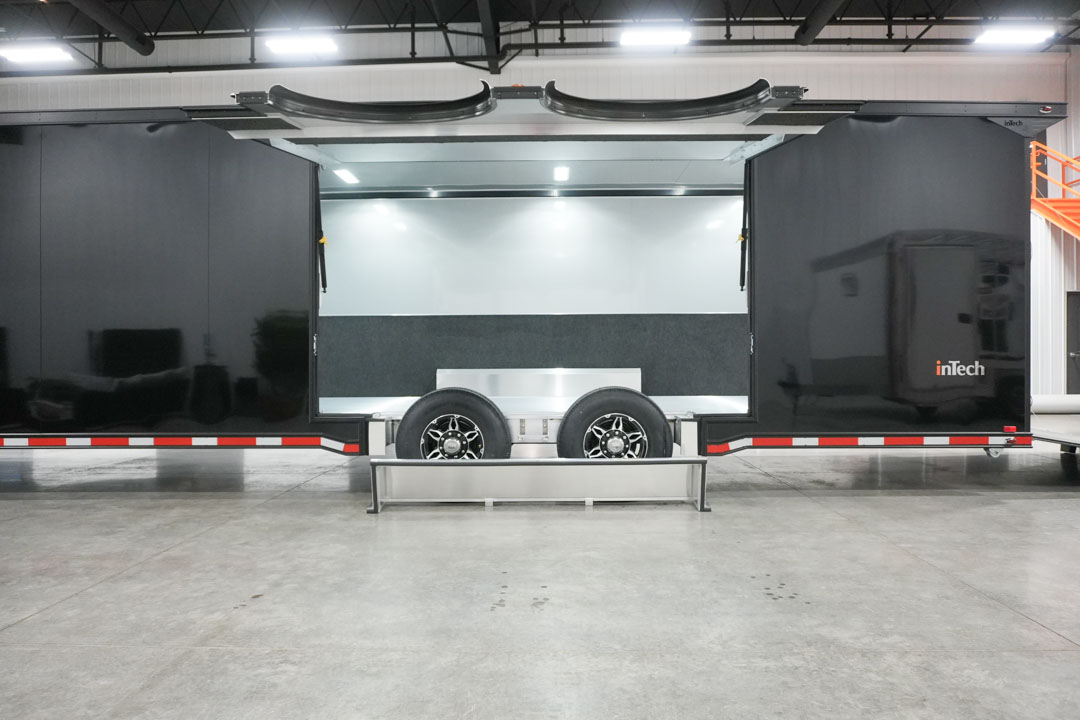

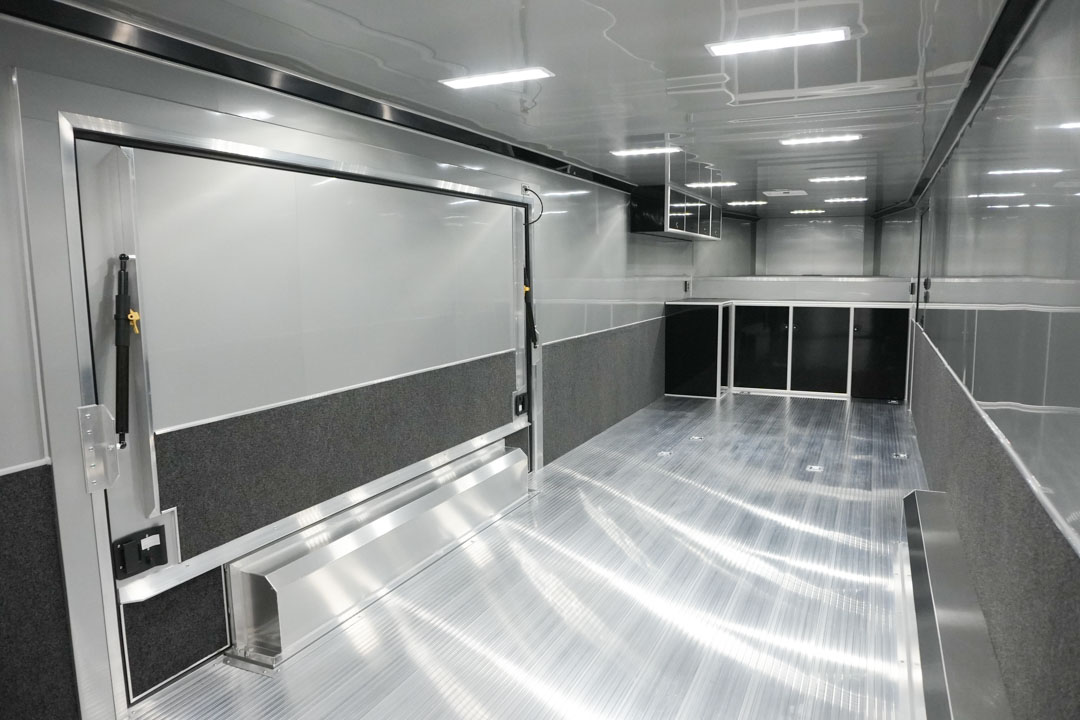

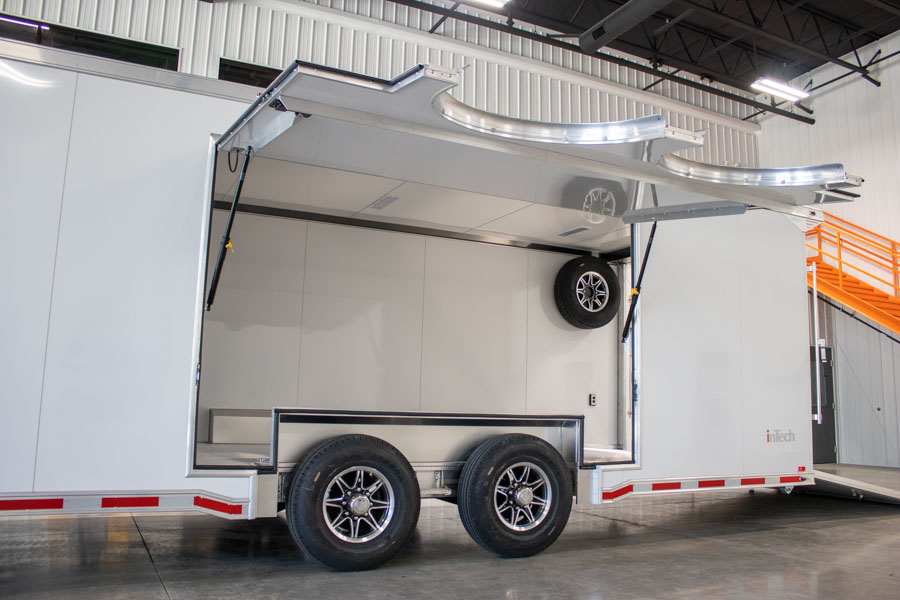

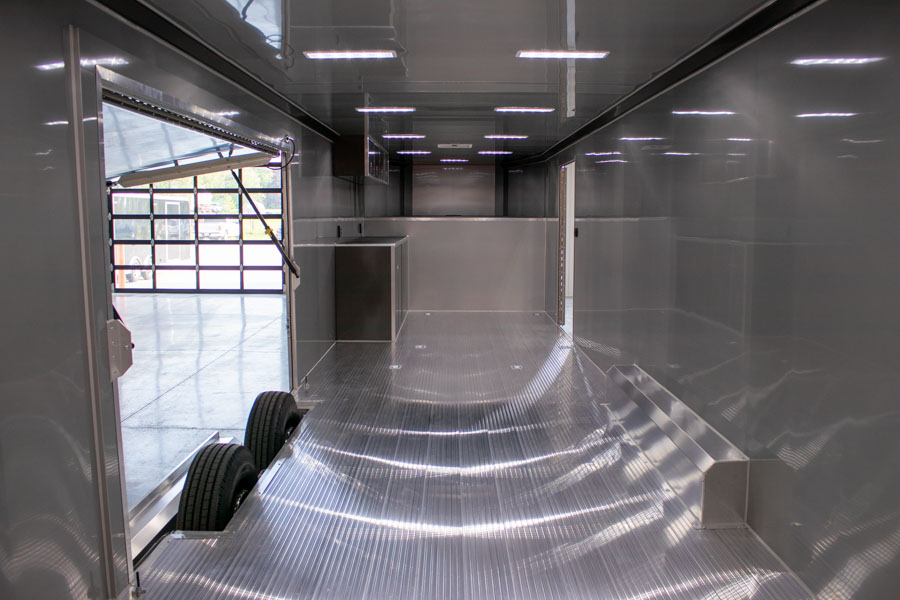

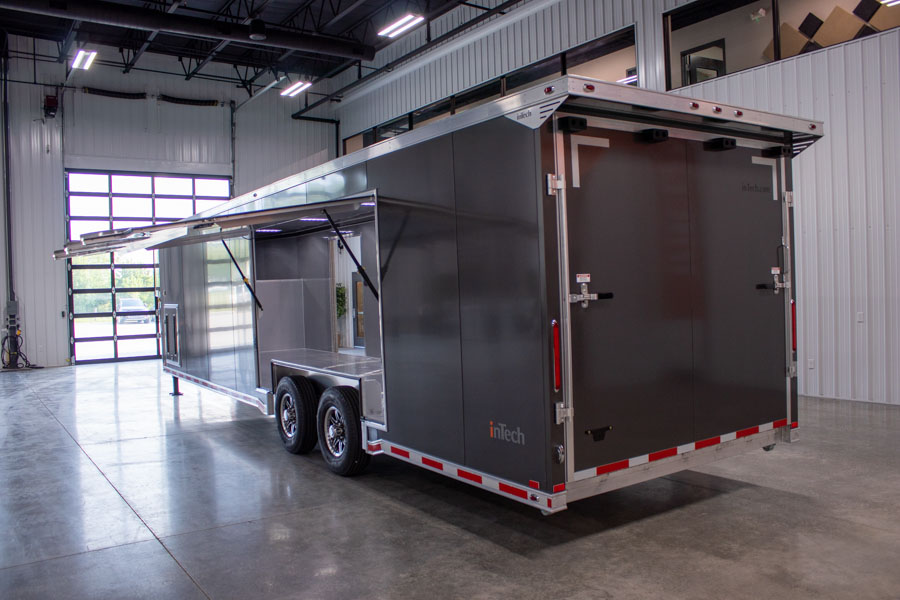

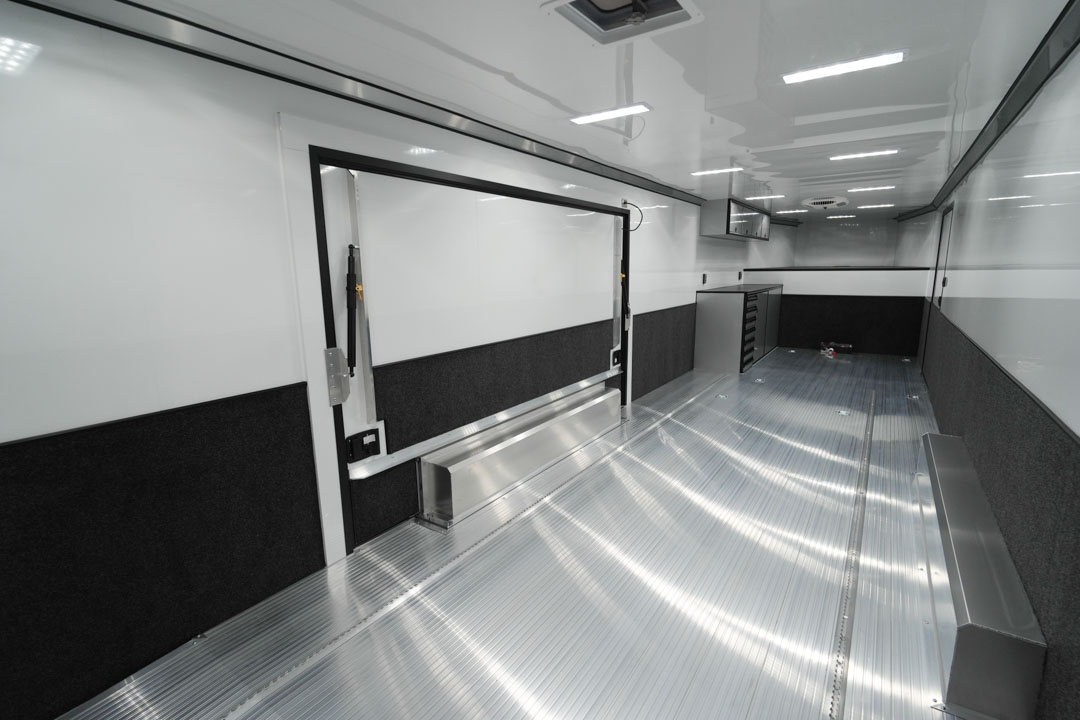

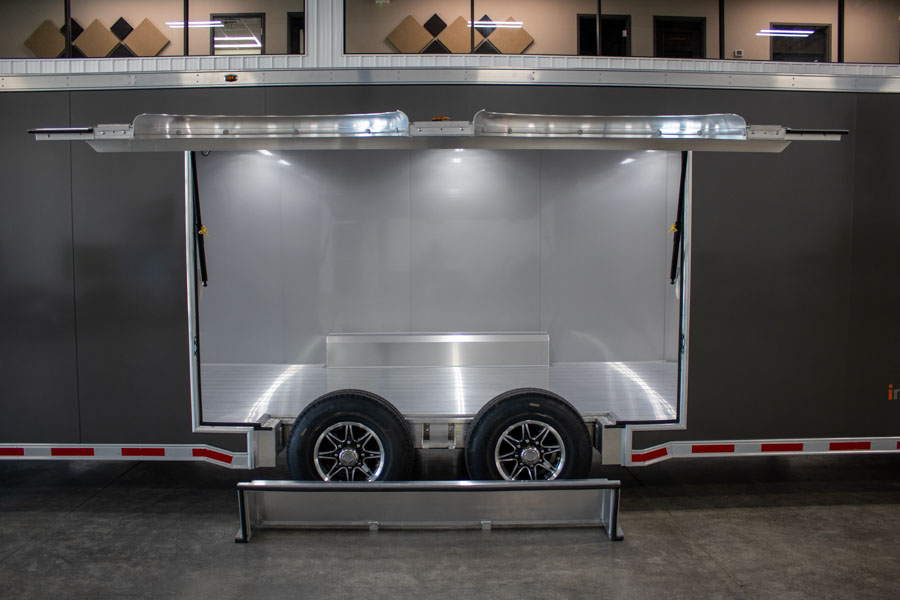

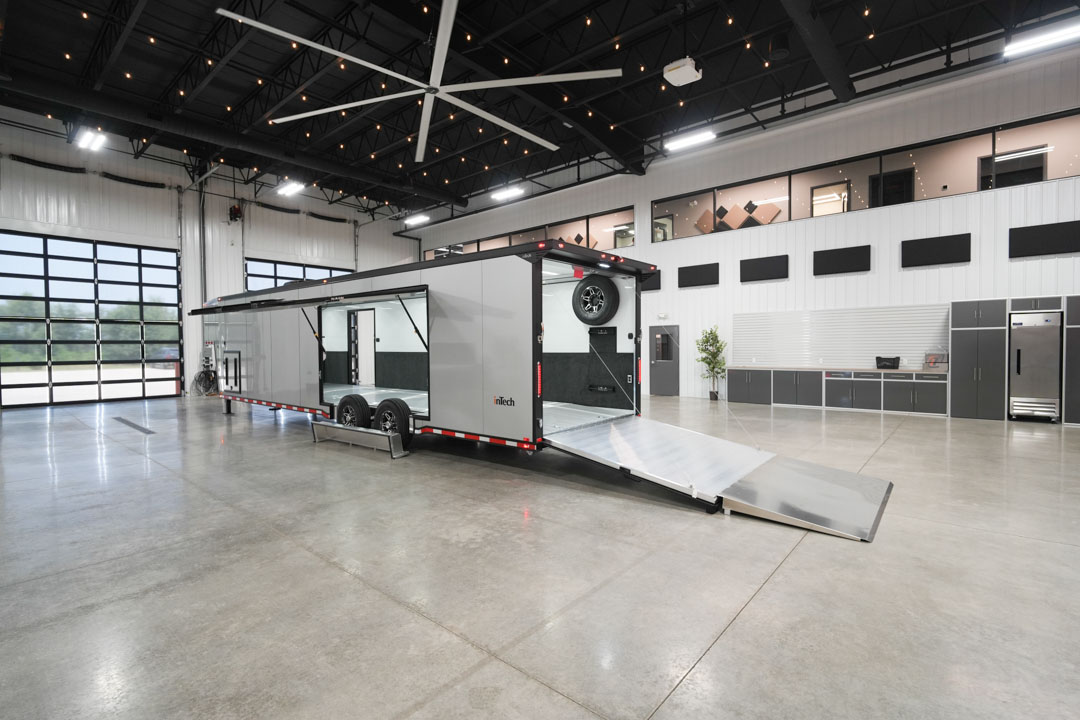

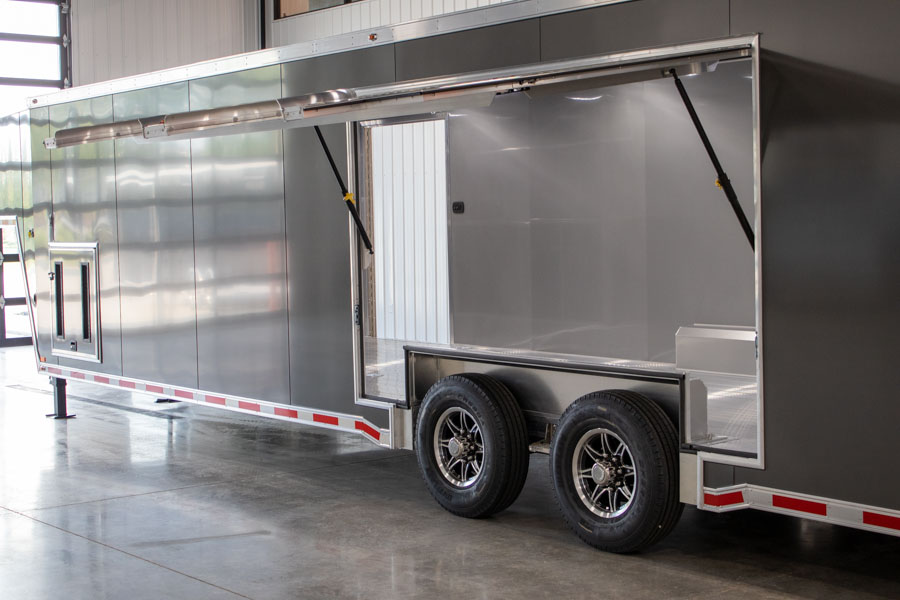

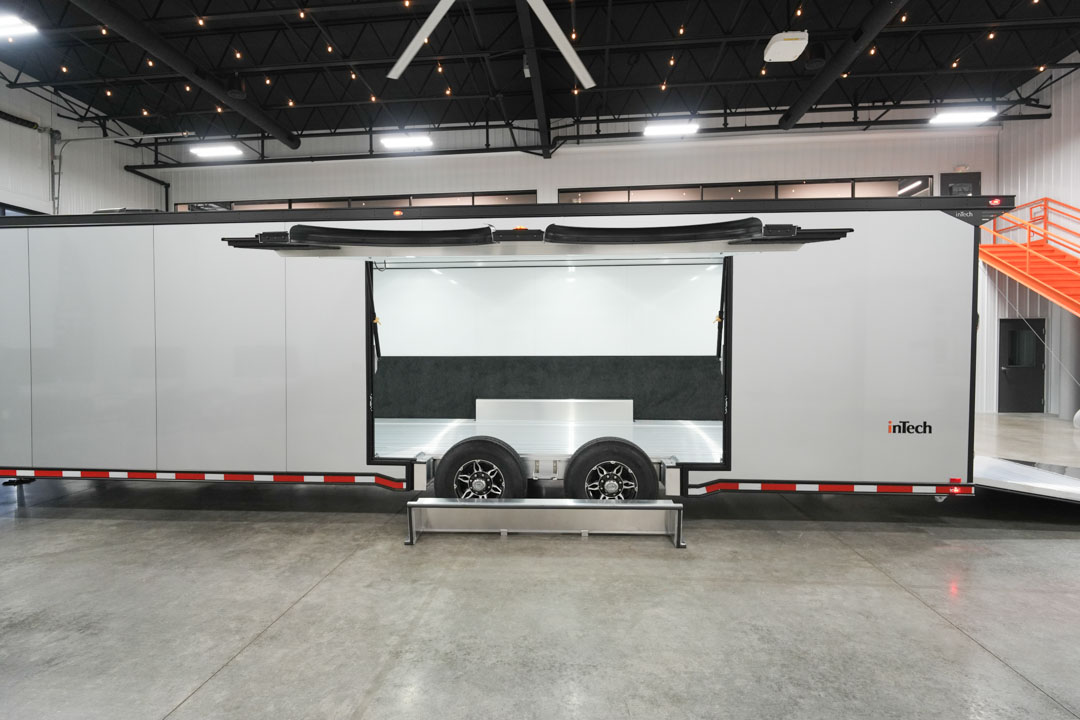

Full Access Escape Door
Simplify the loading and unloading process by adding a 10' x 6' full access escape door. Made even easier with our removable wheel box and integrated step between the axles.

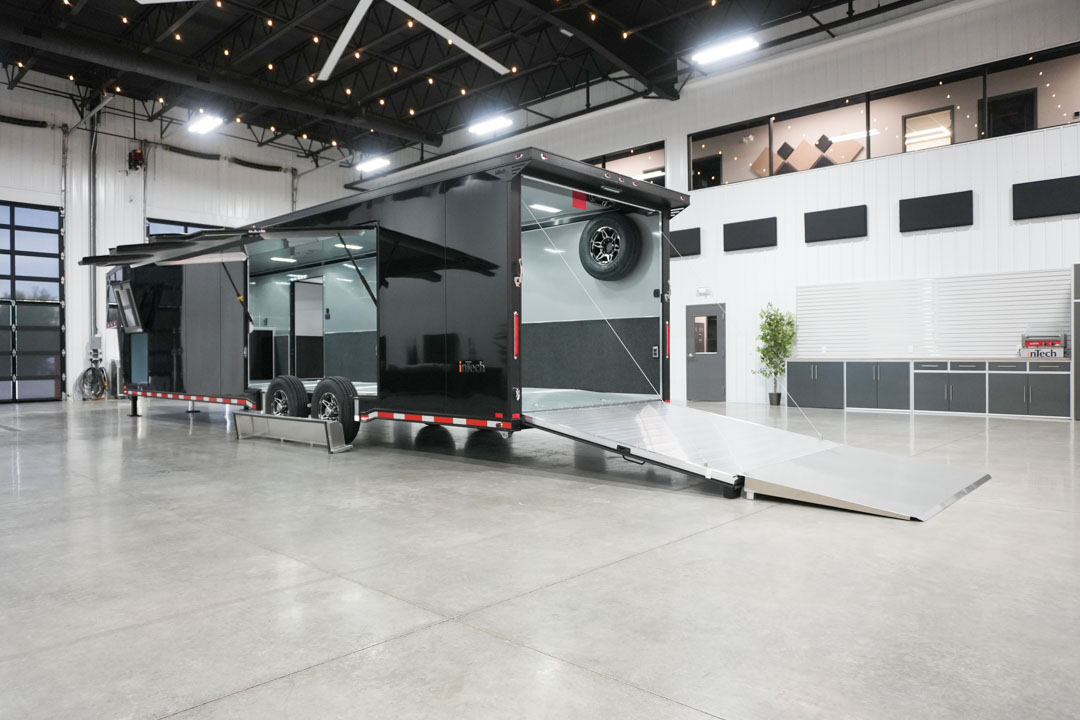

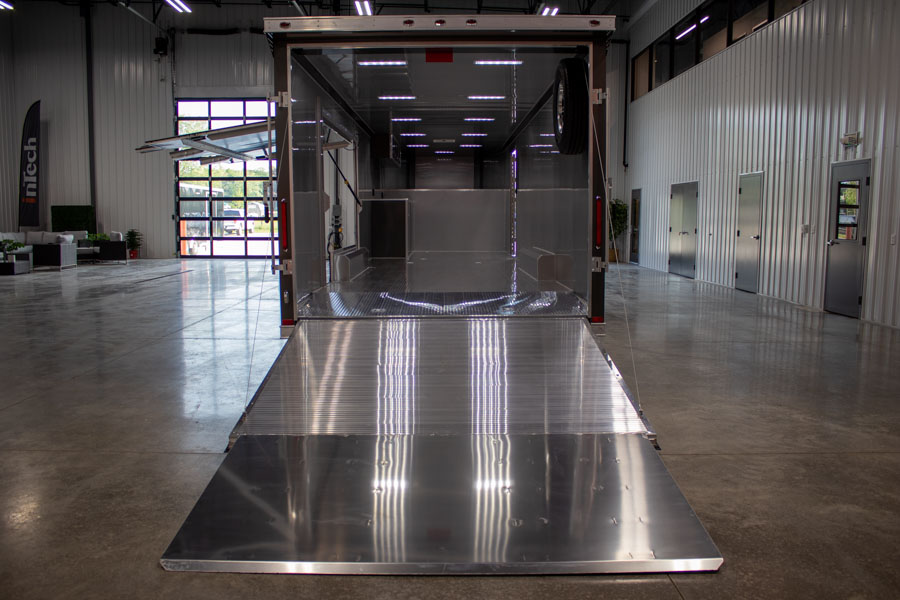

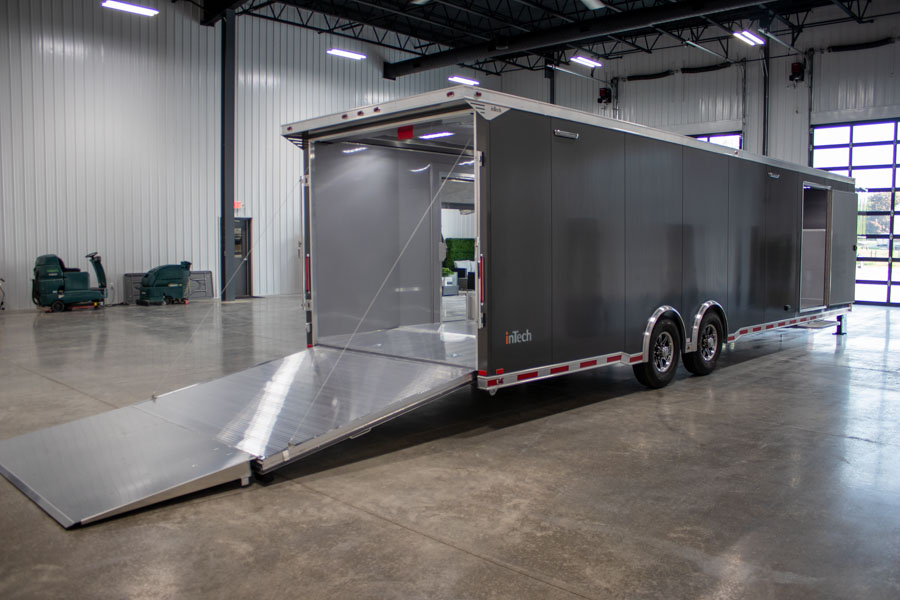

Full Width 4' Ramp Extension
Our ramp extension with 4” bumpers will significantly decrease your angle of approach for loading a vehicle with low ground clearance. It folds away and secures to the ramp door when not in use.
13,500 BTU A/C
Keep your trailer cool by adding a roof mounted A/C with manual ceiling controls

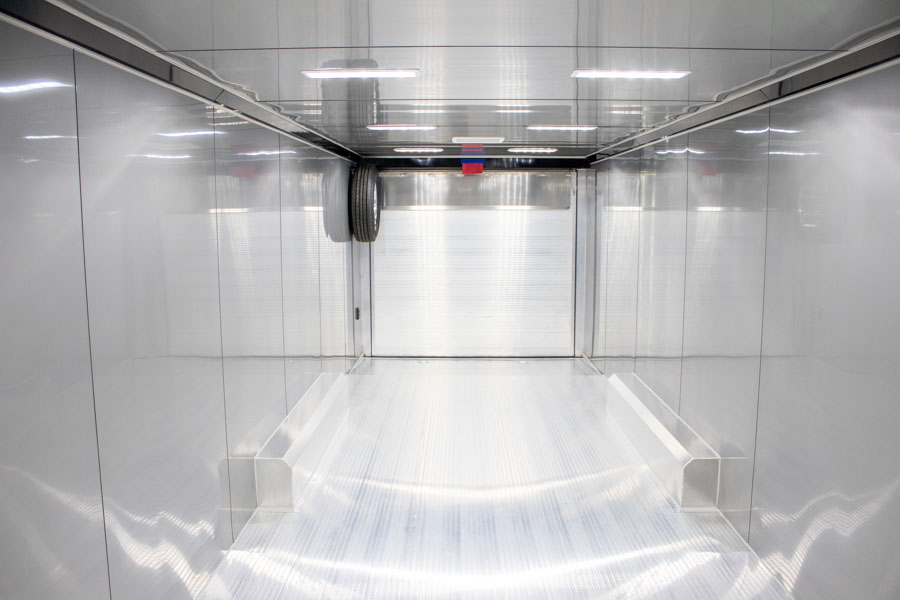

Screwless Aluminum Interior Walls & Ceiling
Upgrading from standard vinyl walls and ceiling to screwless aluminum will give your trailer a more refined look.

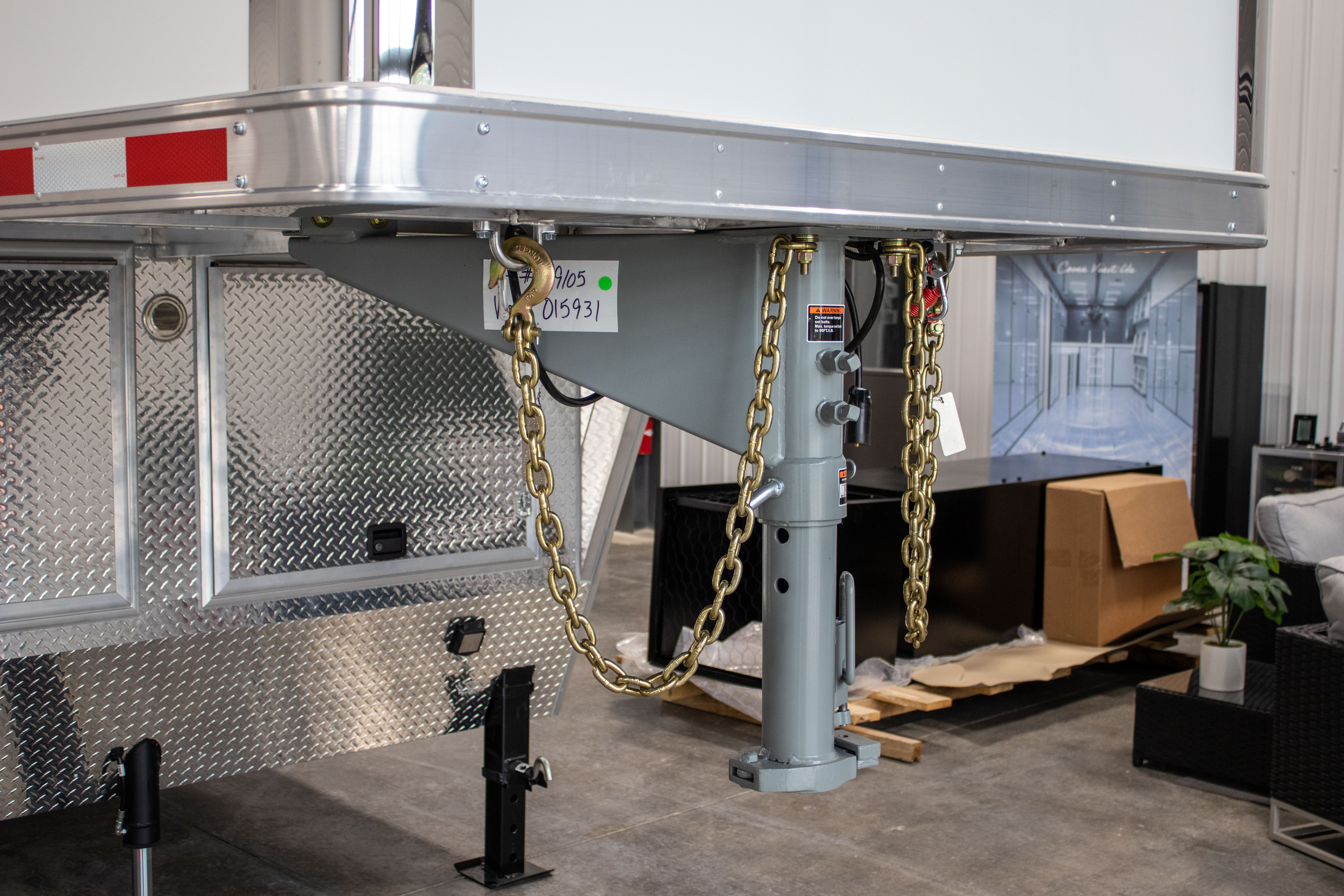

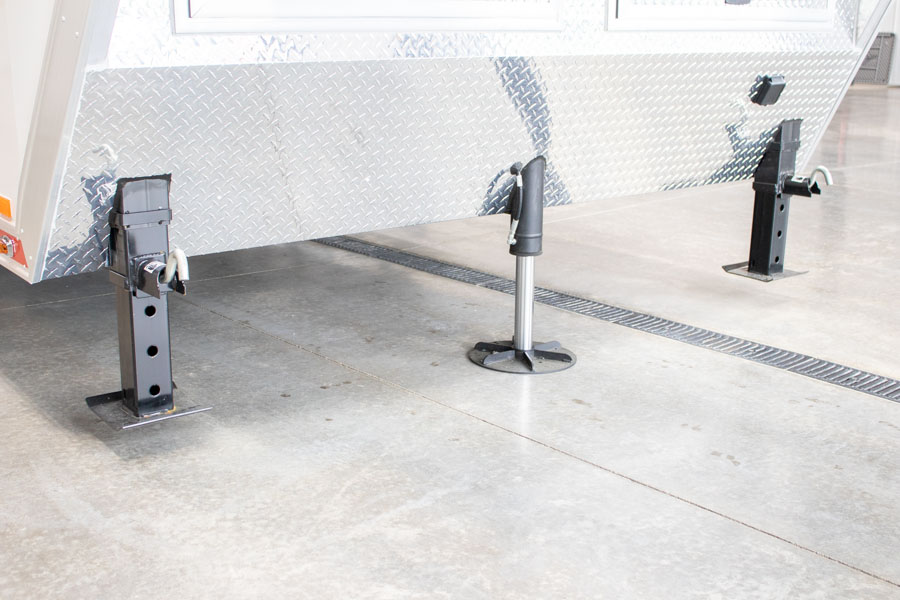

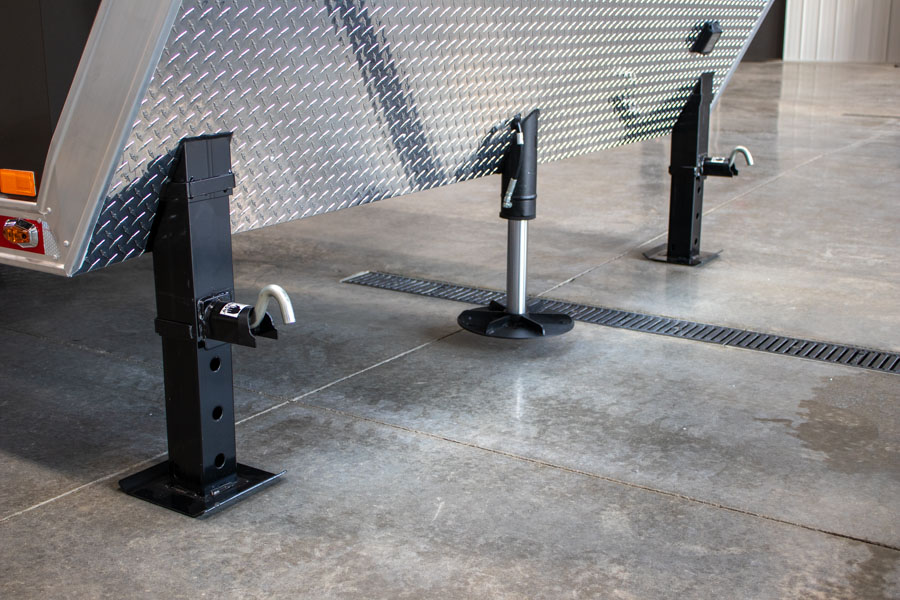

Single Post Hydraulic Jack
Tired of cranking your landing gear up and down by hand? Our single post hydraulic jack allows you to raise and lower your trailer with the push of a button.

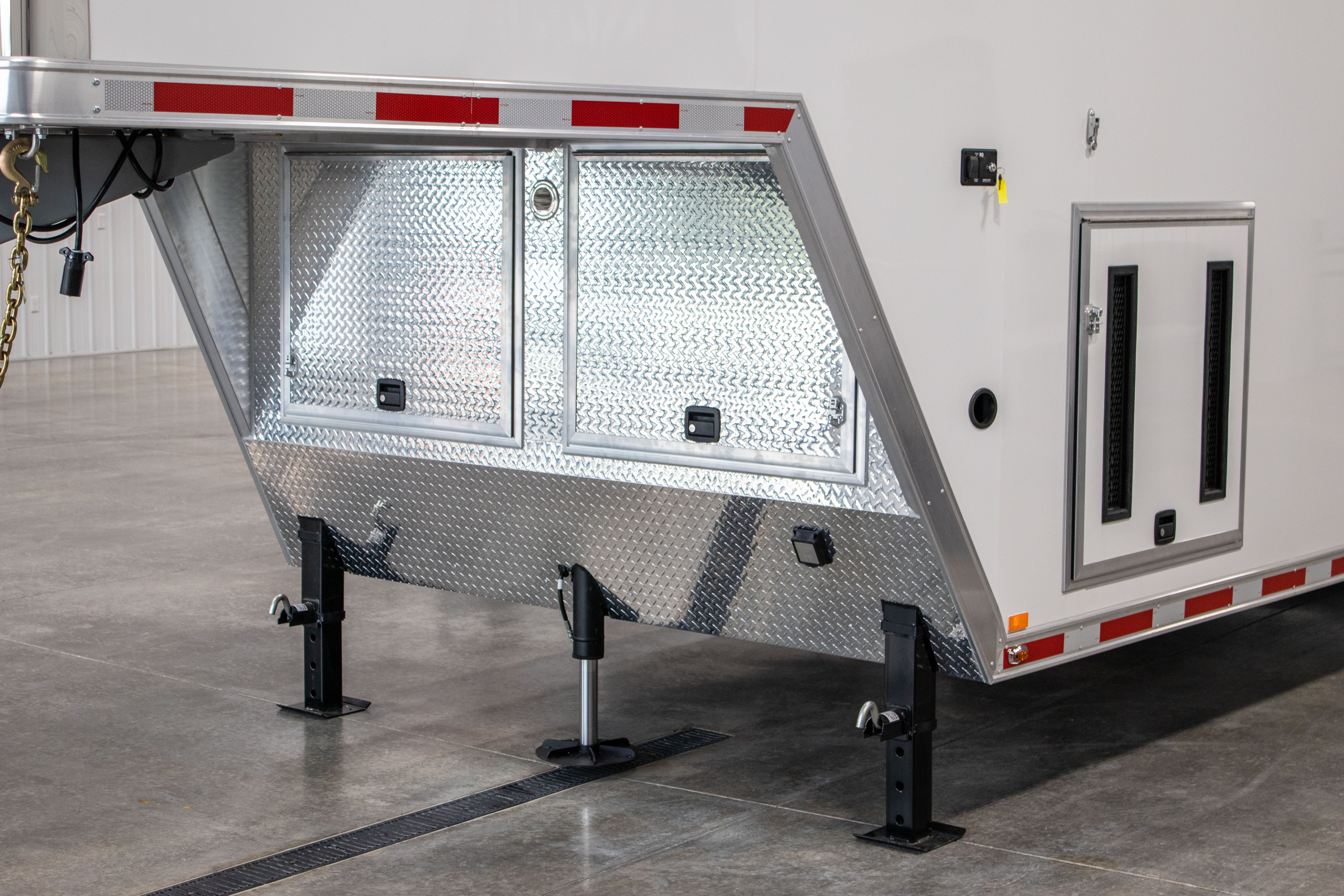

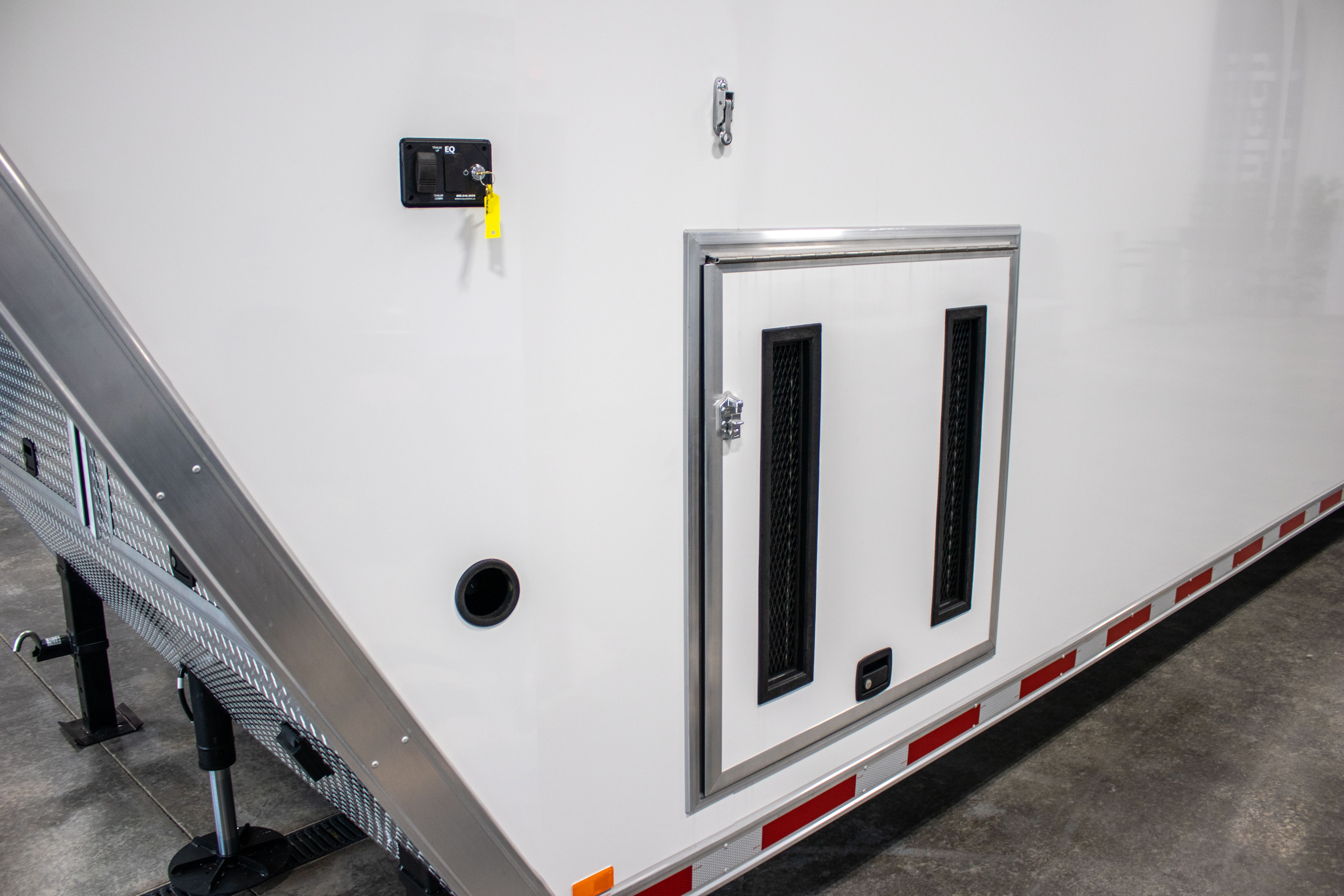

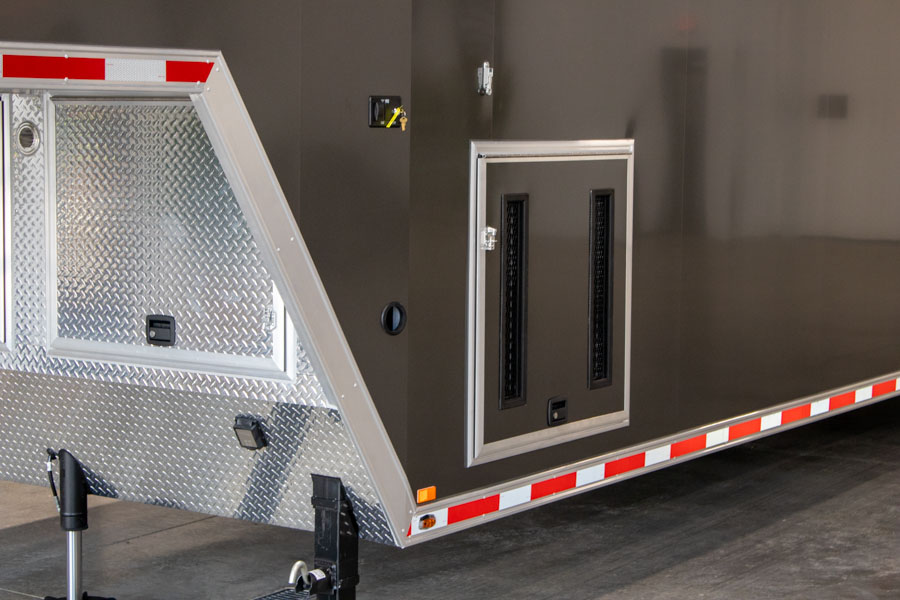

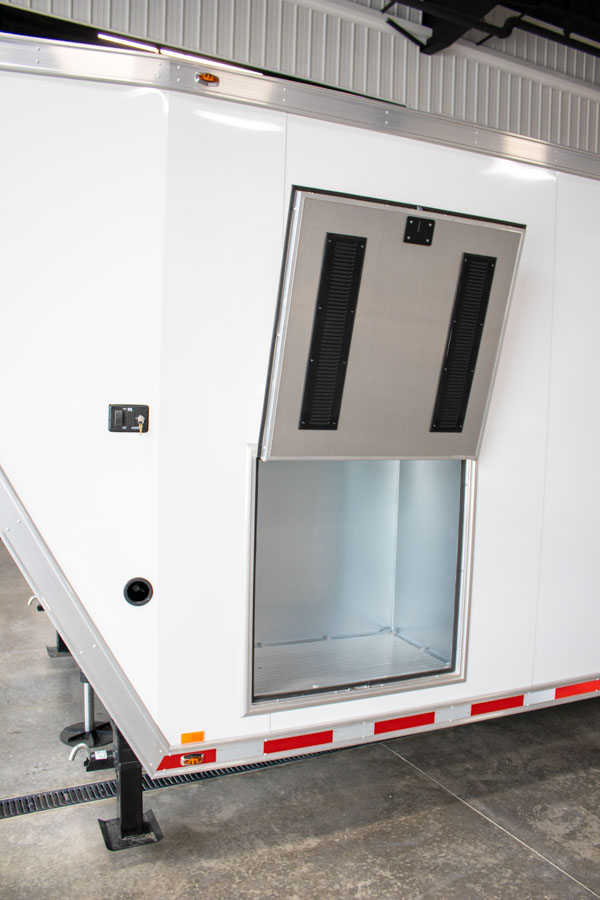

Roadside Base Cabinet to Include Generator Box & Gen Door

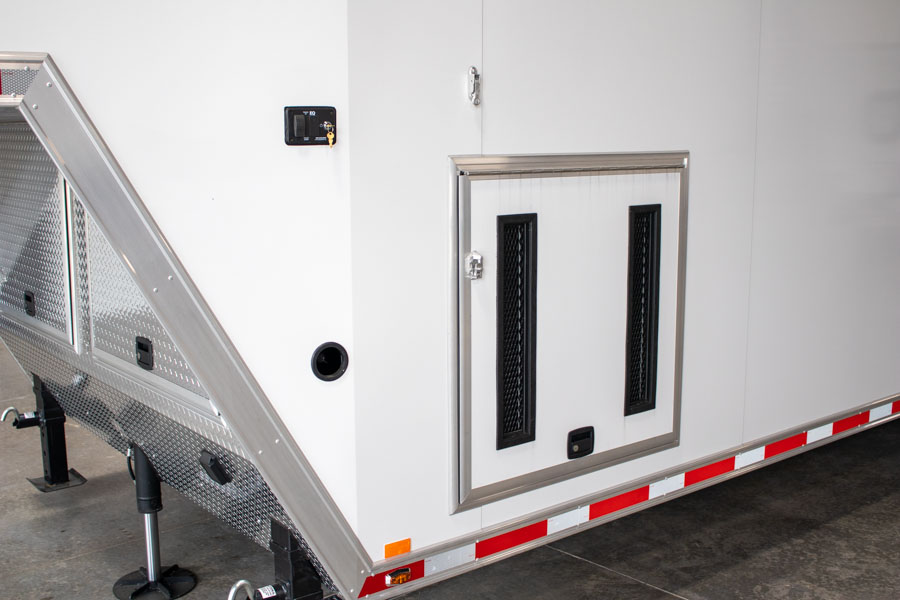

Add a dedicated space for your generator in our standard roadside base cabinets, accessible by an exterior 40” x 36” top hinged compartment door.
L-Base Cabinet w/ Generator Box & Door
When lower base cabinets are located against the riser wall and a generator box is desired, an “L” extension off the cabinets can be made to accommodate the gen. This is accessible by an exterior 40” x 36” top hinged compartment door.
Straight Base Cabinet Against Riser Wall
If our standard roadside base cabinets encroach into your preferred cargo space, we offer the option to locate them against the front riser wall.
Delete 8' Straight Base Cabinet
Need the full floor space for cargo? Remove the base cabinets and receive a credit on your order.
21’ Black Power Awning
(2) Rows Surface Mount Aluminum Airline Track
Add Carpet on Interior Walls
18” Strap Hangers Black Powder Coated w/ Carpet
Generator Slides for Gen Box
7 Drawer 24” EZ-Latch Tool Chest
Backup Camera w/ 7” Monitor
Aluminum Jack Holder (Jack in the Pouch)
inTech Door Caddy w/ Buttons
Black Anodized Exterior Package
48” inTech Flip Up Table
Full Access Escape Door
Full Width 4' Ramp Extension
13,500 BTU A/C

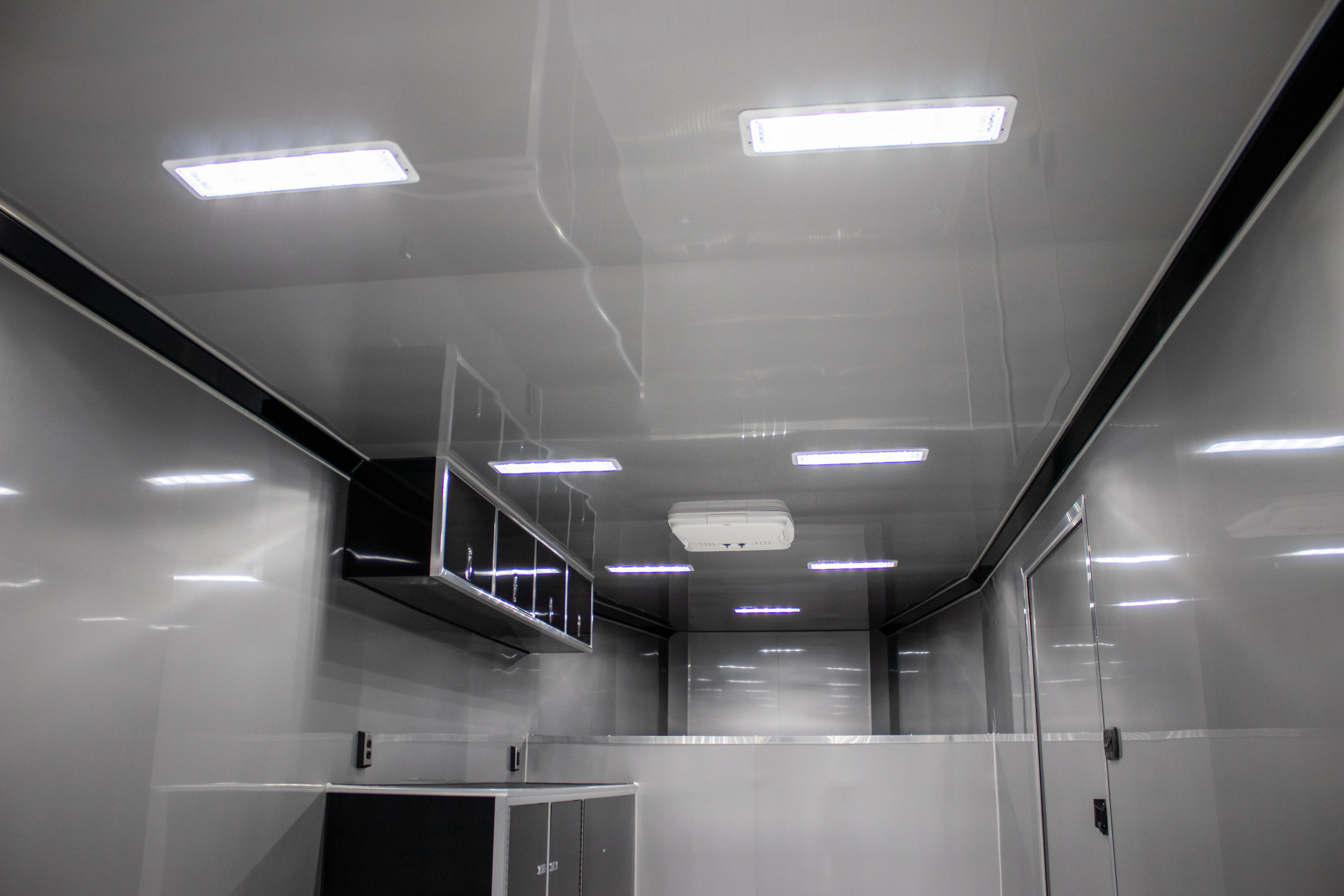

Screwless Aluminum Interior Walls & Ceiling
Single Post Hydraulic Jack
Roadside Base Cabinet to Include Generator Box & Gen Door
L-Base Cabinet w/ Generator Box & Door
Straight Base Cabinet Against Riser Wall
Delete 8' Straight Base Cabinet
Available Color Options
*Available colors are subject to change without notice.
| Choose a color to view it on the trailer. |
|---|
Polar White |
Silver Frost (Metallic) |
Black |
Med Charcoal Gray (Metallic) |
Sportsman Gray |
Matte Black (image coming soon) |
Orange (image coming soon) |
Victory Red (image coming soon) |
Leading the Way with Revolutionary Aluminum Construction.
Every inTech trailer frame is built using only aluminum tube extrusions. Aluminum renders a light-weight trailer using the strongest, longest lasting materials available. We've also selected the highest quality aluminum materials for finishing the interior and exterior of our trailers.
- Full Perimeter All-Tube Frame Construction
- Triple Tube Aluminum A-Frame Tongue
- Extruded aluminum floor & ramp with transition flap
- Premium aluminum wheels and full spare with mount
- One-piece, seamless aluminum roof
- Standard .040” thick screwless & rivetless aluminum exterior skin
(Upgrade to .050” upgrade available in Stacker models)
The Same Great Quality You've Come to Expect from inTech.
Our focus on quality starts during the design process and continues through production, resulting in the absolute finest fit, finish and attention to detail in the trailer industry. The Lite series is no exception. Built right alongside our premium custom trailers, we spare no expense in bringing you a high-end car hauler that you can trust.
- Engineered to last, with a 5-year transferable structural warranty
- Built by the same skilled craftsmen that produce our signature custom trailers
- Name brand components & reputable suppliers
- Aluminum cabinetry and other components built here in our on-site fabrication shop
A Premium Car Hauler
Without the Wait.
By limiting the size offerings and available options, we are able to streamline production of the Lite Series models, allowing for shorter lead times. However, we include many of our most popular features in our Lite Series trailers standard, resulting in a value-priced trailer without sacrificing our same great quality and premium fit and finish!
- Much shorter lead times than our custom trailers
- Premium standard features included on all models
- Limited options to streamline our production process
- Several models to choose from in multiple lengths and capacities
Continuous Improvement & Innovation.
Passion for our products drives us to continuously evolve, develop, and improve. With over 20 proprietary extrusions and unique processes like anodizing trims, you won't find another trailer manufacturer committed to creating a trailer that looks and performs better than inTech!
- Extensive market research and customer input has been applied to deliver the ultimate light weight car haulers
- More equipped with standard features than ever before
- Optional escape doors are now 6' tall to accommodate a wider range of cargo
- Aesthetically appealing form and finishes without sacrificing quality
